CAD Audio WX200 2-Person Wireless Fixed-Frequency Handheld Microphone System - 563 to 565 MHz

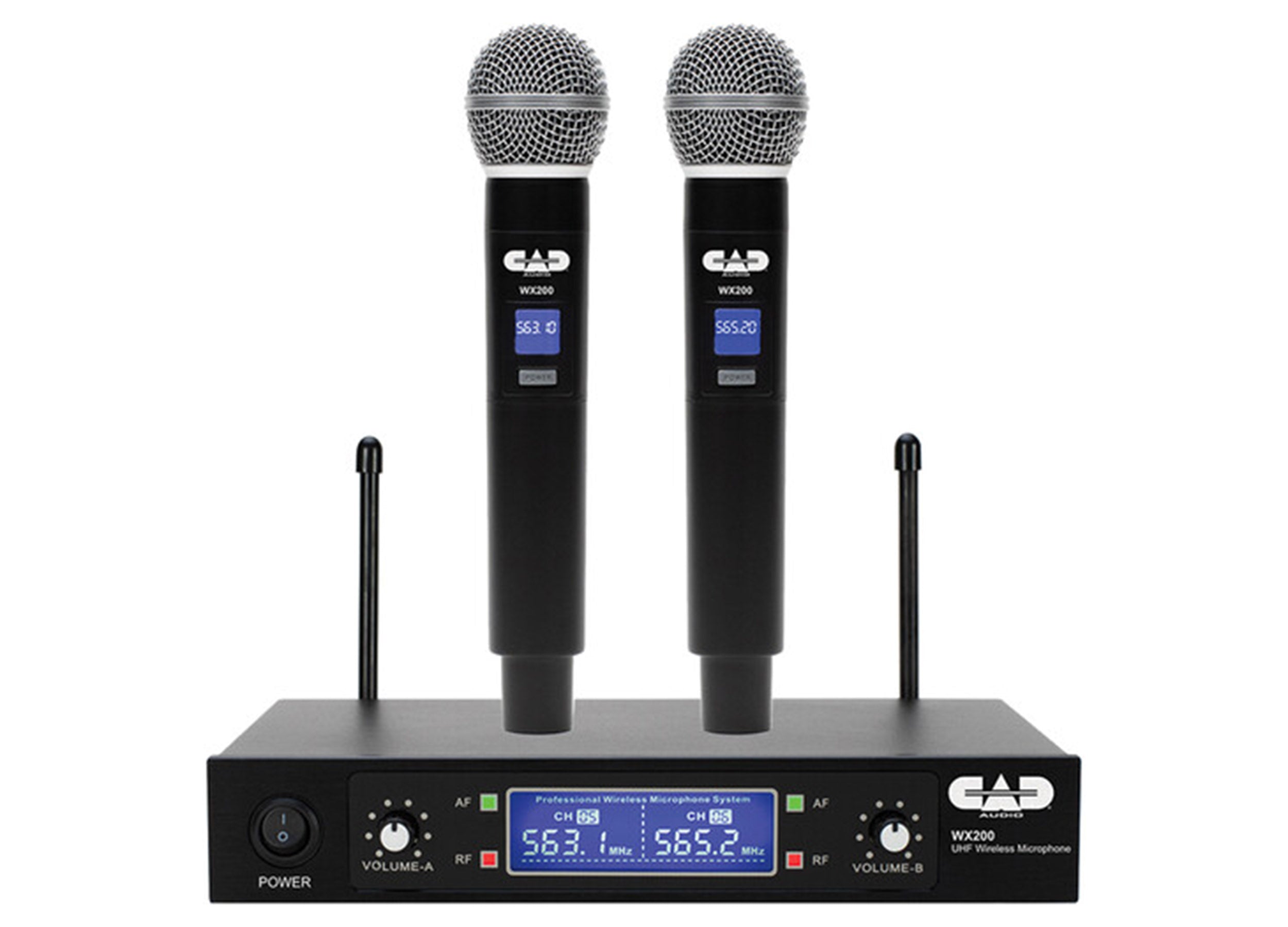

The CAD Audio WX200 is a Fixed Frequency Dual Handheld Wireless System. Each system includes a receiver, 2 handheld transmitters, power supply, and 3.275’ (1m) unbalanced ¼” cable. The receiver is an all-metal chassis and features separate displays and volume controls for each channel. AF and RF indicators on each channel confirm connection and signal transmission between transmitters and receiver. Additionally, each receiver features both single XLR balanced outputs for each channel, or a combined ¼” output for increased flexibility of use. Advanced antenna technology provides up to 164’ (50m) of operating distance between transmitter and receiver. Each handheld transmitter displays the current frequency and features an easy-access on/off switch. 2 AA batteries (not included) power each transmitter, providing up to 10 hours of use.

Product Specifications:

System:

Wireless Technology: Analog UHF

Diversity: Non-Diversity

RF Frequency Band: 563 to 565 MHz

Number of RF Channel Frequencies: 2

Max Operating Range: 164' / 50 m (Line of Sight)

Max Transmitters per Band: 2

Dynamic Range: >100 dB

Encryption: No

Built-In Recorder: No

Mobile App Compatible: No

Receiver:

Receiver Type: 1x Tabletop

Mounting Options: No

Antenna: 2x Fixed External (Rear-Mount)

Number of Audio Channels: 2

Audio I/O:

2x XLR 3-Pin Balanced Output

1x 1/4" TS Unbalanced Output

Network I/O: No

Word Clock I/O: No

USB/Lightning Connectivity: No

Frequency Response: 30 Hz to 18 kHz

Display: LCD (Non-Backlit)

Power Requirements: AC/DC Power Adapter

Transmitters:

Included Transmitters: 2x Handheld

RF Output Power: 5 mW

Antenna: Fixed External

Input Level: Microphone

Audio I/O: No

Bias/Plug-In & Phantom Power:

Bias/Plug-In Power is Unspecified by Manufacturer

No Phantom Support

USB I/O: No

Muting: Off/On Switch

Auto-Level/Gain: No

Display: Backlit LCD

Microphones:

Microphone Type: 2x Handheld

Polar Pattern: Cardioid

Frequency Response: 40 Hz to 16 kHz

Color: Black

Power:

Transmitter Battery Type: 2x AA

Transmitter Battery Life: 10 Hours

Input Power: 12 to 15 VDC at 450 mA

Physical:

Environmental Resistance: No

Housing: Metal

Dimensions:

Receiver: 14.2 x 10.2 x 2.4" / 36.1 x 25.9 x 6.1 cm

Transmitter: Not Specified

Weight: 3.2 lbs. / 1.5 kg

Transmitter: Not Specified

Shipping Weight: 3.28 lbs.

Shipping Dimensions (LxWxH): 14.5 x 10 x 2.3"
