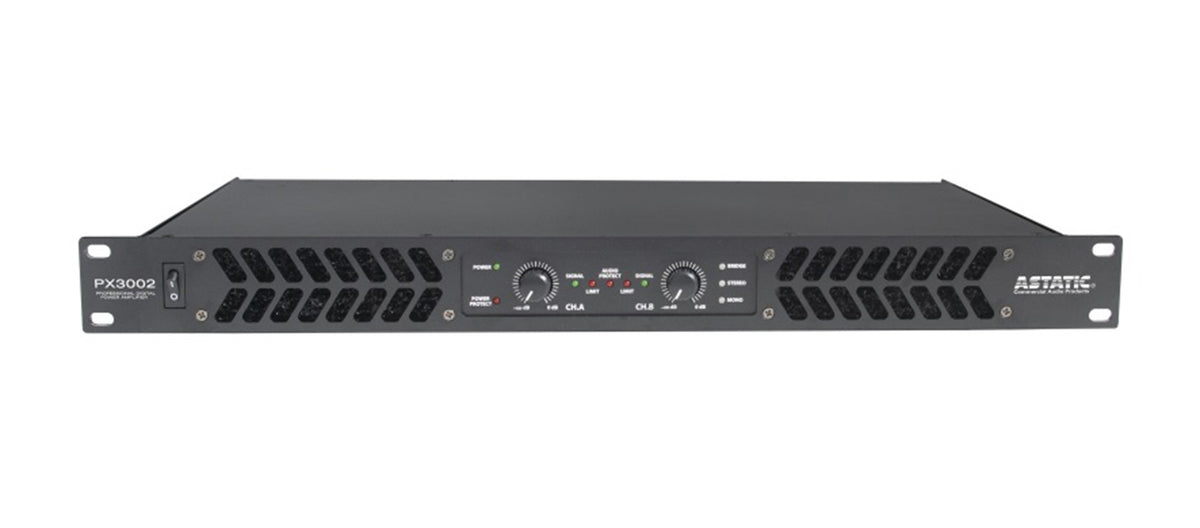

The CADAudio PX3002 Astatic is a professional two-channel Class-D power amplifier designed for commercial installed audio, portable sound systems, houses of worship, educational facilities, and corporate AV applications. Its compact 1U, 19-inch rackmount chassis delivers efficient amplification while conserving valuable rack space. The high-efficiency switch-mode power supply with soft-start supports reliable operation in demanding audio environments.

Designed for flexible system configurations, the PX3002 supports stereo, mono parallel, and bridge operating modes. It delivers 2 × 150W at 8 ohms, 2 × 300W at 4 ohms, and up to 600W in bridged operation at 4 ohms. Selectable input sensitivity, a switchable 75Hz low-cut filter, and an integrated peak limiter help provide controlled performance for compatible loudspeaker systems.

The CADAudio PX3002 includes balanced XLR inputs, XLR loop-through outputs, and three Speakon speaker connections for channel A, channel B, and bridge operation. Intelligent temperature-controlled fan cooling helps manage heat during operation, while comprehensive protection circuitry safeguards against DC faults, overheating, overloads, and short circuits. A ground lift switch also helps address unwanted hum caused by ground loops.

Key Features

• Two-channel Class-D power amplifier.
• 2 × 150W at 8 ohms stereo.
• 2 × 300W at 4 ohms stereo.
• 600W bridged output at 4 ohms.
• Compact 1U, 19-inch rackmount design.
• Stereo, mono parallel, and bridge modes.
• Selectable input sensitivity.
• Switchable 75Hz low-cut filter.
• Integrated peak limiter.
• Balanced XLR inputs and loop outputs.
• Three Speakon speaker outputs.
• Temperature-controlled variable-speed fans.
• Comprehensive protection circuitry.
• Ground lift switch for reducing ground-loop hum.

Ideal For

• Commercial installed sound systems.
• Houses of worship.
• Educational institutions.
• Corporate AV installations.
• Portable PA systems.
• Small and medium-sized venue sound systems.
• Rack-mounted audio equipment setups.
• Professional loudspeaker systems requiring flexible amplifier configurations.

What’s in the Box

• Astatic PX3002 power amplifier.

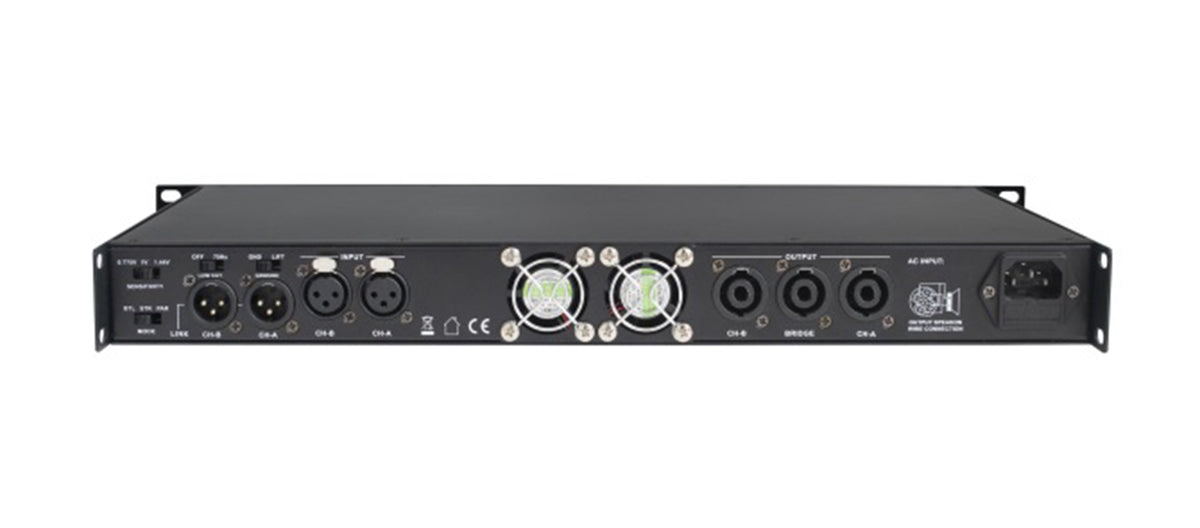

Inputs & Outputs

• Audio Inputs Balanced female XLR connectors for connecting audio sources.
• Loop Outputs Balanced male XLR connectors for passing audio to additional equipment.
• Speaker Outputs Speakon connections for channel A, channel B, and bridged operation.
• Power Input AC power connection supporting 115V or 230V operation, depending on region.
• Ground Lift Switch Helps reduce unwanted hum associated with ground loops.

Frequently Asked Questions

What type of amplifier is the Astatic PX3002?

The PX3002 is a professional two-channel Class-D power amplifier.

How much power does the PX3002 deliver?

It delivers 2 × 150W at 8Ω stereo, 2 × 300W at 4Ω stereo, or 600W bridged at 4Ω.

What operating modes are available?

It supports stereo, parallel mono, and bridge mode.

What inputs does the amplifier provide?

It features balanced female XLR inputs with selectable sensitivity of 0.775V, 1.0V, or 1.44V.

Does the PX3002 have loop-through outputs?

Yes, balanced male XLR loop outputs allow the input signal to pass to other equipment.

What speaker connections are included?

It has three Speakon outputs: Channel A, Channel B, and Bridge.

Does the amplifier include protection features?

Yes, it protects against DC faults, overheating, overloads, and short circuits. It also includes a peak limiter and ground lift.

Does the PX3002 have a low-cut filter?

Yes, its switchable 75Hz low-cut filter uses a 24dB-per-octave slope.

How is the amplifier cooled?

Variable-speed fans automatically adjust according to operating temperature.

What are the PX3002's dimensions and weight?

It measures approximately 19 × 9.45 × 1.75 inches, weighs 8.38 lbs, and occupies one rack unit (1U).

Full Technical Specifications

Amplifier Performance

Amplifier Type	Class D
Channels	2
Power Output (8 Ω, Stereo)	2 × 150 W
Power Output (4 Ω, Stereo)	2 × 300 W
Power Output (Bridge, 4 Ω)	1 × 600 W
Frequency Response	20 Hz–20 kHz (±1 dB)
THD+N (8 Ω, Stereo)	< 0.1%
Signal-to-Noise Ratio (A-weighted)	> 100 dB
Slew Rate	> 20 V/µs

Signal Processing & Protection

Input Sensitivity	0.775 V / 1.0 V / 1.44 V, switchable
Low-Cut Filter	75 Hz, −24 dB/octave, switchable
Limiter	Peak limiter
Operating Modes	Stereo, Mono (Parallel), Bridge
Protection Circuits	DC fault, over-temperature, overload, short circuit
Ground Lift	Yes
Cooling	Variable-speed, temperature-controlled fans

Connectivity & Electrical

Input Connectors	Balanced XLR female
Loop Outputs	Balanced XLR male
Speaker Outputs	Speakon® (CH-A, CH-B, Bridge)
Power Supply	High-efficiency switch-mode with soft-start
Power Requirements	115 V / 230 V AC, region dependent

Physical Specifications

Rack Format	19-inch, 1U
Product Dimensions (W × D × H)	19 × 9.45 × 1.75 inches
Product Weight	8.38 lbs
