ChamSys MagicQ Mini Connect, USB Lighting Control Interface

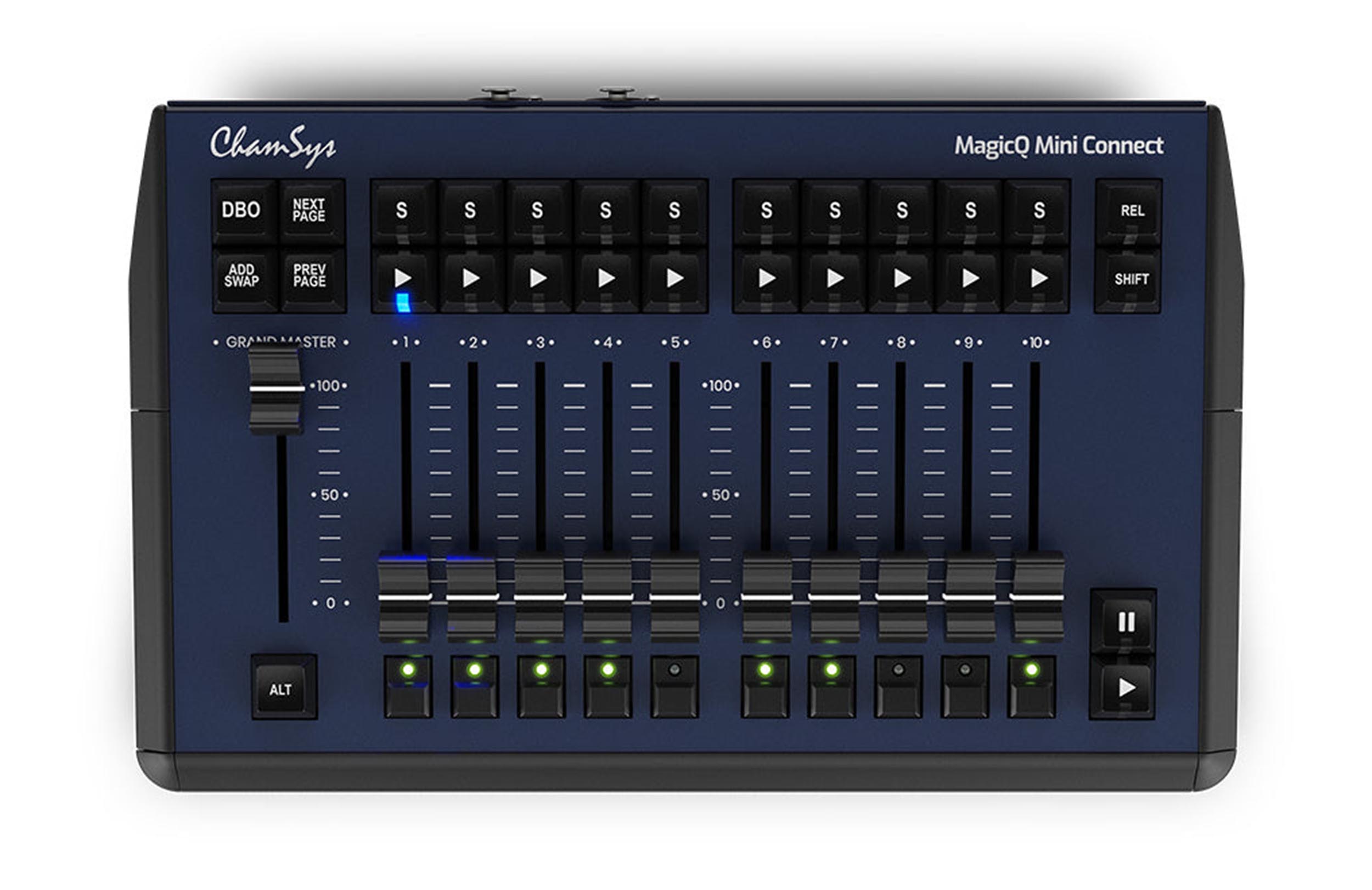

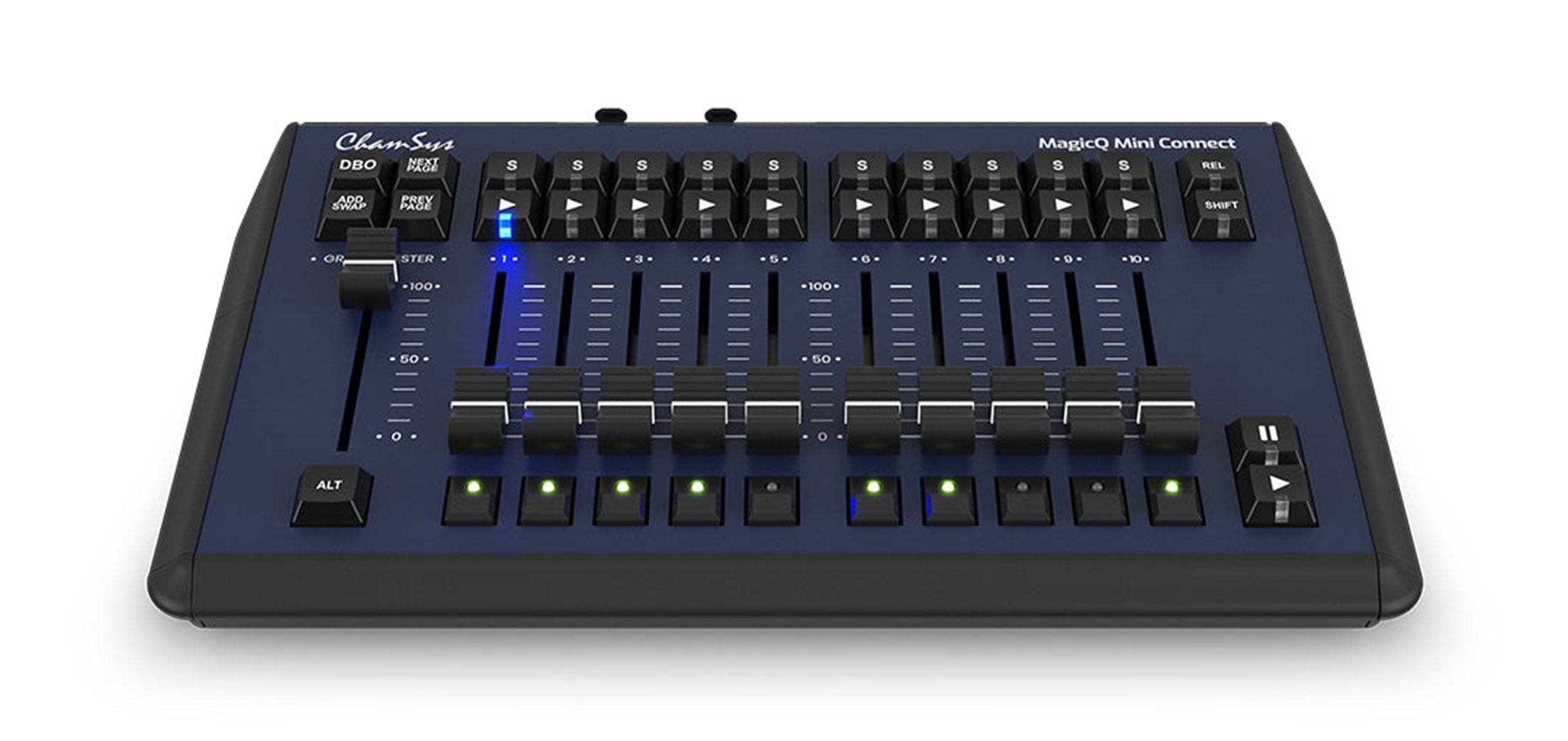

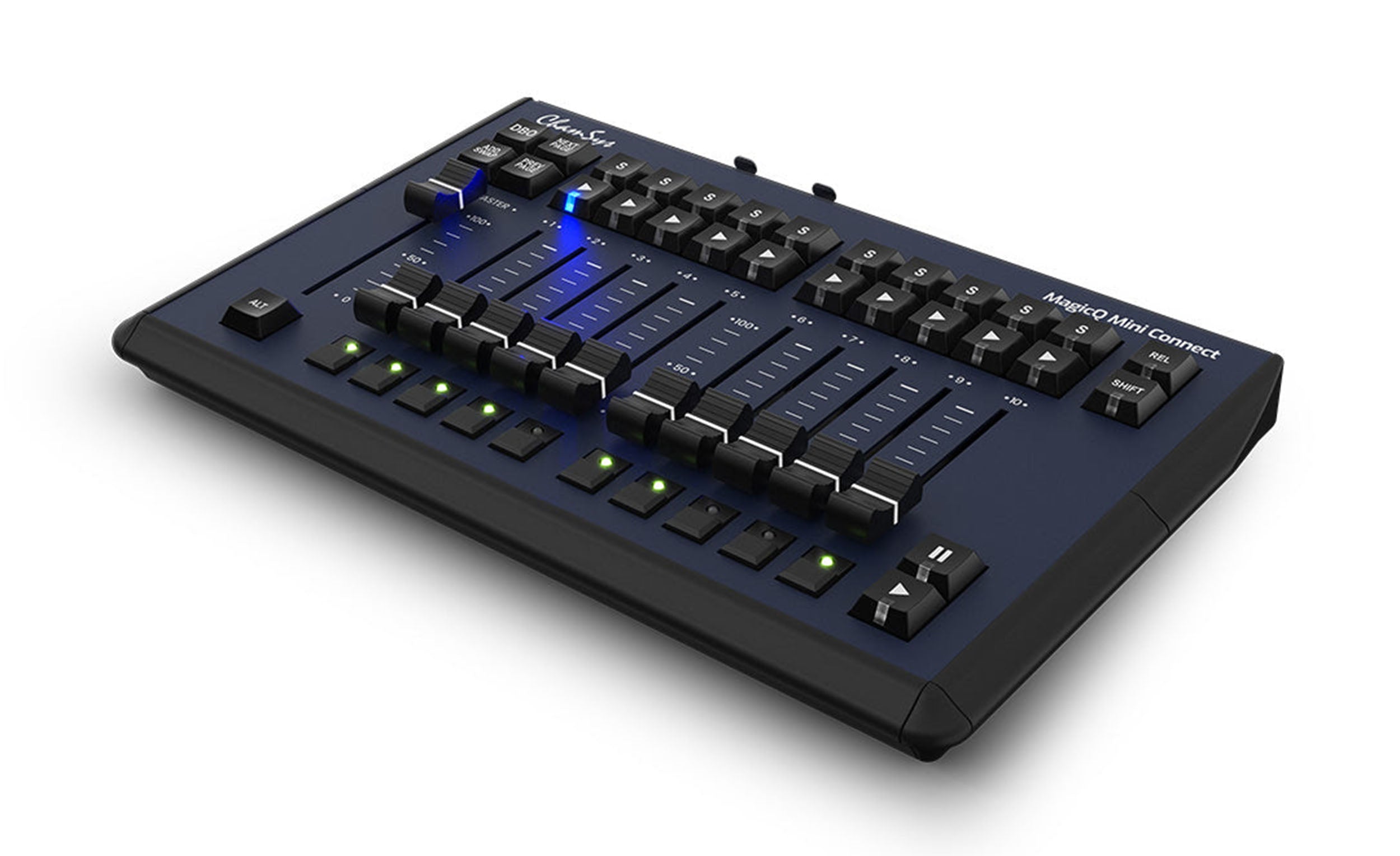

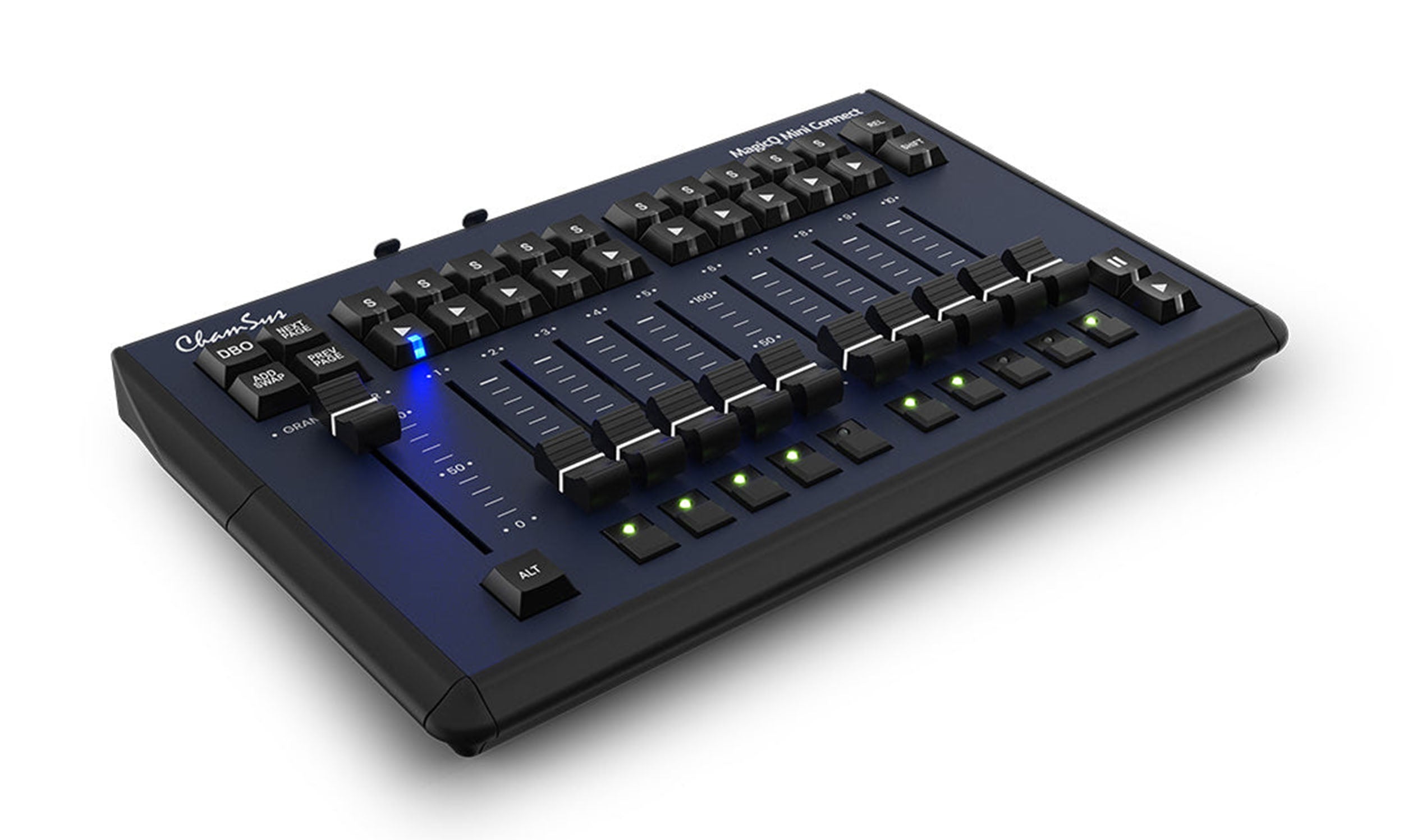

The ChamSys MagicQ Mini Connect, USB Lighting Control Interface is a highly portable USB 3 powered control surface that couple’s physical playback with the power of MagicQ software. Attached to a Windows, macOS or Linux system running MagicQ software, the Compact Mini Connect turns your computer into a powerful lighting, media and LED control center. Live show controls include 10 playback faders, Flash, Go and Select buttons, and a dedicated Grand Master fader.

The Compact Mini Connect is ideal for theatres, venues, clubs and installations. With 1 direct DMX512 output and an onboard network port that sends up to 64 universes of ArtNet and sACN, the Compact Mini Connect is also capable of commanding large shows as well as offering a cost-effective backup solution for users of larger MagicQ consoles.

Product Specifications:

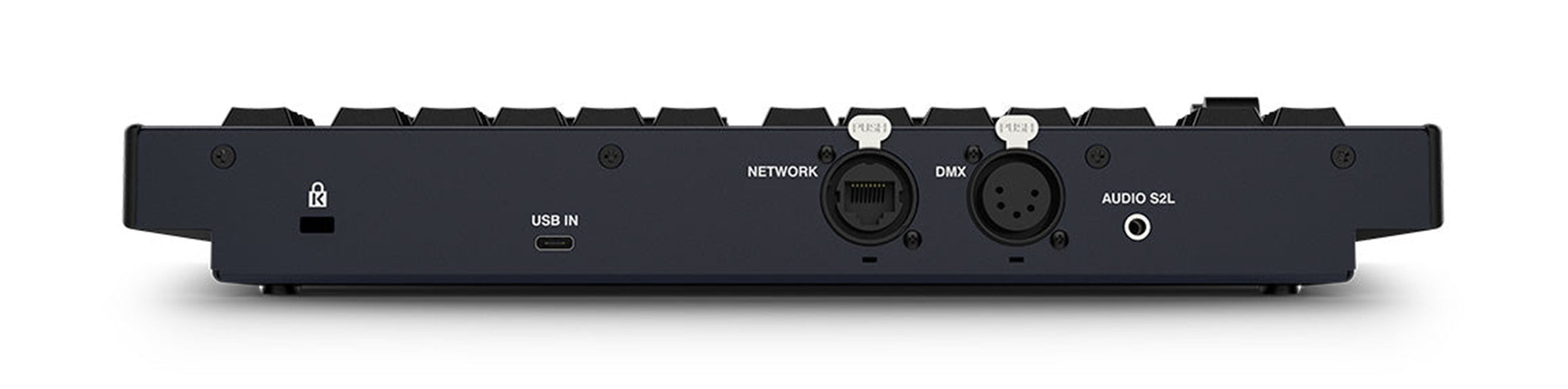

Hardware Specifications:

Fader Playbacks: 10

Direct DMX Outputs: 1

Network Ports: 1

Kensington Security Lock Fixing: 1

USB Connector: Yes - USB-C

USB 3 Powered: Yes (Must be connected to a USB 3.0 or higher port)

Lightweight Durable Case Included

Software Specifications:

Universes: 64

Max Number of DMX Channels: 32768

Max Number of Fixtures Supported: 32768

Max Number of Cues: 5000

Max Number of Cue Stacks: 2000

Max Number of Groups: 5000

Max Number of Palettes: 4096

Number of Media Server Layers Supported: 50 (Each different content)

Supported on Windows (8.1 or higher), macOS (10.13 or higher) and Linux

Included Accessories:

USB A-C Cable: Yes

Lightweight Durable Case: Yes

Boxed Weights and Dimensions:

Width: 380mm (15 inches)

Depth: 100mm (3.94 inches)

Height: 300mm (11.8 inches)

Weight: 3.0kg (6.6 lb)

Console Weights and Dimensions:

Width: 327mm (12.9 inches)

Depth: 204mm (8.03 inches)

Height: 45mm (1.78 inches)

Weight: 1.85kg (4 lb)
