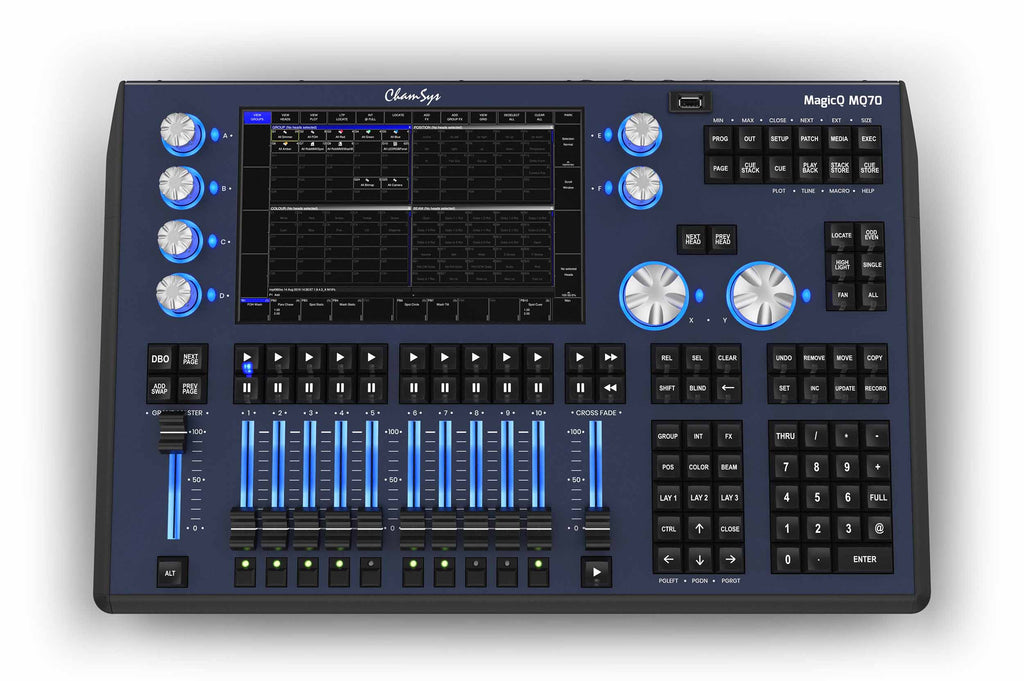

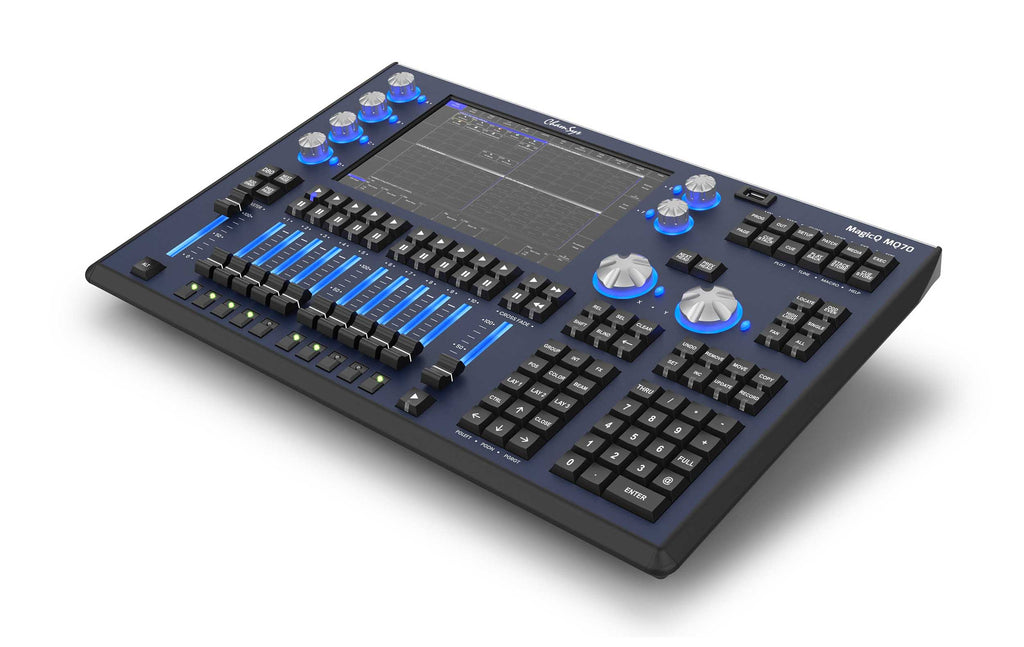

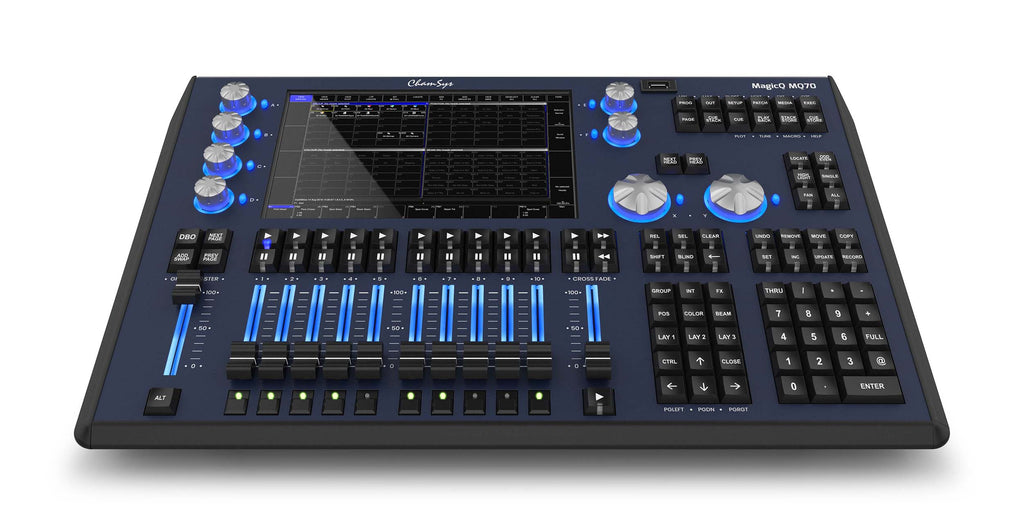

ChamSys MagicQ MQ70 Compact Lighting Console

The ChamSys MagicQ MQ70 Compact Lighting Console is the latest offering in the Compact Console range of small and lightweight consoles that you can fly with. The MagicQ MQ70 fits within hand luggage carry on restrictions of all the major budget airlines including, Southwest, EasyJet and Ryanair. The console features a 10.1” Multi touch display, with illuminated encoder and fader tracks.

The console supports 24 universes with an option to expand to 48. The console has 3 network ports enabling ArtNet and sACN direct from the console, whilst also having 4 assignable physical DMX ports supporting RDM. This feature packed console also includes WIFI inbuilt to the console for quick connection to ChamSys MagicQ Remote focus application without the need for external networking hardware.

The MQ70 features an inbuilt UPS which protects both the console and the Ethernet switch in case of power fail. It has low power consumption and does not require a cooling fan - enabling silent operation making it the ideal choice for touring shows, broadcast, theatrical and corporate shows.

With built in MIDI input and output, LTC and audio input for synchronization, the MagicQ MQ70 provides many options for integration with show control and audio systems. The MagicQ MQ70 runs the same MagicQ software as other MagicQ consoles, meaning that shows programmed on it can be loaded and ran on any other MagicQ console (within the universe limits).

Product Specifications:

Hardware Specifications:

Universes direct from the console (via Artnet/sACN/Path port): 24 Expandable to 48

Direct DMX Outputs: 4

RDM Support: Yes

In-built WiFi: Yes

Playbacks: 10

Grand Master Fader: 1

Crossfade Master Fader: 1

Attribute Encoders: 8

Dual Color Illuminated Playbacks: Yes

Illuminated Encoders: Yes

Network Ports: 3

Inbuilt 10.1" HD Multi-Touch Display: 1

External Monitor up to 1920x1200 Resolution - HDMI: 1

USB Ports: 5

Audio Input (1 channel, 7 band): Yes

Audio Output: Yes

MIDI Ports: 1 in, 1 out

LTC Timecode in Port: 1

Remote Input Port: 1

Inbuilt UPS: Yes, uses 12v Lead-Acid Battery

Power Input, Neutrik powerCON TRUE1 110 to 240 VAC

Software Specifications:

Max Number of DMX Channels: 12288 *expandable to 24576

Max Number of Fixtures Supported: 12288 *expandable to 24576

Max Number of Cues: 5000

Max Number of Cue Stacks: 2000

Max Number of Groups: 5000

Max Number of Palettes: 4096

Number of Media Server Layers Supported: 50 (each different content)

Numbers of Shows: Virtually unlimited

Included Accessories:

Dual Color Desk light: 1

Dust cover: 1

Neutrik powerCON TRUE1 Power Cable: 1

Boxed Weights and Dimensions:

Width: 680mm (26.7 inches)

Depth: 290mm (11.4 inches)

Height: 500mm (19.6 inches)

Weight: 10kg (22 lb)

Flight Cased Weights and Dimensions:

Width: 600mm (23.6 inches)

Depth: 202mm (7.95 inches)

Height: 421mm (16.5 inches)

Weight (console in flight case): 17kg (37.4 lb)

Console Weights and Dimensions:

Width: 525mm (20.6 inches)

Depth: 350mm (13.7 inches)

Height: 60mm (2.3 inches)

Weight: 7kg (15.4 lb)
