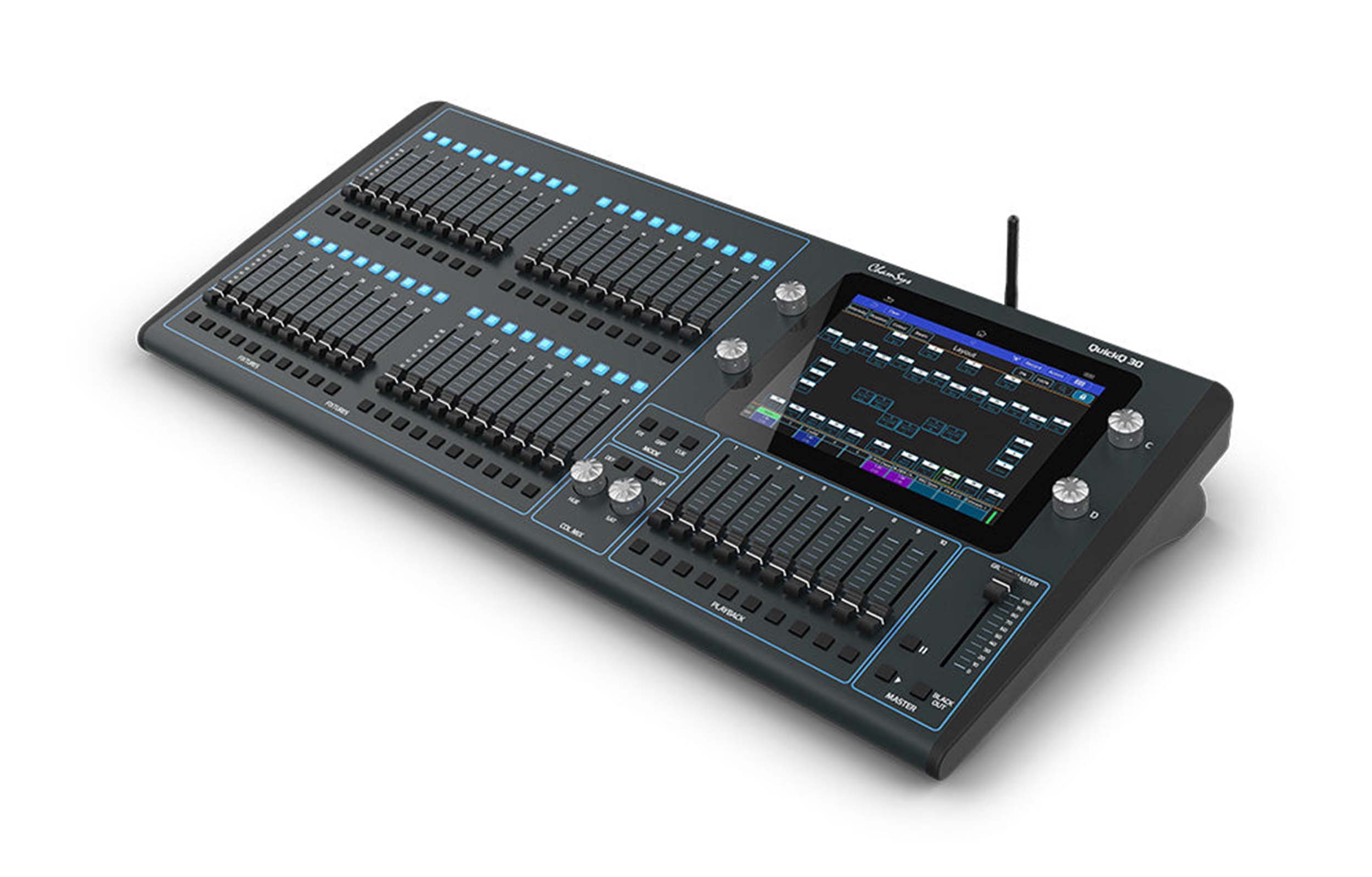

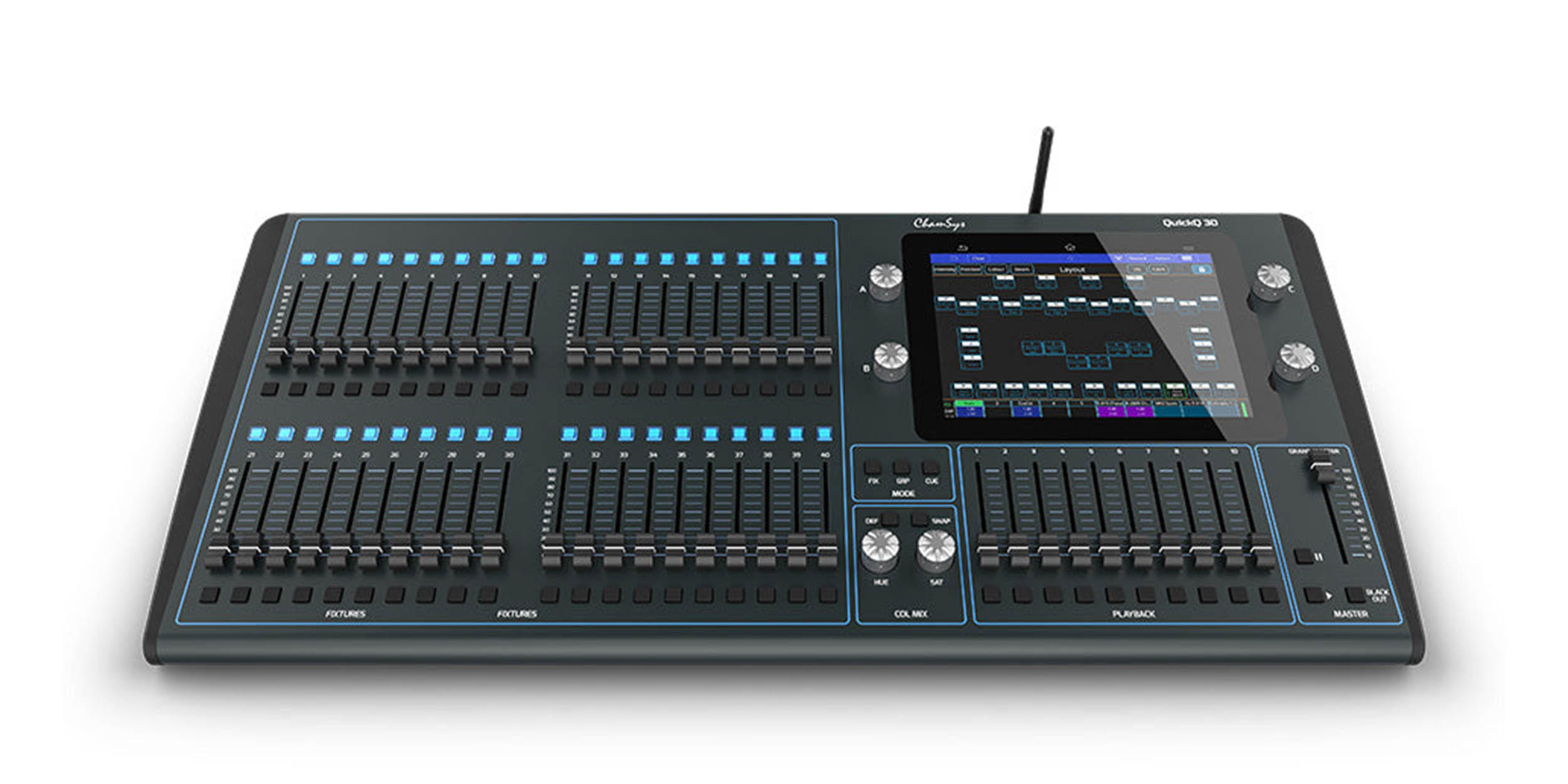

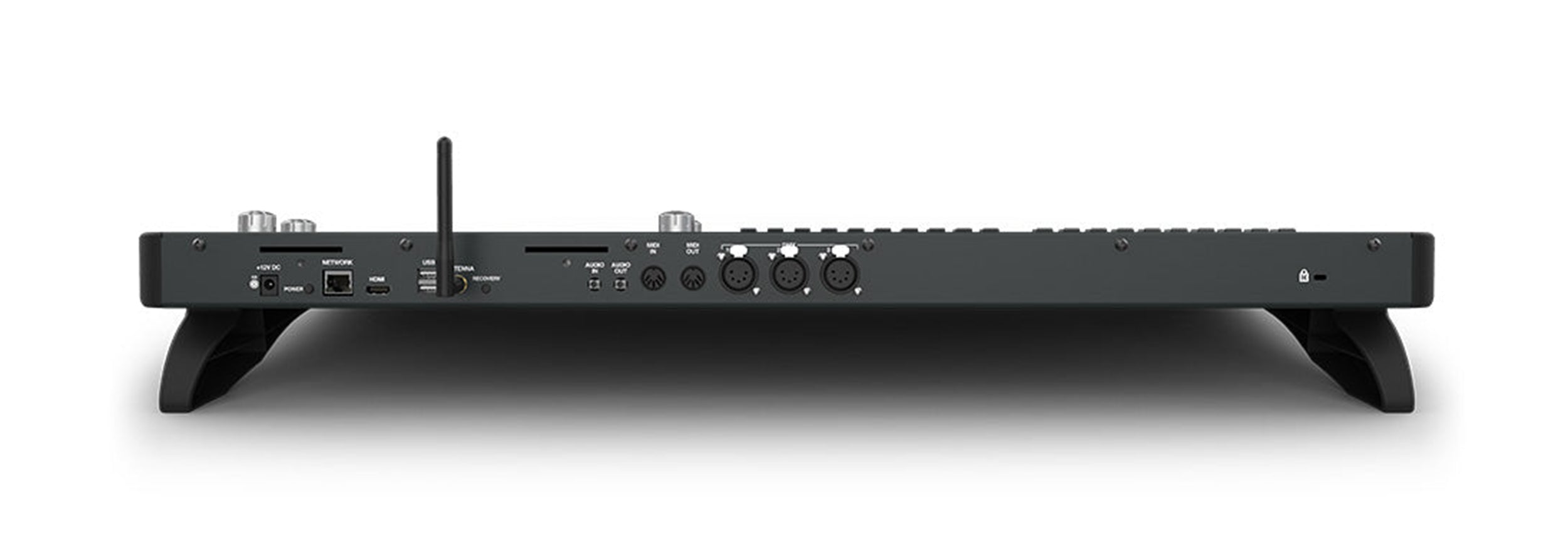

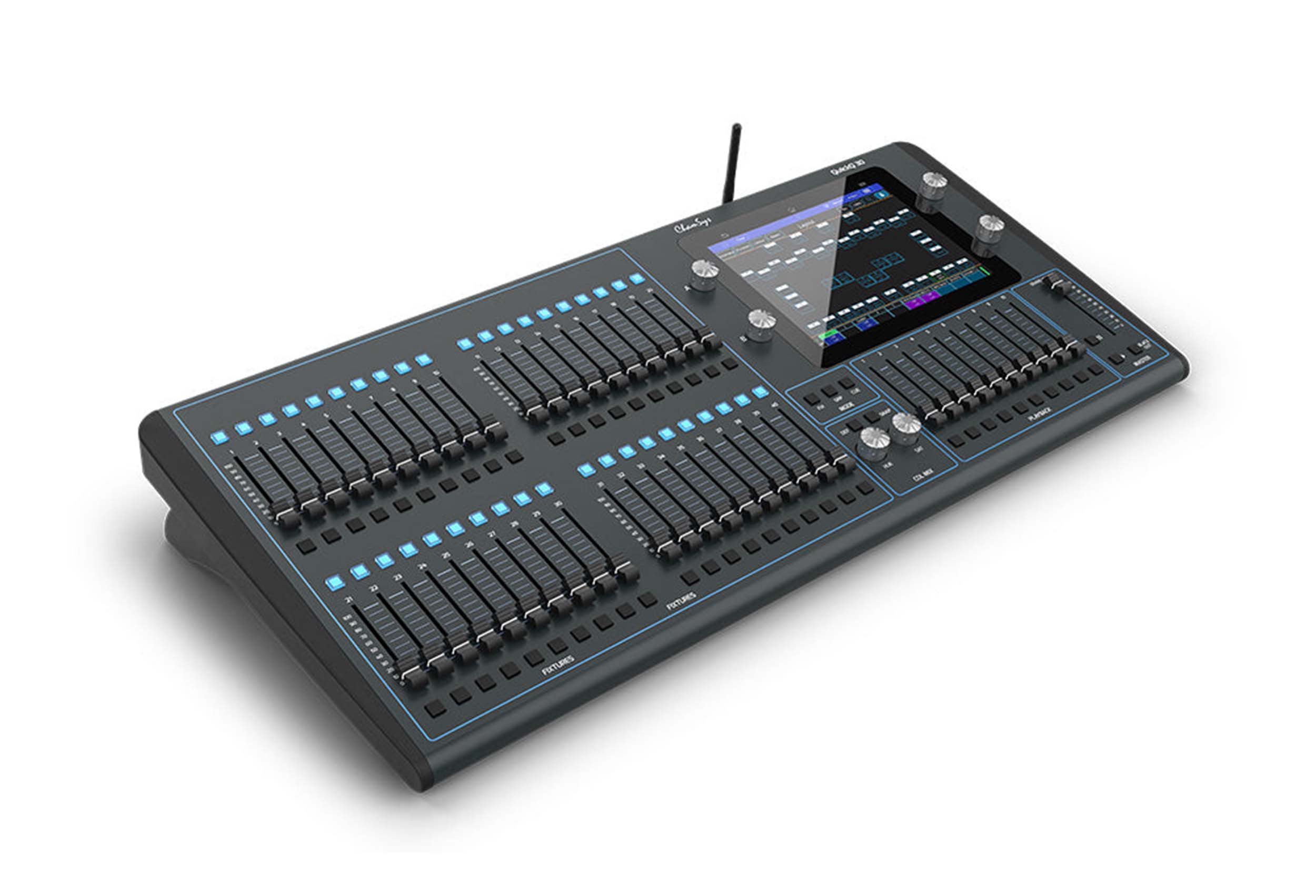

ChamSys QuickQ 30, Lighting Control Console

The ChamSys QuickQ 30, Lighting Control Console is part of ChamSys QuickQ range of user friendly and affordable lighting control consoles. The QuickQ 30 is the perfect choice console for control of dimmer, LED color mixing and moving light fixtures. The console features a large 9.7-inch touch screen utilizing a smart phone like interface for setup, programming and playback of your show.

The console can automatically detect, patch and configure RDM compliant fixtures and also features in-built WIFI capabilities enabling remote connections to the free QuickQ app available on iOS, Android and Windows tablets and phones. Easily connect the app by simply scanning the QR code on the console display.

The console has easy-to-understand buttons and faders, simple color selection and intensity control tools, a large touch screen with zooming and scrolling at your fingertips, as well as a simple cue/chase system for playback. Specifically aimed at the novice user, the QuickQ interface easily leads you through setup, programming and operation of the console.

The console has a free to download offline programming software available for Mac and Windows that includes the ChamSys MagicVis visualizer. You can program your show on your computer, save it onto a flash drive and load it onto the QuickQ console.

QuickQ uses ChamSys extensive and continuously updated personality library with over 30,000 personalities. QuickQ shows are compatible can be loaded onto any MagicQ system allowing future progression onto ChamSys more advanced MagicQ range of consoles.

Product Specifications:

Hardware Specifications:

Universes supported: 4

Direct DMX Outputs 5-Pin XLR: 3

Master Playback Faders: 10

Multi-Function Fixture Faders: 40

Bump Buttons: Yes

Attribute Encoders: 4

Dedicated Hue/Saturation Encoders: Yes

Inbuilt 9.7” Multi-touch Display: Yes

External Monitor: 1920 x 1080 HDMI

Inbuilt Wi-Fi: Yes

Network Port: 1

USB Ports: 2

Audio Input: 1

Audio Output: 1

MIDI Ports in/out: Yes

Software Specifications:

Max Number of DMX Channels: 2048

Max Number of Fixtures Supported: 2048

Max Number of Cue Stacks: 10

Max Number of Chases: 10

Midi & Midi Timecode Supported: Yes

OSC Supported: Yes

RDM Autopatch for fast show patching

Fixture library of over 30,000 fixture files

Built in FX generator

Color picker and Gel inbuilt Gel library

Offline designer software available for Windows and Mac

Console Weights and Dimensions:

Width: 760mm (29.9 inches)

Depth: 350mm (13.8 inches)

Height: 106mm (4.2 inches)

Weight: 6.1kg (13.44 lb)

Included Accessories:

USB Desk light: 1

Dust cover: 1

Tablet stand: 1

Wi-Fi Antenna: 1

12V power supply: 1

IEC power cable: 1

Boxed Weights and Dimensions:

Width: 900mm (35.4 inches)

Depth: 420mm (16.5 inches)

Height: 230mm (9 inches)

Weight: 10kg (22.04 lb)

Flight Cased Weights and Dimensions:

Width: 860mm (33.8 inches)

Depth: 490mm (19.3 inches)

Height: 220mm (8.7 inches)

Weight (console in flight case): 20kg (44.09 lb)
