Description

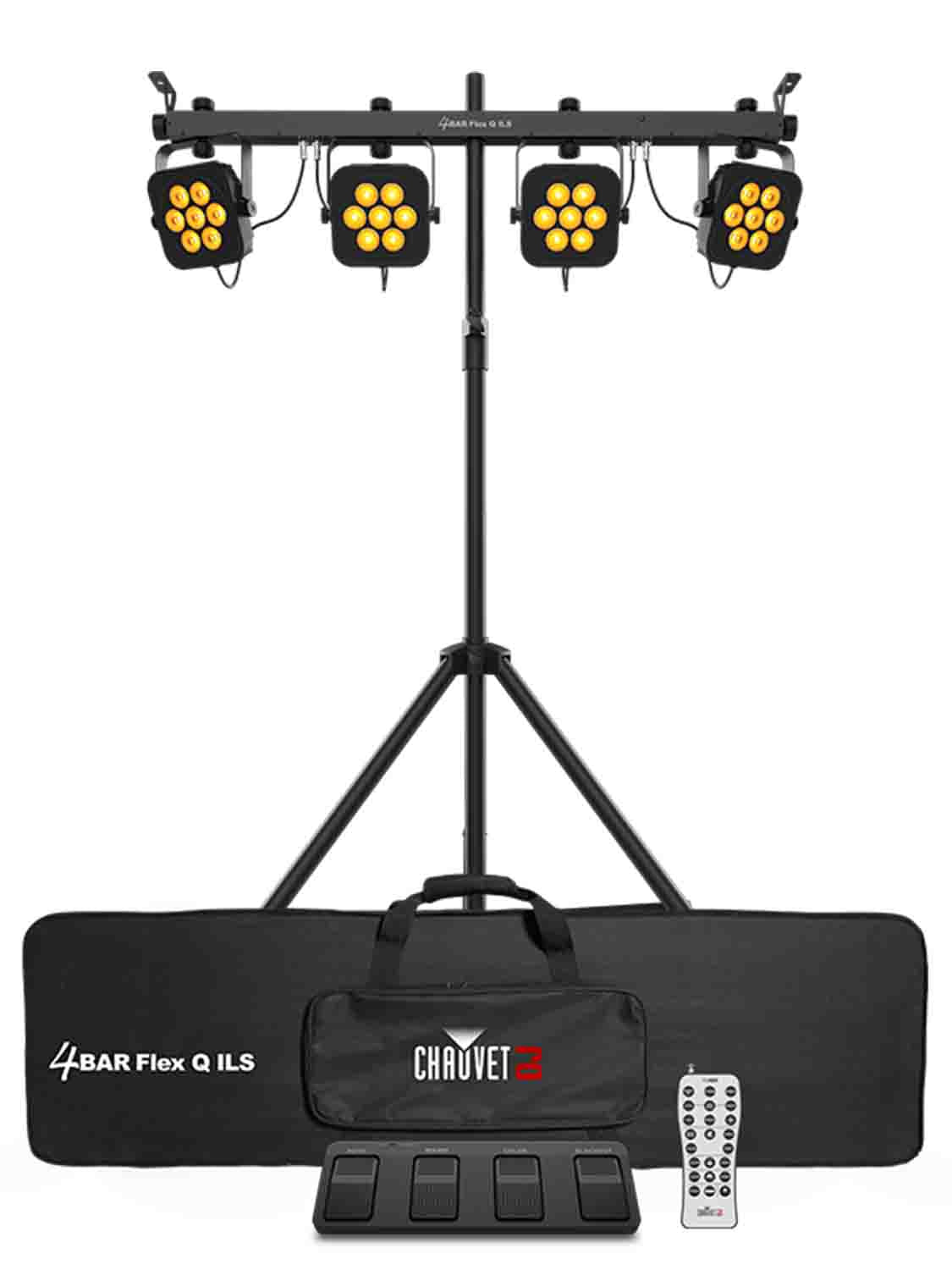

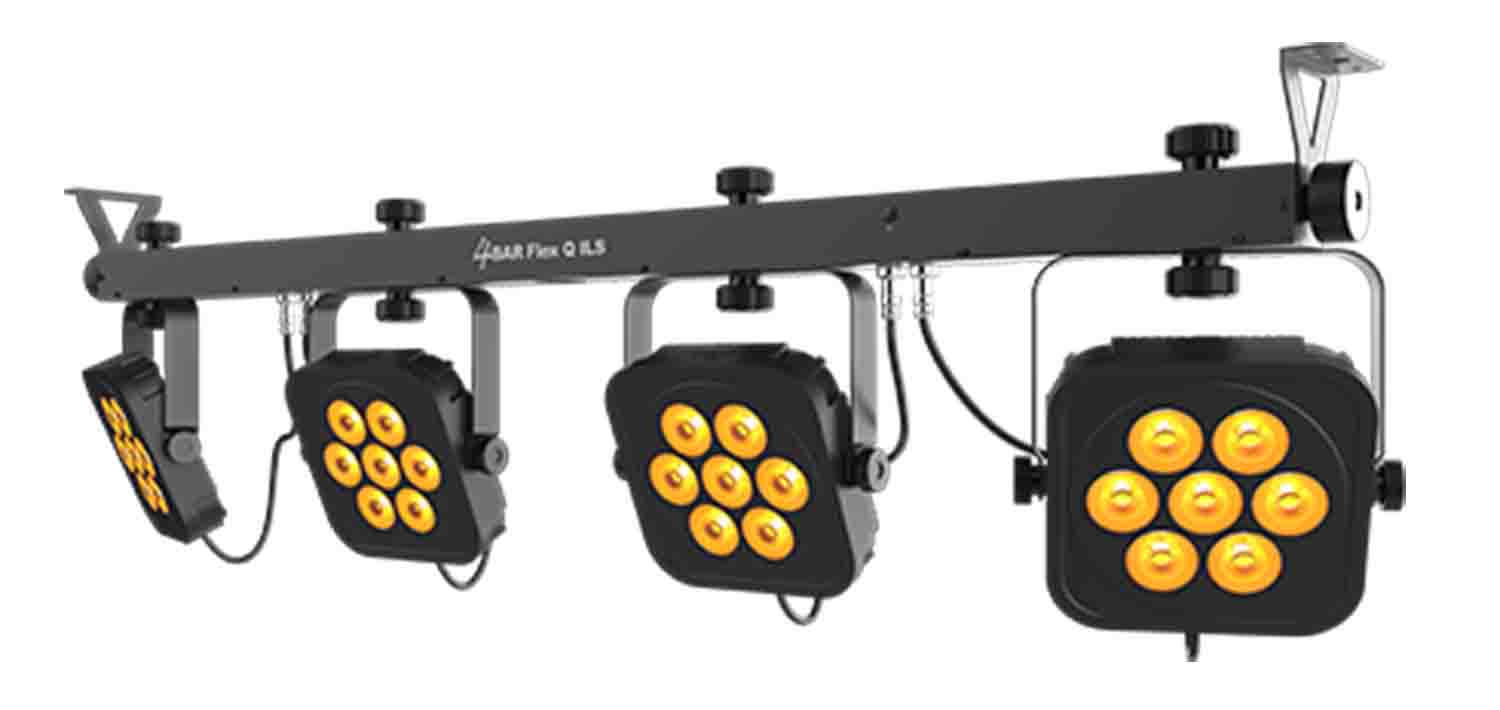

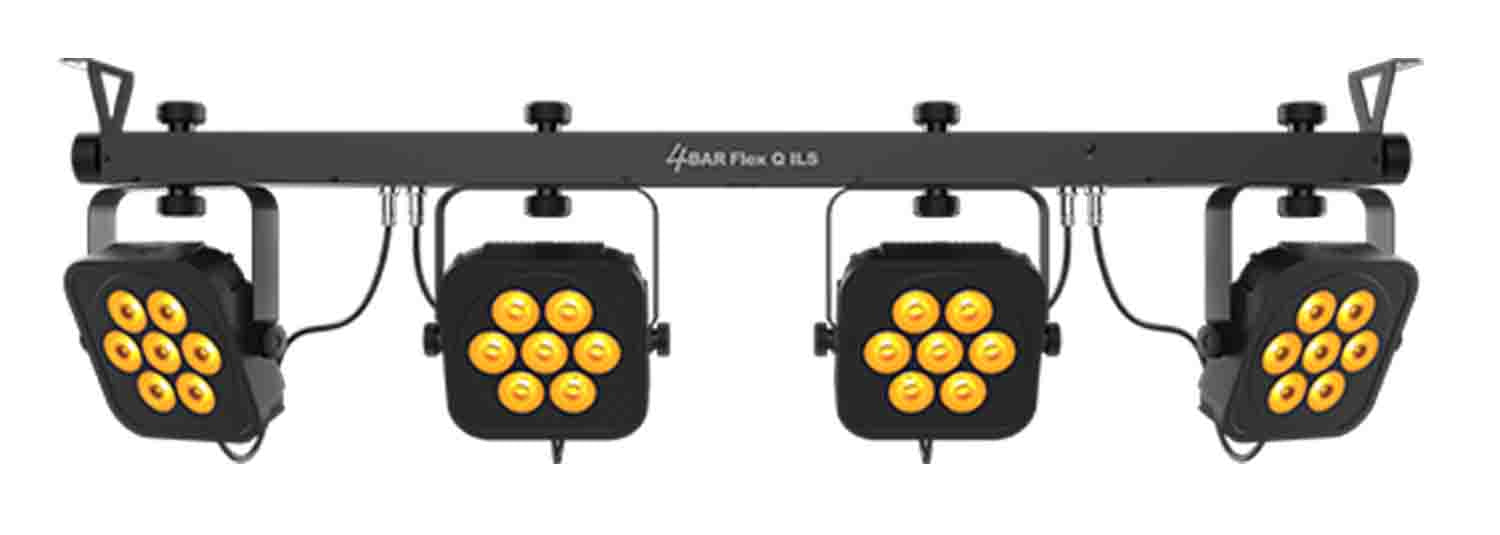

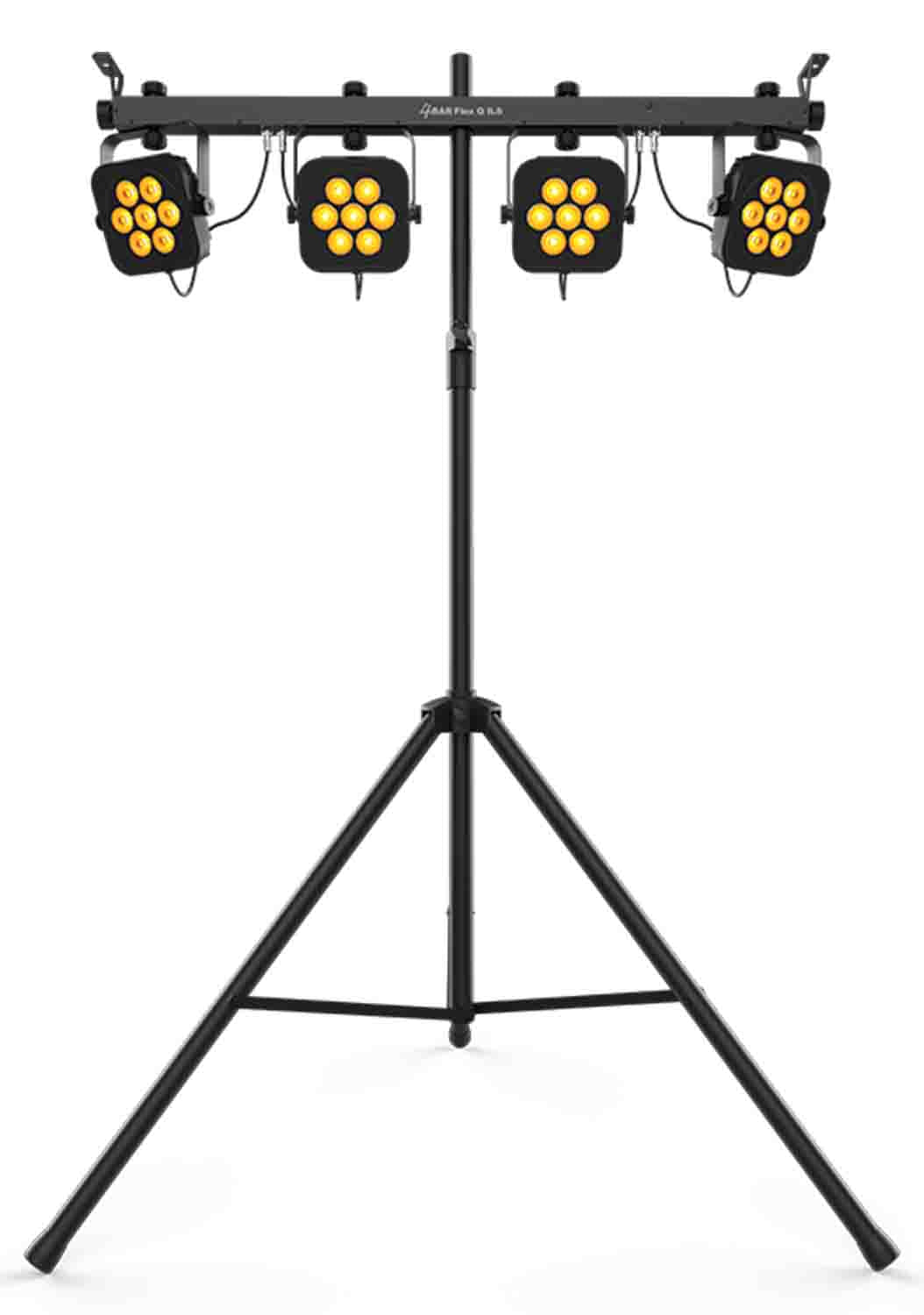

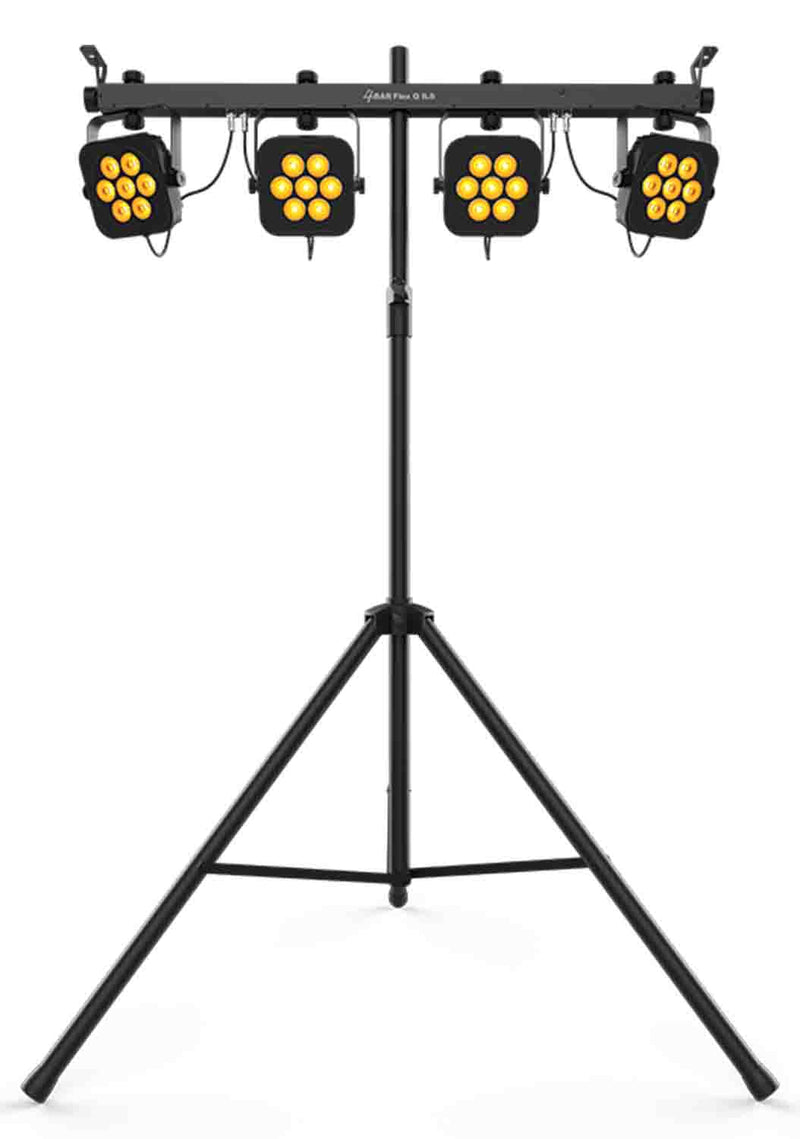

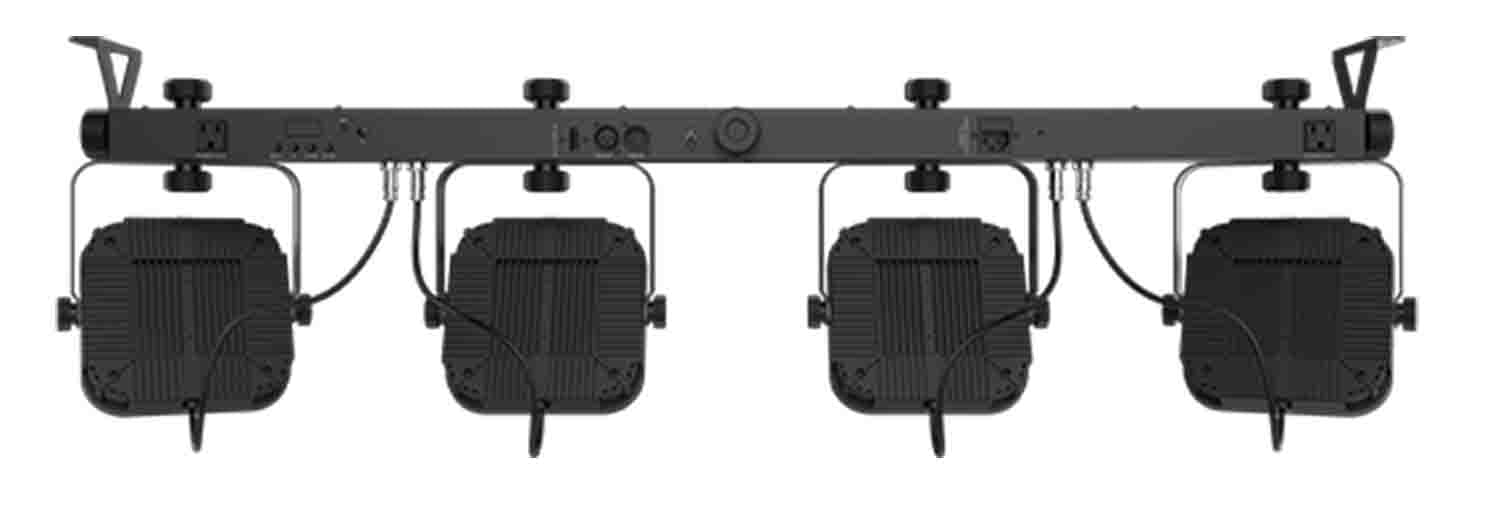

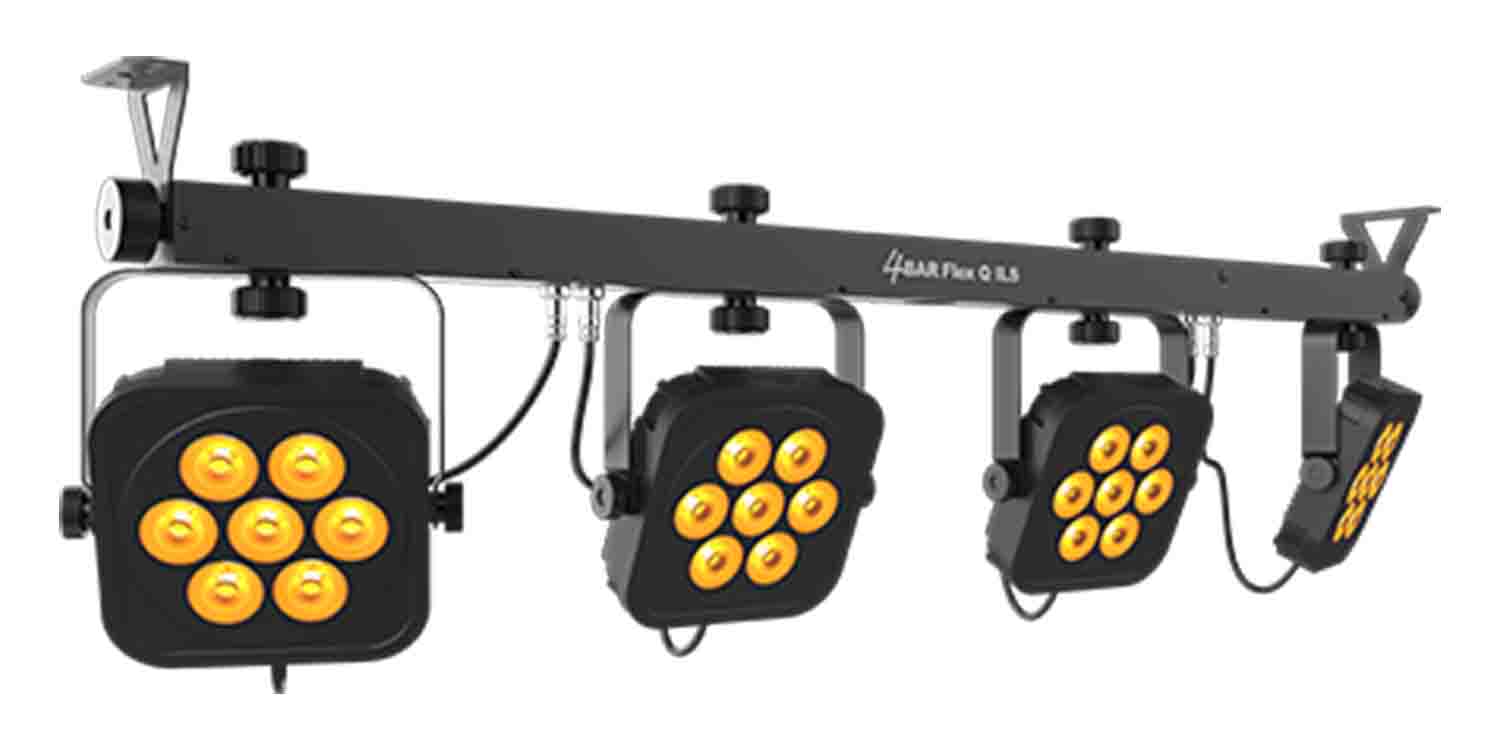

The Chauvet DJ 4Bar Flex Q ILS Quad Color RGBA LEDs Wash Lighting System. This all-in-one system is fitted with four par fixtures on one bar. Because 4BAR Flex Q ILS is compatible with the Integrated Lighting System (ILS) that makes creating coordinated light shows across an unlimited number of different fixture types easy and fast, generating synced light shows without DMX is even easier. High-intensity, quad-color (RGBA) LEDs generate a broad spectrum of colors and achieve natural-looking color temperatures with its punchy amber LEDs. 4BAR Flex Q ILS easily sets up and tears down in minutes and includes a handy carry bag.
Adding to the unit’s versatility are two L-brackets that let you maximize setup possibilities and configurations. Easily mount up to 4 additional fixtures to the top of the 4BAR Flex Q ILS and provide power to additional lights using the built-in Edison plugs. 4BAR Flex Q ILS mounts to most tripods or speaker stands, without the need for additional clamps, using the pass-through hole. D-Fi™ USB compatibility for wireless master/slave or DMX control is on-board and multiple control options include standalone, DMX mode, wireless footswitch or the IRC-6.
What's Included
4Bar Flex Q ILS
Power cord
Carrying bag
Wireless footswitch
IRC-6 remote
Quick Reference Guide
Product Specifications
| Specification | Details |
|---|---|
| DMX Channels | 4, 6 or 19 |
| DMX Connectors | 3-pin XLR |
| Max Unobstructed Distance | 28 LEDs (quad-color RGBA) 3.5 W, (1.3 A), 50,000 hours life expectancy |
| Strobe Rate | 0 to 20 Hz |
| Beam Angle | 14° |
| Field Angle | 23° |
| Illuminance | 2,353 lux @ 2 m (per pod) |
| Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| Power and Current | 80 W, 1.2 A @ 120 V, 60 Hz<br>78 W, 0.6 A @ 230 V, 50 Hz |
| Approvals | CE, RoHS, UKCA |
| Operating Frequency (D-Fi) | 2.412 to 2.484 GHz |
| Operating Frequency (foot switch) | 433 MHz |
| Max Unobstructed Distance | 100 ft (30.5 m) |
| Footswitch Battery | 9 V |
| Fits Tripod Sizes | 1.5 in (36.80 mm) |
| Bracket Mounting Hole | M10 (1.5 mm pitch) |
| Weight | 12.2 lb (5.5 kg) |
| Weight (Controller) | 1.2 lb (0.6 kg) |
| Size | 45.7 x 2 x 12 in (1186 x 50.8 x 305 mm) |
| Size (Controller) | 16.5 x 5.2 x 1.5 in (419 x 132 x 38 mm) |
| Included Controller | IRC-6 |
| Optional Controller | D-Fi USB |
