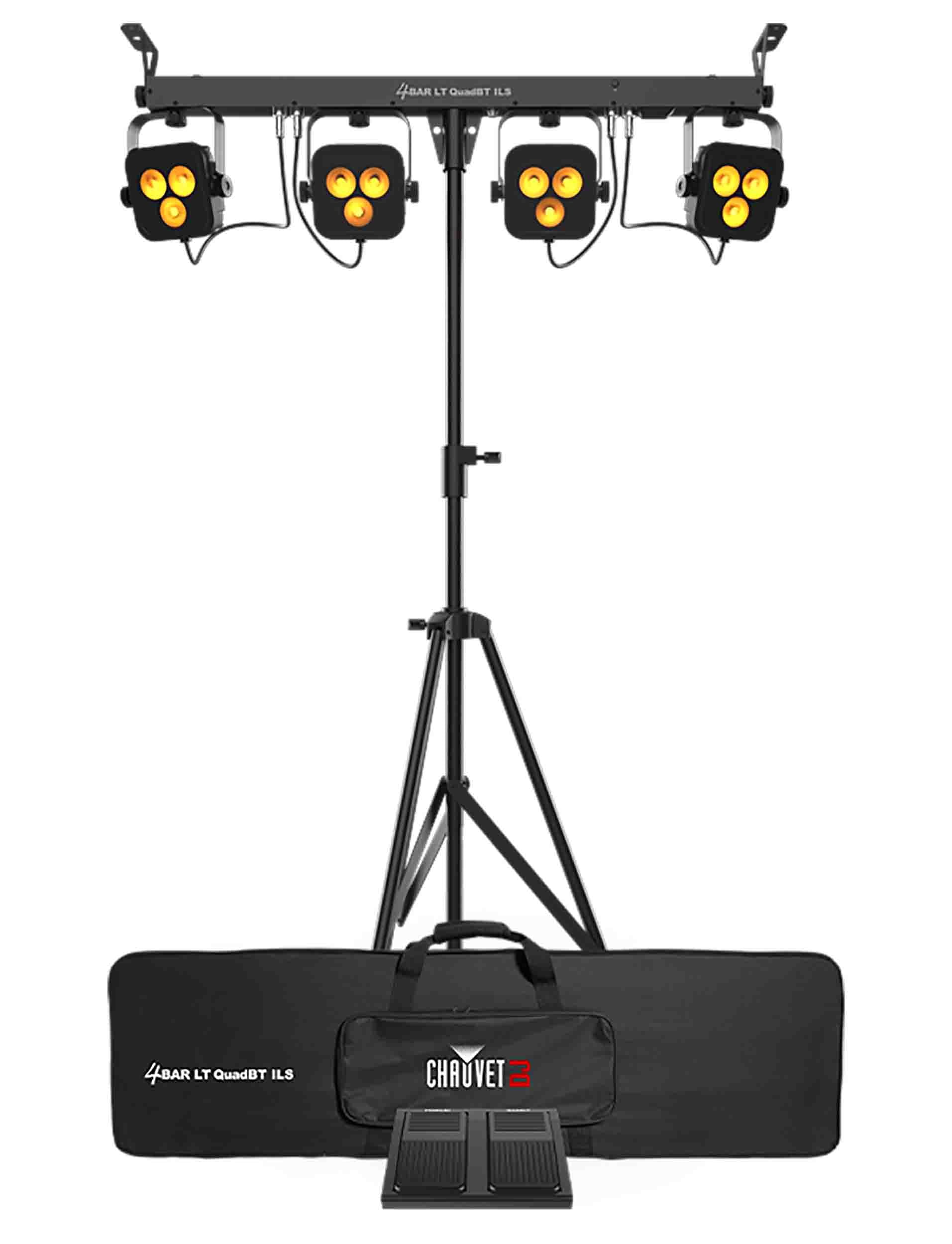

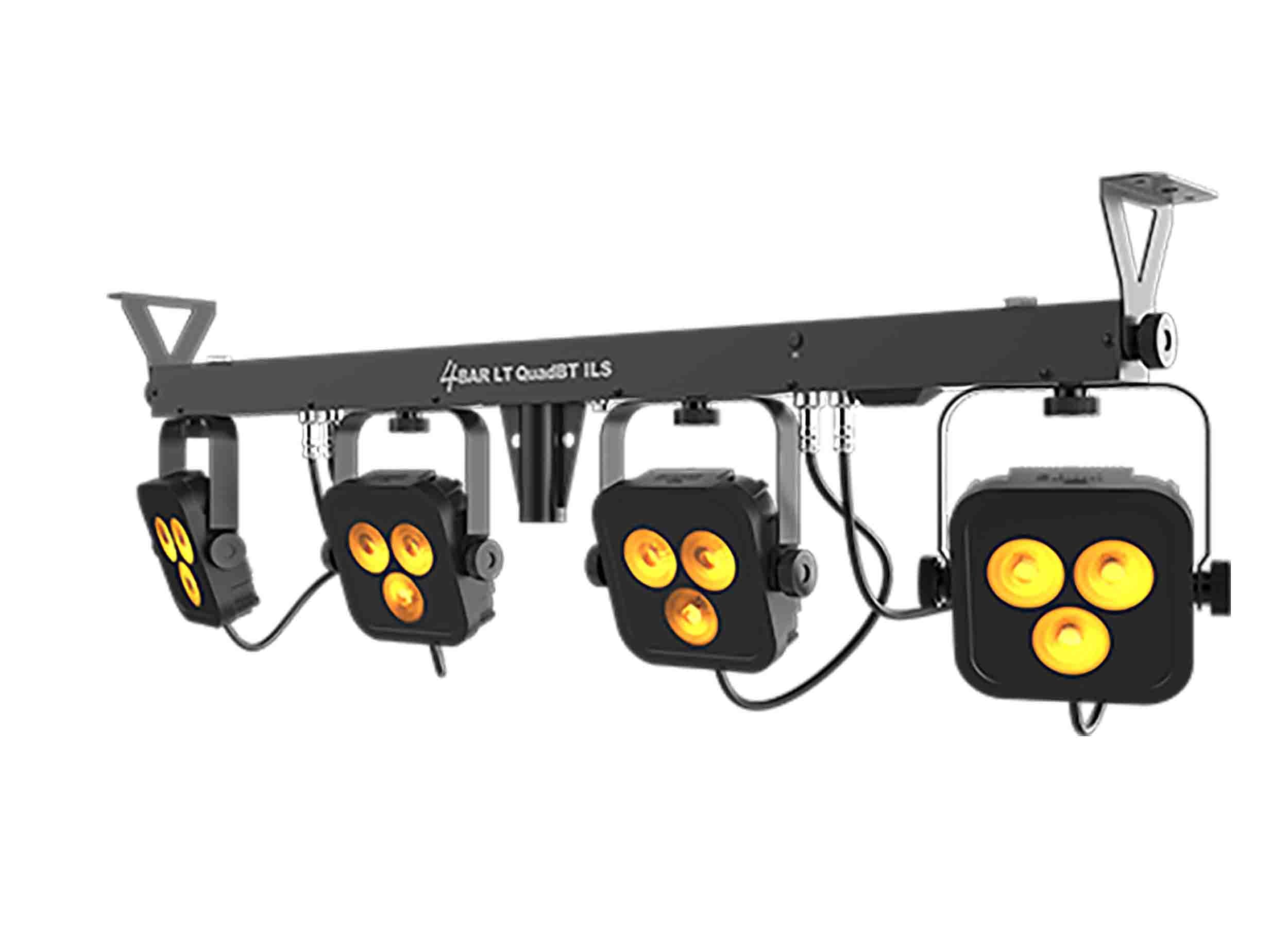

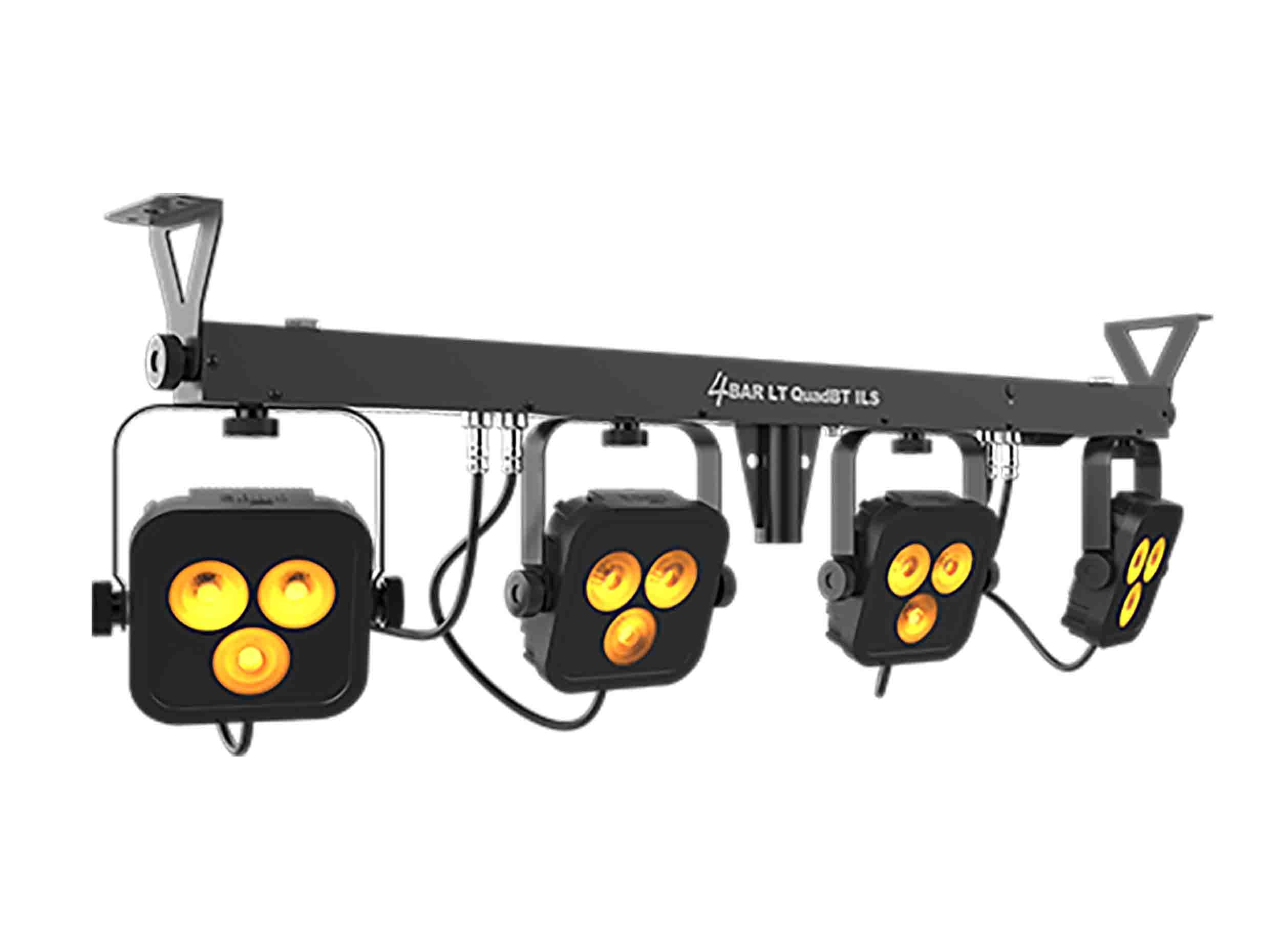

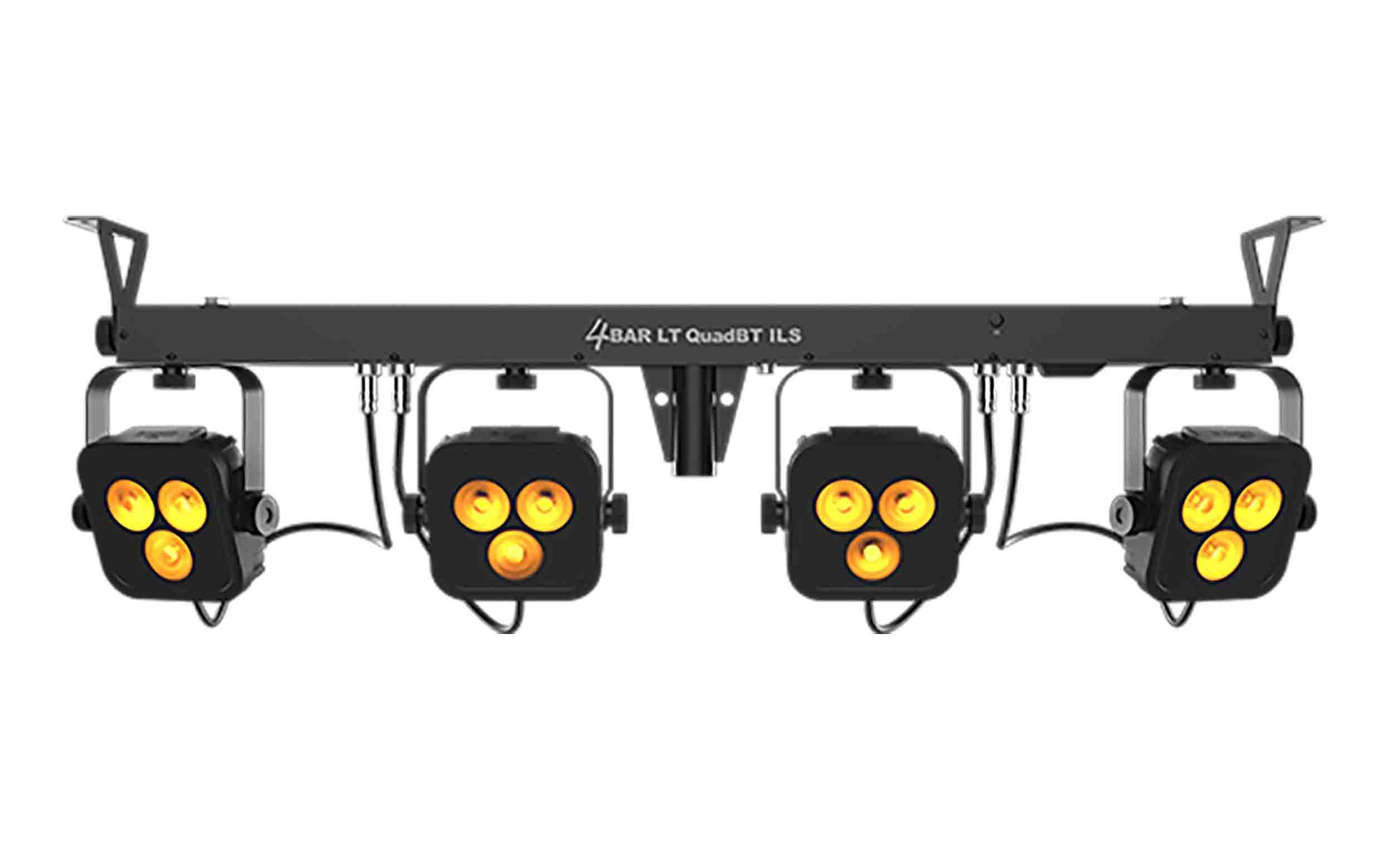

Chauvet DJ 4BAR LT QuadBT ILS Pack & Go Wash Lighting Systems

The Chauvet DJ 4BAR LT QuadBT ILS Pack and Go Wash Lighting Systems with ILS. The ILS ecosystem grows with the addition of the 4Bar LT QuadBT ILS, a complete, pack-n-go wash lighting solution with built-in Bluetooth wireless technology. This quad-color (RGBA) fixture has 4 individually adjustable heads to achieve total room or stage coverage and the color-mixing power of amber LEDs. Easily set up and tear down in seconds with the included tripod, carry bags, and footswitch. 4Bar LT QuadBT ILS is compatible with D-Fi USB for wireless Lead/Follow or DMX programming. 4Bar LT QuadBT ILS safely attaches to truss with built-in bolts, easily increasing mounting options. Generate a broad spectrum of colors and achieve natural-looking color temperatures with punchy amber LEDs. Easily set up and tear down in seconds with the included tripod, carry bags and footswitch. Create large, coordinated light shows with other 4BAR fixtures in master/slave mode.

WHAT'S INCLUDED

4Bar LT QuadBT ILS

Power cord

Carrying bag

Tripod

Footswitch

L- bracket

Quick Reference Guide

Product Specifications:

DMX Channels: 4, 6 or 19

DMX Connectors: 3-pin XLR

Max Unobstructed Distance: 150 ft (25.7 m)

Light Source: 12 LEDs (quad-color RGBA) 4 W, (2 A), 50,000 hours life expectancy

Beam Angle: 12°

Field Angle: 21°

Operating Frequency: 2.4 GHz

Illuminance: 2,162 lux @ 2 m (per pod)

Power and Current:
46 W, 0.6 A @ 120 V, 60 Hz
44 W, 0.3 A @ 230 V, 50 Hz

Weight: 7.2 lb (3.3 kg)

Size: 36.1 x 3.7 x 10.8 in (918.1 x 95 x 274.3 mm)

Approvals: CE, FCC, RoHS, UKCA

Stand Height: 50-83 in (127-211 cm)

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

Fits Tripod Sizes: 1 in (25.4 mm)

Optional Controllers: IRC-6, BTAir

Bluetooth Version: 4.2
