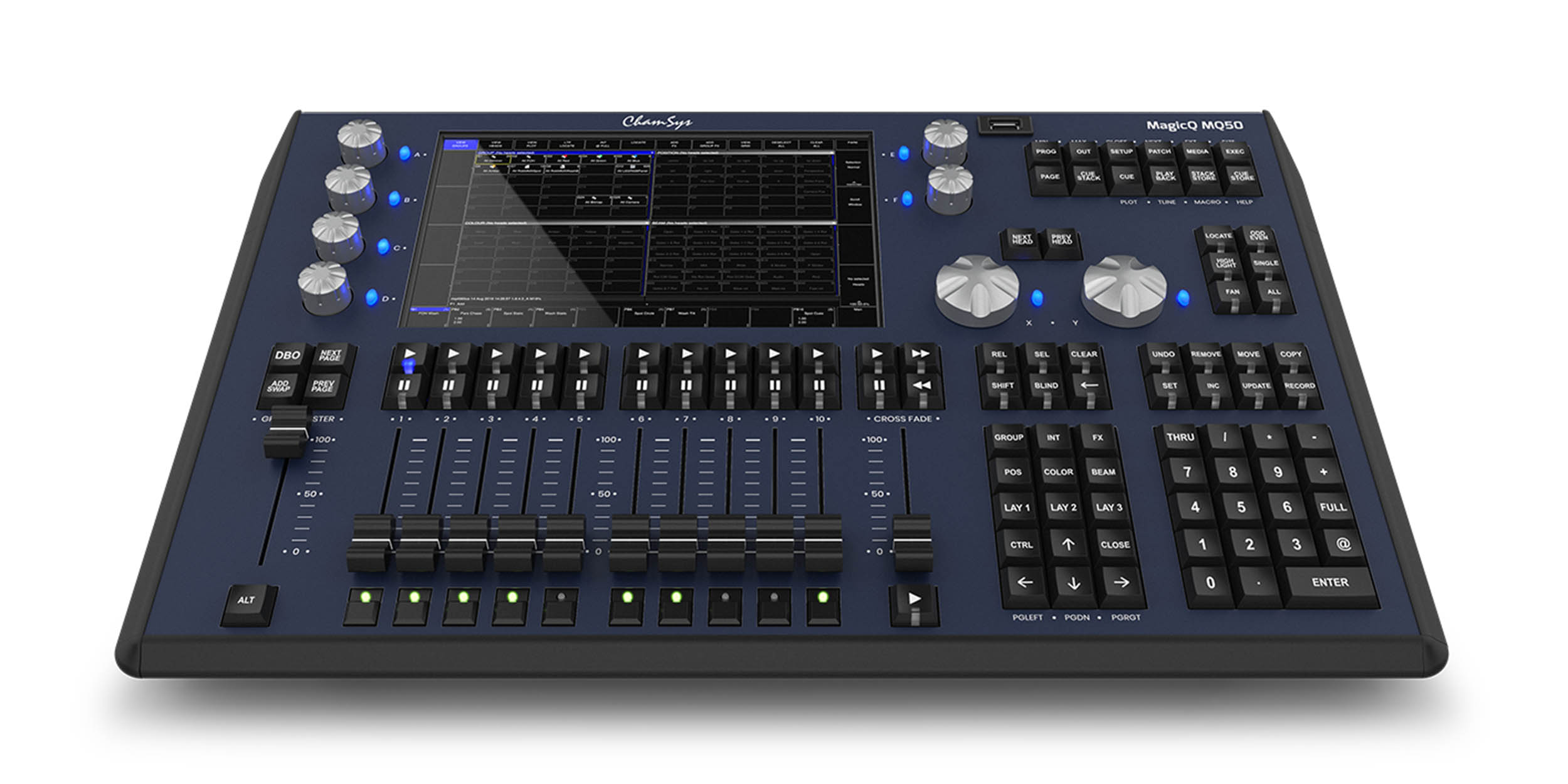

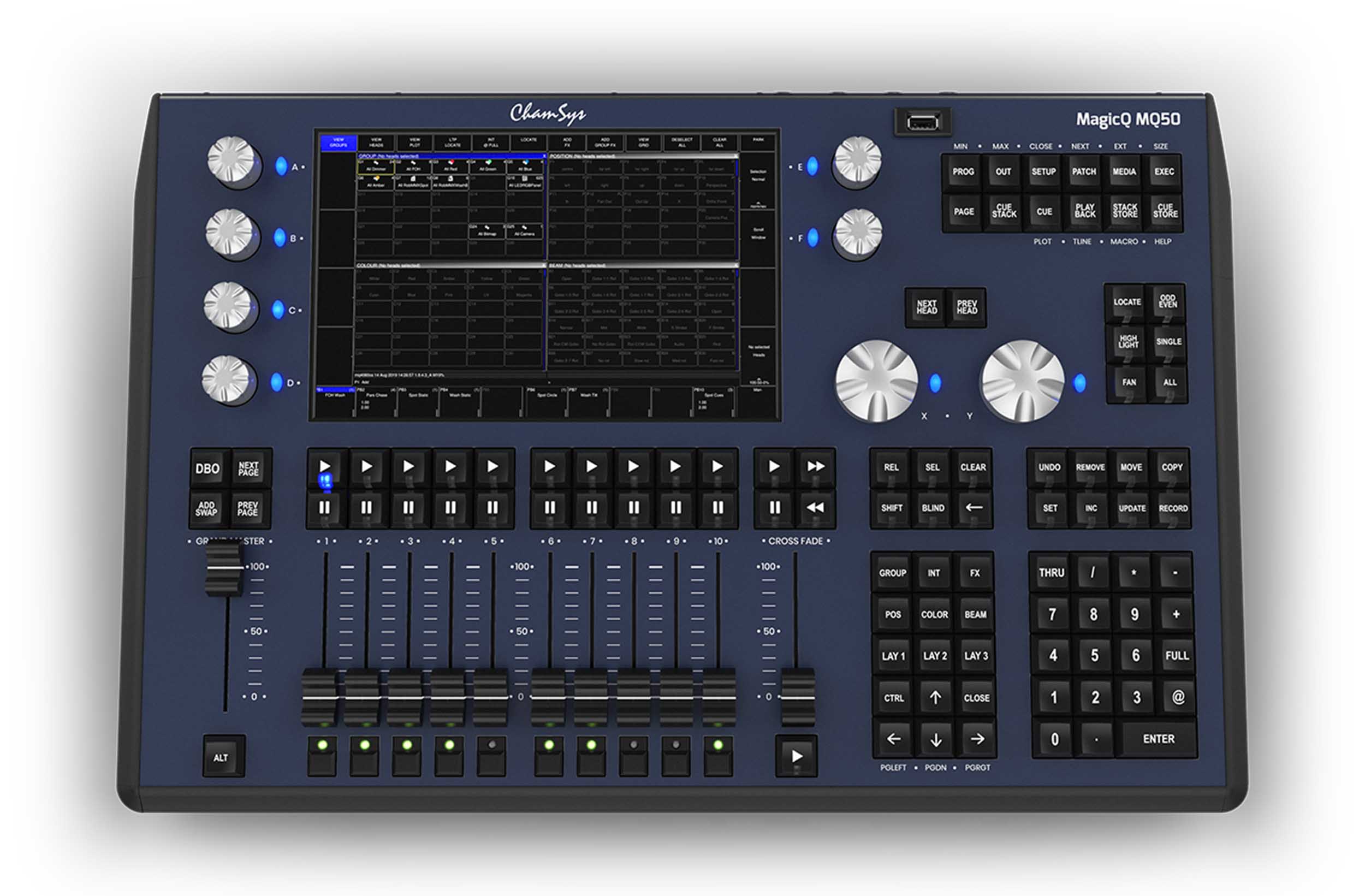

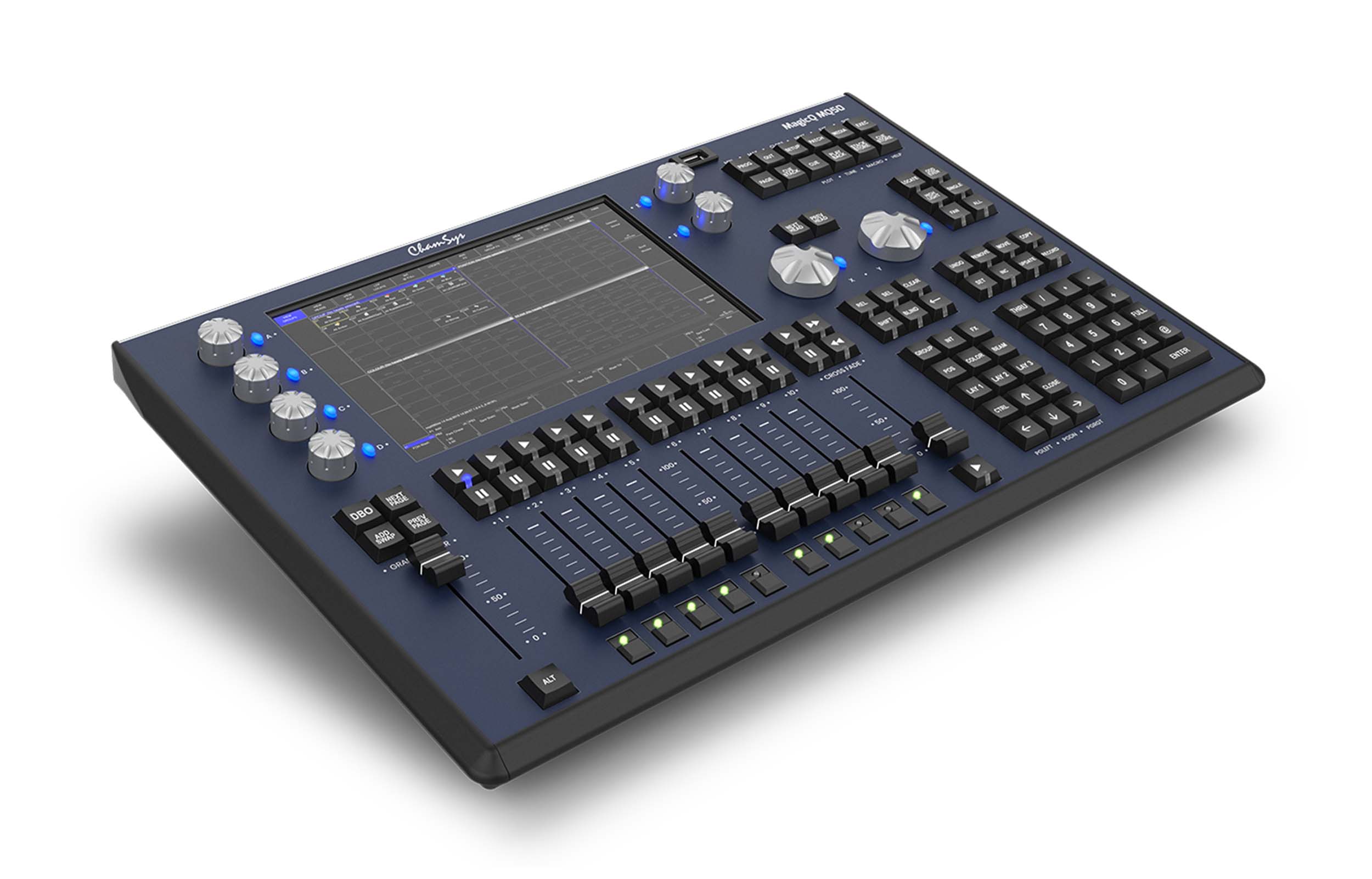

Chamsys MagicQ MQ50 Compact Lighting Console

The Chamsys MagicQ MQ50 Compact Lighting Console is part of the new generation of compact consoles, ideal for small to medium sized venues. The MQ50 features a 10.1” Multi touch display and ten full Cue Stack playbacks in a compact format.

The console supports 8 universes, with 4 assignable physical DMX outputs supporting RDM and a network port for ArtNet and sACN output. This feature packed console also includes WIFI inbuilt to the console for quick and easy connection to ChamSys MagicQ Remote focus application without the need for external networking hardware or any networking knowledge.

MagicQ MQ50 is simple and easy to use for installations, clubs and schools while still featuring advanced features such as MagicVis and MagicHD connectivity. It uses the same software and show formats, enabling compatibility between all products in the MagicQ range.

Product Specifications:

Universes direct from the console (via Artnet/sACN/Path port): 8

Direct DMX Outputs: 4

RDM Support: Yes

In-built WiFi: Yes

Playbacks: 10

Grand Master Fader: 1

Crossfade Master Fader: 1

Attribute Encoders: 8

Network Ports: 1

Inbuilt 10.1" HD Multi-Touch Display: 1

External Monitor up to 1920x1200 Resolution - HDMI: 1

USB Ports: 5

Audio Input (1 channel, 7 band): Yes

Audio Output: Yes

Max Number of DMX Channels: 4096

Max Number of Fixtures Supported: 4096

Max Number of Cues: 5000

Max Number of Cue Stacks: 2000

Max Number of Groups: 5000

Max Number of Palettes: 4096

Number of Media Server Layers Supported: 50 (each different content)

Numbers of Shows: Virtually unlimited

Timecode Support (Midi, LTC, Virtual, USB): No

Dual Color Desk light: 1

Dust cover: 1

Neutrik powerCON TRUE1 Power Cable: 1

Width: 26.7 inches

Depth: 11.4 inches

Height: 19.6 inches

Weight: 22 lb

Width: 23.6 inches

Depth: 7.95 inches

Height: 16.5 inches

Weight (console in flight case): 37.4 lbs

Width: 20.6 inches

Depth: 13.7 inches

Height: 2.3 inches

Weight: 15.4 lbs
