Description

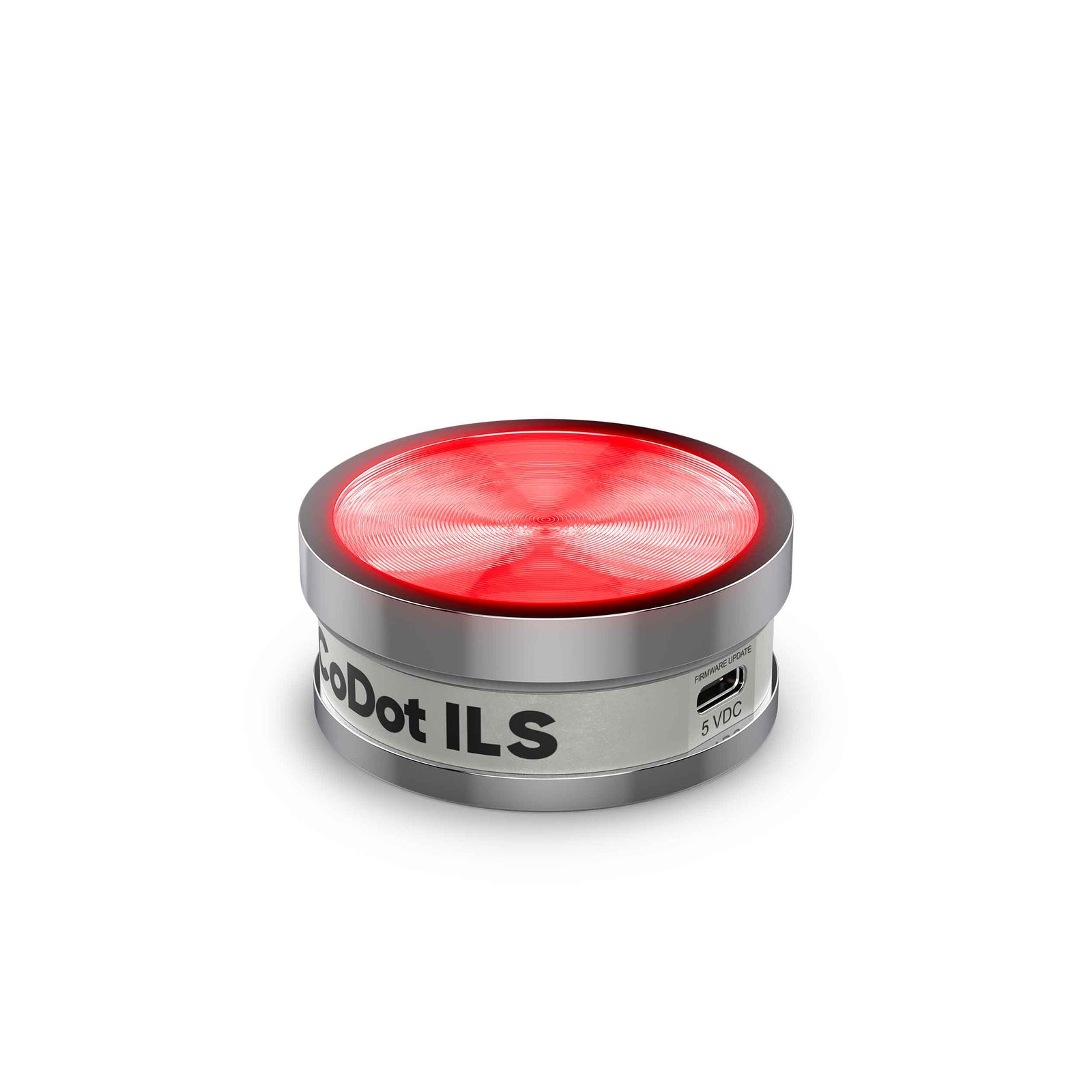

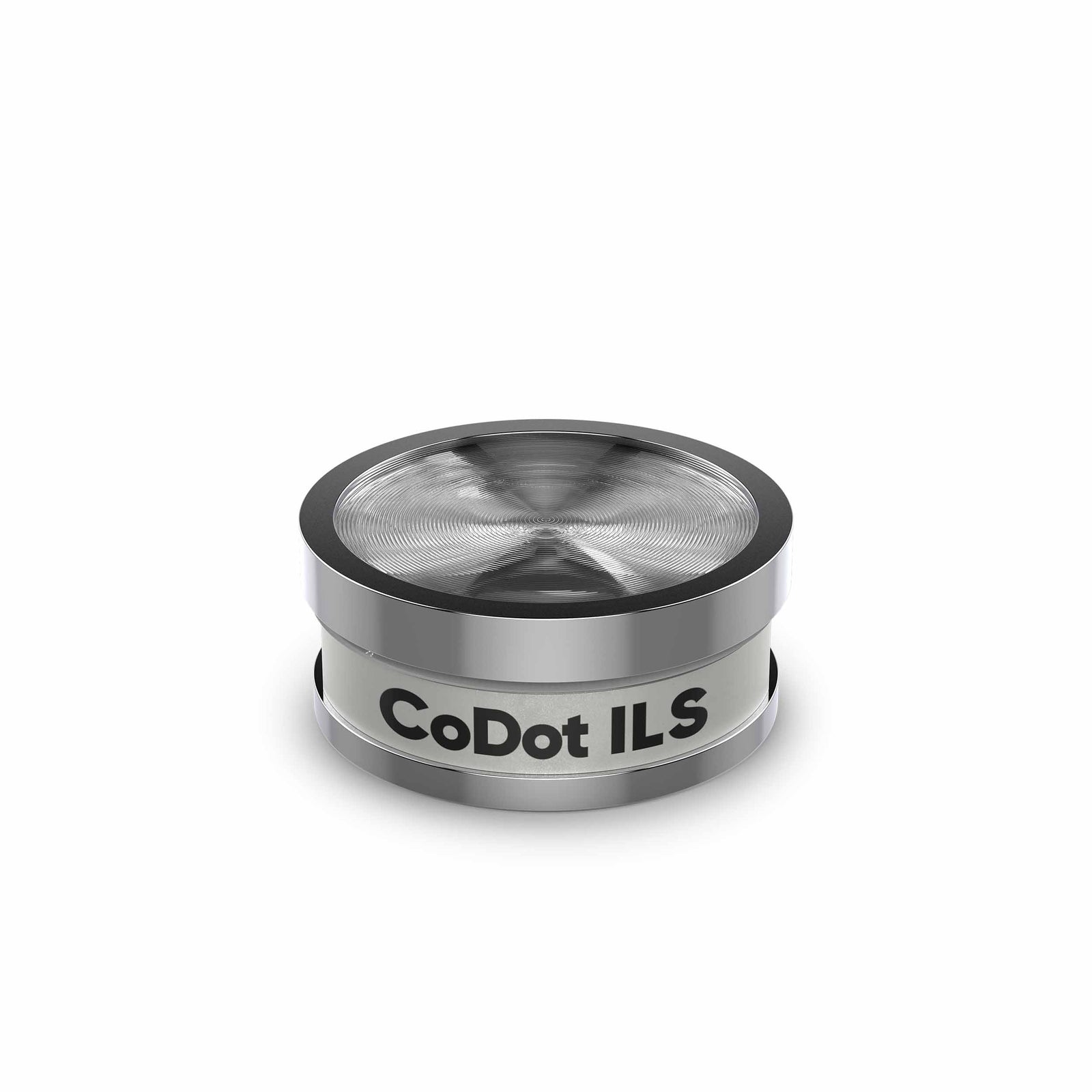

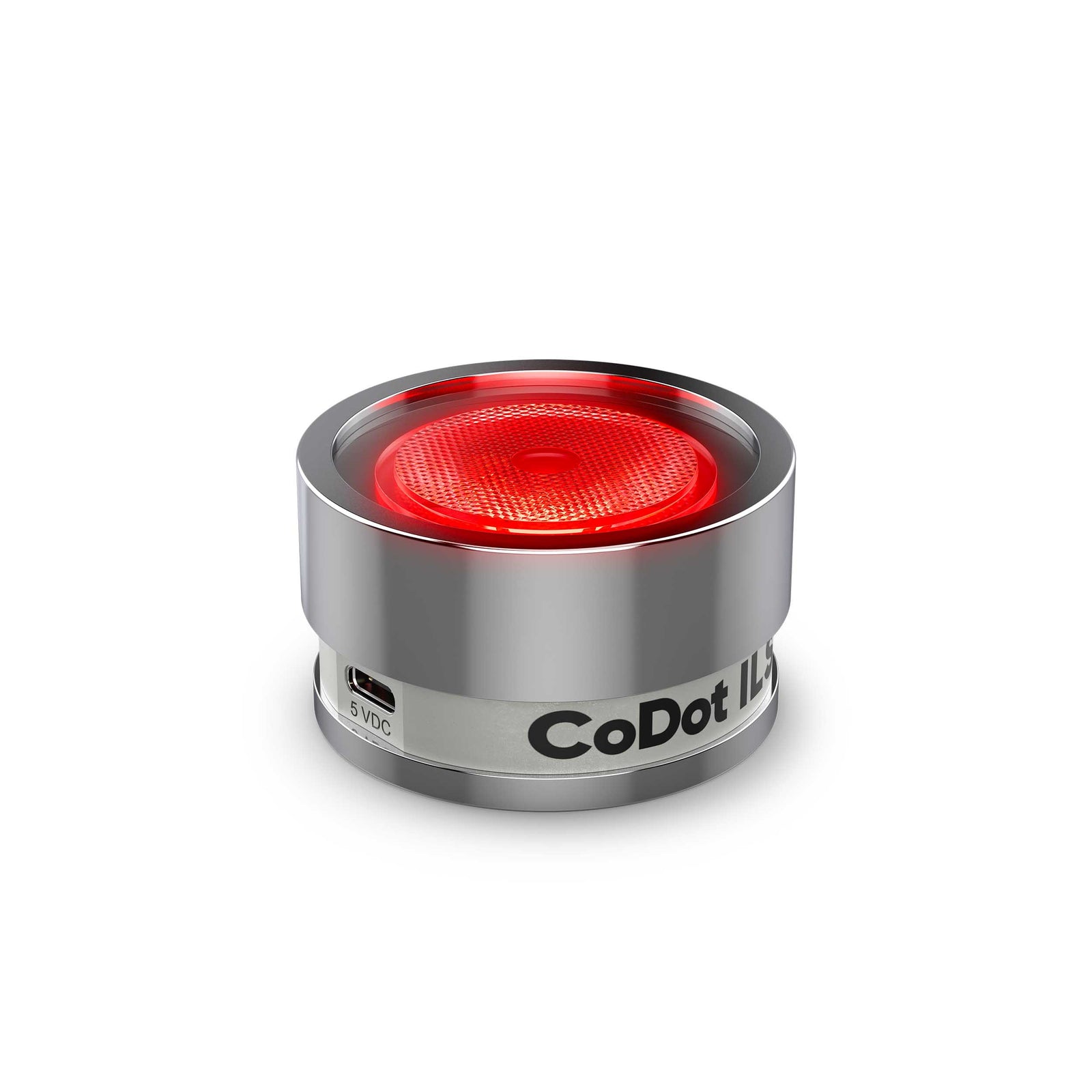

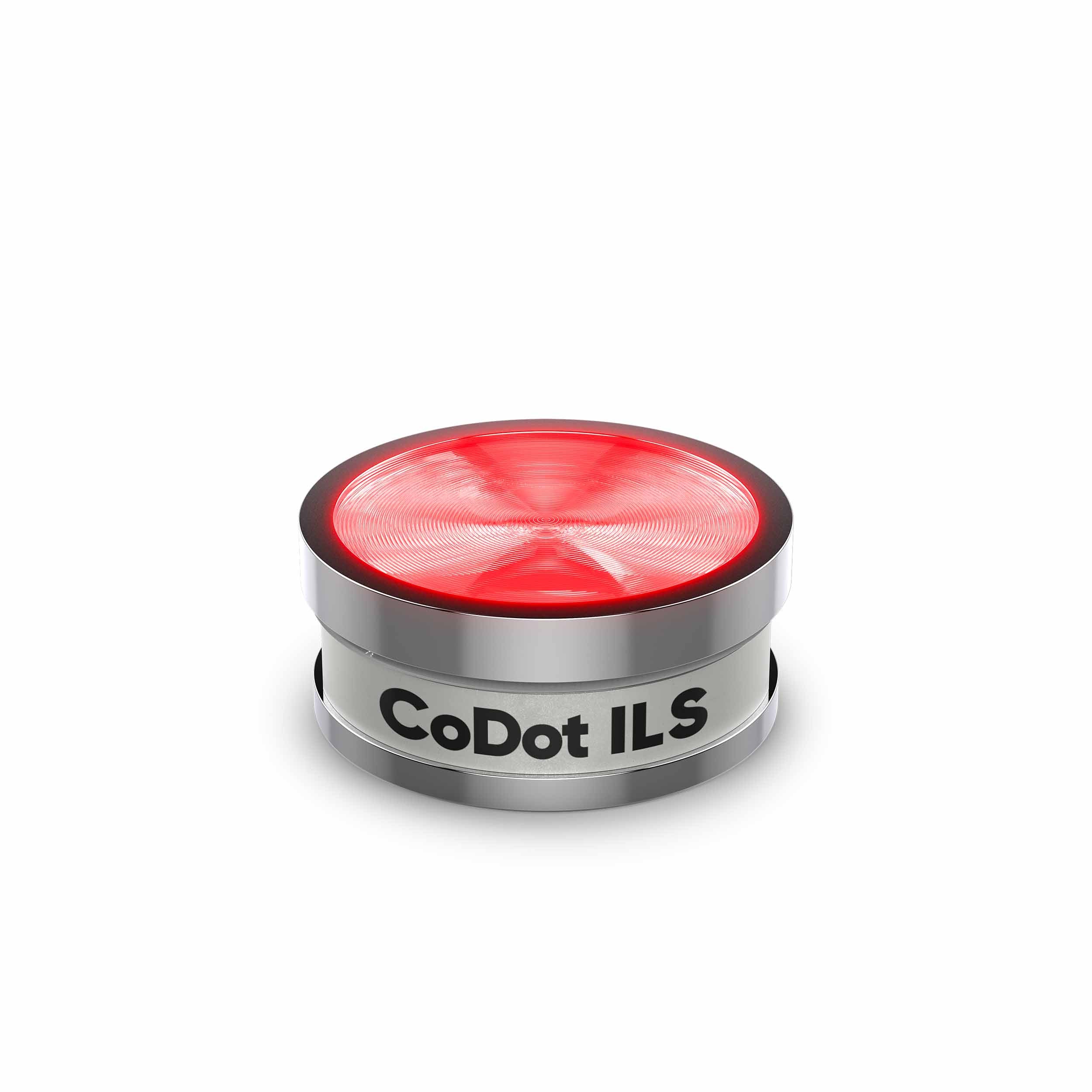

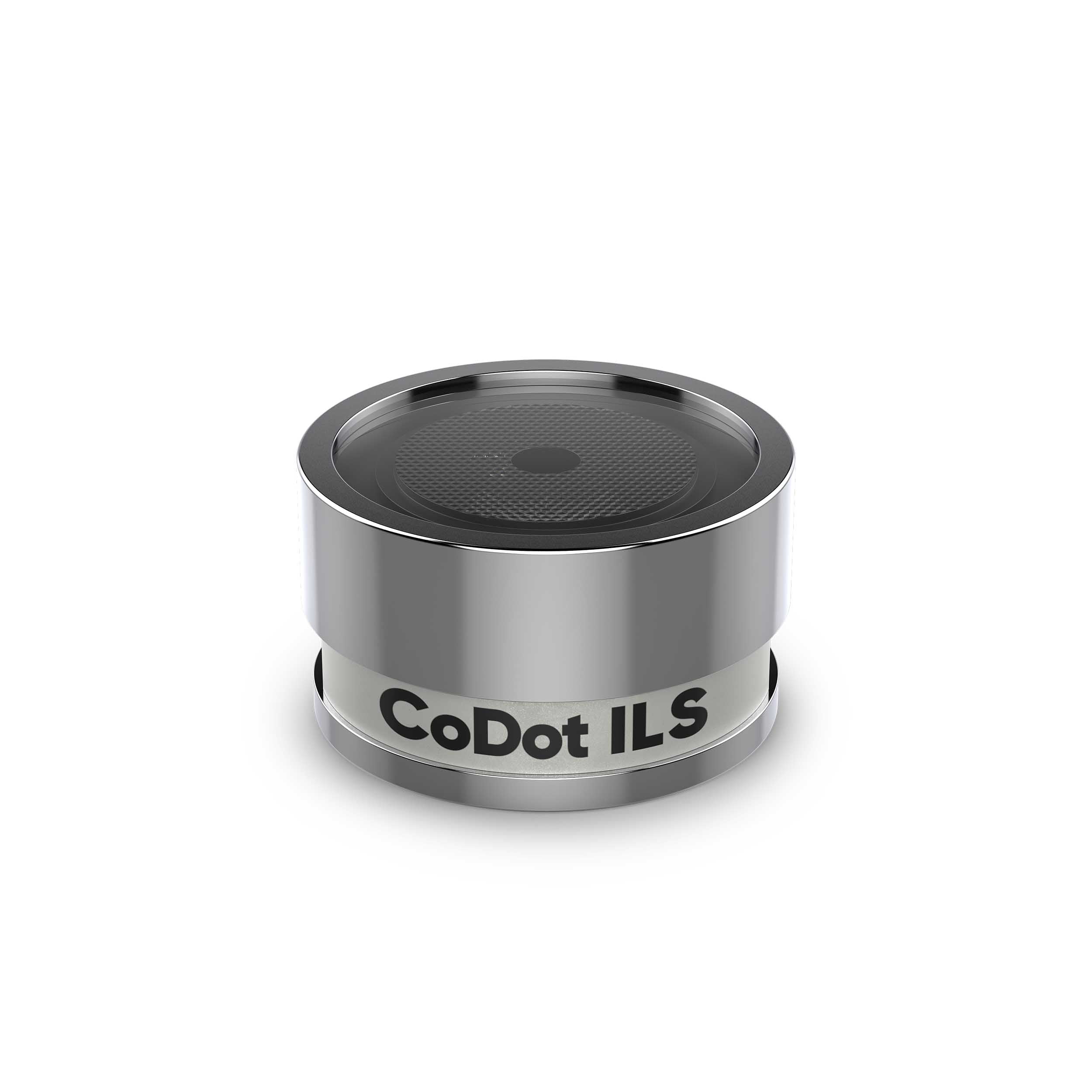

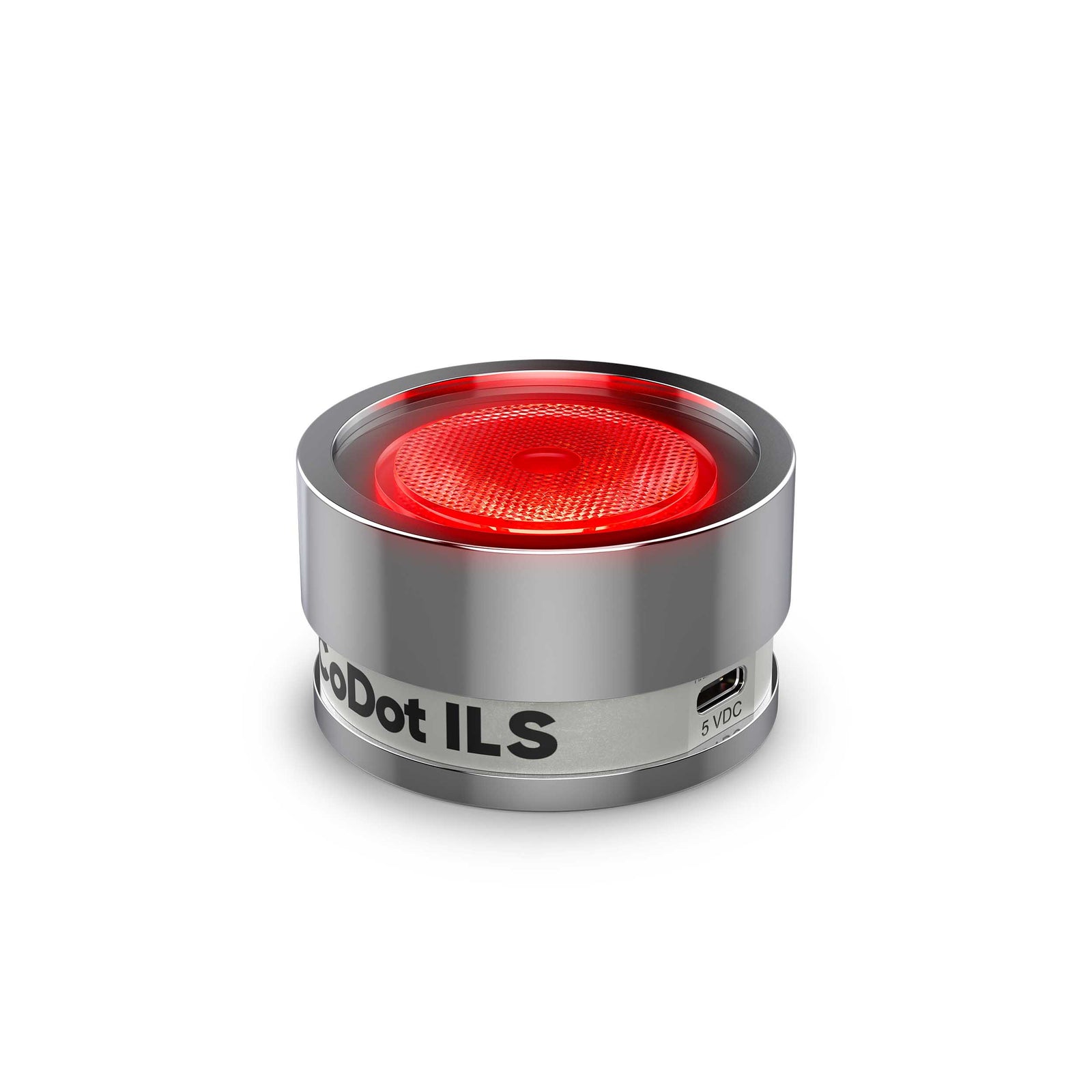

The Chauvet DJ CoDot ILS (CODOTILS) is a 4-pack of puck-sized RGBW LED lights for small spaces in a venue where a conventional fixture will not fit. Each fixture measures 2.2 x 2.1 x 0.9 in (57 x 54 x 24 mm), weighs 0.2 lb (0.1 kg), and has one 3 W quad-color LED, a magnetic base and built-in D-Fi, ILS and RF wireless control.

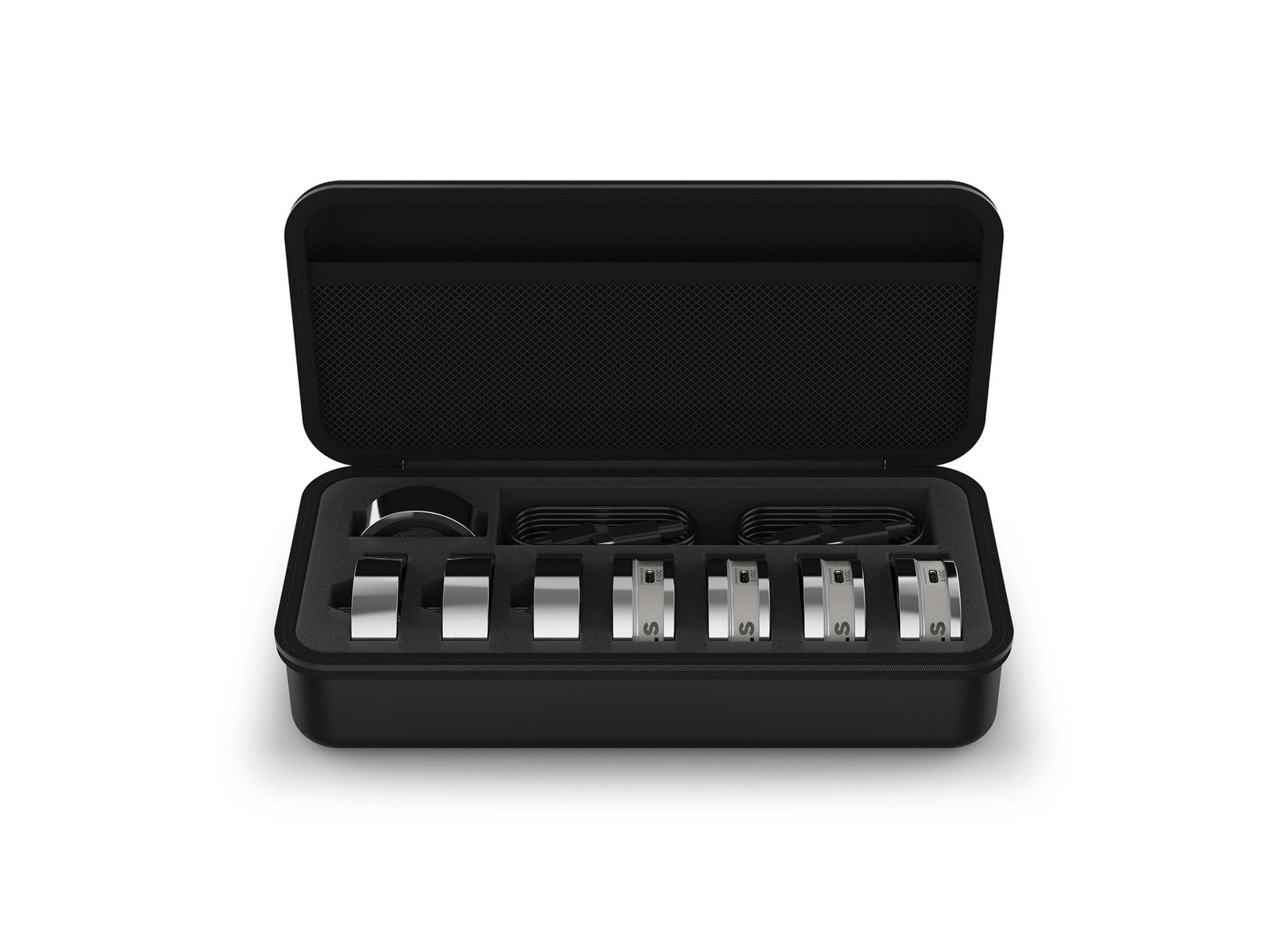

Two lens options change the beam from 19° to 14°, an M6 threaded insert fits camera tripods and accessories, and you can reach every function from the LED display on the fixture. Power links from unit to unit over USB Type-C, and the set comes in a carry case with 8 lenses, 6 USB cables and an external power supply.
CoDot ILS specifications
| Type | Puck-sized wireless LED accent light, 4-pack |
|---|---|
| Fixtures included | 4 |
| Light source | 1 quad-color RGBW LED per fixture, 3 W (0.8 A), 50,000 hours life expectancy |
| Beam angle | 19° with the installed lens; 14° with the included lens |
| Illuminance | 256 lux (installed lens) and 442 lux (included lens), measured at 6.6 ft (2 m) |
| Strobe | 0 to 20 Hz |
| Control | Built-in D-Fi transceiver for wireless DMX (4 or 6 channels) or ILS, built-in RF receiver |
| Wireless range | Up to 600 ft (183 m) unobstructed, 2.4 GHz |
| Optional controllers | ILS Command, RFC, RFC-XL |
| Power | External power supply, 100 to 240 VAC, 50/60 Hz, auto-ranging; 7 W, 0.1 A at 120 V and 230 V |

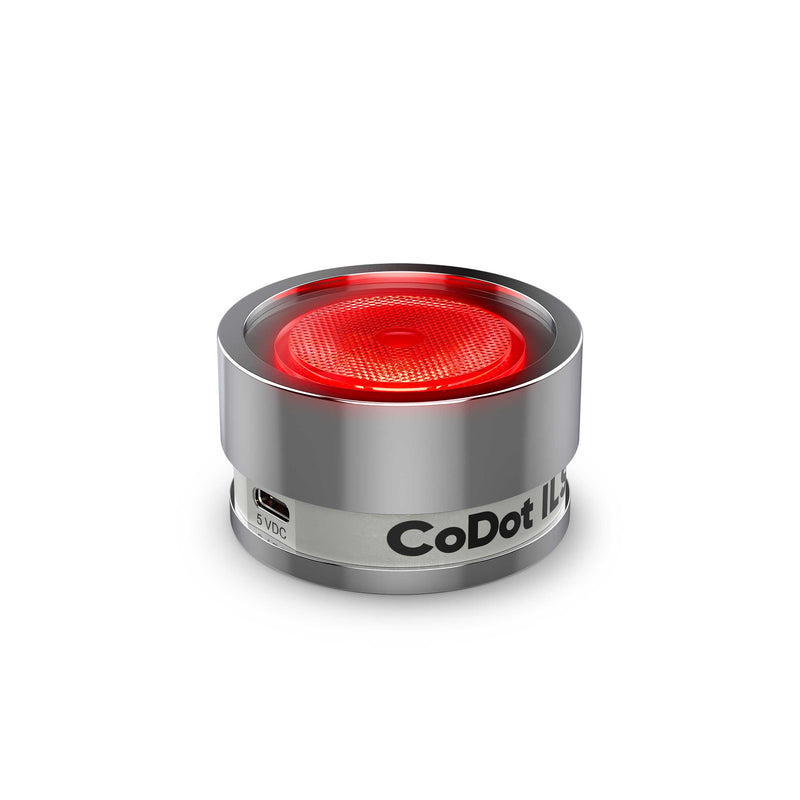

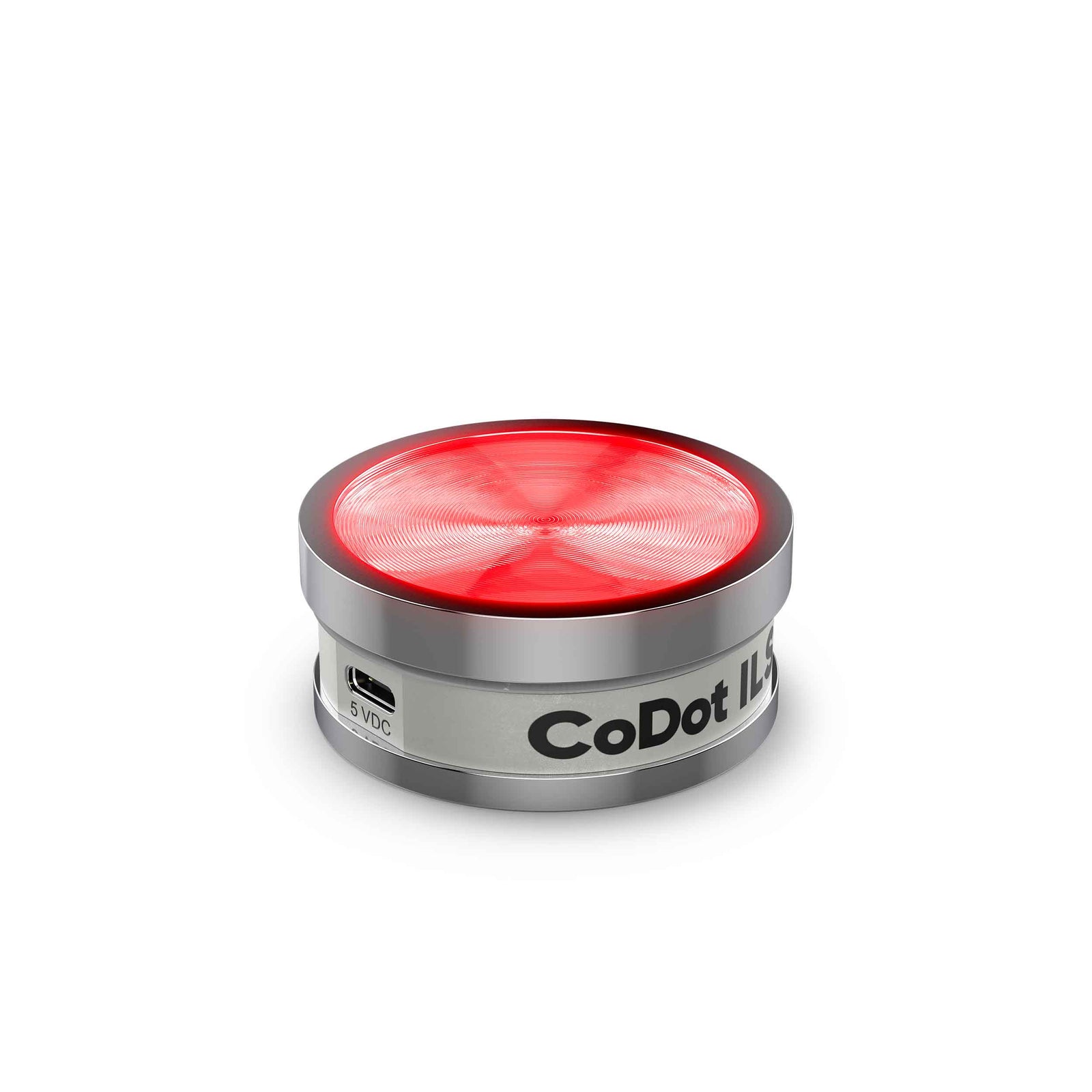

| Power linking | USB Type-C in and out, 4 units at 120 V or 230 V |
| Mounting | Magnetic base, M6 threaded insert for camera tripods and accessories |
| Fixture size | 2.2 x 2.1 x 0.9 in (57 x 54 x 24 mm) |
| Fixture weight | 0.2 lb (0.1 kg) |
| Shipping size and weight | 12 x 10 x 4 in, 2 lb |
| Approvals | CE, RoHS, UKCA, FCC |
| In the box | 4 CoDot ILS, 8 lenses, 3 short USB cables (0.5 m), 3 long USB cables (2 m), carry case, external power supply, Quick Reference Guide |
How many lights come in the CoDot ILS?
Four. The set includes 4 CoDot ILS fixtures, 8 lenses, 6 USB cables, an external power supply and a carry case.
How do I mount the CoDot ILS?
It sticks to any metal surface with its magnetic base, and its M6 threaded insert fits camera tripods and accessories.
How are they powered?
From the included external power supply, with power linked from fixture to fixture over USB Type-C, up to 4 units. Each fixture draws 7 W.
Can I control them without DMX cables?
Yes. The built-in D-Fi transceiver receives DMX or ILS signals wirelessly at up to 600 ft (183 m), and the built-in RF receiver works with the optional RFC or RFC-XL remote. The optional ILS Command controls it in the Chauvet DJ ILS system.
What do the two lenses do?

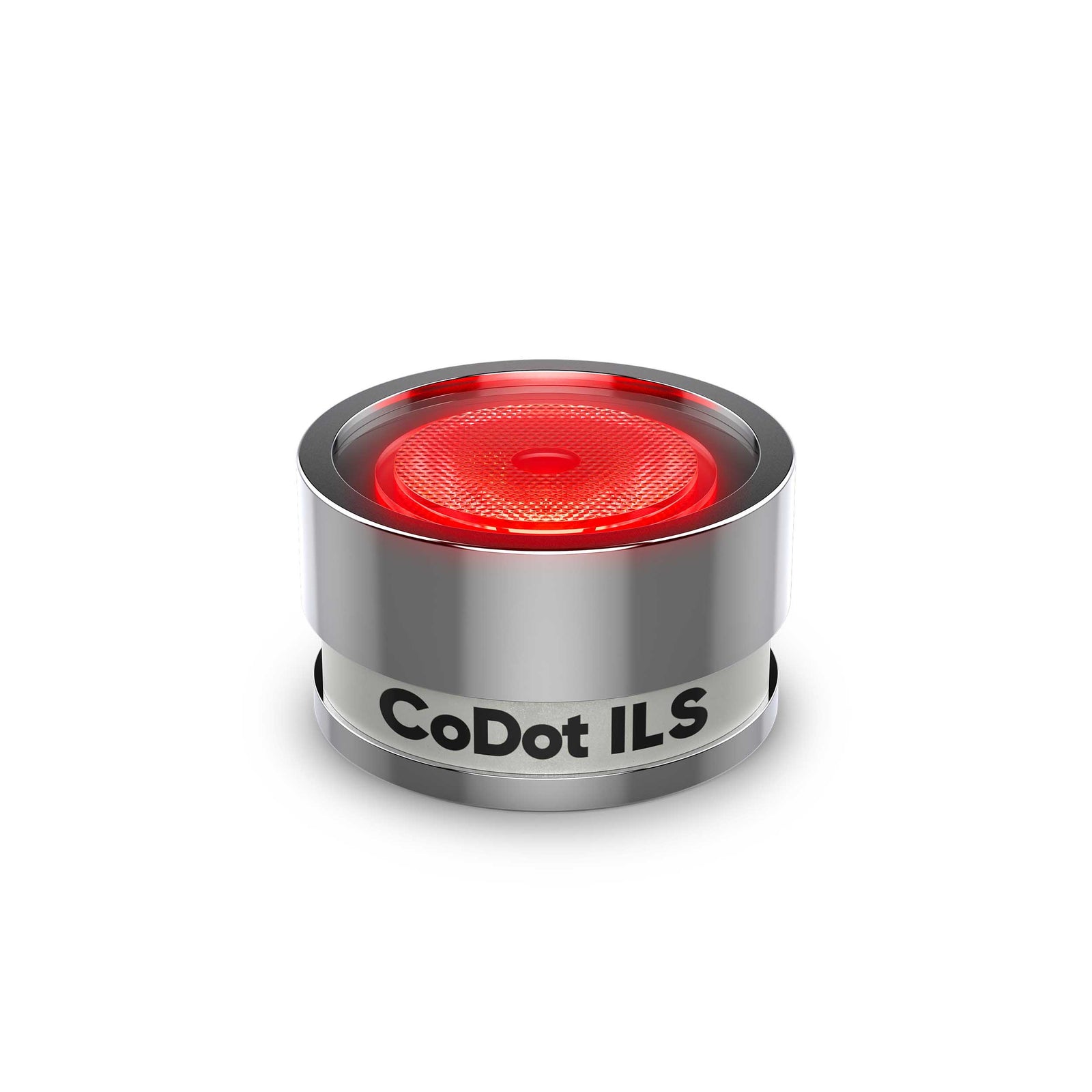

The installed lens gives a 19° beam with 256 lux at 6.6 ft (2 m). The included lens narrows it to 14° and raises it to 442 lux at the same distance.
CoDot ILS or Pinspot Q1Z ILS?
The CoDot ILS is four 3 W RGBW lights, each 0.2 lb and 2.2 x 2.1 x 0.9 in, with wireless D-Fi, ILS and RF control, for hiding in tight spots. The Pinspot Q1Z ILS is a single 20 W RGBW pinspot with a manual 5° to 25° zoom, 617 lumens and 4,081 lux at 6.6 ft (2 m) in its narrow setting, wired 3-pin XLR DMX and IRC-6 remote control, at 3 lb and 12.1 x 3.5 x 8.5 in. See the rest of the system in Chauvet DJ ILS.
