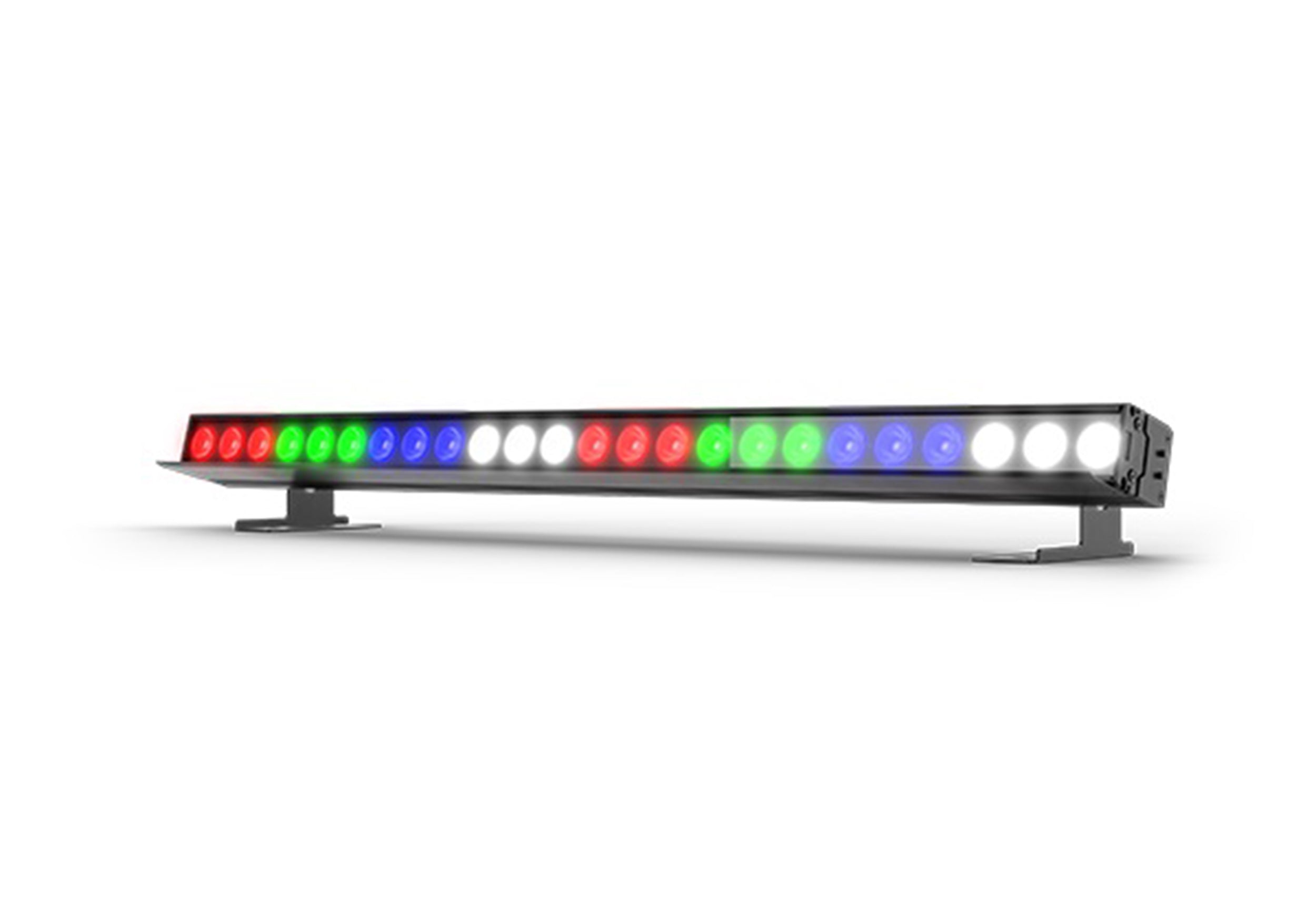

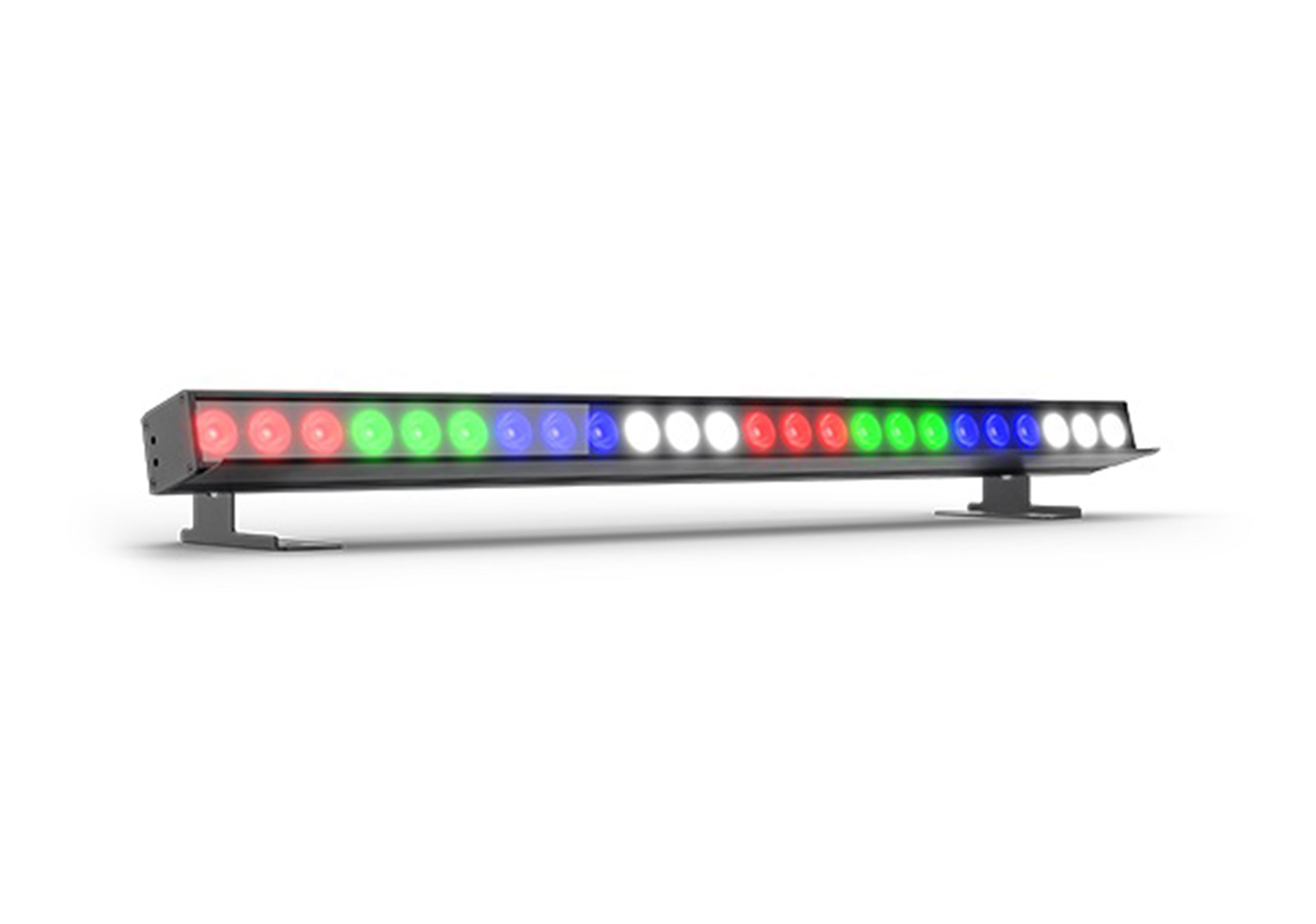

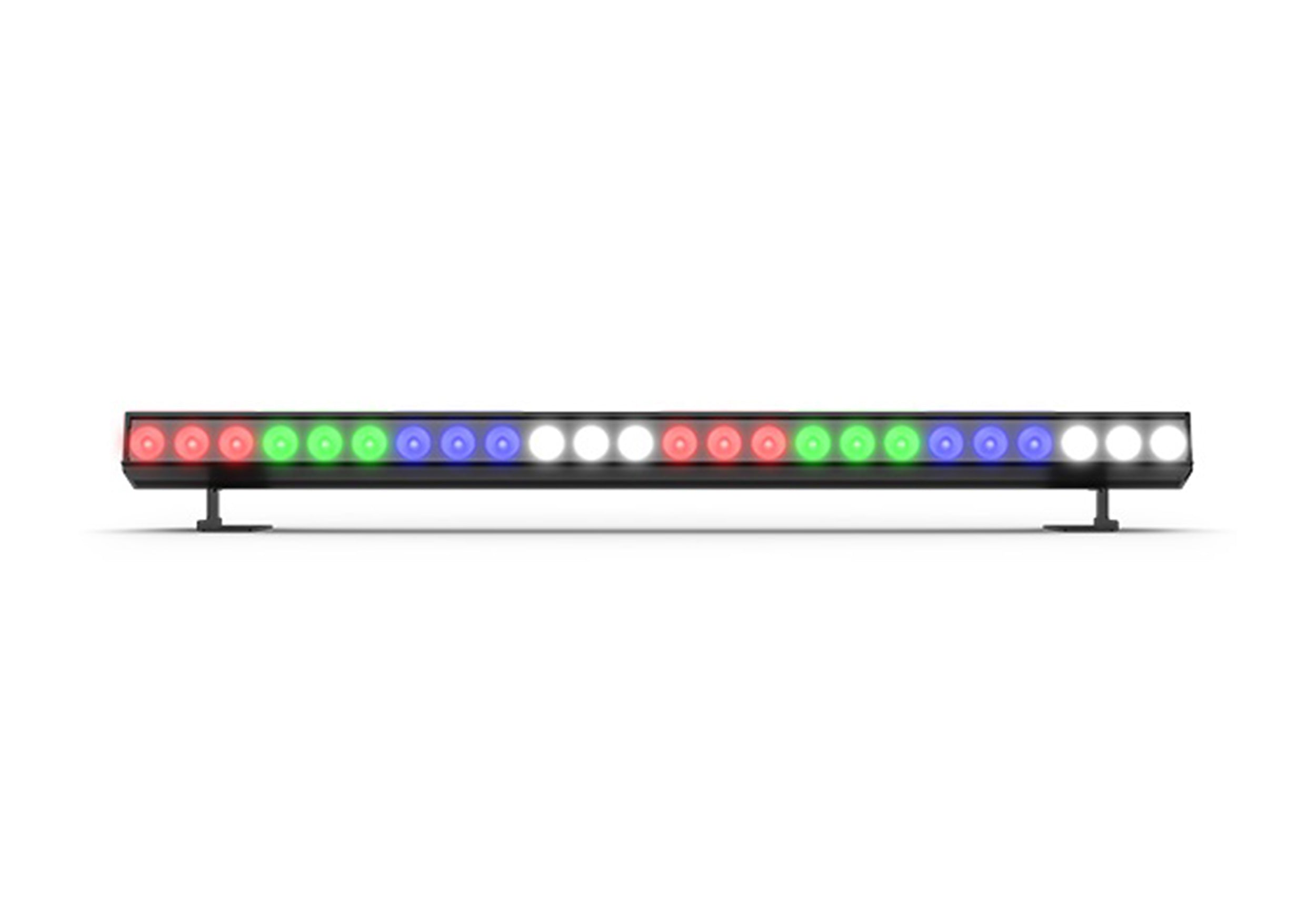

Chauvet DJ EVEB160Q 60W 105W Linear Batten Fixture with 24 x RGBW LEDs

The Chauvet DJ EVEB160Q is a full-color linear LED batten designed for both mobile productions and permanent installation applications. Built to deliver smooth, vibrant color output, it allows lighting designers to create dynamic visual effects across stages, venues, and broadcast environments with professional consistency.

Featuring up to 8 independently controllable zones, the EVEB160Q enables striking chase effects and animated color movement across the fixture. It also includes preset color temperature ranges for quick selection of warm or cool white tones, eliminating the need for manual color mixing while ensuring consistent output that matches the wider EVE lighting range.

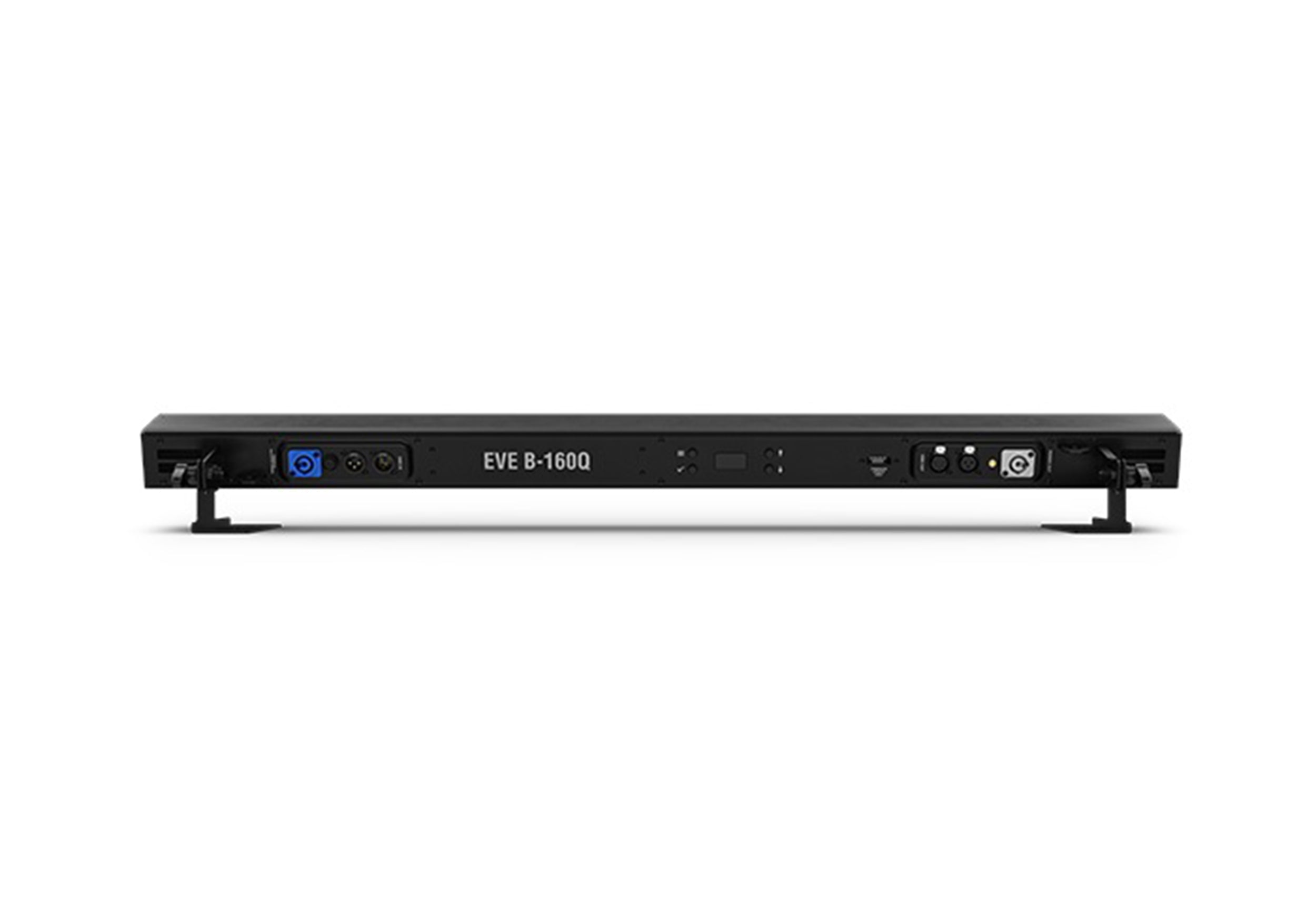

Designed for modern lighting workflows, the fixture offers flicker-free operation suitable for on-camera use, making it ideal for broadcast and video production. It supports D-Fi USB for wireless master/slave or DMX control and includes PowerCON-compatible input/output connections for convenient power linking in larger lighting setups.

Product Specifications:

DMX Channels: 3, 4, 11, or 39

DMX Connectors: 3-pin & 5-pin XLR

Light Source: 24x Quad-Color RGBW LEDs (6.5W each)

LED Lifespan: 50,000 Hours

Strobe Rate: 0 to 20 Hz

Beam Angle: 15° (24° with filter)

Field Angle: 30° (52° with filter)

Illuminance: 8,300 Lux @ 2 m

Lumens: 3,909 lm

Input Voltage: 100–240 VAC, 50/60 Hz

Power Consumption: 105W (120V) / 102W (230V)

Current Draw: 1.6A @ 120V / 1.0A @ 230V

Power Linking: Up to 7 units @ 120V / 11 units @ 230V

Cable Length: 1.5 m (5 ft)

Size: 1000 x 151 x 194 mm (39.4 x 5.9 x 7.6")

Weight: 4.7 kg (10.4 lb)

Certifications: CE, MET, RoHS

Shipping Weight: 14.77 lbs.
