Description

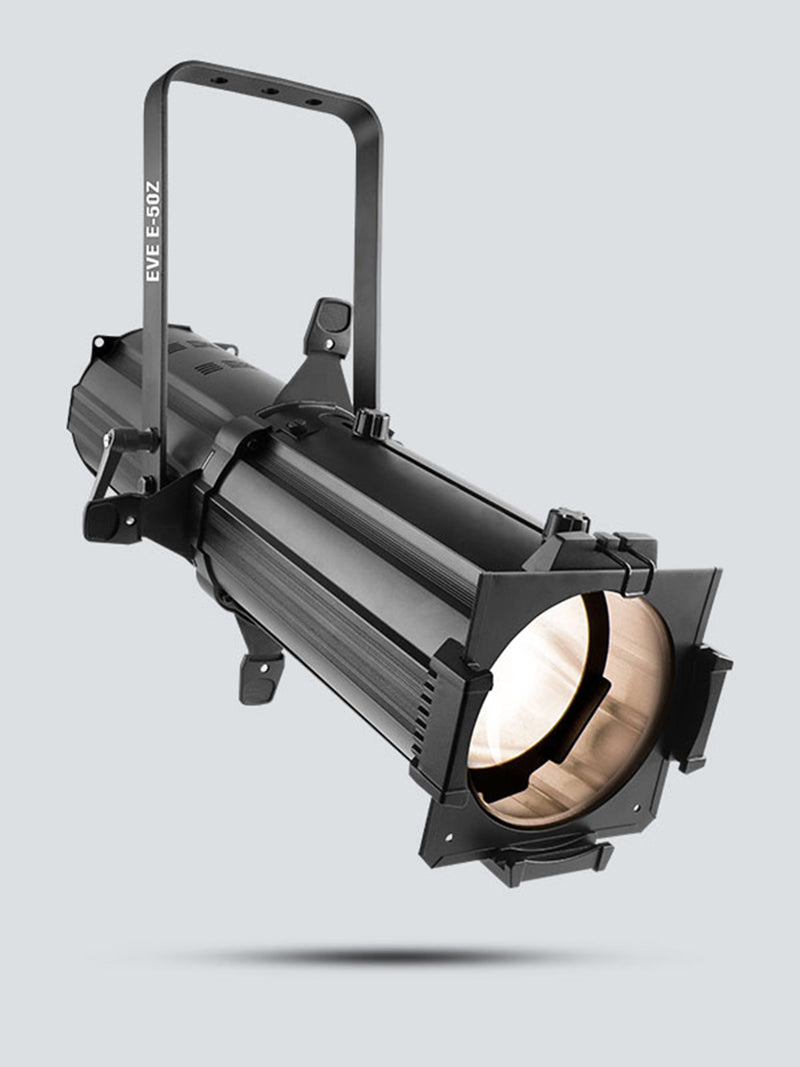

The Chauvet DJ EVE E-50Z (EVEE50Z) is a compact LED ellipsoidal spotlight that throws a hard-edged warm white beam for mobile entertainers and permanent installations. It uses a 50 W, 3,500 K warm white LED with a manual 20° to 39° zoom, and measures 7,910 lux at 2 meters (6.6 ft) at the 20° setting. This listing is the black housing.
Framing shutters shape the beam, and it takes D-size glass or steel gobos and a 5.5-inch gel frame. Run it standalone, on 1 or 3 DMX channels, or wirelessly with the optional D-Fi USB. It is flicker-free on camera.
EVE E-50Z specifications
| Type | LED ellipsoidal spotlight, manual zoom |
|---|---|
| Light source | 1 warm white LED, 50 W, 50,000-hour rated life |
| Color temperature and CRI | 3,500 K, CRI 80 |
| Zoom | Manual, 20° to 39° |
| Illuminance at 2 m (6.6 ft) | 7,910 lux at 20°; 2,710 lux at 39° |
| Illuminance at 5 m (16.4 ft) | 1,479 lux at 20°; 508 lux at 39° |
| Beam shaping | Framing shutters |
| Gobos | D size, glass or steel: 53.3 mm outside diameter, 43 mm image, 2 mm maximum thickness |
| Gel frame | 5.5 in (140 mm) |
| Strobe and PWM | 0 to 29 Hz strobe; 1.2 kHz PWM, flicker-free |
| Control | DMX (1 or 3 channels, 3-pin XLR), standalone, D-Fi USB (optional) for wireless Master/Slave or DMX |
| Power | 100 to 240 VAC, 50/60 Hz; 59 W at 120 V, 63 W at 230 V |
| Power linking | 16 units at 120 V, 26 units at 230 V |
| Dimensions | 18.9 x 6.2 x 15 in (480 x 157 x 381 mm) |
| Weight | 9.2 lb (4.2 kg) |
| Housing | Black (a white version is sold separately) |
| Approvals | CE, MET |
What is an ellipsoidal used for?
An ellipsoidal projects a sharp, hard-edged spot. Use the EVE E-50Z to highlight a performer, a display or an architectural detail, to cut the beam to a shape with the framing shutters, or to project a gobo pattern.
Can I project a logo or pattern with it?
Yes. It has holders for D-size glass and steel gobos (53.3 mm outside diameter, 43 mm image), plus a 5.5-inch gel frame for color.
Does it need a DMX controller?
No. It runs standalone, so you can set it and leave it. For control, it takes 1 or 3 DMX channels, or wireless DMX and Master/Slave with the optional D-Fi USB.
How far can it throw?
The manual zoom covers 20° to 39°. At 5 m (16.4 ft) it measures 1,479 lux at 20° and 508 lux at 39°.
EVE E-50Z or EVE E-100Z?
The EVE E-50Z uses a 50 W LED with a 20° to 39° zoom, measures 7,910 lux at 2 m at 20° and weighs 9.2 lb. The EVE E-100Z doubles the LED to 100 W with a tighter 14° to 30° zoom, measures 15,100 lux at 2 m at 14°, takes larger M-size gobos and weighs 12.6 lb. Pick the E-50Z for shorter throws and portability, the E-100Z for longer throws. Need a white housing? See the EVE E-50Z in white.
