Description

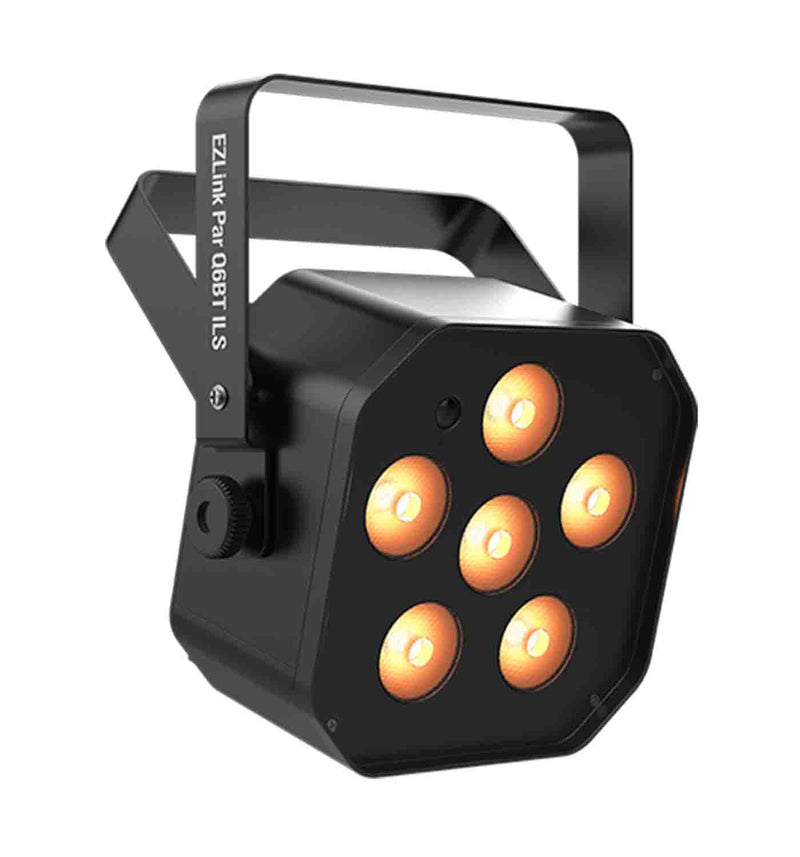

The CHAUVET DJ EZLink Par Q6BT ILS is a battery-operated RGBA LED PAR designed for completely wireless lighting applications. Its compact design eliminates the need for a constant power connection during operation. The fixture combines rechargeable battery operation with multiple wireless control options for maximum flexibility. This makes it ideal for mobile DJs, events, weddings, stages, and temporary installations. Its compact form factor also makes transportation and placement simple.
RGBA Color Mixing
The EZLink Par Q6BT ILS uses six 3W quad-color RGBA LEDs to produce a broad spectrum of vibrant colors. The dedicated amber LEDs help create natural-looking color temperatures and enhance warm color tones. The 16° beam angle and 30° field angle provide controlled coverage for uplighting and event applications. The fixture delivers 1,587 lux at 2 meters for strong visual impact. Users can create colorful washes, atmospheric effects, and coordinated lighting looks.
ILS and Bluetooth Control
Built-in ILS compatibility allows the EZLink Par Q6BT ILS to operate within the ILS ecosystem alongside different fixture types. Bluetooth wireless technology allows direct control from a compatible smartphone or tablet without requiring additional hardware. This provides convenient control for users who want wireless operation without a traditional DMX setup. The fixture also supports an optional IRC-6 remote for wireless non-DMX control. These options provide flexible control for both simple and advanced lighting environments.
D-Fi Wireless Control
The EZLink Par Q6BT ILS supports D-Fi USB for wireless Master,Slave or DMX control when the optional USB accessory is used. This allows multiple compatible fixtures to communicate wirelessly without running traditional DMX cables between every unit. The system operates on the 2.4 GHz frequency and provides a maximum unobstructed wireless distance of 150 feet. This wireless capability makes setup faster and reduces cable requirements. It is especially useful for mobile productions and temporary event installations.
Extended Battery Operation
The rechargeable battery provides up to 8 hours of operation with all colors active and up to 20 hours when using a single color. A full recharge takes approximately 4 hours, allowing the fixture to be prepared for subsequent events. Battery operation makes the fixture particularly useful for venues where power cables are difficult to route. The wireless design also helps maintain a clean appearance for weddings, corporate events, and architectural uplighting. Users can position the fixture where it is needed without depending on nearby power outlets.
Dynamic Lighting Effects
The EZLink Par Q6BT ILS includes sound-activated and automated programs for creating dynamic lighting effects without complex programming. Its 0 to 25 Hz strobe range provides additional visual effects for live performances and entertainment applications. DMX control is available through 4 or 8 channel modes for more detailed programming. Power linking also allows multiple fixtures to share power when wired operation is preferred. This combination of wireless and wired functionality makes the fixture highly adaptable.
Portable Professional Design
The EZLink Par Q6BT ILS weighs only 3.8 lbs and measures 8 inches by 9.6 inches by 3.4 inches. Its compact size makes it easy to transport, position, and store between events. The fixture includes a 13mm bracket mounting hole for flexible installation options. It is also designed to fit the CHS-40 VIP Gear Bag for convenient transportation. With CE, UKCA, RoHS, and FCC approvals, it provides a practical solution for professional mobile lighting applications.
What’s in the Box:
- EZLink Par Q6BT ILS
- Power cord
- Quick Reference Guide
Product Specifications:
Product Type: Battery-Powered LED PAR Light
Light Source: 6 Quad-Color RGBA LEDs
LED Power: 3 W Per LED
LED Life Expectancy: 50,000 Hours
Color System: RGBA
DMX Channels: 4 or 8
DMX Connectors: 3-Pin XLR
Bluetooth Version: 4.2
Operating Frequency: 2.4 GHz
Maximum Wireless Distance: 150 ft, 45.7 m
Strobe Rate: 0 to 25 Hz
Beam Angle: 16°
Field Angle: 30°
Illuminance: 1,587 lux @ 2 m
Control Options: Bluetooth, ILS, DMX, D-Fi USB, IRC-6
ILS and D-Fi Compatibility: Yes
Battery Operation: Yes
Maximum Runtime, All On: Up to 8 Hours
Maximum Runtime, Single Color: Up to 20 Hours
Recharge Time: 4 Hours
Power Linking: 17 Units @ 120 V, 31 Units @ 230 V
Input Voltage: 100 to 240 VAC
Input Frequency: 50,60 Hz
Power Consumption: 33 W @ 120 V, 32 W @ 230 V
Current Draw: 0.5 A @ 120 V, 0.3 A @ 230 V
Cable Length: 5 ft, 1.524 m
Bracket Mounting Hole: 13 mm
Approvals: CE, UKCA, RoHS, FCC
Optional Controllers: IRC-6, BTAir
Compatible Gear Bag: CHS-40 VIP Gear Bag
Product Weight: 3.8 lbs.
Product Dimensions (L × W × H): 8" × 9.6" × 3.4"
Shipping Weight: 5 lbs.
Shipping Dimensions (L × W × H): 11" × 11" × 7"
