Description

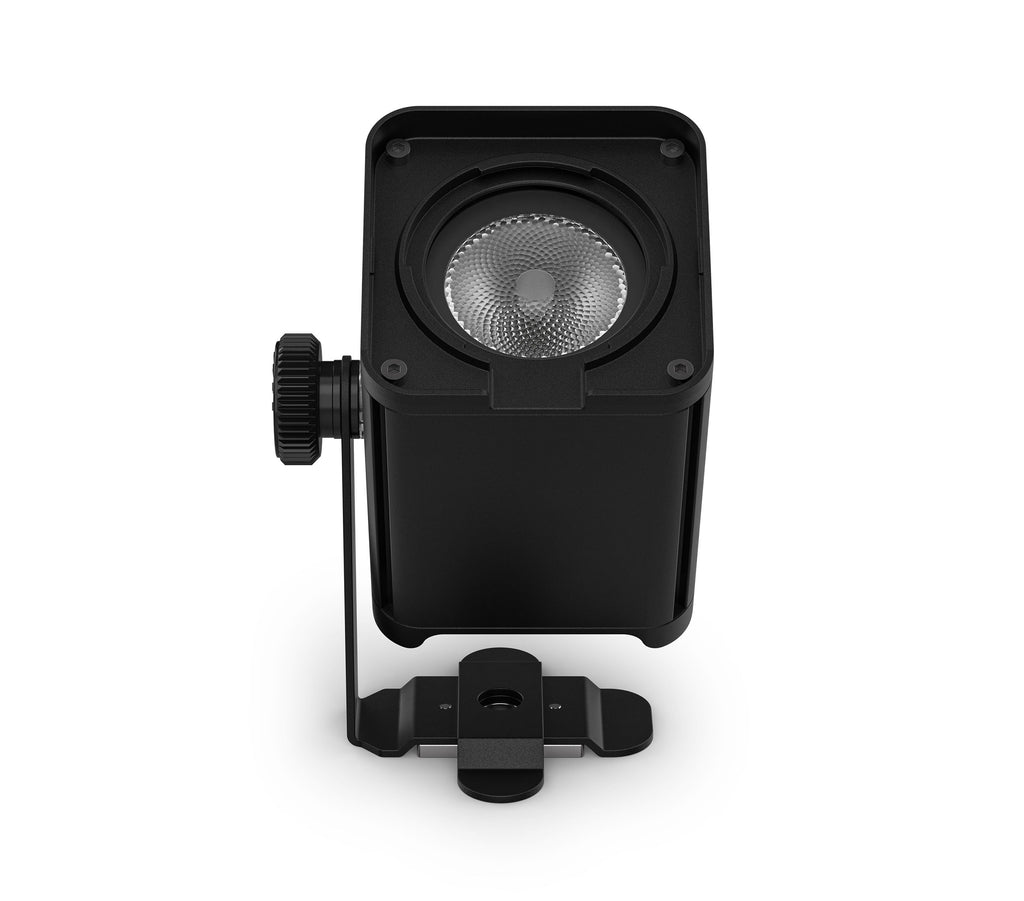

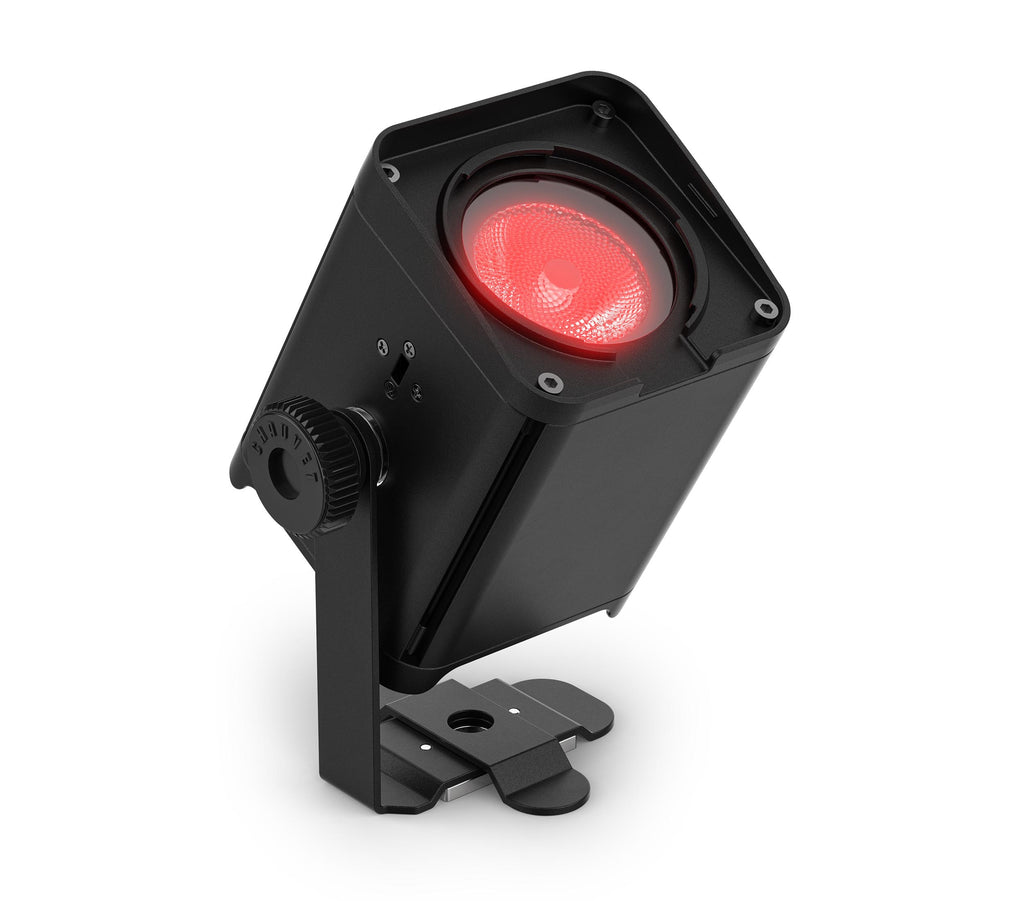

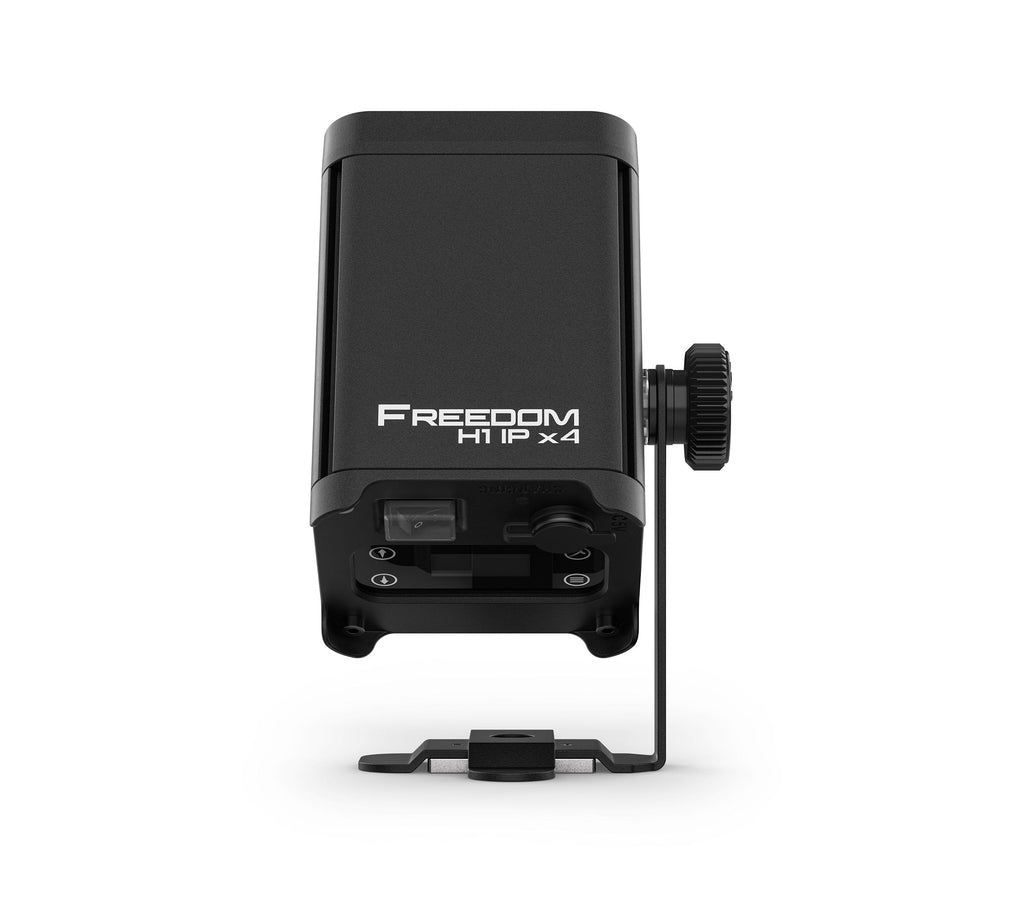

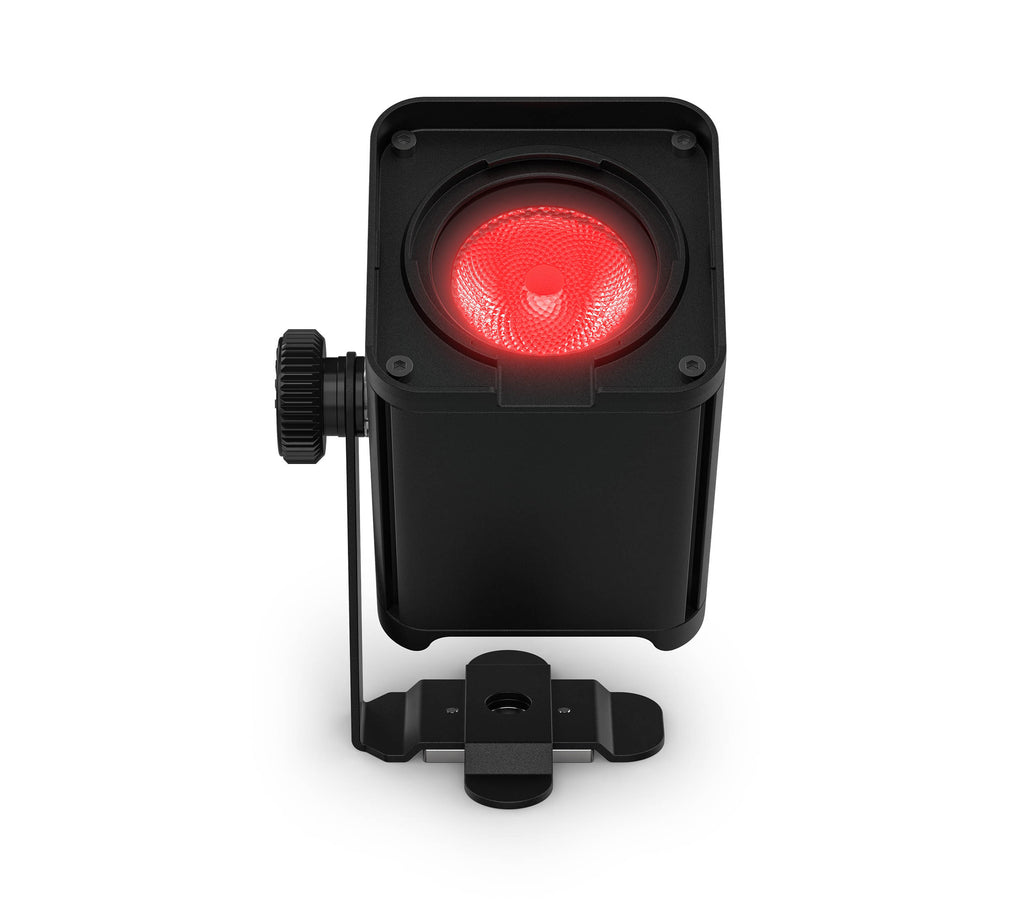

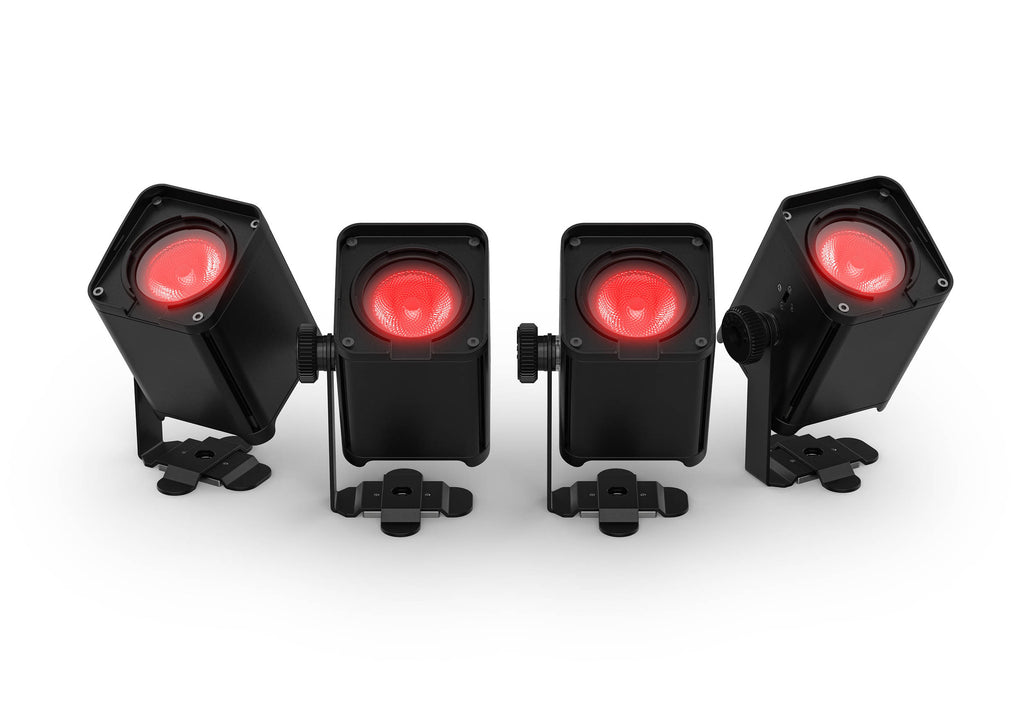

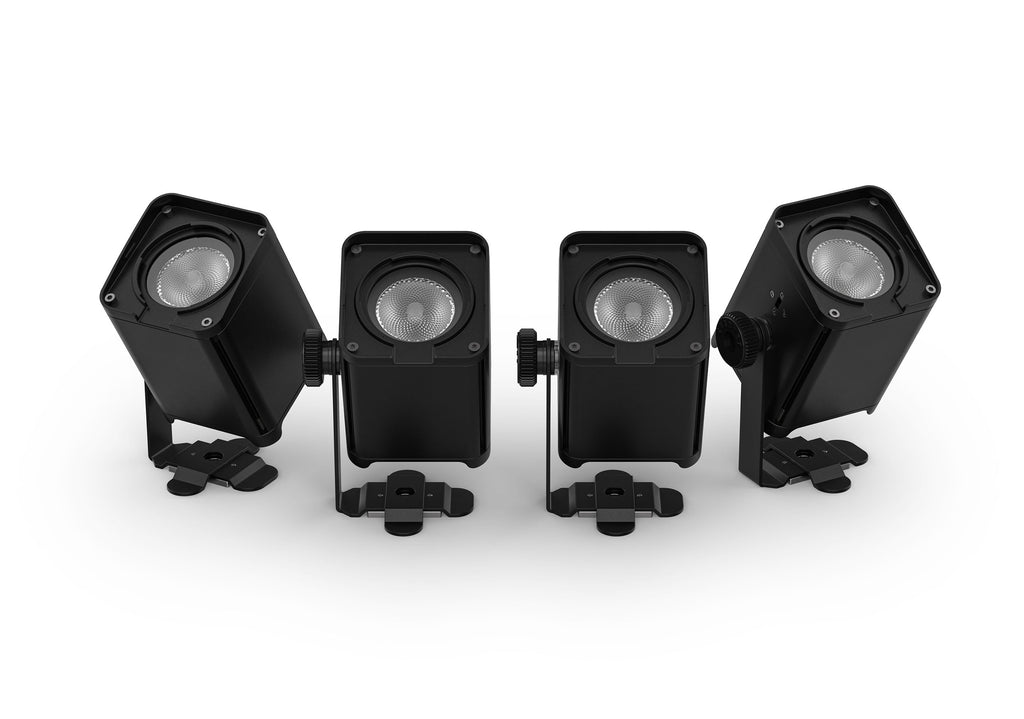

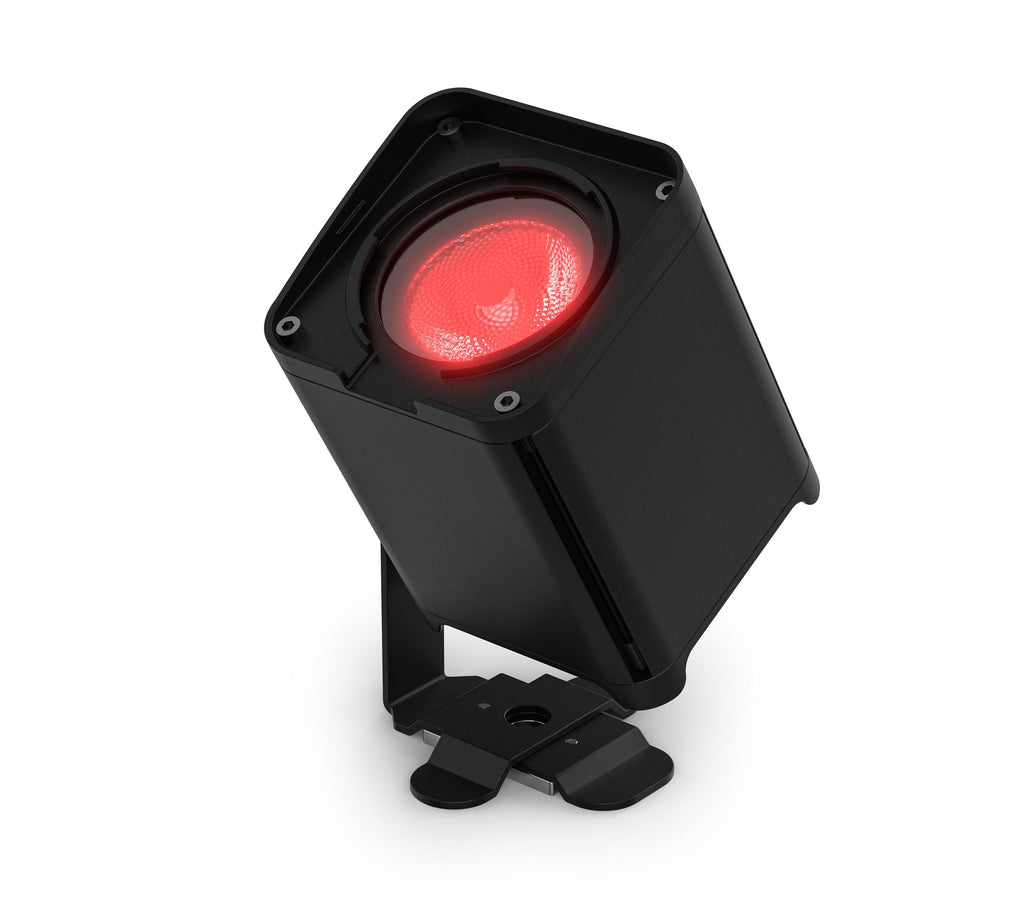

The Chauvet DJ Freedom H1 IP ILS X4 is a compact, outdoor-rated wireless wash lighting system designed for highlighting small subjects and creating vibrant accent lighting in both indoor and temporary outdoor environments. Sold as a complete kit with four fixtures, a multi-charger, and an RFC remote, it offers a portable and convenient lighting solution for events, productions, and mobile entertainment setups.
Each fixture features a powerful 10W hex-color RGBWA+UV LED source with a 50,000-hour life expectancy, delivering rich color mixing, smooth washes, and dynamic lighting effects. With selectable 6, 8, or 12-channel DMX modes, a strobe rate of up to 20 Hz, a 23° beam angle, and a 44° field angle, the Freedom H1 IP ILS X4 provides flexible performance options for creative lighting applications. The integrated OLED display allows for quick and intuitive fixture configuration directly on the unit.
Designed for maximum versatility, the fixtures include built-in RF and D-Fi transceivers for wireless communication and control using optional RFC or RFC-XL remotes and other D-Fi-enabled devices. A magnetic base allows easy mounting to most metal surfaces, while the robust housing is built to withstand temporary outdoor conditions. Optional accessories including round domes, square tops, and white sleeves further expand the fixture’s creative possibilities for professional lighting designs.
Product Specifications:
DMX Channels: 6, 8, or 12
Light Source: 1x 10W Hex-Color RGBWA+UV LED
LED Lifespan: 50,000 Hours
Strobe Rate: 0 to 20 Hz
Beam Angle: 23°
Field Angle: 44°
Operating Frequency: 2.412 to 2.484 GHz
Illuminance: 168 Lux @ 2 m
Lumens: 137 lm
Maximum Runtime (All On): Up to 8 Hours
Maximum Runtime (Single Color): Up to 20 Hours
Recharge Time: 6 Hours
IP Rating: IP54
Startup Temperature: -20°C to 45°C (-4°F to 113°F)
Operating Temperature: -30°C to 45°C (-22°F to 113°F)
Wireless Range: Up to 183 m (600 ft)
Input Voltage: 5 VDC, 10A
Power Consumption: 13W
Power Draw (120V): 0.3A @ 120V / 60Hz
Power Draw (230V): 0.2A @ 230V / 50Hz
Mounting Hole: M12
Optional Controllers: RFC, RFC-XL, FREEDOM Connect
Certifications: CE, RoHS, FCC
Fixture Weight: 0.7 kg (1.6 lbs)
Fixture Dimensions: 75 x 75 x 107 mm (3 x 3 x 4.2")
Shipping Weight: 8.4 lbs.
Shipping Dimensions (L x W x H): 12.4 x 10.6 x 6.7 in
