Description
The Chauvet DJ FREEDOMPARQ12 is a 100% true wireless, battery-operated LED upplight designed to deliver professional-grade illumination with maximum flexibility. Featuring twelve high-output 6W quad-color (RGBA) LEDs and a built-in D-Fi wireless DMX transceiver, it eliminates the need for power and data cables while producing vibrant, evenly blended color. Compact and lightweight, it is ideal for weddings, mobile DJs, stage productions, architectural lighting, corporate events, and venue up lighting where quick deployment and a clean appearance are essential.
Engineered for exceptional lighting performance, the FREEDOMPARQ12 incorporates advanced secondary optics that provide smooth color mixing with virtually no visible artifacts. A magnetic diffuser can be attached or removed in seconds to widen the beam from 12° to 25° and increase the field angle from 23° to 49°, allowing the fixture to adapt easily to different lighting applications. Smooth LED dimming curves, adjustable strobe effects up to 20 Hz, and support for 4, 6, or 14 DMX channels provide the versatility needed for everything from subtle ambient lighting to dynamic stage effects.

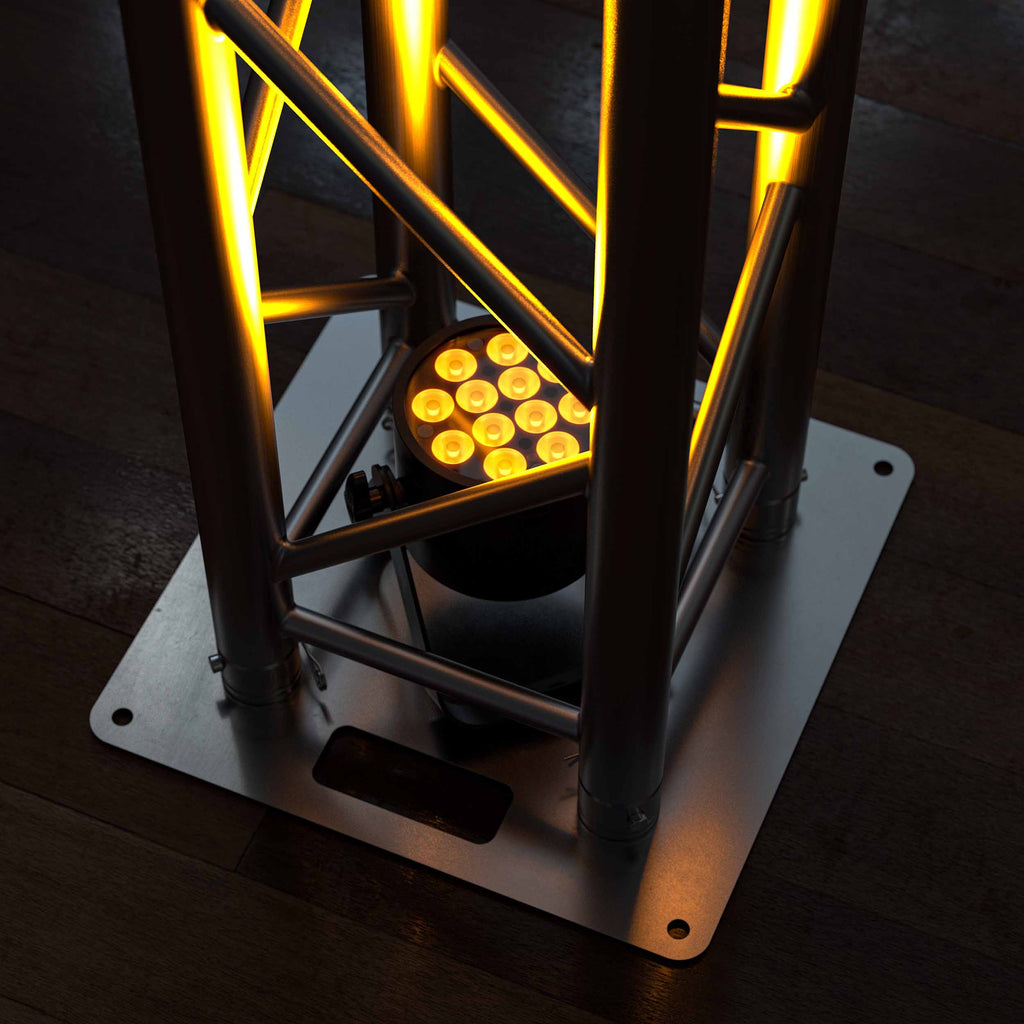

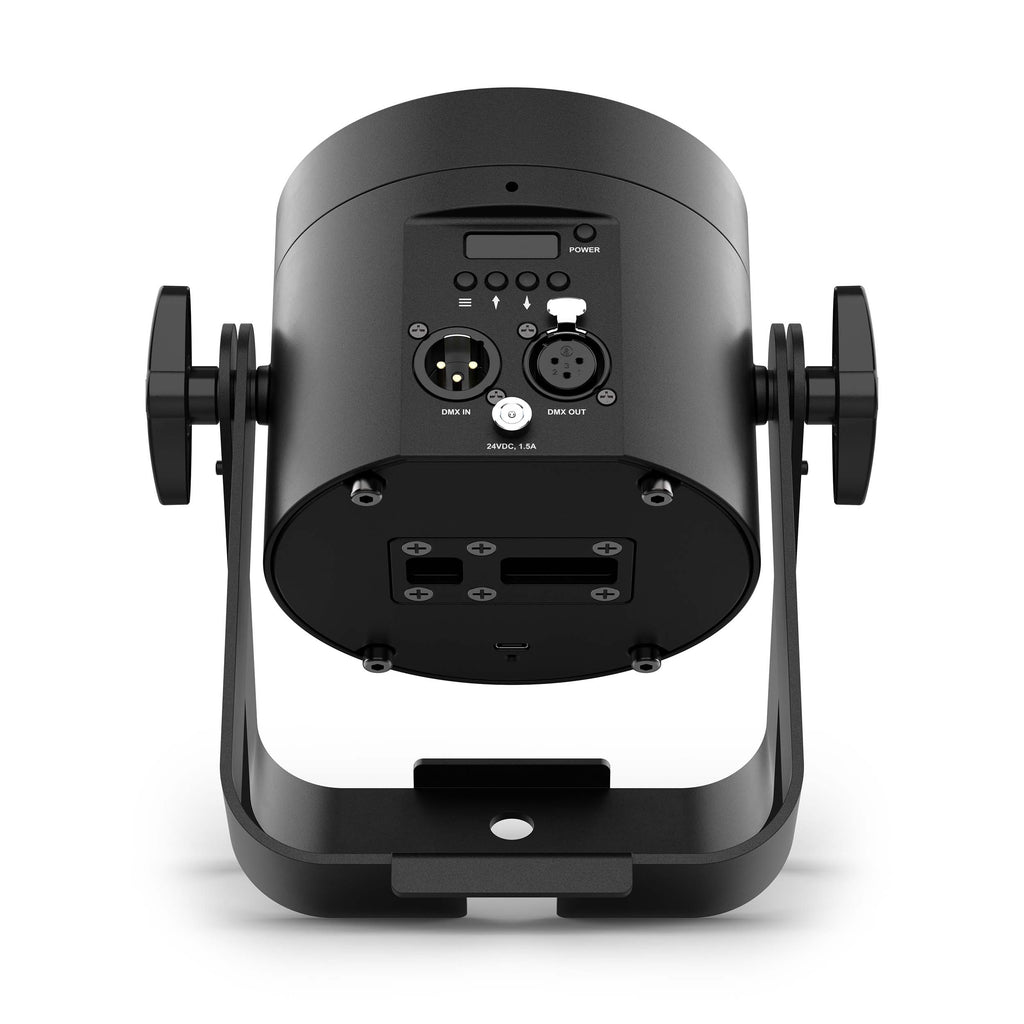

Designed with professional convenience in mind, the FREEDOMPARQ12 features an easy-to-read OLED display for intuitive menu navigation and fixture configuration. A built-in RF receiver supports optional RFC and RFC-XL wireless remotes for simple cable-free control, while the spring-loaded kickstand allows precise adjustment of the projection angle. Integrated charge and discharge protection circuitry helps extend battery life and ensure long-term reliability, and its compact design fits easily inside TRUSST trussing, making it an ideal lighting solution for mobile entertainers, rental companies, and production professionals.
Product Specifications:
DMX Channels: 4, 6, Or 14
DMX Connectors: 3-Pin XLR
Light Source: 12 x 6 W RGBA LEDs
LED Life Expectancy: 50,000 Hours
Strobe Rate: 0 To 20 Hz
Beam Angle: 12°
Field Angle: 23°
Beam Angle (With Diffuser): 25°
Field Angle (With Diffuser): 49°
Illuminance: 4,185 Lux @ 2 m
Illuminance (With Diffuser): 1,005 Lux @ 2 m
Lumens: 1,255 lm
Maximum Runtime (All On): Up To 7 Hours
Maximum Runtime (Single Color): Up To 9.5 Hours
Recharge Time: 4 Hours
Operating Frequency: 2.412 To 2.484 GHz
Maximum Wireless Range: 183 m (600 ft)
Startup Temperature: -20 °C To 45 °C (-4 °F To 113 °F)
Operating Temperature: -30 °C To 45 °C (-22 °F To 113 °F)
Input Voltage: 24 VDC
Power Consumption: 22 W
Power Input: 24 VDC, 1.5 A
Compatible Controllers: RFC, RFC-XL
Certifications: CE, RoHS, FCC
Weight: 2.4 kg (5.4 lbs)
Width: 222 mm (8.74 In)
Height: 197 mm (7.76 In)
Depth: 123 mm (4.84 In)
Shipping Weight: 5.29 lbs.
Shipping Dimensions (L x W x H): 9.65 x 8.46 x 7.48 in
