Description

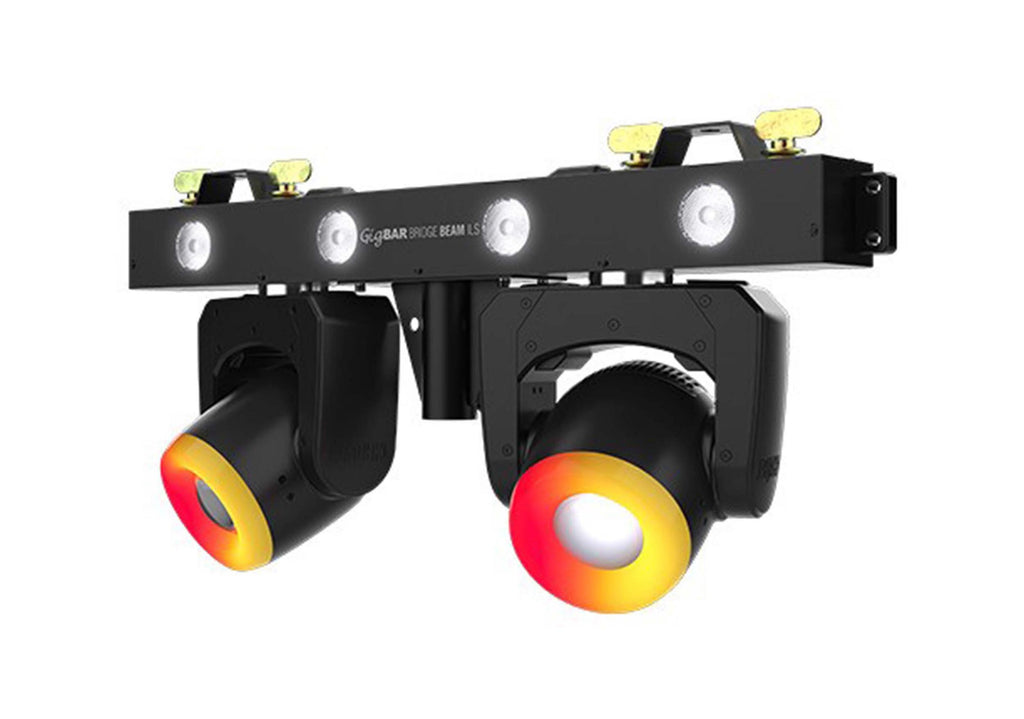

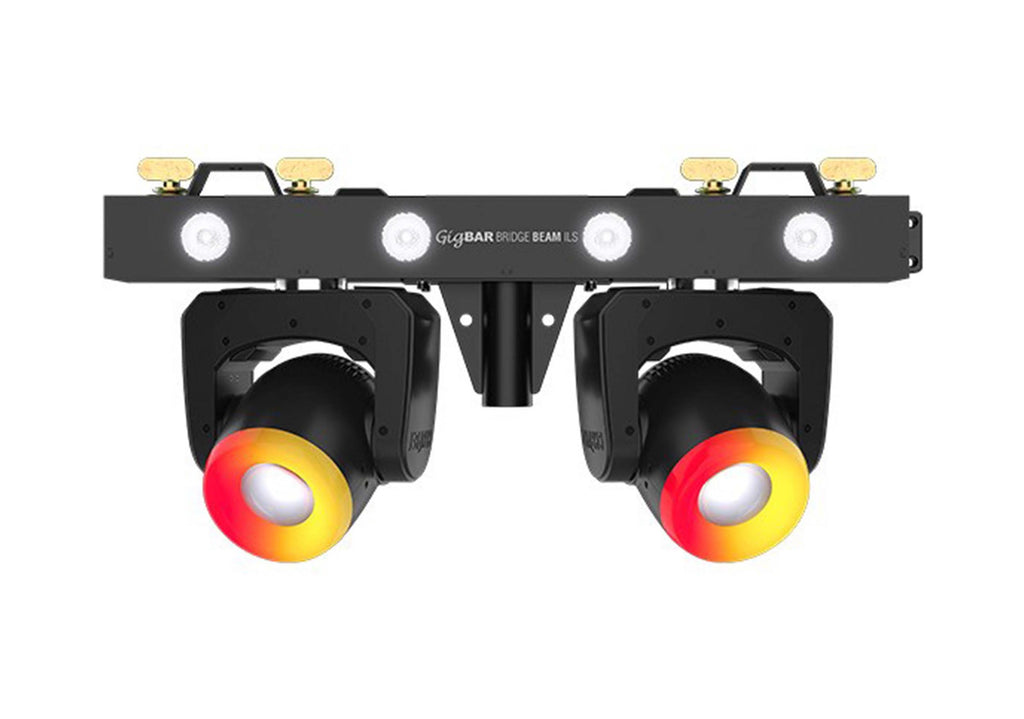

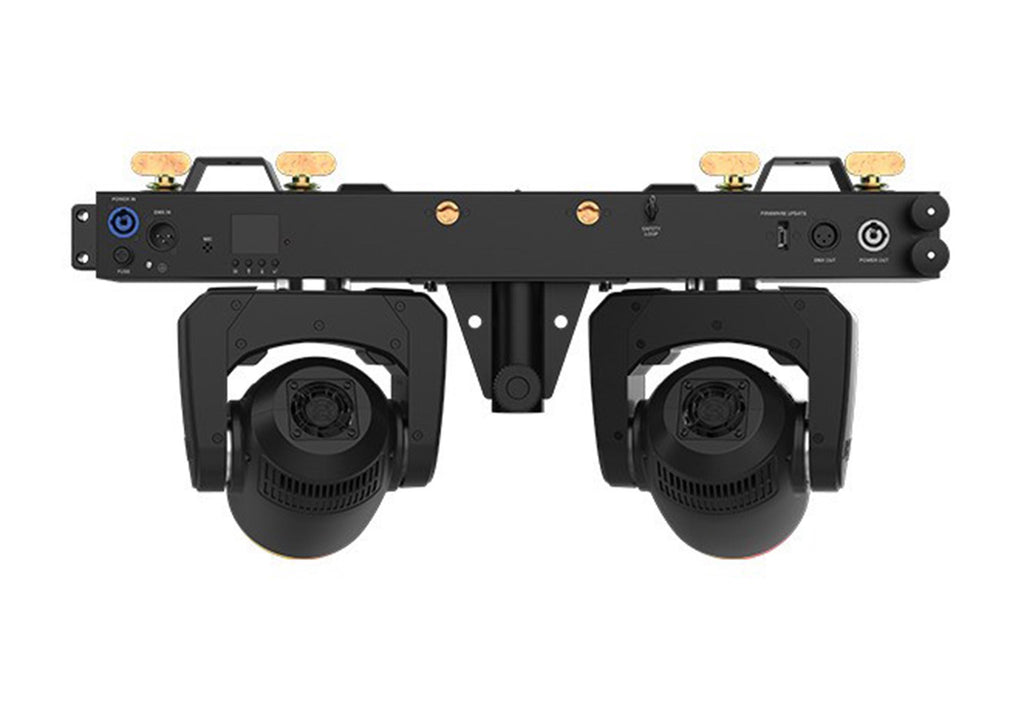

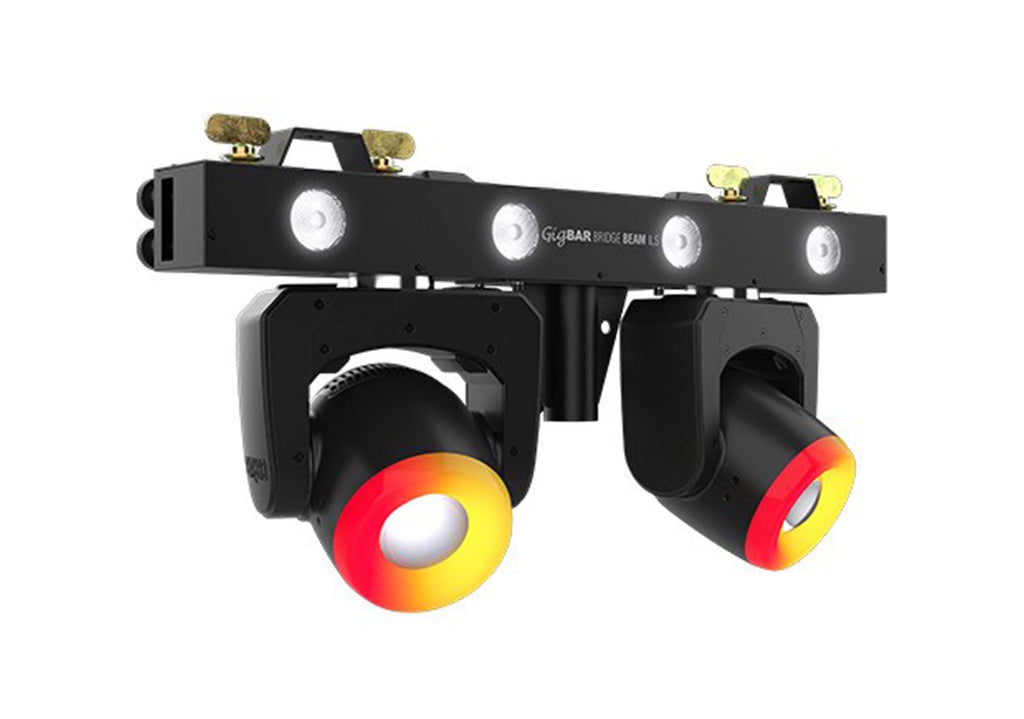

The GigBAR Bridge Beam ILS is a powerful all-in-one, 3-in-1 pre-mounted lighting system designed to bring professional-grade effects to any event with minimal setup. Featuring dual moving heads, it projects tight, high-impact beams that cut through the air and energize the dance floor. Paired with vibrant RGBAW+UV wash lights, it fills the entire venue with rich, full-spectrum color—from warm tones and crisp whites to deep blacks and ultraviolet effects.
Adding even more visual excitement, the integrated LED ring effects deliver dynamic eye-candy motion that enhances the overall light show and keeps the atmosphere engaging. Whether used for clubs, parties, weddings, or stage performances, the GigBAR Bridge Beam ILS creates a fully synchronized lighting experience that feels immersive and professionally designed. Every element is engineered to work together seamlessly for maximum visual impact.
Designed for convenience and performance, the system is truly “grab-and-go” ready with its included carry bag, making transport and setup fast and effortless. It supports built-in automated shows, RF remote control, and advanced wireless connectivity through ILS, D-Fi, and DMX options. This flexibility allows users to instantly create coordinated light shows or fully customize their lighting environment, making the GigBAR Bridge Beam ILS a versatile solution for any lighting professional or entertainer.
What's Included
Gigbar Bridge Beam ILS
Power cable
Carrying case
2 Hanging Brackets
RF Remote
Quick Reference Guide.
Product Specifications:
DMX Channels: 3, 24 or 60
DMX Connectors: 3-pin XLR
Pan and Tilt: 540° / 270°
Pan and Tilt Ranges: 180°, 360°, 540° Pan / 90°, 180°, 270° Tilt
Strobe Rate: 0 to 20 Hz
Power Linking: 9 units 120 V; 18 units 230 V
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 147 W, 1.2 A @ 120 V / 144 W, 0.6 A 230 V
Approvals: CE, RoHS, FCC
Illuminance (Moving Head): 24,670 lx 2 m (per head)
Light Source (Moving Heads): 2 × RGBW LEDs, 80 W total (2.8 A), 50,000-hour life
Light Source (LED Ring): 48 × RGBW LEDs, 10 W total, 50,000-hour life
Beam Angle (Moving Head): 5°
Beam Angle (Wash): 20°
Field Angle (Wash): 37°
Max Unobstructed Distance (D-Fi): 600 ft (183 m)
Fits Tripod Sizes: 1.5 in (37.4 mm)
Optional Controllers: RF, Footswitch, ILS
Product Weight: 24.25 lbs.
Product Dimensions (L x W x H): 3 " x 7.28 " x 16 "
Shipping Weight: 26.2 lbs.
Shipping Dimensions (L x W x H): 5 " x 8.28 " x 17 "
