Chauvet DJ GigBAR MOVE + ILS, all in 1 Easy Lighting System

Save 31%
Sale price$1,299.99 Regular price$1,882.39
In stock (28 units), ready to be shipped

Shop with Confidence

  • Additional 1 Year Warranty Free when you shop with us
  • 2 Day Shipping is Free or heavily discounted on most items
  • Price match guarantee

Signature required for all deliveries/shipments for your security.

Call us for package deal pricing, we're happy to help.

Our online prices are always honored instore guaranteed.


The Chauvet DJ GigBAR Move + ILS is perfect for mobile entertainers. It's fast and easy to setup and take down. It's an all in one professional lightshow for DJ's and mobile entertainers that sync's with any Chauvet DJ ILS lighting fixtures and effects for powerful configuration options. Run it on autopilot or with the included remote for truly effortless operation.

This system is fast and easy to setup and the future of easy lighting synchronization. This powerful member of the GigBAR family controls the Integrated Lighting System (ILS), the dynamic lighting technology that provides an advanced, coordinated light show across multiple fixture types.

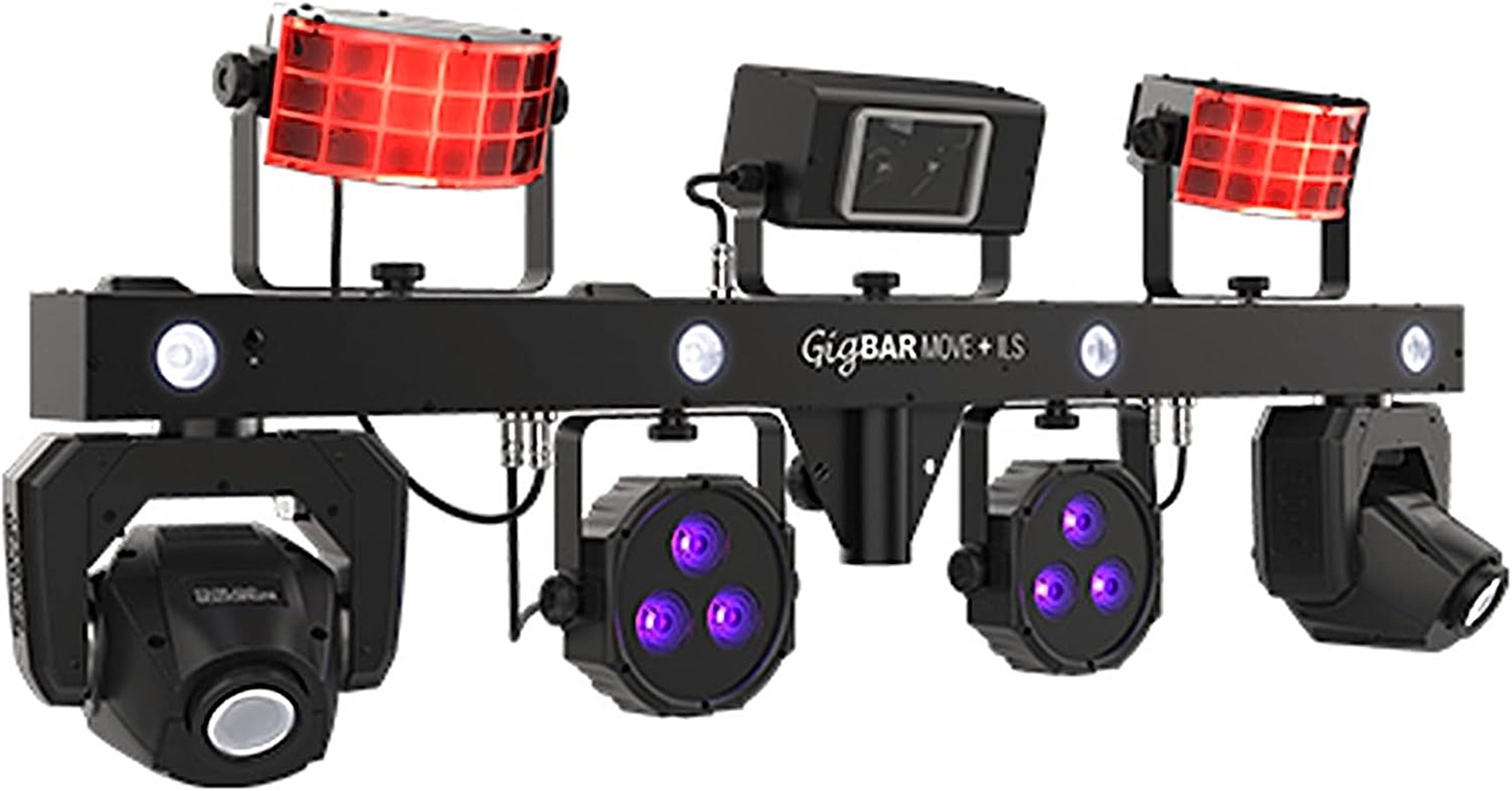

GigBAR Move + ILS can control any ILS-enabled fixture, wired or wirelessly. GigBAR Move + ILS is a 5-in-1 lighting system that includes moving heads, derbies, washes, a laser and strobe effect pre-mounted on a single bar.

Easy navigation and access to all the powerful 32-watt moving head functions can be accessed directly from the full-color LCD display and Totem Mode keeps the moving heads focused on the dance floor. Built-in UV LEDs illuminate florescent objects for dazzling blacklight effects.

GigBAR Move + ILS gives you individual control of each effect to ensure your show looks the way you need it to, but gone is the need to aim a remote directly at the unit!

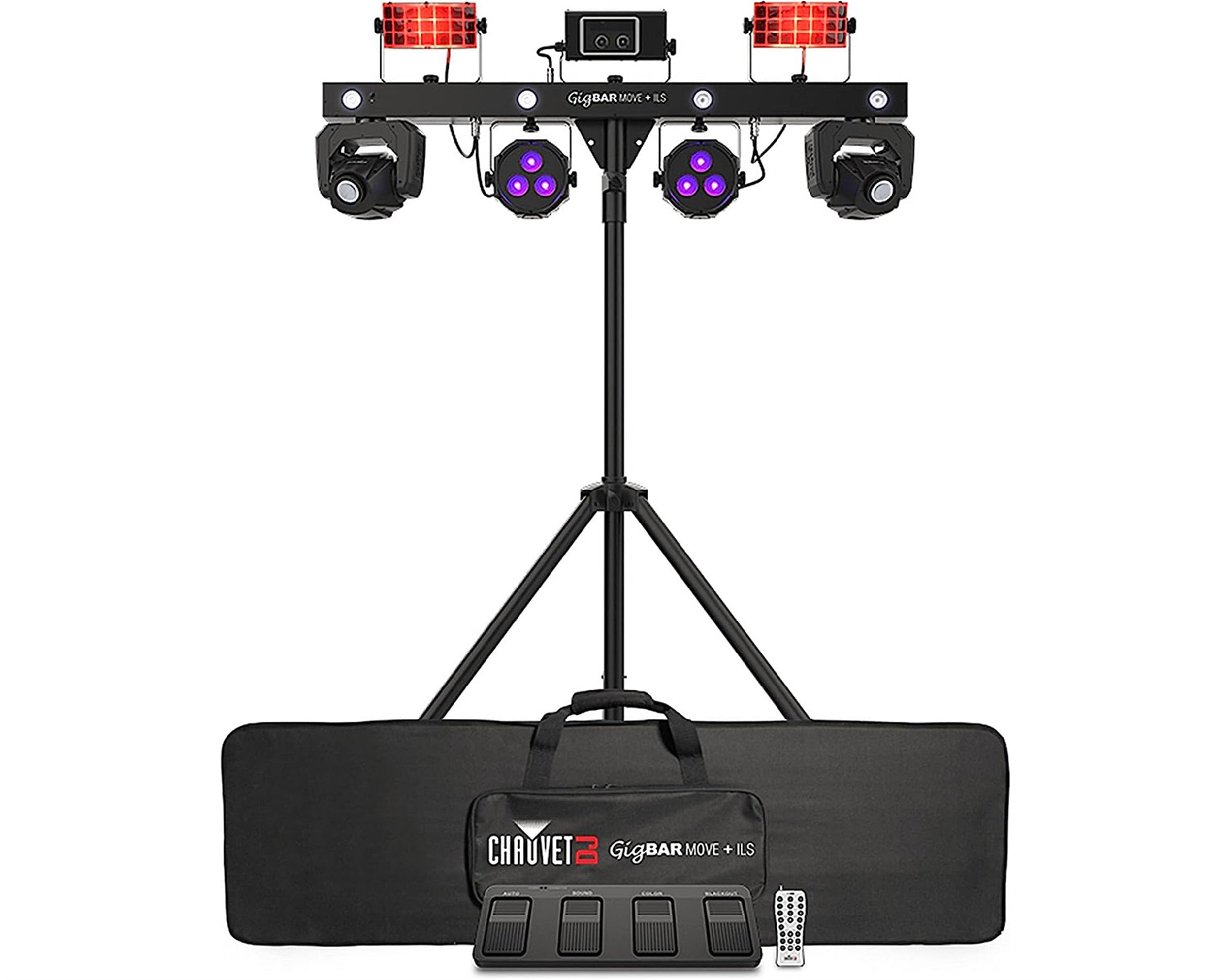

The included RF remote triggers built-in shows without needing line of sight operation. Other easy control options include stand-alone mode, DMX, or wireless footswitch. The GigBAR Move + ILS package includes a tripod, wireless footswitch, RF remote and FREE carry bags to ensure quick setup.

Daisy chain sync these Gigbar fixtures together and add additional ILS fixtures using a DMX XLR cable.  You can also sync them wirelessly using Chauvet DJ D-FI wireless.


GigBar Move Plus ILS

Power cord

RF Remote

Carry bag


Tripod carry bag


User Manual

Product Specification:

DMX Channels: 3, 28, or 50

DMX Connectors: 3-pin XLR

Pan and Tilt: 540°/180°

Colors: (moving head): 9 + open, split colors, continuous scroll at variable speeds

Gobos: (moving head): 9 + open, continuous scroll at variable speeds

Light Source:
(pars): 3 LEDs (hex color RGBAW+UV) 6 W (2 A), 50,000 hours life expectancy
(strobe): 4 LEDs (cool white) 5 W (1.2 A), 50,000 hours life expectancy
(derby): 8 LEDs (2 red, 2 green, 2 blue, 2 white) 6.5 W (2 A), 50,000 hours life expectancy
(moving head) 1 LED (cool white) 32 W, (3 A), 50,000 hours life expectancy
(Laser) 638 nm/30mW (red) laser diode, 520 nm/20 mW (green) laser diode, 450 nm/ 50 mW (blue) laser diode

Strobe Rate: 0 to 30 Hz

Beam Angle:
(moving head): 17°
(pars): 22°
(strobe): 30°

Field Angle:
(pars): 33°
(strobe): 62°

Coverage Angle:
(derby): 131°
(laser): 93°

Fits Tripod Size: 1.5 in (37.4 mm)

(pars): 1,205 lux @ 2 m (per par)
(moving head): 5,140 lux @ 2 m (per head)
(strobe): 130 lux @ 2 m

Power Linking: 7 units @ 120 V; 12 units @ 230 V

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

Power and Current:
250 W, 3 A @ 120 V, 60 Hz
248 W, 1.8 A @ 230 V, 50 Hz

Approvals: CE, UKCA, RoHS, FCC, FDA

Stand Height: 4.8 ft to 8.3 ft (1.5 to 2.5 m)

Footswitch Operating Frequency: 433 MHz

Footswitch Max Unobstructed Distance: 100 ft (30.5 m)

Footswitch Battery: 9 V alkaline

Included Controllers: RF remote, wireless footswitch

Cable Length: 10 ft (3 m)

Tripod Thickness: 1.37 in (35 mm)

Optional Controllers: RF

Weight: (bar only) 31 lbs (14 kg)

Size: 43 x 5.7 x 17.7 in (1100 x 144 x 449 mm)
