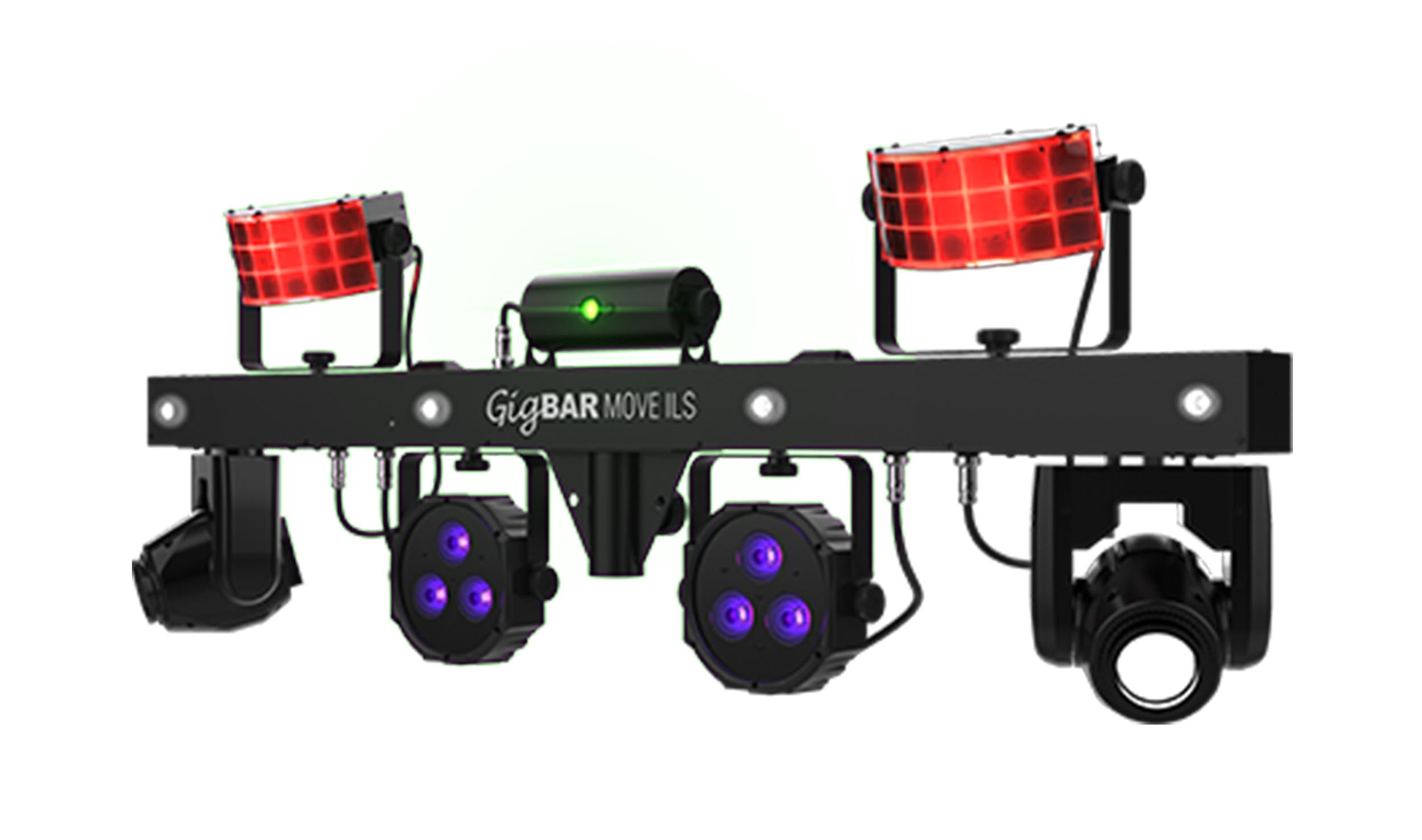

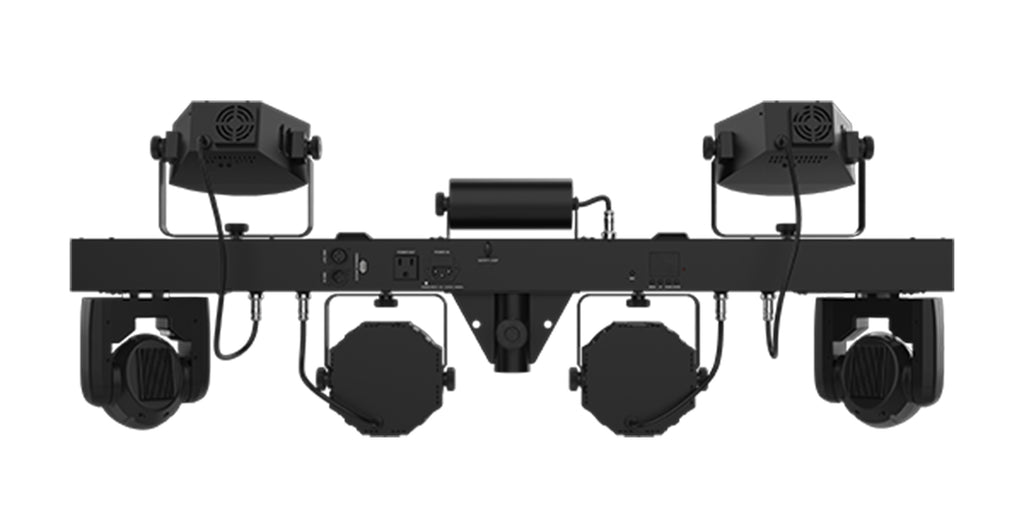

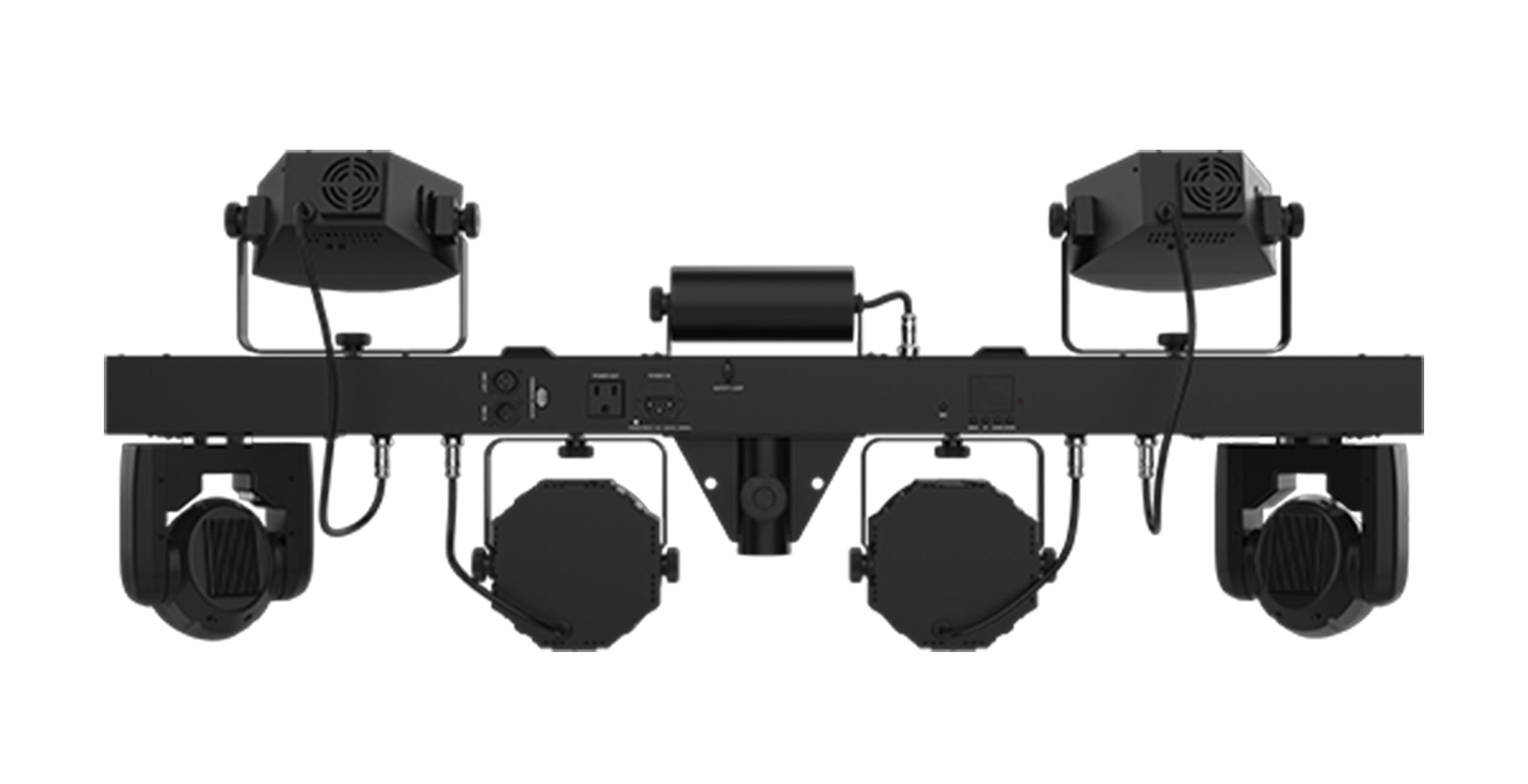

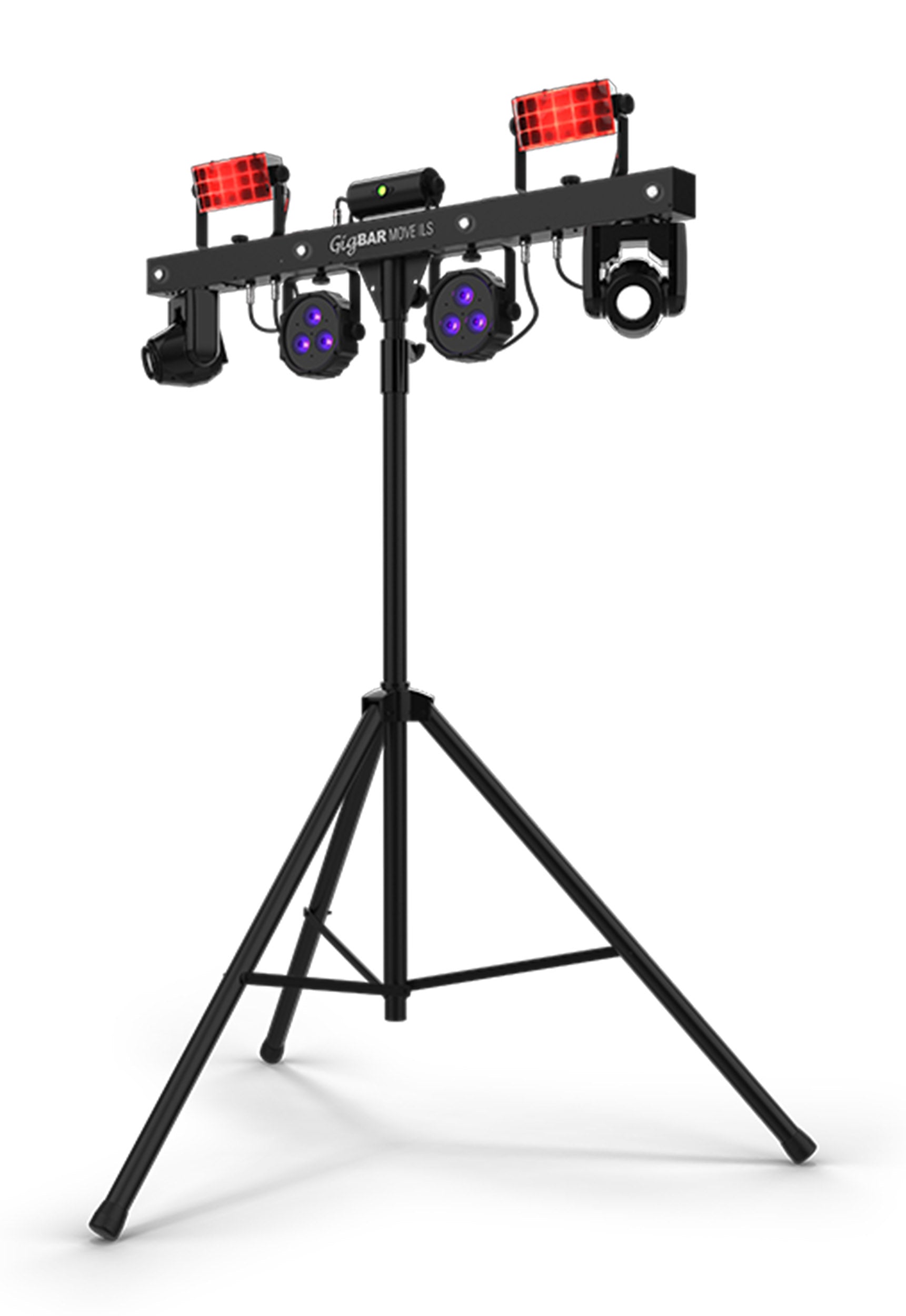

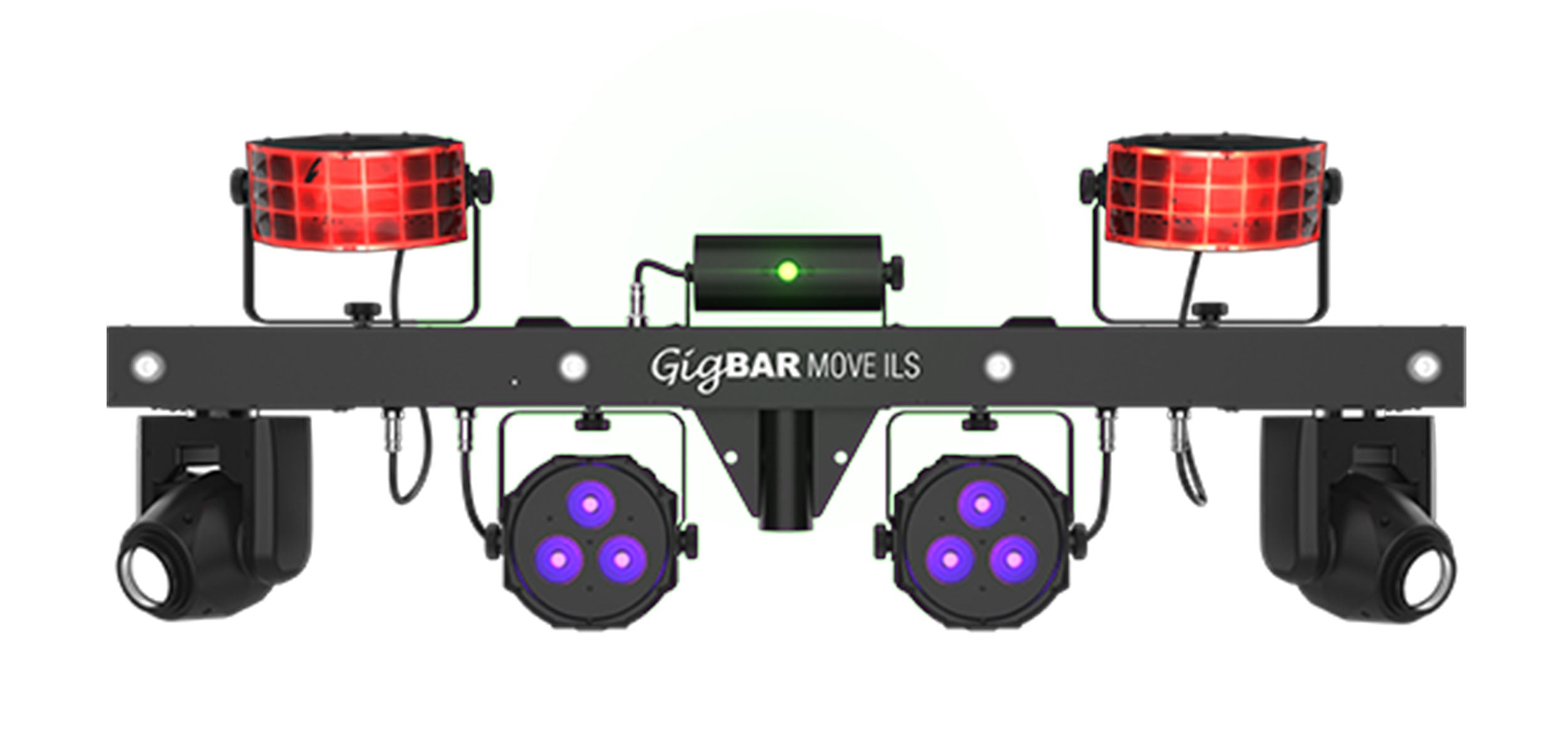

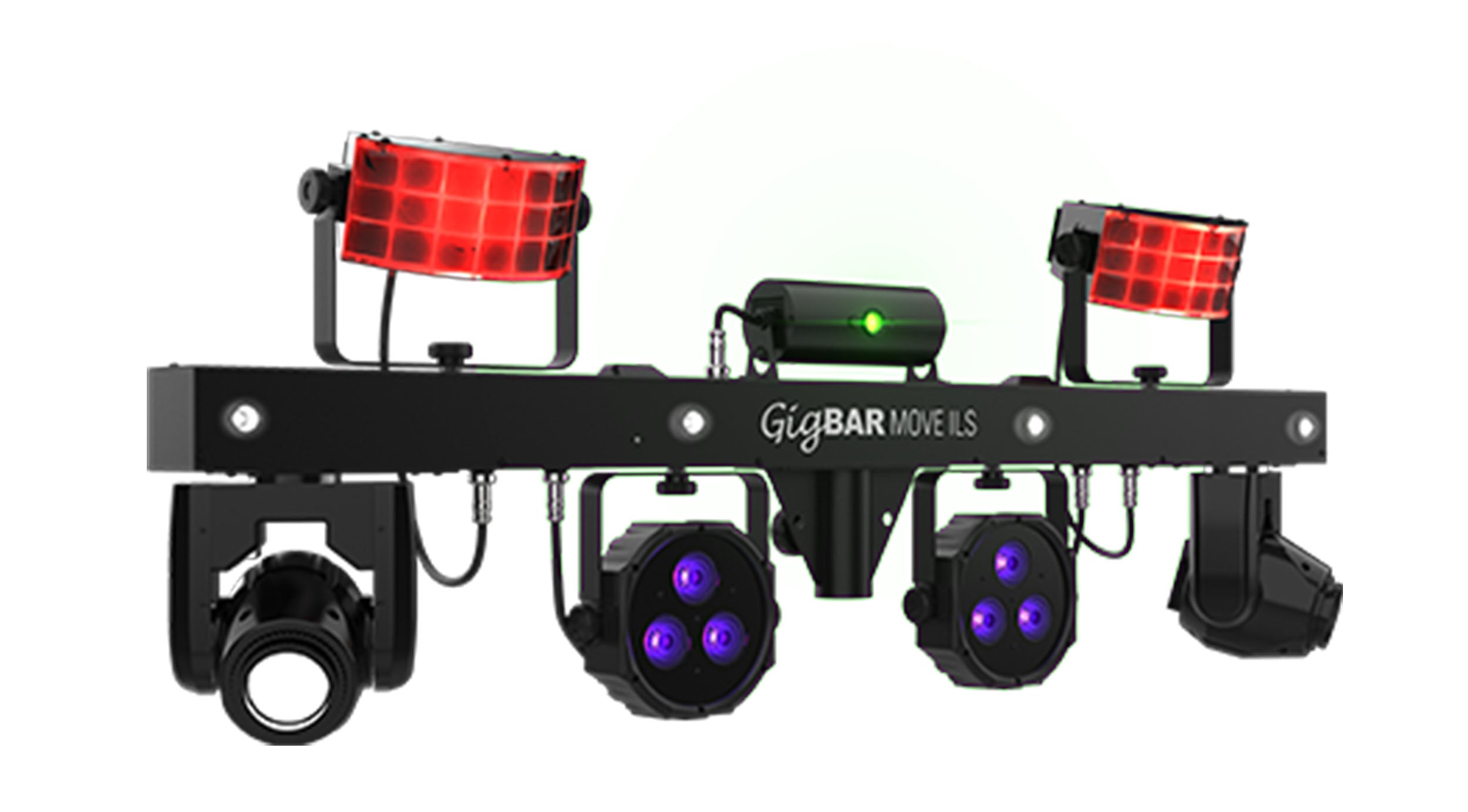

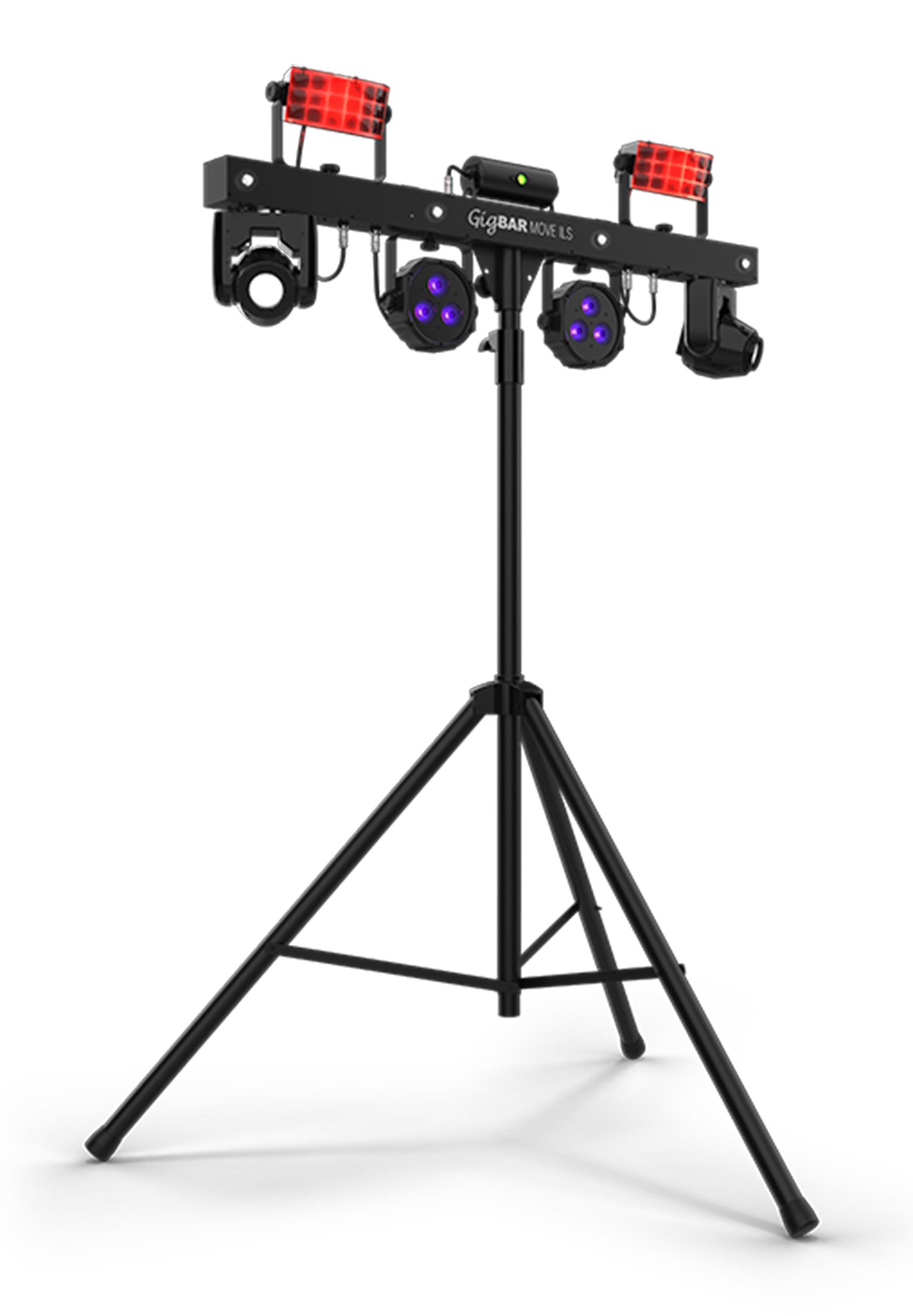

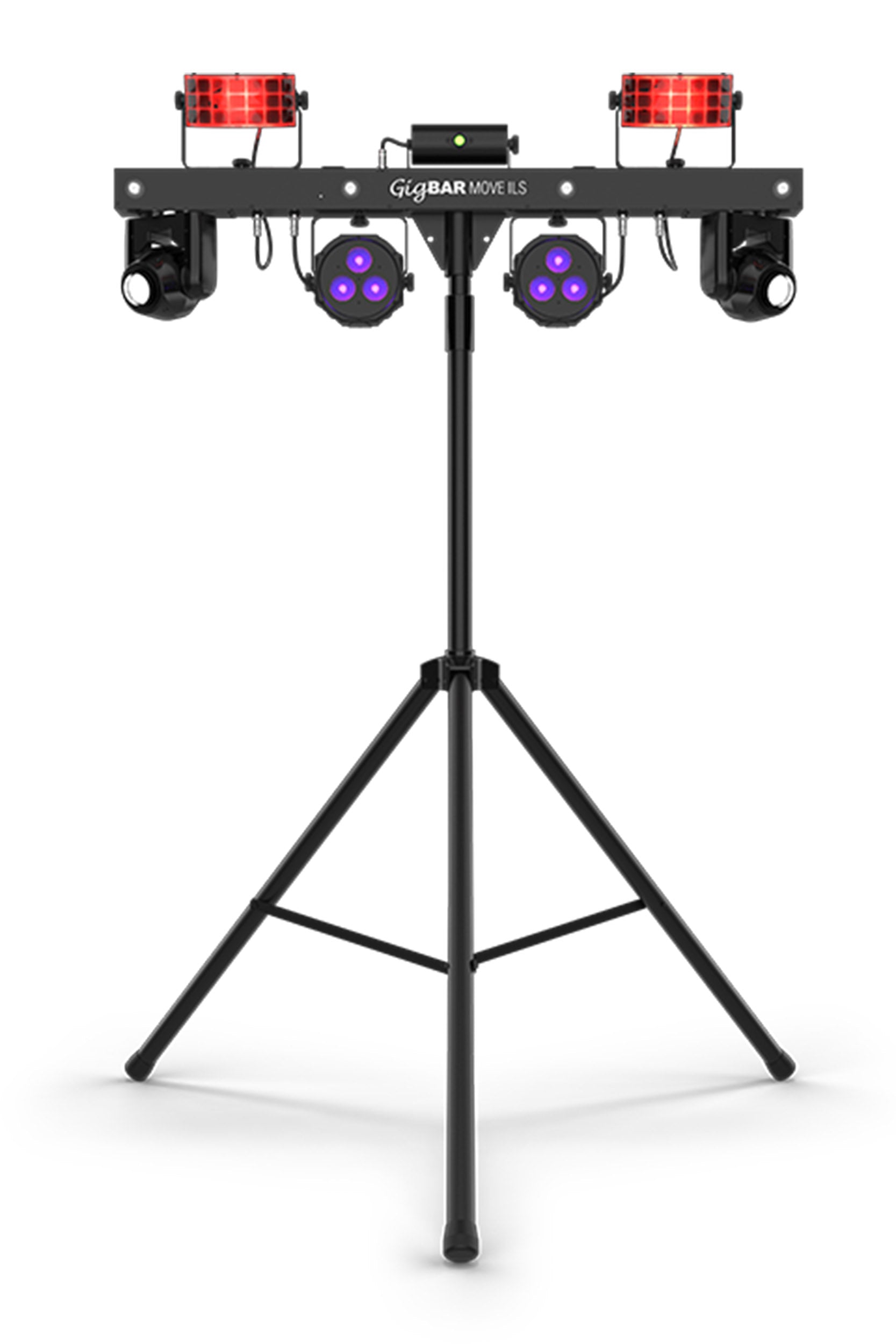

Chauvet DJ GigBAR Move ILS, Lighting System with Moving Heads

The Chauvet DJ GigBAR Move ILS, Lighting System with Moving Heads is a 5-in-1 pack and play system that controls the Integrated Lighting System (ILS), our patent-pending lighting technology that expanded the possibilities of impressive light show synchronization quickly and easily. GigBAR Move ILS can control any product in the ILS ecosystem, wired or wirelessly. GigBAR Move ILS has moving heads, derbies, washes, a laser, and strobe effect pre-mounted onto a single bar. Easily control the unit via stand-alone, DMX, wireless RF remote or wireless footswitch so you can get to the good times sooner.

What's Included

GigBAR Move ILS

Power cord

Carrying bag

Tripod

Footswitch

RF Remote

Quick Reference Guide

Key and interlock (EU)

Product Specifications:

DMX Channels: 3, 27 or 46

DMX Connectors: 3- pin XLR

Pan and Tilt: 540°/180°

Colors:(moving head): 7 + white, continuous scroll at variable speeds

Gobos:(moving head): 7 + open, continuous scroll at variable speeds

Light Source:

(pars): 3 LEDs (quad-color RGB+UV) 3.5 W (1 A), 50,000 hours life expectancy
(strobe): 4 LEDs (white & UV) 5 W (1 A), 50,000 hours life expectancy
(derby): 6 LEDs (2 red, 2 green, 2 blue) 1 W (1 A), 50,000 hours life expectancy
(moving head): 1 LED (cool white) 10 W (2.3 A), 50,000 hours life expectancy
(laser): 650nm/100 mW (red) laser diode, 532 nm/30 mW (green) laser diode

Strobe Rate: 0 to 20 Hz

Beam Angle:

(moving head): 11°
(pars): 19°
(strobe): 8°

Field Angle:

(pars): 30°
(strobe): 18°

Coverage Angle:

(derbv): 131°
(laser): 93°

Fits Tripod Size: 1.5 in (37.4 mm)

Illuminance:

(pars): 1,205 lux @ 2 m (per par)
(moving head): 1056 lux @ 2 m (per head)
(strobe): 86 lux @ 2 m (per LED)

Power Linking: 7 units @ 120 V; 12 units @ 230 V

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

Power and Current:

81 W, 1.1 A @ 120 V, 60 Hz
79 W, 0.6 A @ 230 V, 50 Hz

Weight: 23.4 lb (10.7 kg)

Dimension: 43 x 5.7 x 17.7 in (1100 x 144 x 449 mm)

Approvals: CE, RoHS, UKCA, FDA, FCC

Stand Height: 4.8 ft to 8.3 ft (1.5 to 2.5 m)

Tripod leg width: 3.9 ft (1.2 m)

Footswitch Operating Frequency: 433 MHz

Foot Switch Max Unobstructed Distance: 100 ft (30.5 m)

Footswitch battery: 9 V alkaline

Included Controllers: RF remote, wireless footswitch
