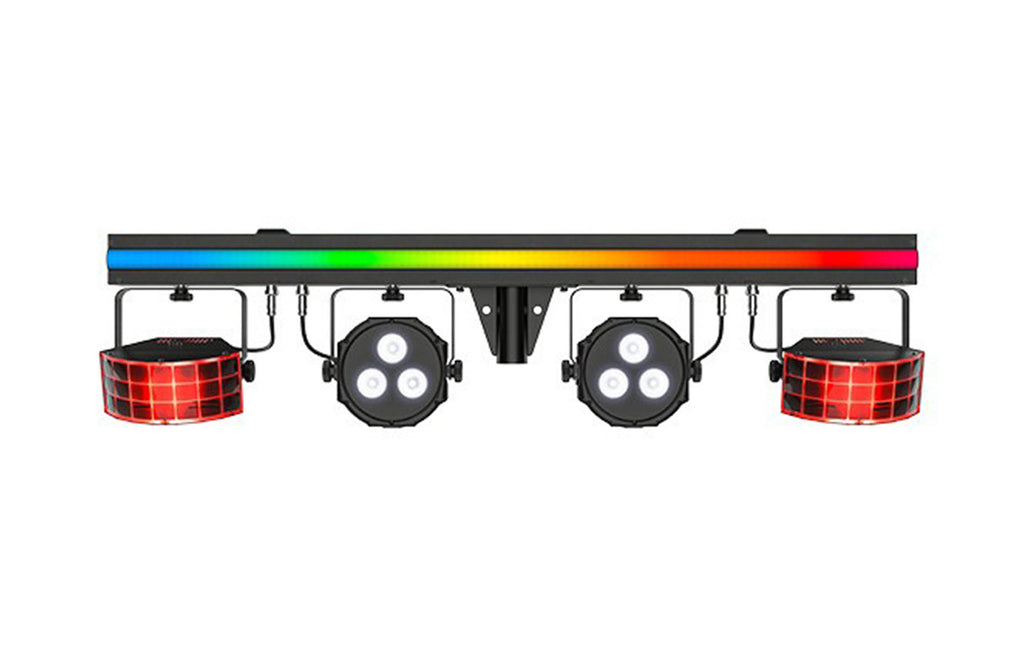

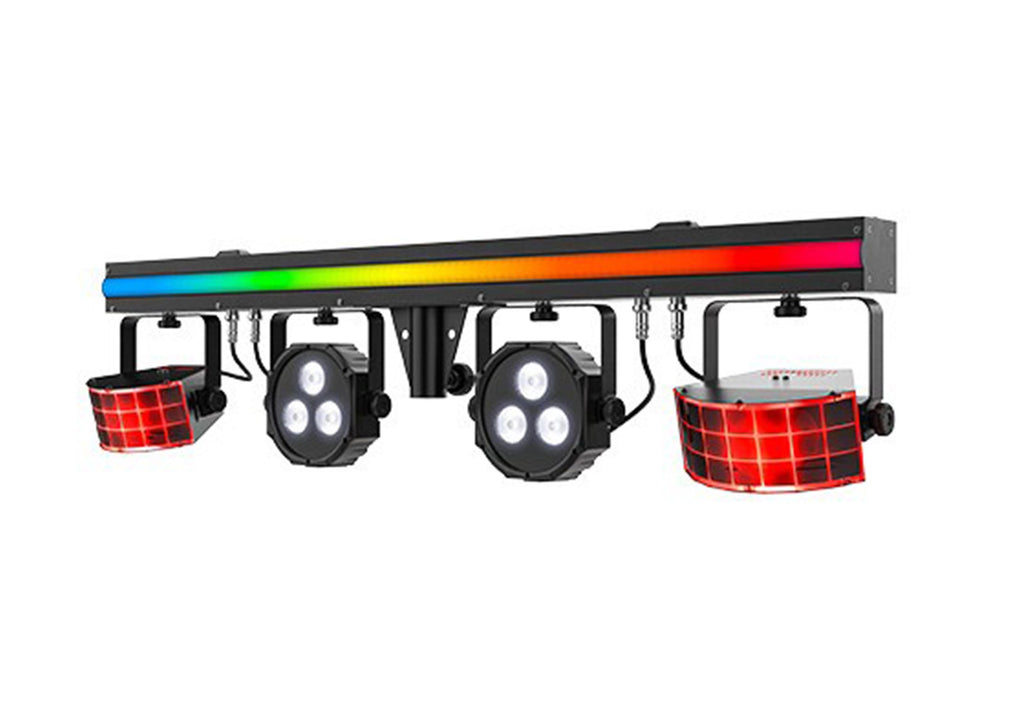

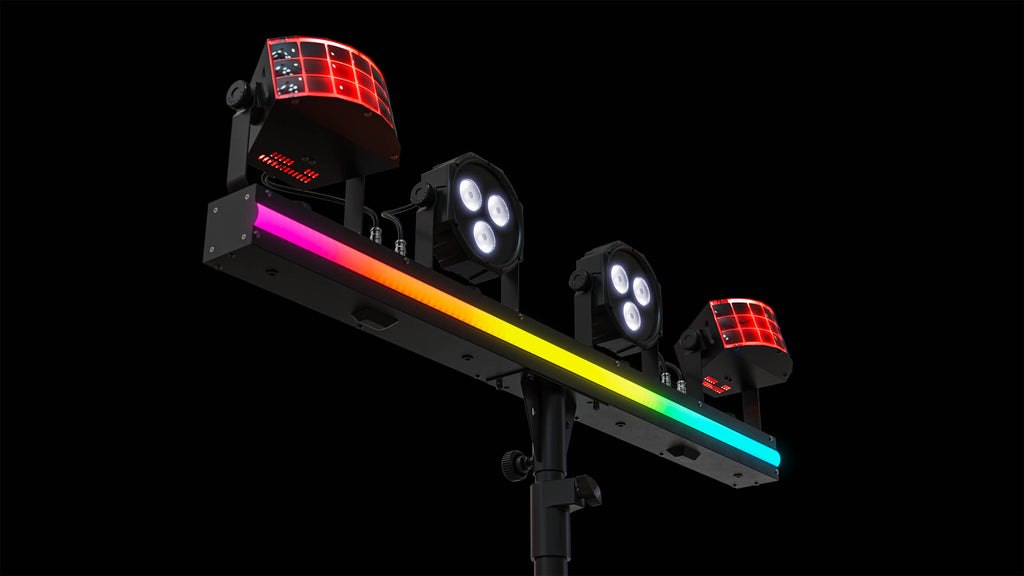

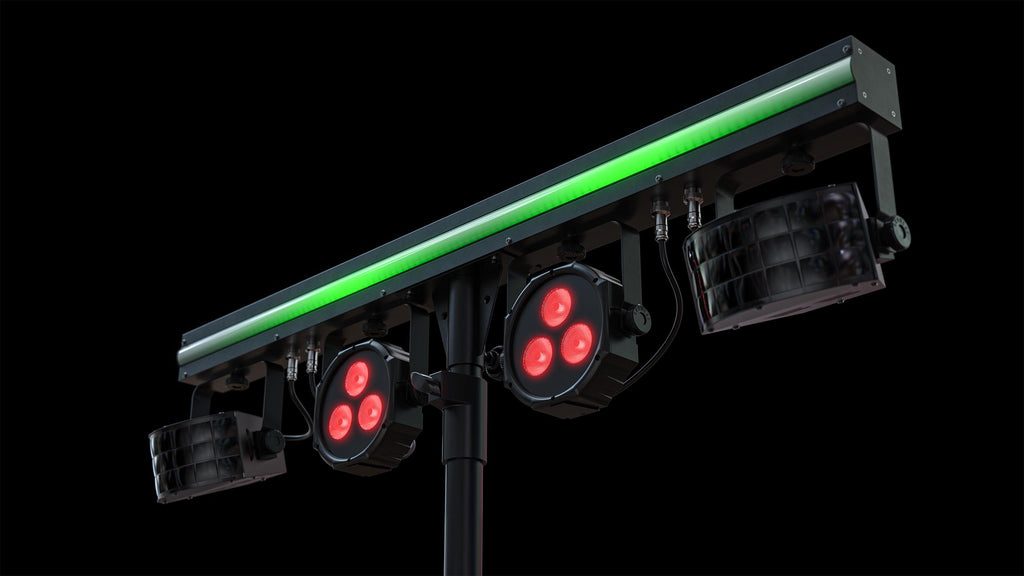

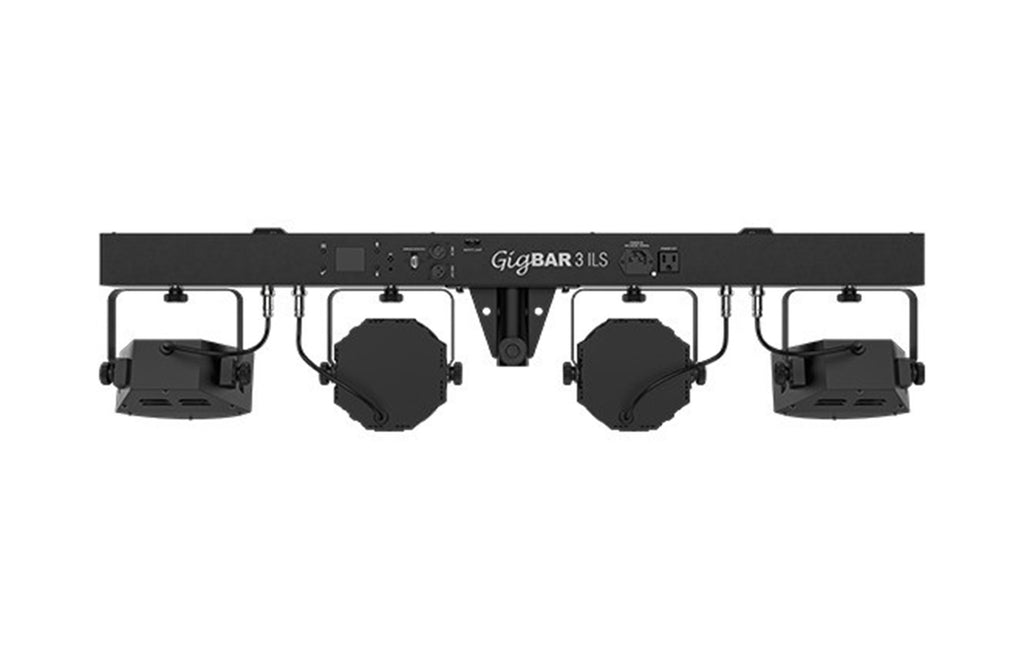

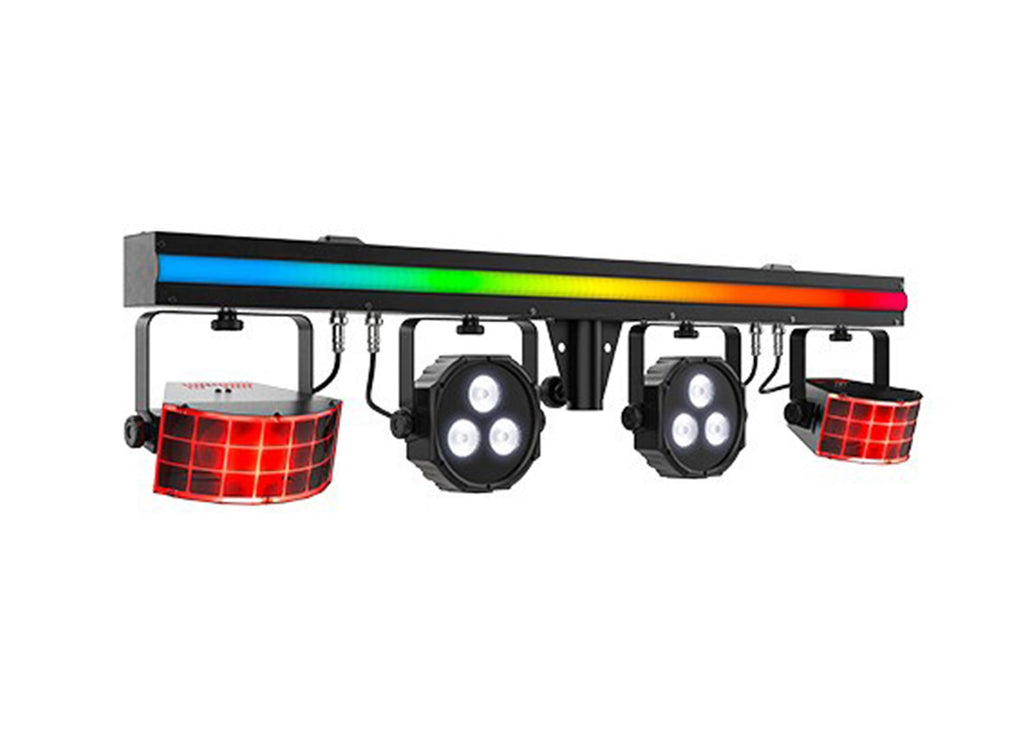

The CHAUVET DJ GigBAR 3 ILS is an all-in-one mobile lighting system designed to deliver a complete show from a single bar. It combines a pair of LED derbies, LED PARs, and an LED strip into one convenient fixture. The PARs provide colorful wash coverage while the derbies project multicolored beams across the dance floor. The LED strip adds eye-catching effects to enhance the overall visual presentation. This combination makes the GigBAR 3 ILS an ideal solution for DJs, bands, parties, and mobile entertainment.
Integrated ILS Technology
The GigBAR 3 ILS features Instant Light Show technology for quick wireless synchronization with compatible fixtures. ILS compatibility allows the system to coordinate lighting effects across different fixture types without complicated programming. Its built-in D-Fi transceiver can communicate DMX or ILS signals wirelessly for convenient system integration. Users can expand their lighting setup while maintaining coordinated effects across compatible fixtures. This makes the GigBAR 3 ILS particularly useful for fast-paced mobile productions.
Dynamic Lighting Effects

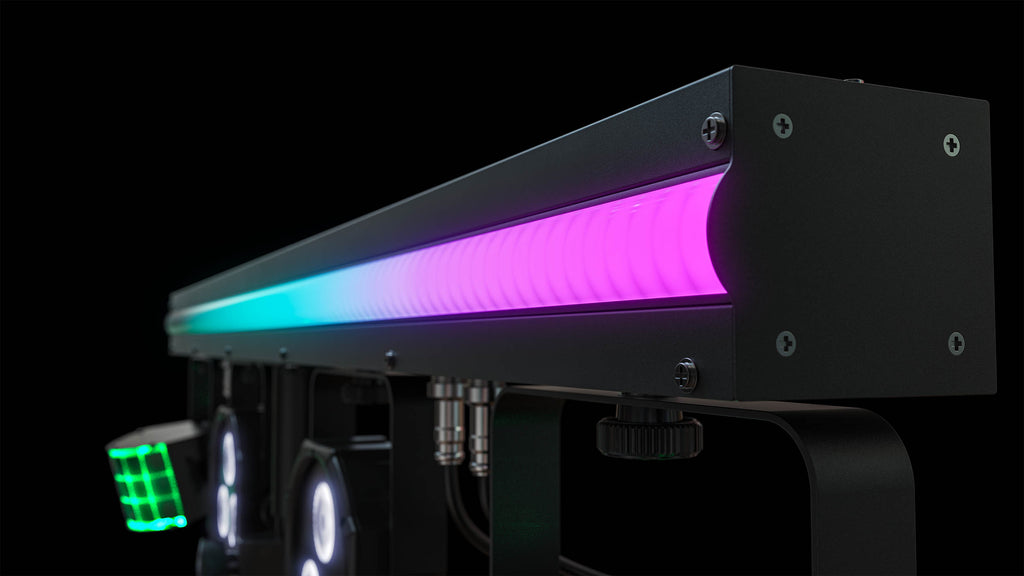

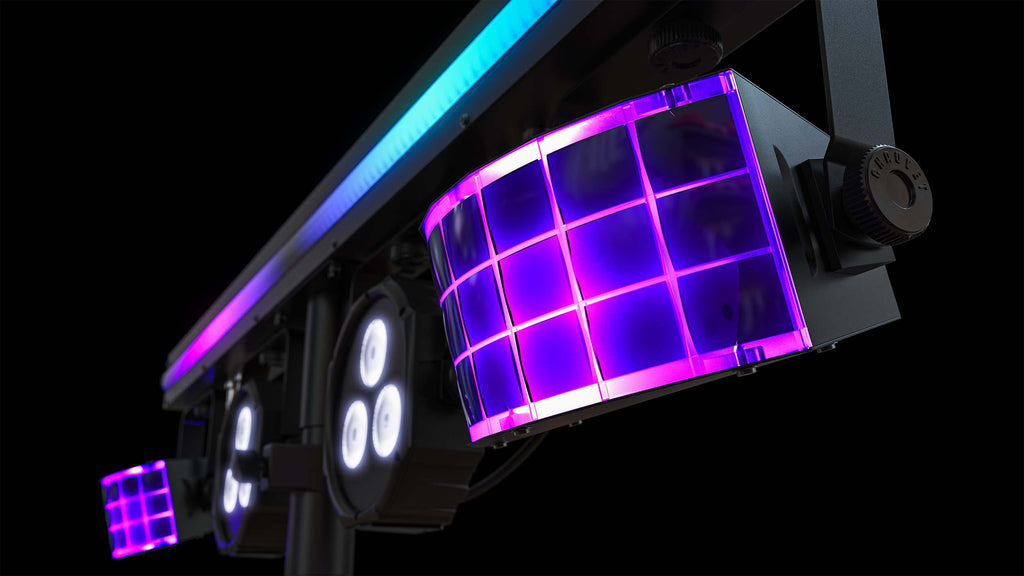

The system combines multiple lighting effects to create a visually complete show. The six RGB+UV PAR LEDs provide colorful wash coverage, while the derby fixtures project wide multicolored chasing beams. The 74-LED strip creates additional eye-candy effects for the stage or dancefloor. Built-in automated and sound-activated programs combine all three effects into synchronized lighting shows. These features allow users to create engaging effects even without advanced programming equipment.
Wireless Control Options
The GigBAR 3 ILS provides multiple control methods for different production requirements. Users can control the system through its full-color LCD display, included RF remote, wireless footswitch, or DMX. The wireless footswitch operates at 433 MHz and provides a maximum unobstructed range of 100 feet. The built-in D-Fi transceiver also supports wireless DMX and ILS communication. This wide range of control options provides convenient operation for mobile DJs and professional lighting operators.
Expandable Mobile Setup

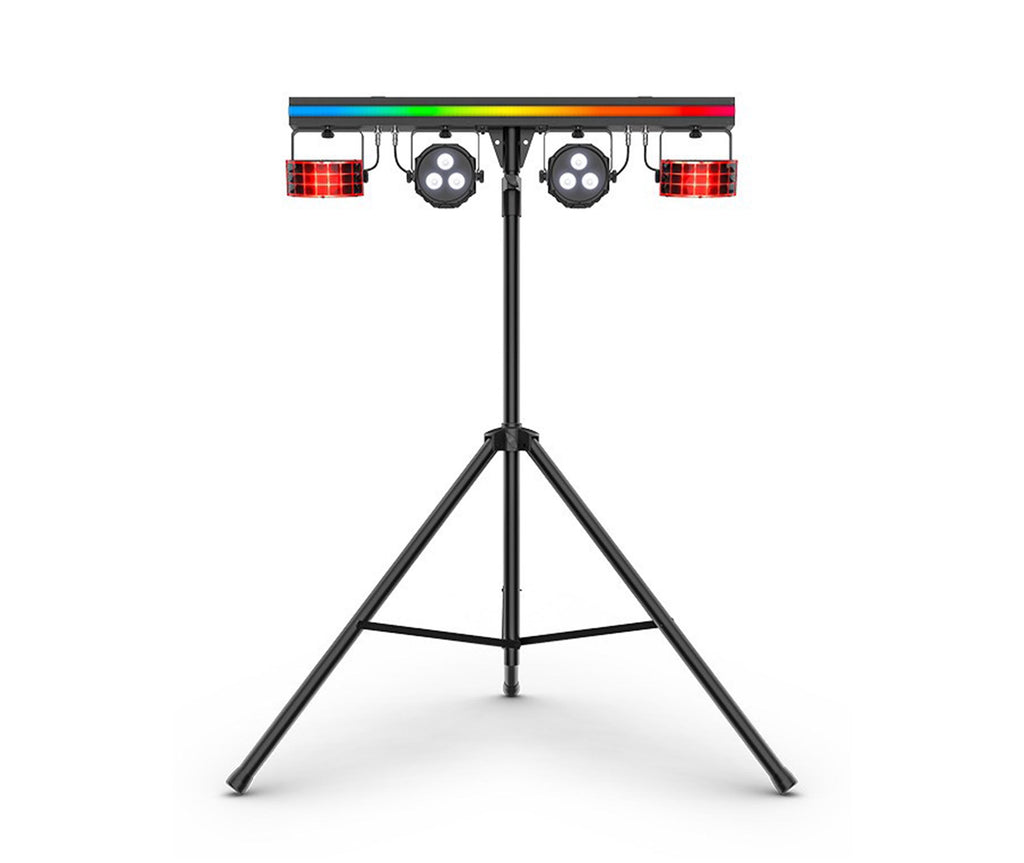

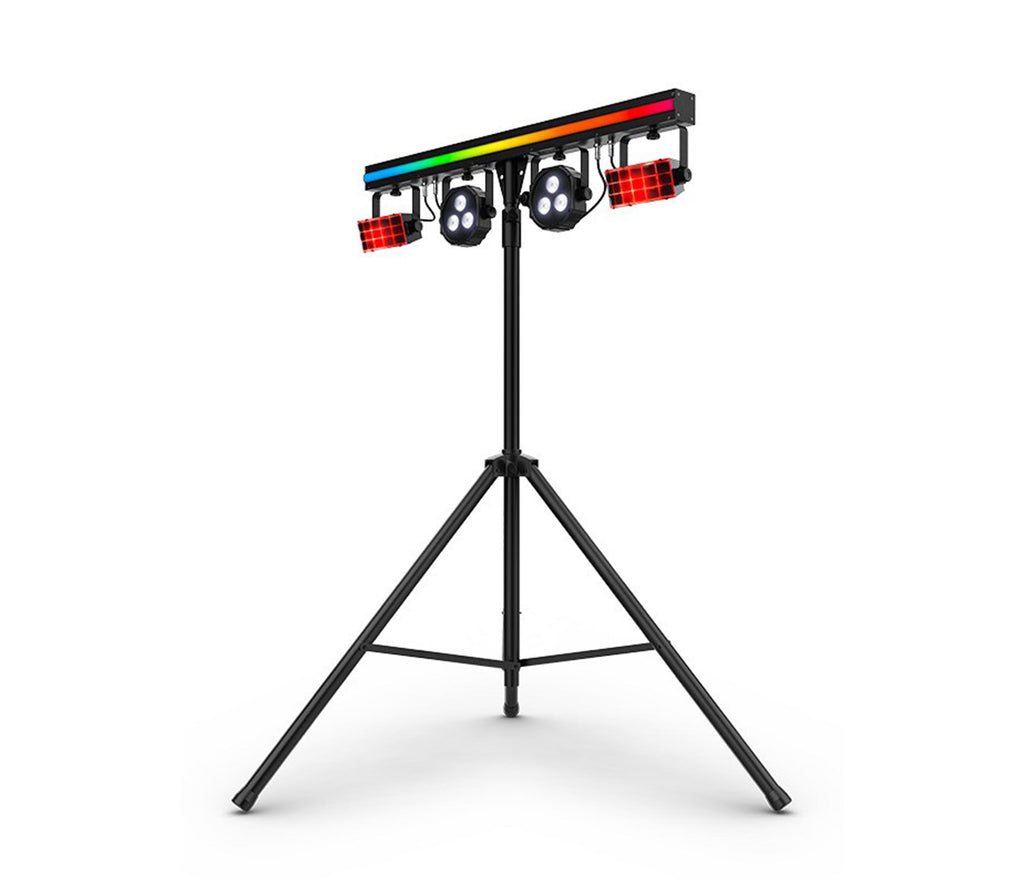

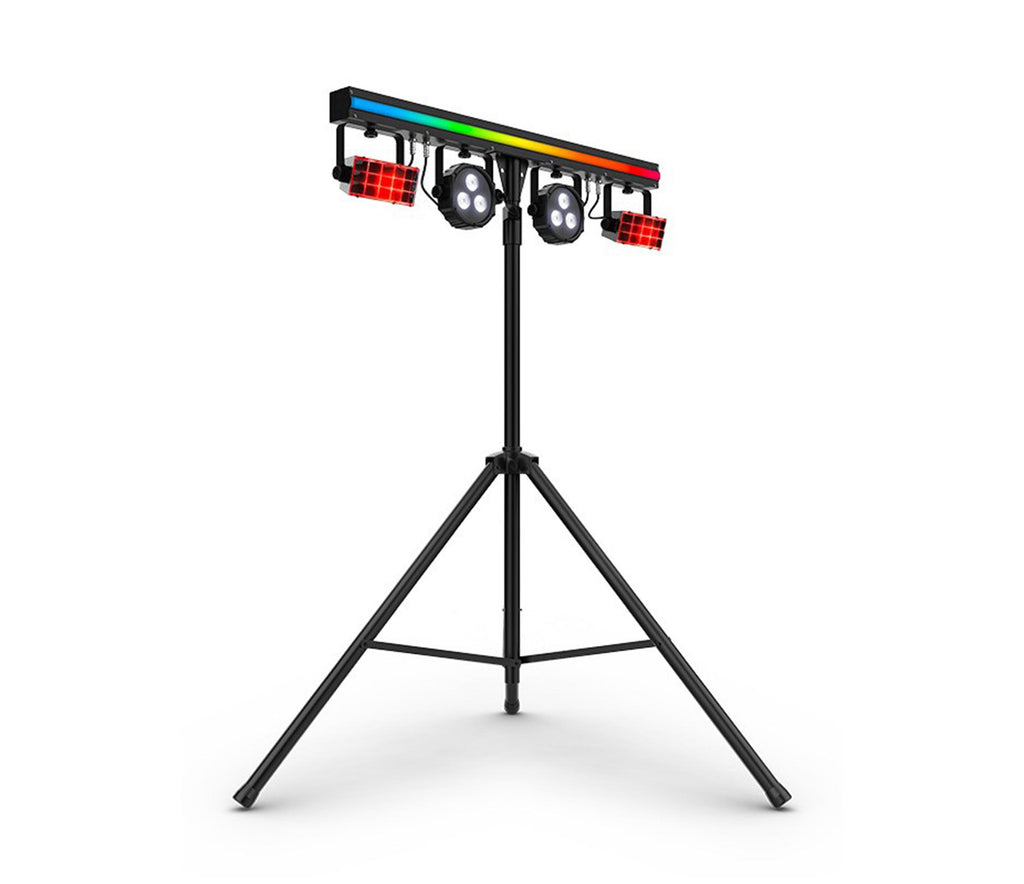

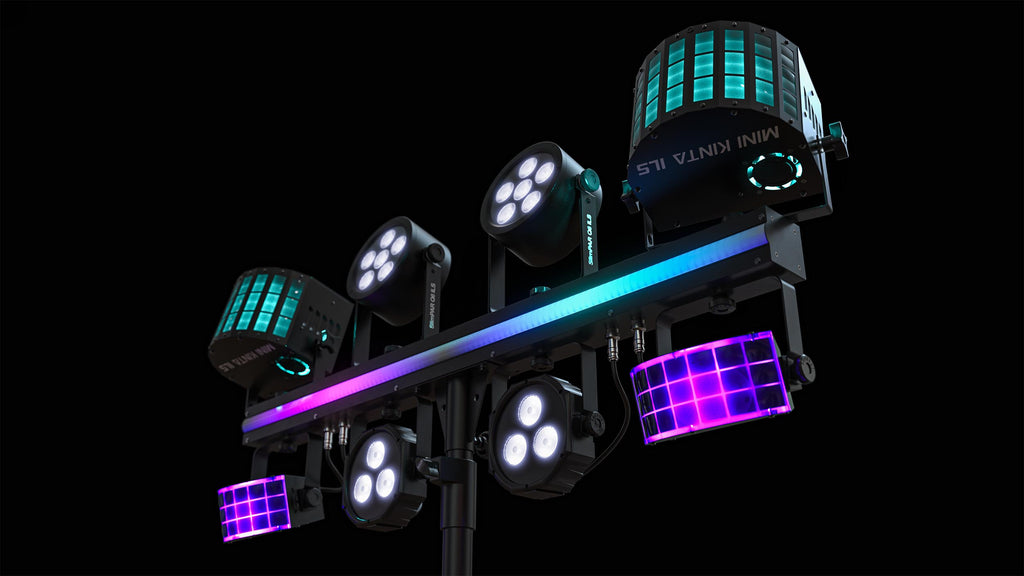

The GigBAR 3 ILS allows users to mount up to four additional fixtures on top of the main bar to create a customized mobile lighting rig. Its reversible tripod bracket supports upside-down mounting for additional positioning flexibility. The included tripod provides adjustable mounting from 4.8 to 7.8 feet. The complete package also includes carry bags for convenient transportation between events. This expandable design allows users to start with a complete lighting system and add fixtures as their production needs grow.
Fast Setup and Power Linking
The GigBAR 3 ILS is designed for quick setup and teardown, making it particularly suitable for mobile entertainment applications. The included tripod, wireless footswitch, and carry bags help simplify transportation and installation. Power linking allows up to 11 units at 120V or 18 units at 230V to share power connections. This reduces the need for additional extension cords when operating multiple fixtures. The combination of portability, wireless control, and power linking helps streamline event production.
What’s in the Box:
Gig Bar 3 ILS
Power cord
Stealth filter
Wireless footswitch
RF remote
Tripod
Carrying bag
Tripod bag
User Manual
Product Specifications:
Product Type: 3-in-1 LED Lighting System
Lighting Effects: LED PARs, LED Derbies, LED Strip
DMX Channels: 2, 21, or 132
DMX Connectors: 3-Pin XLR
Strobe Rate: 0 to 20 Hz
Operating Frequency: 2.412 to 2.484 GHz
Control Options: DMX, ILS, D-Fi, RF Remote, Wireless Footswitch
ILS Compatibility: Yes
D-Fi Transceiver: Built-In
Power Linking: 11 Units @ 120 V, 18 Units @ 230 V
Input Voltage: 100 to 240 VAC
Input Frequency: 50,60 Hz
Power Consumption: 47 W @ 120 V, 45 W @ 230 V
Current Draw: 0.7 A @ 120 V, 0.4 A @ 230 V
PAR Light Source: 6 RGB+UV LEDs, 3.7 W Each
PAR LED Life Expectancy: 50,000 Hours
LED Strip Light Source: 74 RGB LEDs, 5 W
LED Strip Life Expectancy: 50,000 Hours
Derby Light Source: 6 RGB LEDs, 3 W Each
Derby LED Life Expectancy: 50,000 Hours
PAR Beam Angle: 13°
PAR Field Angle: 24°
Derby Coverage Angle: 114°
LED Strip Coverage Angle: 174°
Maximum Additional Fixtures: 4
Stand Height: 4.8 to 7.8 ft, 1.5 to 2.4 m
Tripod Leg Width: 3.9 ft, 1.2 m
Compatible Tripod Size: 1.5 in, 37.4 mm
Footswitch Frequency: 433 MHz
Footswitch Wireless Range: 100 ft, 30.5 m
Footswitch Battery: 9 V, 300 mA
Cable Length: 9 ft, 2.844 m
Display: Full-Color LCD
Mounting: Reversible Tripod Bracket
Included Accessories: Tripod, Wireless Footswitch, RF Remote, Carry Bags
