Description
This Chauvet DJ ILS lighting kit delivers a complete, professional lighting solution for mobile DJs, events, and live performances. It combines the GIGBARBRIDGEILS all-in-one lighting system with moving heads and wash effects, the FLEX STAND FX ILS telescoping stand with built-in LEDs, and the D-Fi USB 2 wireless DMX transceiver. Designed for fast setup and seamless ILS control, this kit provides powerful visuals, clean cable-free operation, and reliable performance in a single, integrated package.
This Package Includes,
- 1 Chauvet DJ GIGBARBRIDGEILS, 2-in-1 Lighting System Moving Heads and Washes Bar Effect
- 1 Chauvet DJ FLEX STAND FX ILS Telescoping Lighting and Speaker Stand with Built-In LED's and ILS Control
- 1 Chauvet DJ D-Fi USB 2, Wireless USB DMX Transceiver

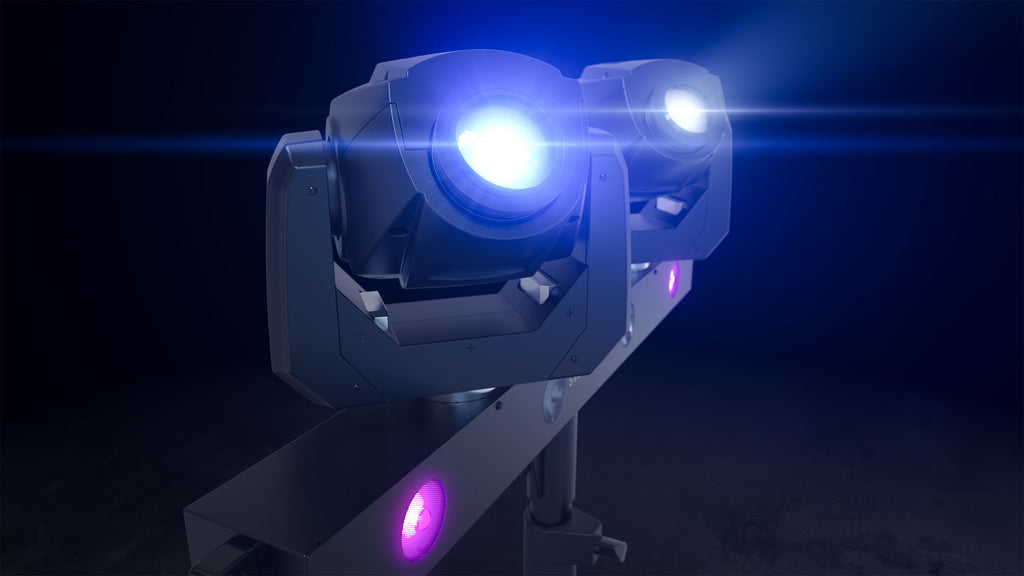

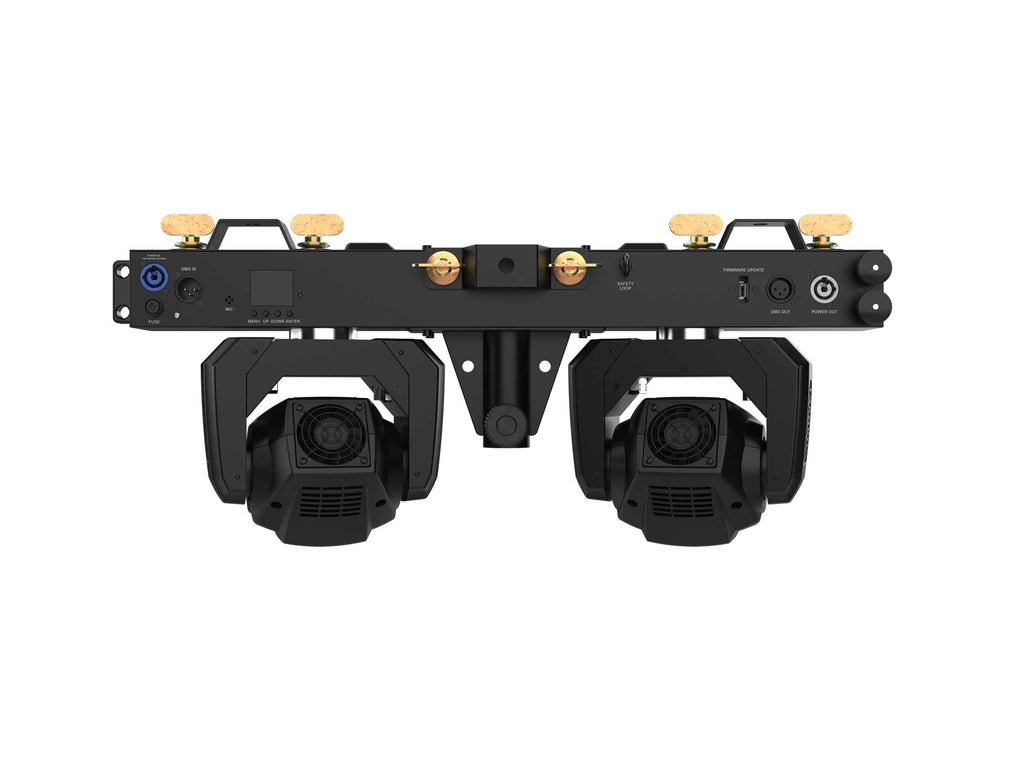

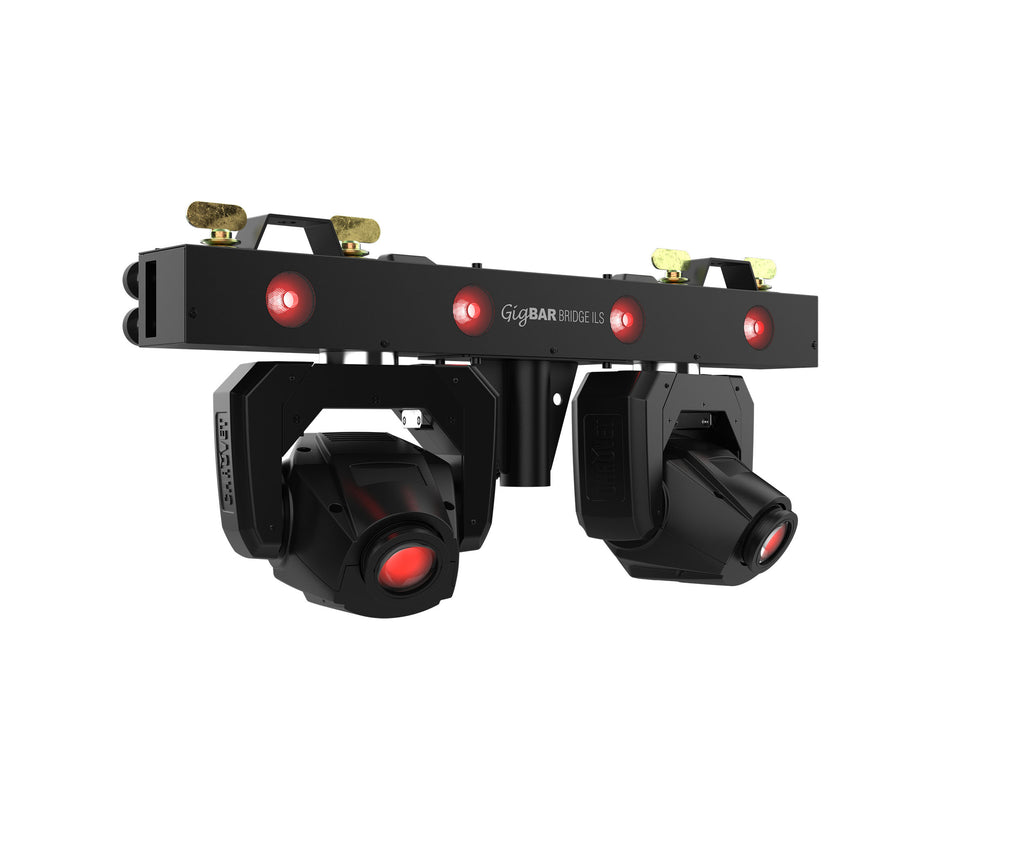

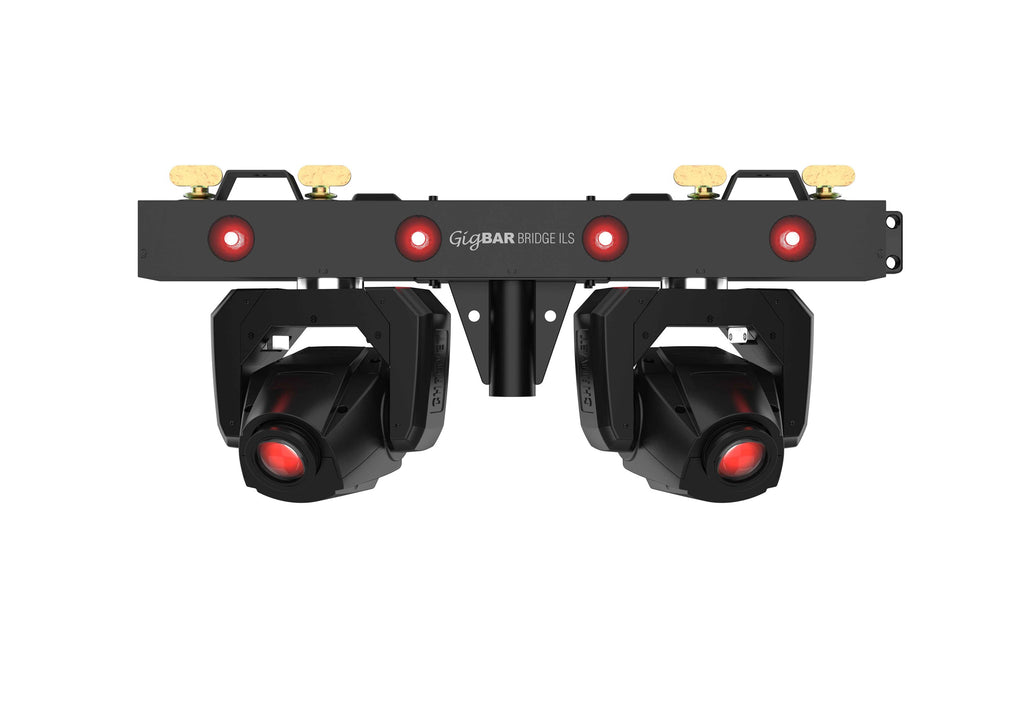

1 Chauvet DJ GIGBARBRIDGEILS, 2-in-1 Lighting System Moving Heads and Washes Bar Effect
The Chauvet DJ GIGBARBRIDGEILS is a compact and powerful all-in-one lighting solution that combines the versatility of moving heads with the wide-angle coverage of wash lights on a single, easy-to-mount bar. This innovative design eliminates the need for separate fixtures and simplifies setup, making it ideal for mobile DJs, small to medium-sized venues, and events.
Product Specifications:
DMX Channels: 3, 16 or 46
Optional Controllers: RF, Footswitch, ILS Command
DMX Connectors: 3-pin XLR
Pan and Tilt: 270°/540°
Colors (moving head): 9 + open, split colors, continuous scroll at variable speeds
Gobos (moving head): 9 + open, continuous scroll at variable speeds
Light Source (moving head): 1 LED (cool white) 70W (3A), 50,000 hours life expectancy
Light Source (wash): 4 LEDs (hex-color RGBAW + UV) 10W (1.3 A), 50,000 hours life expectancy.
Strobe Rate: 0 to 20Hz
Operating Frequency: 2.4 GHZ
Beam Angle (moving head): 16°
Beam Angle (wash): 22°
Field Angle (wash): 38°
Illuminance (moving head): 7,594 Lux @ 2 m (per head)
Illuminance (wash): 375 lux @ 2 m (per section)
Power Linking: 8 units @ 120 V; 13 units @ 230 V
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 191 W, 1.5 A @ 120 VAC, 60Hz
Power and Current: 175 W, 1 A @ 230 VAC, 50Hz
Fits Tripod Sizes: 1.5 in (37.4 mm)
Max Unobstructed Distance (D-Fi): 600 ft (183 m)
Approvals: CE, RoHS, FCC

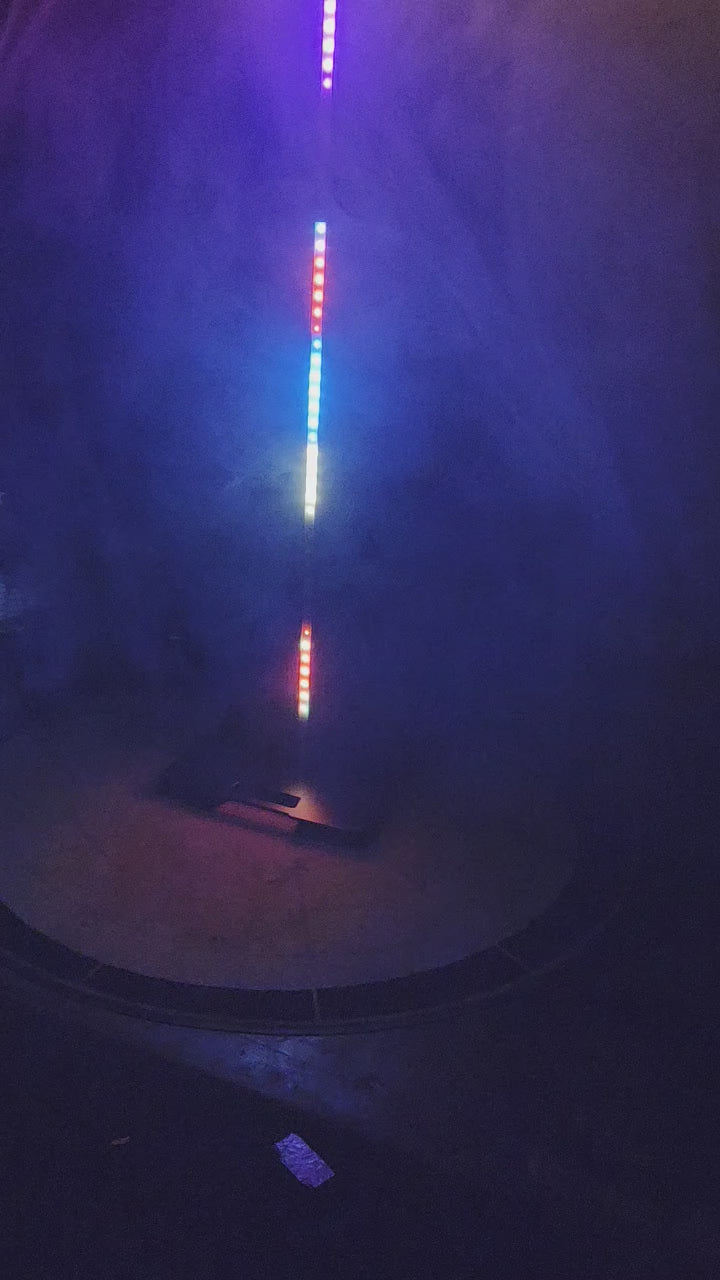

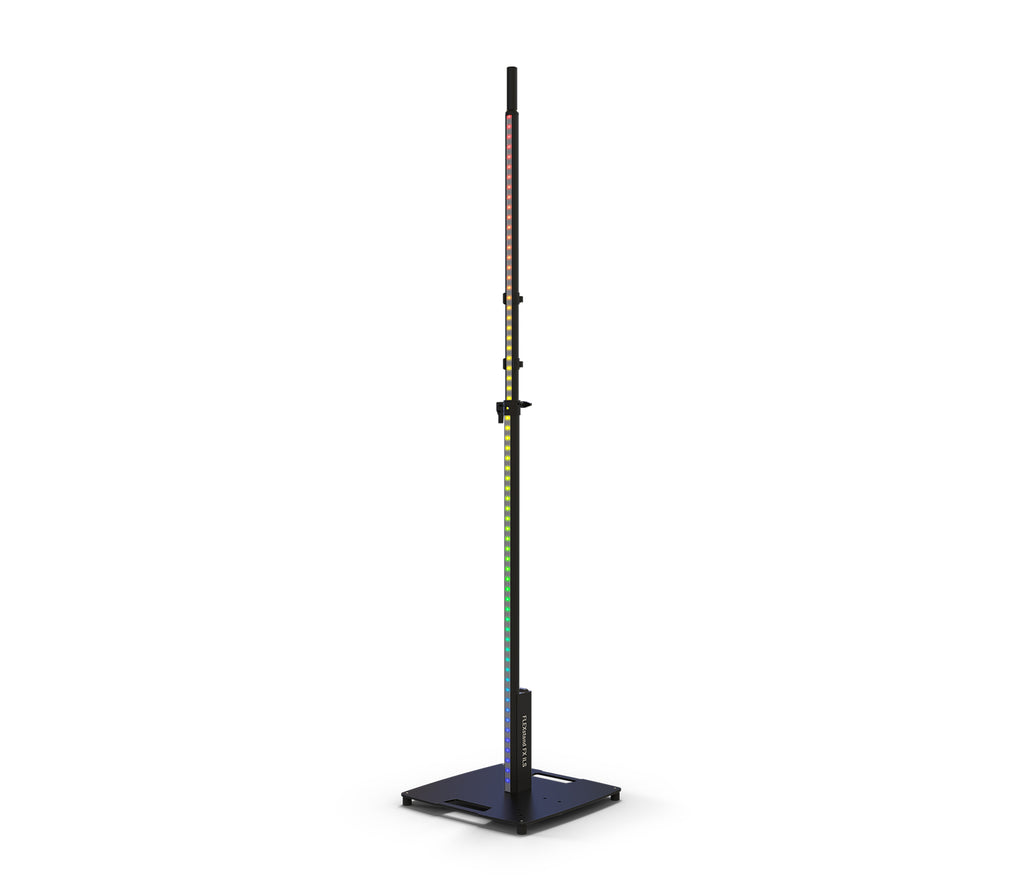

1 Chauvet DJ FLEX STAND FX ILS Telescoping Lighting and Speaker Stand with Built-In LED's and ILS Control
Simplify setups and get the party started faster with FLEXstand FX ILS, the multi-purpose stand that doubles as a lightshow. This heavy-duty timesaver has 68 built-in LEDs and auto programs that can be resized to fit the chosen stand height. Its trigger-style safety release enables DJs, performers, and event managers to make smooth and secure height adjustments on the fly. ILS, RF, and DMX control options mean this stand can be operated just like any other lighting fixture for flawlessly synced shows every time. Quickly achieve eye-catching mobile entertainment setups with FLEXstand FX ILS.
What's Included,

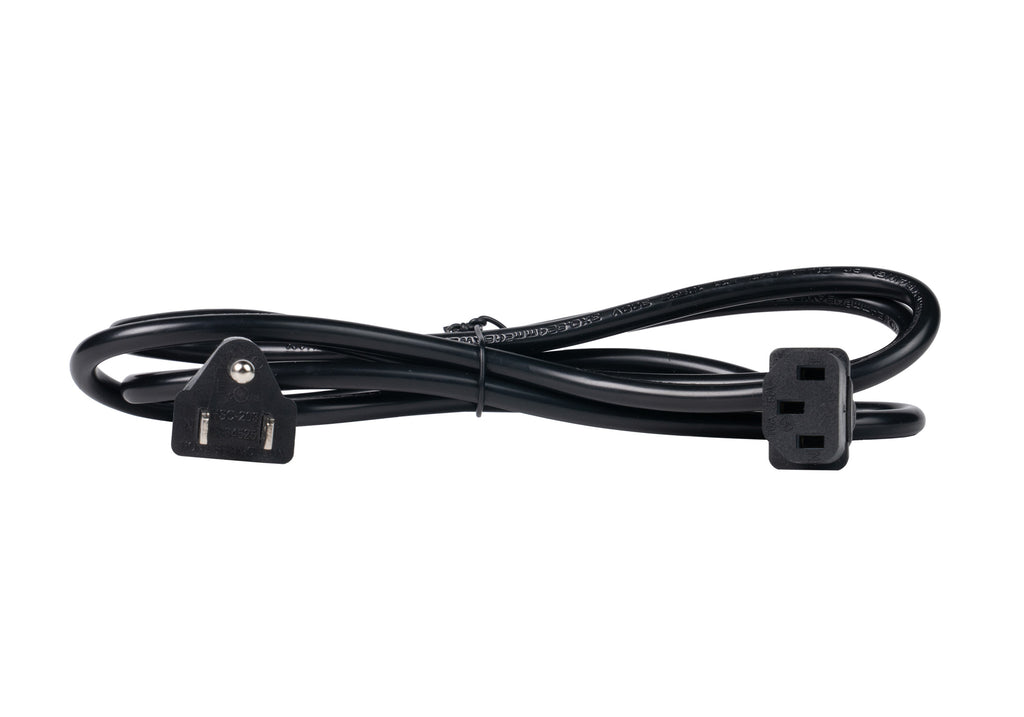

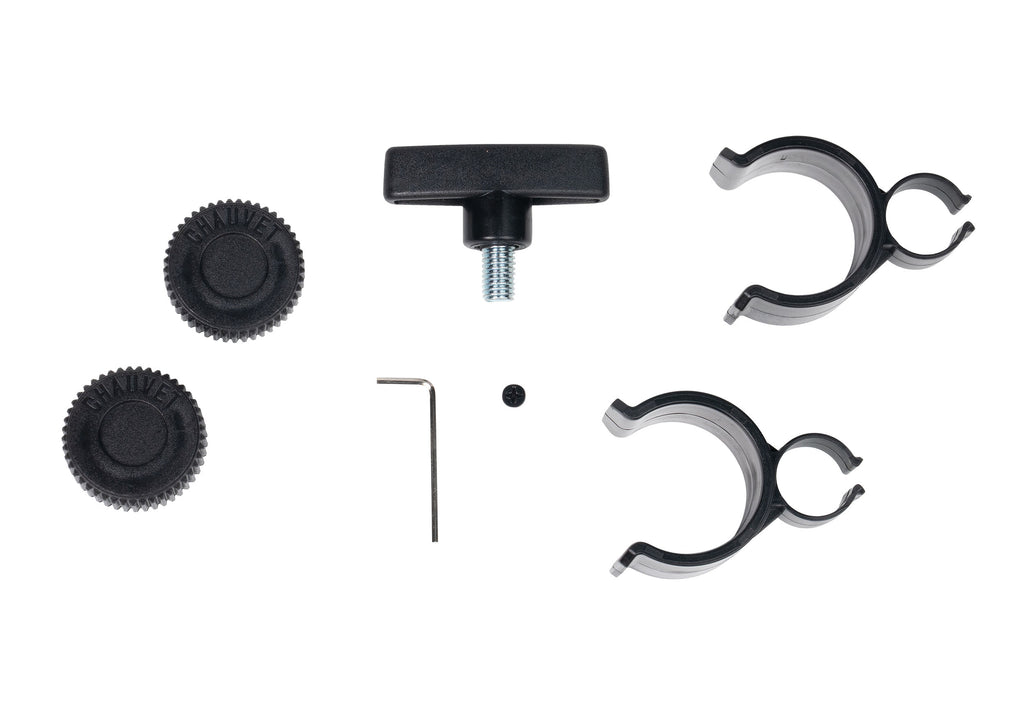

FLEXstand FX ILS, Power cord, Base, Extension pole, Carry Bag, Cable clips (x2) & QRG
Product Specifications:
DMX Channels: 4, 15, 18, 34, 66, or 94
DMX Connectors: 3-pin XLR
Light Source: 68 LEDs (quad-color RGB+WW) 0.8W, 50,000 hours life expectancy
Strobe Rate: 0 to 20 Hz
Operating Frequency: 2.412 to 2.48 GHz
Power Linking: 34 units @ 120 V; 47 units @ 230 V
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Approvals: CE, FCC
Load Capacity: 132 lb (60 kg)
Cable Length: 5 Ft (1.52 m)
Power and Current: 15 W, 0.2 A @ 230 V, 50 Hz
Power and Current: 15 W, 0.3 A @ 120 V, 60 Hz
Weight (pole): 8.2 lbs. (3.7 kg)
Weight (base): 34.2 lbs. (16 kg)
Weight (combined): 42.4 lbs. (19.2 kg)
Threaded inserts (bottom): M10-1.0 TPI
Threaded insert (top): M10-1.5 TPI
Pole Height: 4.8 to 8 Ft (1.5 to 2.4 m)
Pole Diameter (Top): 1.34 in (34 mm)
1.7 in (44 mm): Pole Diameter (Bottom)
2 in (50 mm): Optional Controllers

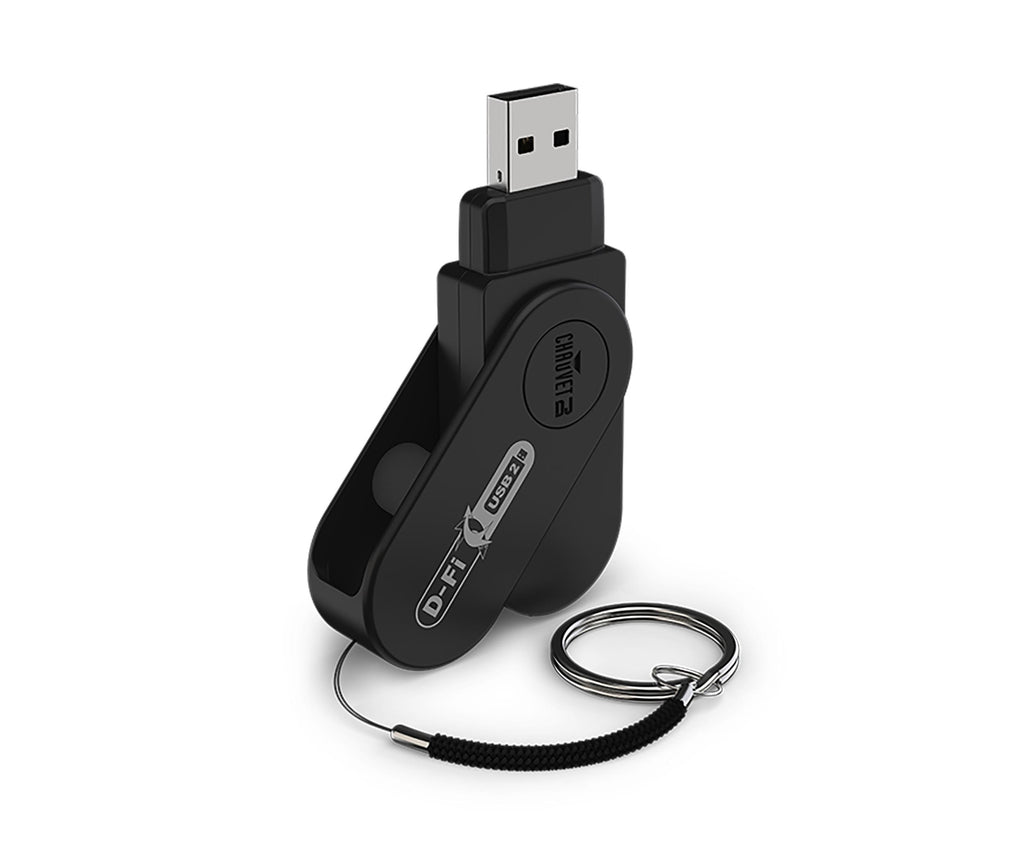

1 Chauvet DJ D-Fi USB 2, Wireless USB DMX Transceiver
The Chauvet DJ D-Fi USB 2, Wireless USB DMX Transceiver will streamline your lighting setup with the improved version of proprietary USB wireless DMX transceiver. New LED indicators simplify channel selection. Its single-material plastic housing is sleek and ideal for signal transmission. Enjoy the convenience of wireless connection that eliminates the need for DMX cables with this handy device powered directly from your CHAUVET DJ lighting fixtures USB port. This easy-to-use D-Fi solution makes setup time a breeze.
What's Included,
D-Fi USB
V2QRG
Product Specifications:
DMX Channels:
Operating Frequency: 2.412 to 2.484 GHz
Max Unobstructed Distance: 165 ft (50 m)
Operating Frequency: 2.412 to 2.484 GHz
Input Voltage: 5 VDC
Weight: 0.7 oz (20 g)
Size: 3.2 x 0.9 x 0.55 in (81.5 x 25 x 14.2 mm)
Approvals: CE, UKCA, RoHS, FCC, RED
RF output: 12.72 dBm
Thickness: 0.09 in (14.2 mm)
