Description

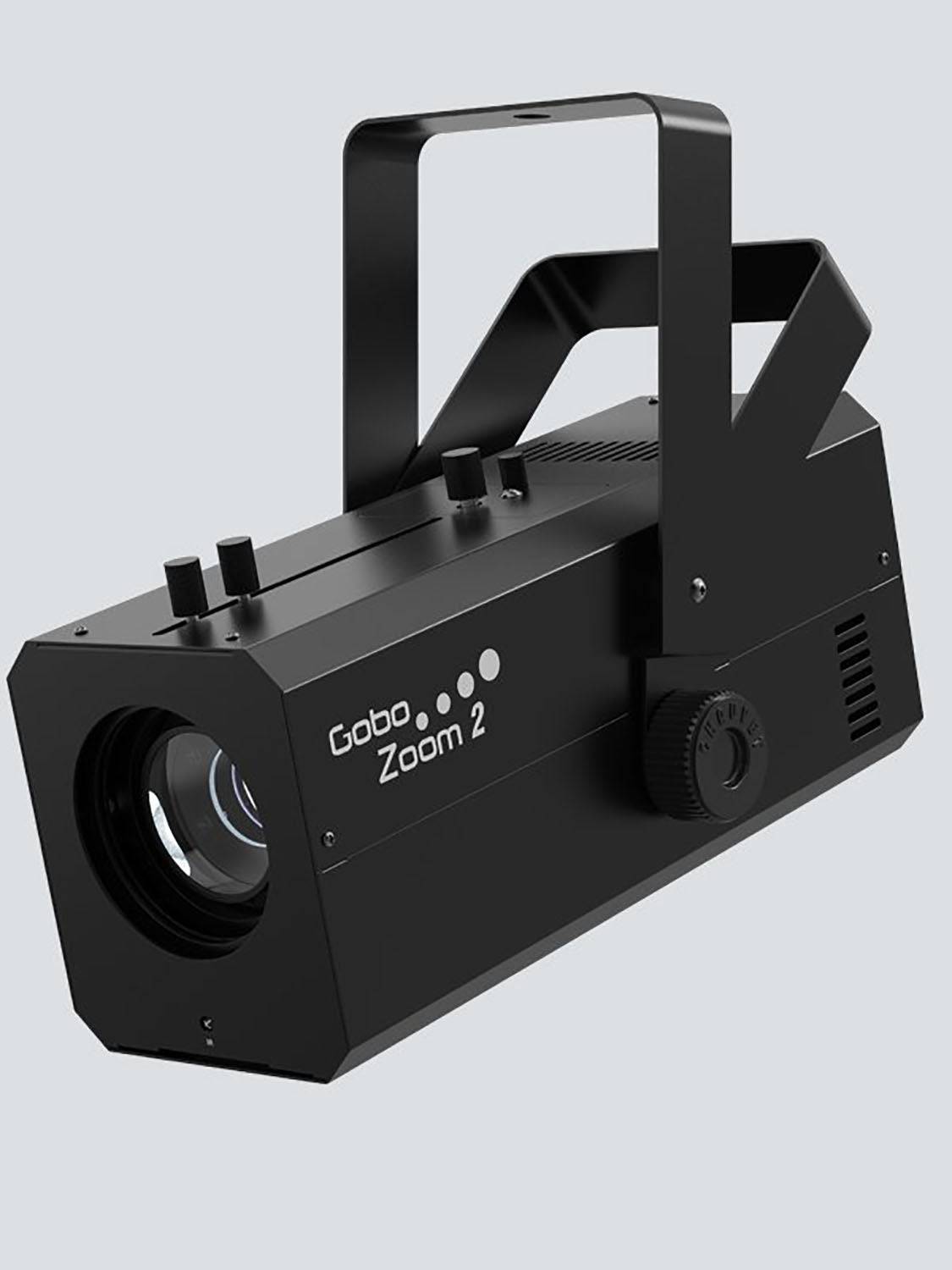

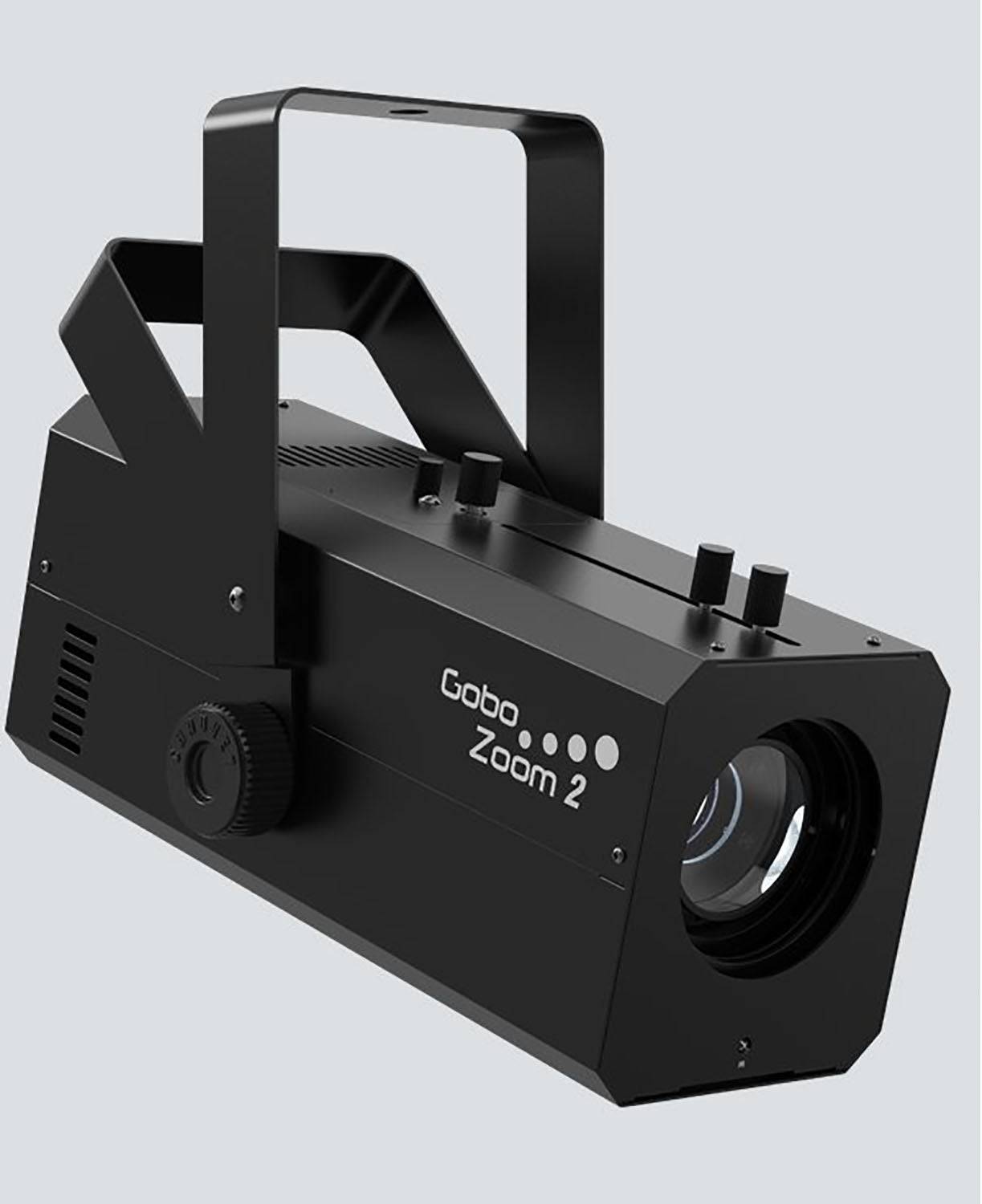

The Chauvet DJ Gobo Zoom 2 is a high powered custom gobo projector designed to create sharp and attention grabbing projections for events, entertainment venues, retail spaces, and professional productions. Its 70W cool white LED provides strong output for projecting logos, icons, patterns, and decorative designs. The fixture combines flexible optics with convenient manual controls for fast positioning and setup. Its compact housing makes it practical for mobile entertainers and permanent installations. The Gobo Zoom 2 provides an effective solution for adding customized projection effects to professional lighting environments.
High Powered Gobo Projection
The Gobo Zoom 2 uses a 70W cool white LED with a 50,000 hour life expectancy to produce bright and defined projections. It delivers up to 2,894 lumens and provides strong illuminance across its manual zoom range. The fixture is suitable for projecting custom graphics, logos, icons, and decorative patterns onto walls, floors, stages, and other surfaces. Its focused optical output helps maintain clear and recognizable projected images. This makes it ideal for branding, entertainment, weddings, parties, and seasonal events.
Flexible Manual Zoom

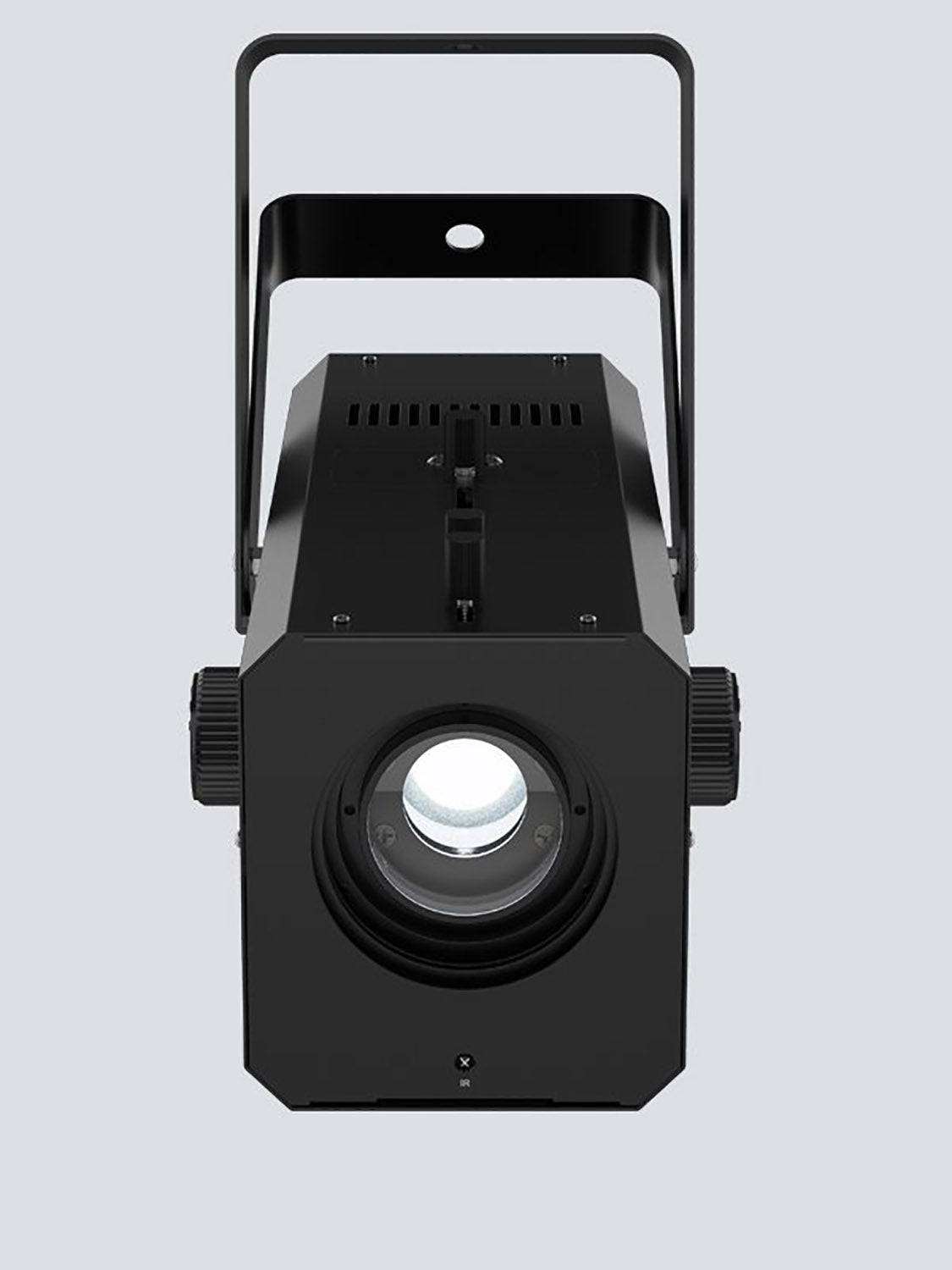

The manual zoom system provides a 21° to 38° projection angle for flexible short throw and long throw applications. Users can adjust the beam according to the distance and size of the projection surface. The wider setting provides greater coverage at shorter distances, while the narrower setting concentrates the image for longer throws. This flexibility allows the Gobo Zoom 2 to adapt to different venue layouts and installation requirements. Manual optical adjustment also provides straightforward control without complicated programming.
Easy Gobo Positioning
An innovative manual rotation knob allows users to quickly index gobos without removing them from the fixture. This makes it easier to align logos, graphics, and decorative patterns accurately during setup. The Gobo Zoom 2 accepts E size gobos with a 37.5 mm outside diameter, 22 mm image diameter, and 1 mm maximum thickness. Custom gobos can therefore be used to create personalized projections for specific events or brands. The simple positioning system helps reduce setup time while maintaining accurate image placement.
Included Holiday Gobos
The Gobo Zoom 2 comes with 10 popular holiday gobos, giving users ready to use projection designs for seasonal events and celebrations. These included gobos allow the fixture to create decorative effects without requiring additional designs. Users can also replace them with compatible custom gobos when personalized graphics are needed. This combination of included and custom projection options makes the fixture versatile throughout the year. It is well suited to venues and mobile entertainers that frequently change their event themes.
Convenient Remote Control

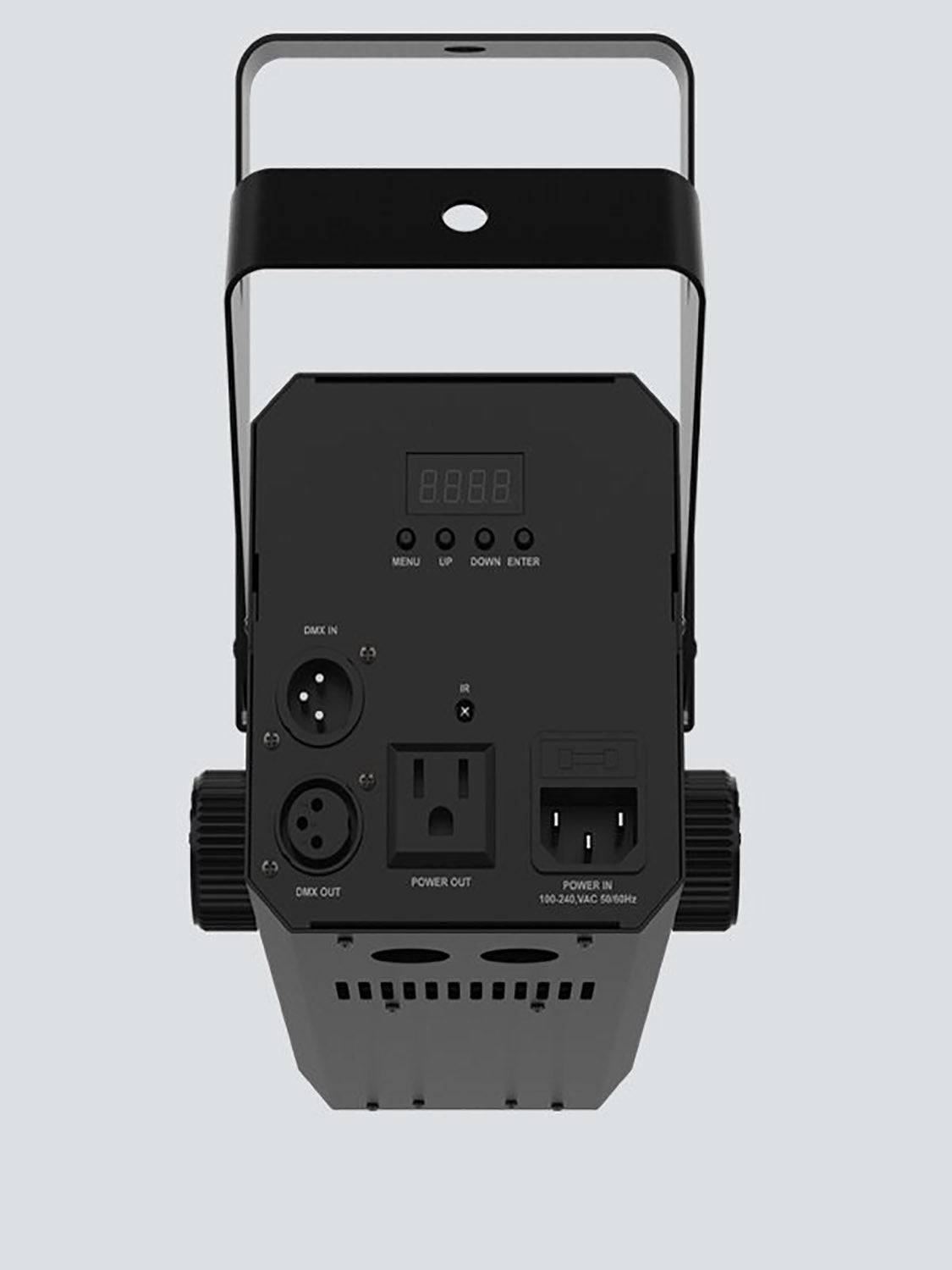

Most functions of the Gobo Zoom 2 can be accessed through the optional IRC 6 wireless remote for convenient operation. The fixture also features a 3 pin XLR connection and supports one DMX channel for integration into professional lighting systems. Wireless remote control provides an easy solution for smaller productions where a full DMX controller is unnecessary. The straightforward control options allow operators to make adjustments quickly during events. This helps simplify operation while maintaining professional projection capabilities.
Efficient Professional Setup
Power linking allows up to 7 Gobo Zoom 2 units at 120V or 14 units at 230V, helping reduce the number of extension cables required during installation. The compact 13" × 6" × 5.7" design and 5.8 lb weight make the fixture easy to transport and position. A 13 mm bracket mounting hole provides a practical mounting option for professional lighting setups. The fixture also fits best in the CHS 40 VIP Gear Bag for convenient transportation. Its combination of portability, power, and flexible projection control makes it suitable for mobile and fixed installations.
What’s in the Box:
- Gobo Zoom 2
- Power cord
- Quick Reference Guide
Product Specifications:
Product Type: Custom Gobo Projector
DMX Channels: 1
DMX Connectors: 3 pin XLR
Light Source: 1 LED, cool white
LED Power: 70 W
LED Current: 3 A
LED Life Expectancy: 50,000 hours
PWM Frequency: 4000 Hz
Illuminance at 21°: 8,030 lux @ 2 m
Illuminance at 38°: 2,660 lux @ 2 m
Lumens: 2,894 lm
Power Linking at 120 V: 7 units
Power Linking at 230 V: 14 units
Input Voltage: 100 to 240 VAC, 50,60 Hz, auto ranging
Power and Current at 120 V: 74 W, 1 A @ 120 V, 60 Hz
Power and Current at 230 V: 72 W, 0.6 A @ 230 V, 50 Hz
Gobo Size: E
Gobo Outside Diameter: 37.5 mm
Gobo Image Diameter: 22 mm
Maximum Gobo Thickness: 1 mm
Zoom Angle: 21° to 38°
Bracket Mounting Hole: 13 mm
Included Gobos: 10 popular holiday gobos
Control Options: DMX, manual, optional IRC 6 remote
Optional Controller: IRC 6
Approvals: CE
Product Weight: 5.8 lbs.
Product Dimensions (L × W × H): 13" × 6" × 5.7"
Shipping Weight: 8 lbs.
Shipping Dimensions (L × W × H): 16" × 9" × 9"
