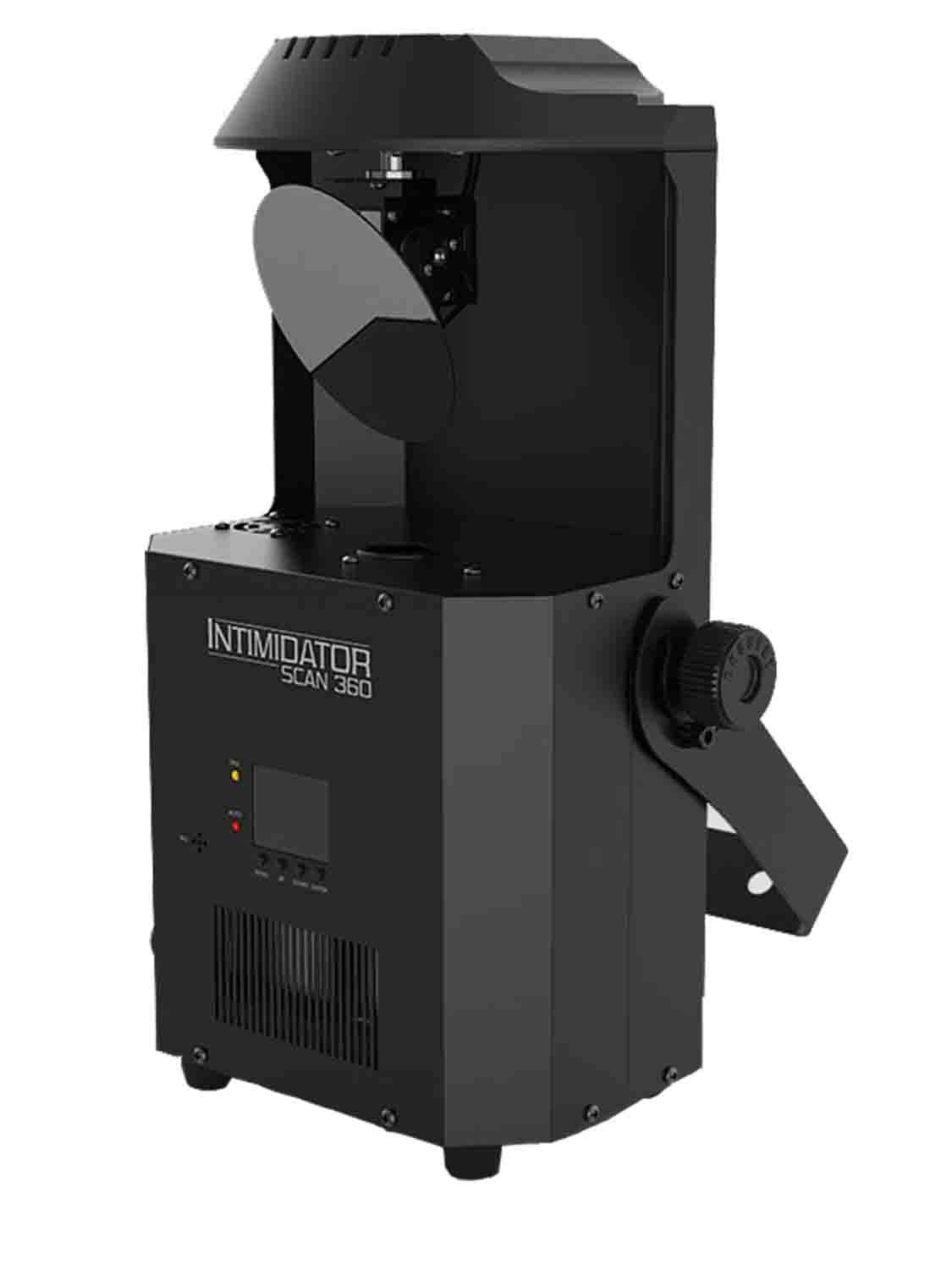

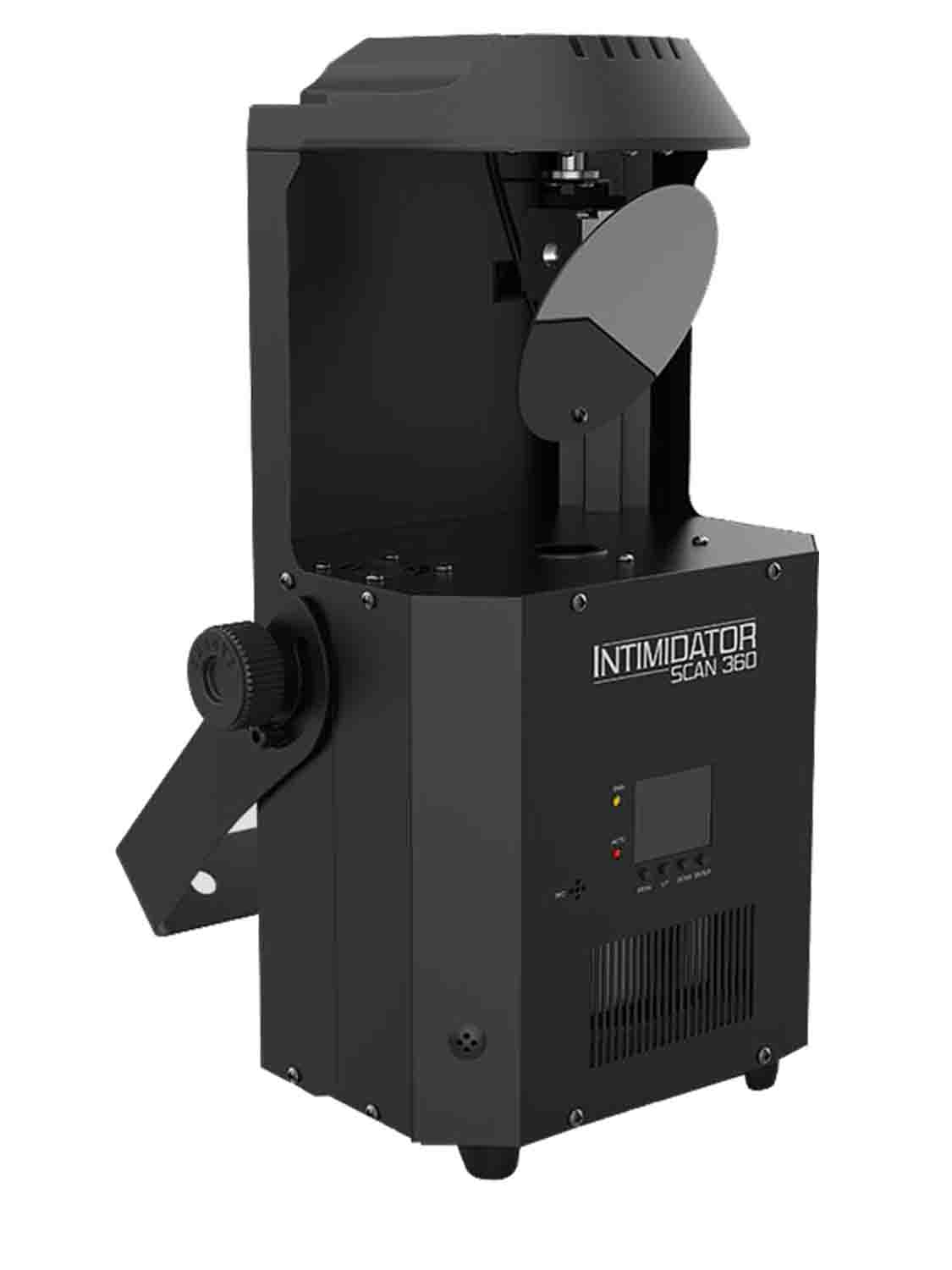

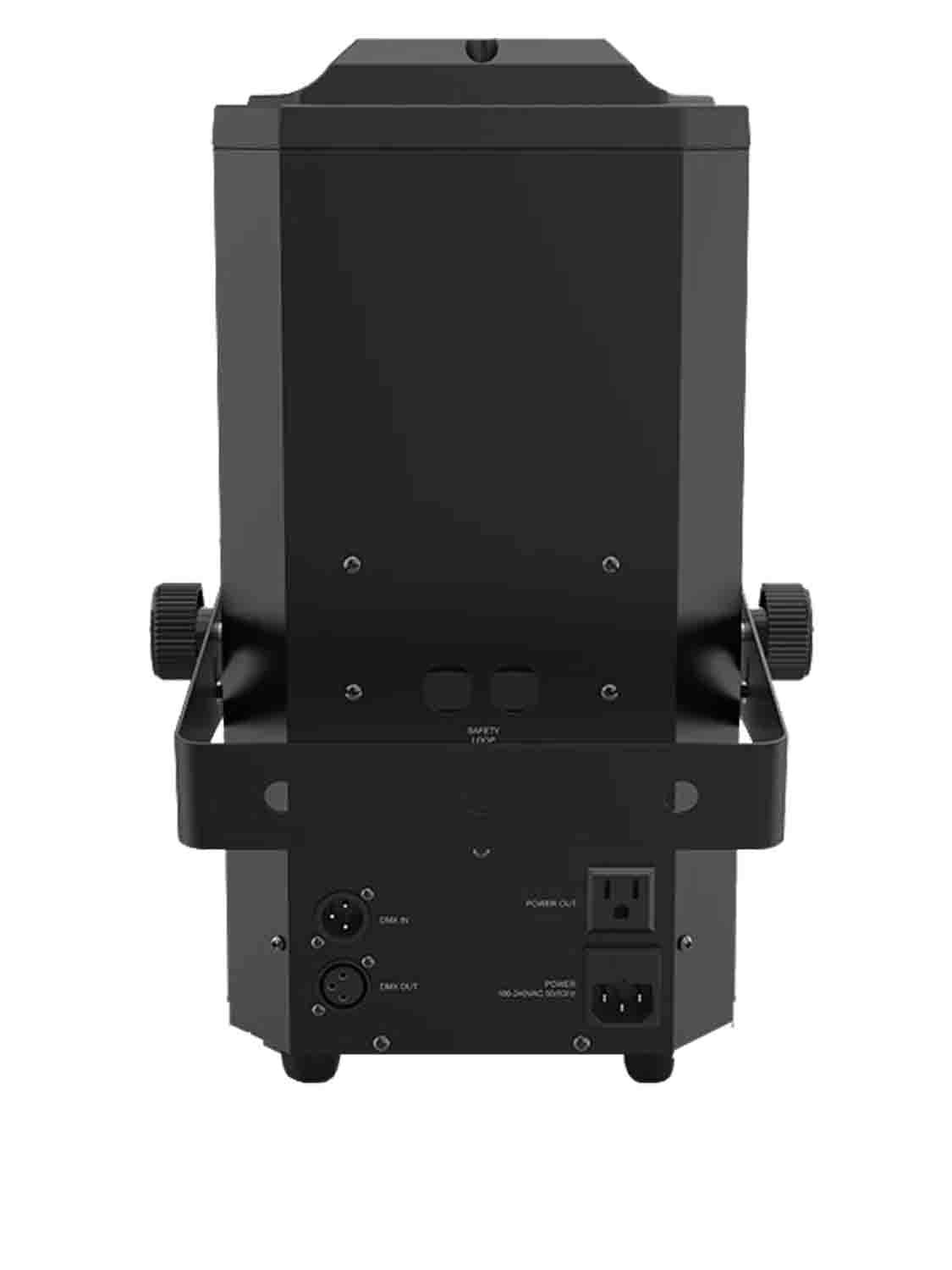

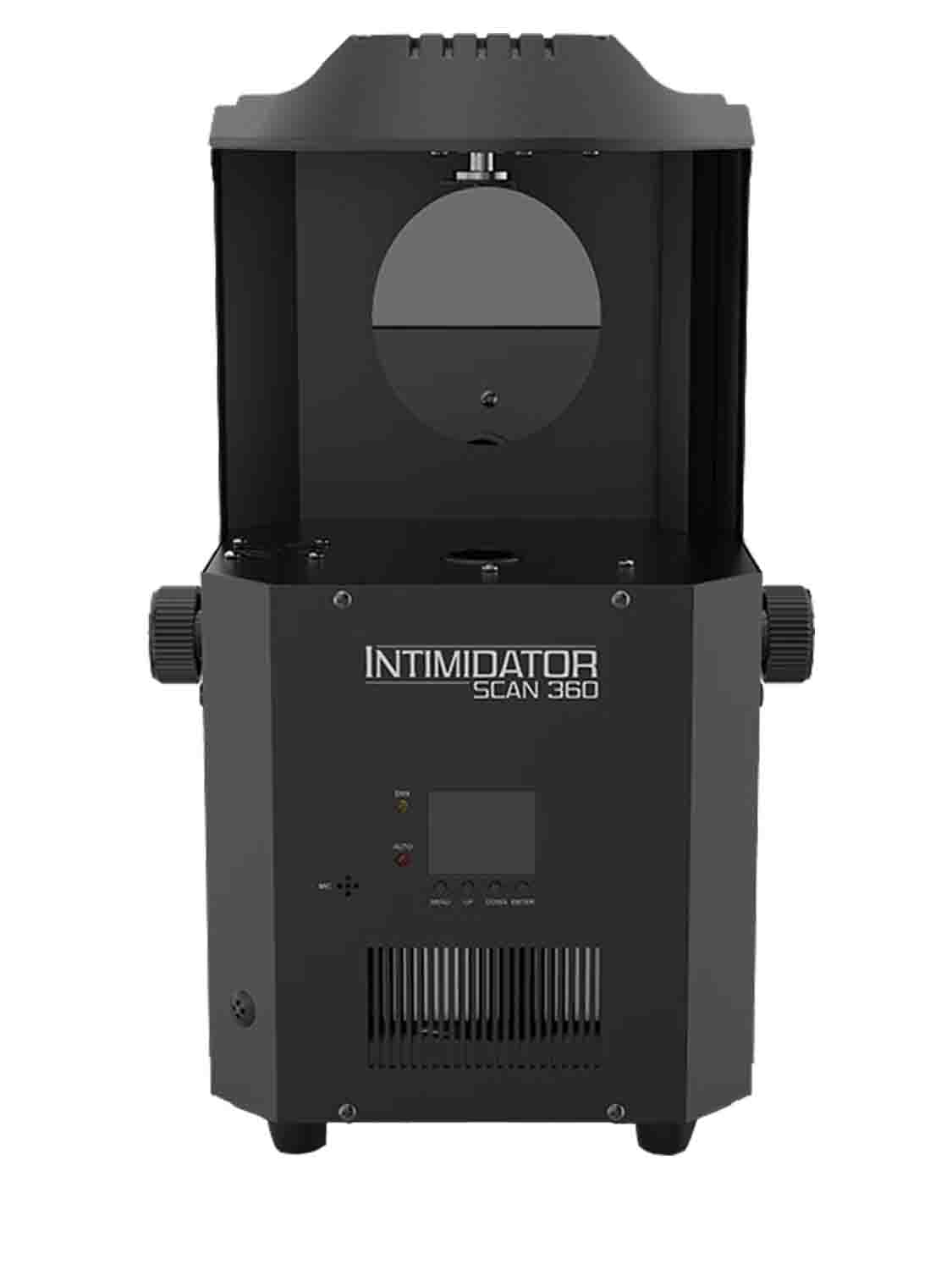

Chauvet DJ Intimidator Scan 360, 100W LED Scanner Effect

The Chauvet DJ Intimidator Scan 360 (INTIMSCAN360) is a 100 W LED scanner effect built for mobile DJs and small stages. It throws fast, sharp beams with 8 colors plus white, 7 gobos plus open, a 3-facet rotating prism and motorized focus, and weighs 12.6 lb (5.7 kg).

Motorized focus projects crisp gobos from nearly any distance, and high-frequency LED dimming keeps the output flicker-free on video. Run it on 8 or 12 DMX channels, set, save and recall 1 scene from the full-color LCD display, or control it wirelessly without DMX using the optional IRC-6 remote. Power linking cuts down on extension cords: up to 4 units at 120 V.

Intimidator Scan 360 specifications

Type	LED scanner effect
Light source	1 white LED, 100 W (4.2 A), 50,000 hours life expectancy
Colors	8 + white, split colors, continuous scroll at variable speeds
Gobos	7 + open (6 metal, 1 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
Gobo size (metal)	0.78 in (19.75 mm) outside, 0.55 in (14 mm) image, 0.04 in (1 mm) max thickness
Prism	3-facet round, rotation at variable speeds
Focus	Motorized
Pan and tilt	172° / 39°
Beam angle	21°
Illuminance	4,050 lux at 6.6 ft (2 m)
Strobe rate	0 to 20 Hz
DMX	8 or 12 channels, 3-pin XLR connectors
Other control	Full-color LCD (set, save and recall 1 scene), optional IRC-6 wireless remote
Input voltage	100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and current	147 W, 1.9 A at 120 V, 60 Hz; 143 W, 1.1 A at 230 V, 50 Hz
Power linking	4 units at 120 V; 7 units at 230 V
Dimensions	10 x 6.1 x 16.3 in (255 x 155 x 415 mm)
Weight	12.6 lb (5.7 kg)
Approvals	CE
In the box	Intimidator Scan 360, power cord, Quick Reference Guide

How many DMX channels does the Intimidator Scan 360 use?

It runs in 8-channel or 12-channel DMX mode, connected with 3-pin XLR cables. CHAUVET DJ also publishes a ShowXpress profile for it.

Can I use it without a DMX controller?

Yes. You can set, save and recall 1 scene directly from the full-color LCD display, and the optional IRC-6 remote gives you wireless, non-DMX control.

Does it look good on camera?

Yes. High-frequency LED dimming gives flicker-free output for video, so it suits livestreams and event filming.

Intimidator Scan 360 or Intimidator Scan 110?

The Scan 360 is the brighter, more capable scanner: a 100 W LED against the 10 W LED in the Intimidator Scan 110, 4,050 lux at 6.6 ft (2 m) against 1,110 lux, a 21° beam against 13°, and separate color and gobo wheels plus a rotating prism and motorized focus, where the Scan 110 has 8 combined color and gobo patterns plus open. The Scan 110 is lighter at 4.6 lb against 12.6 lb, draws 30 W, and power links up to 17 units at 120 V against 4. Pick the Scan 360 for bigger rooms and gobo work, the Scan 110 for a compact, light rig.

What do I need to hang it?

CHAUVET DJ pairs it with the CLP-15N clamp and a CH-05 safety cable. We also sell it as a package with a gear bag, and you can browse more scanner effects.
