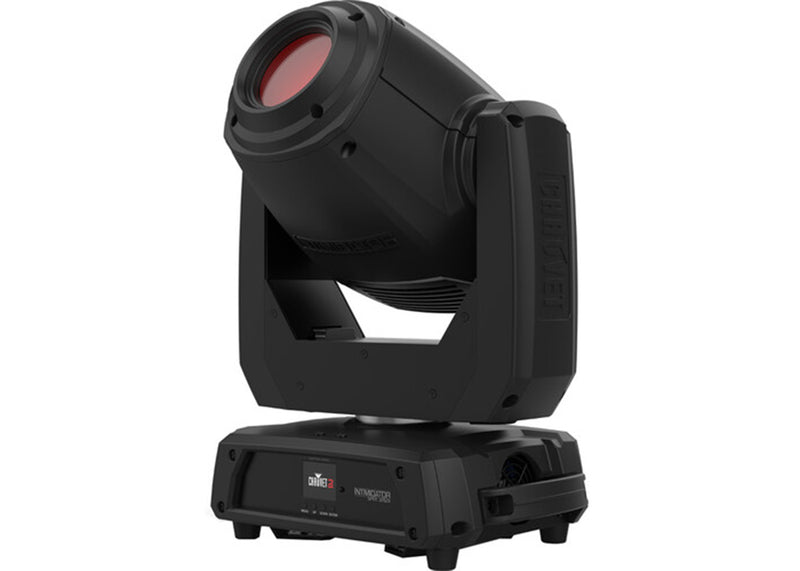

Chauvet DJ Intimidator Spot 375ZX, LED Moving Head (Black)

The Chauvet DJ Intimidator Spot 375ZX (model INTIMSPOT375ZX) is a 200 W LED moving head spot for mobile DJs and lighting designers working large events. It puts out 7,161 lumens through a motorized 10° to 23° zoom, with 7 colors plus white, 7 rotating gobos and dual rotating prisms. This listing is the black housing.

A built-in RF receiver lets you run it from the optional RFC or RFC-XL remote without aiming at the fixture, and it also runs built-in automated and sound-activated programs, Master/Slave, or 9 or 15 DMX channels. Motorized focus keeps gobos crisp at nearly any distance, Totem mode keeps the beams on the dance floor, and you can set, save and recall 1 scene directly from the full-color LCD display.

Intimidator Spot 375ZX specifications

Type	LED moving head spot
Light source	1 cool white LED, 200 W, 50,000 hours life expectancy
Output	7,161 lumens
Zoom	Motorized, 10° to 23°, with motorized focus
Illuminance	36,801 lux at 10° and 21,115 lux at 23°, measured at 6.6 ft (2 m)
Colors	7 plus white, split colors, continuous scroll at variable speeds
Color temperature (CTO)	5,700 K
Gobos	7 plus open (6 aluminum, 1 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
Gobo size	0.94 in (24 mm) outside, 0.79 in (20 mm) image, 0.04 in (1.1 mm) maximum thickness
Prisms	5-facet linear and 6-facet round, both bi-directional at variable speeds
Pan and tilt	540° pan, 270° tilt; selectable ranges of 540°, 360° or 180° pan and 270°, 180° or 90° tilt
Strobe	0 to 20 Hz
Control	DMX (9 or 15 channels), Master/Slave, automated and sound-activated programs, built-in RF receiver
DMX connectors	3-pin XLR in and out
Optional remotes	RFC, RFC-XL (sold separately)
Power	100 to 240 VAC, 50/60 Hz, auto-ranging; 354 W, 3.1 A at 120 V, 60 Hz; 337 W, 1.6 A at 230 V, 50 Hz
Power connectors	powerCON-compatible in and out
Power linking	4 units at 120 V; 8 units at 230 V
Dimensions	12.7 x 8.7 x 18.3 in (322 x 220 x 466 mm)
Weight	27.2 lb (12.4 kg)
Approvals	CE, UKCA, RoHS, MET
In the box	Intimidator Spot 375ZX, power cord, hanging bracket, Quick Reference Guide

Can I control the Intimidator Spot 375ZX without a DMX controller?

Yes. Its built-in RF receiver works with the optional RFC or RFC-XL remote, which does not need to be aimed at the fixture, and it also runs built-in automated and sound-activated programs, alone or in Master/Slave. For full programming it takes 9 or 15 DMX channels over 3-pin XLR.

How many can I run from one circuit?

Up to 4 units at 120 V, or 8 at 230 V, linked through the powerCON-compatible power input and output.

Does it zoom and focus?

Yes, both are motorized. The zoom runs from 10° to 23° for short or long throws, and the motorized focus keeps gobo projections crisp at nearly any distance.

Can I swap the gobos?

Yes. It carries 6 aluminum gobos and 1 glass gobo in a slot-n-lock wheel, and they are interchangeable for custom projections at 0.94 in (24 mm) outside diameter.

How do I mount it?

It ships with a ¼-turn hanging bracket that allows single or dual clamp mounting. Clamps are not in the box.

Intimidator Spot 375ZX or Intimidator Spot 160 ILS?

The Spot 375ZX is the large-room fixture: a 200 W LED, a motorized 10° to 23° zoom with 36,801 lux at 10° from 6.6 ft (2 m), dual prisms and RF remote control, at 27.2 lb. The Intimidator Spot 160 ILS uses a 32 W LED with a fixed 15° beam and 5,000 lux at 6.6 ft (2 m), 9 colors and 9 gobos, IRC-6 infrared remote control and weighs 8.2 lb. For the lightest option, the Intimidator Spot 110 uses a 10 W LED and weighs 5.0 lb. Browse every option in moving head spots.
