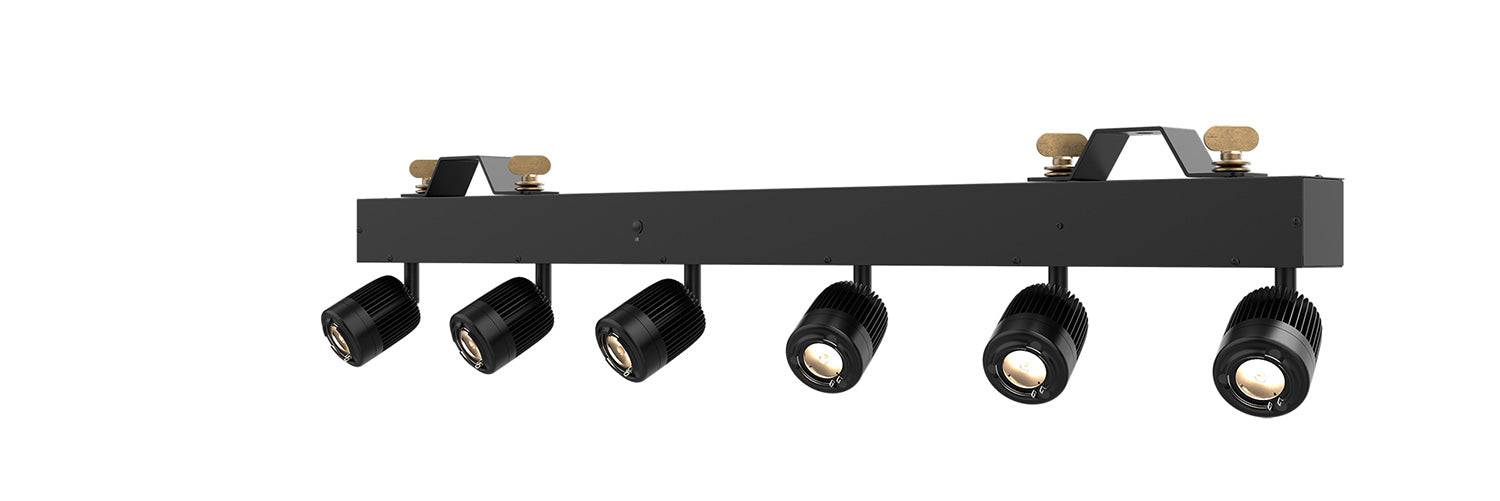

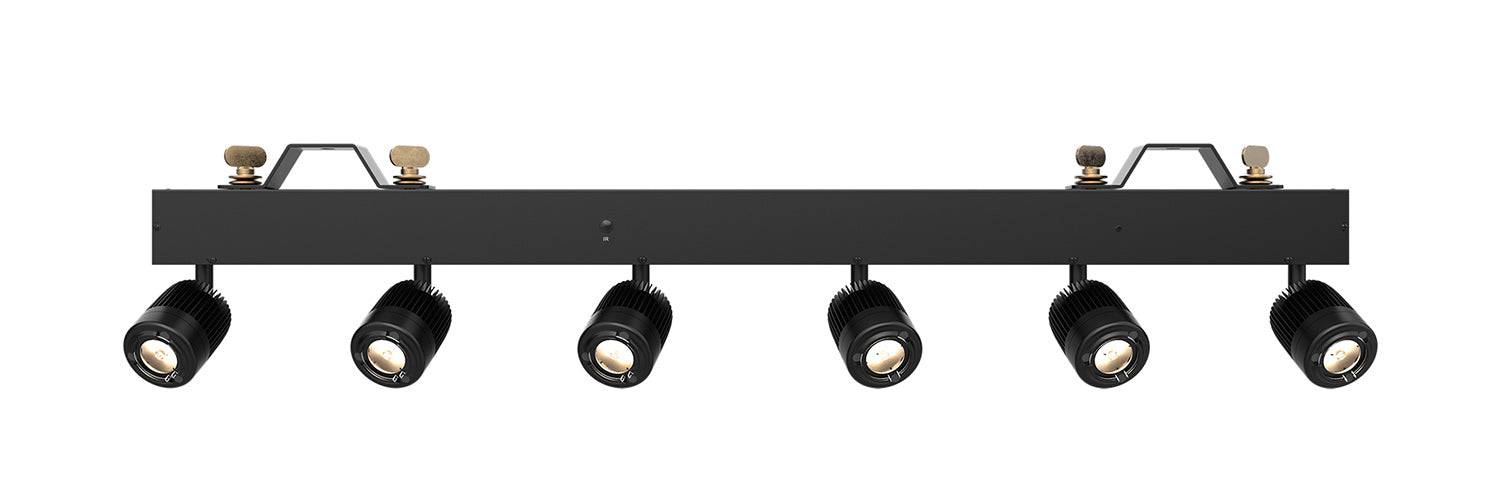

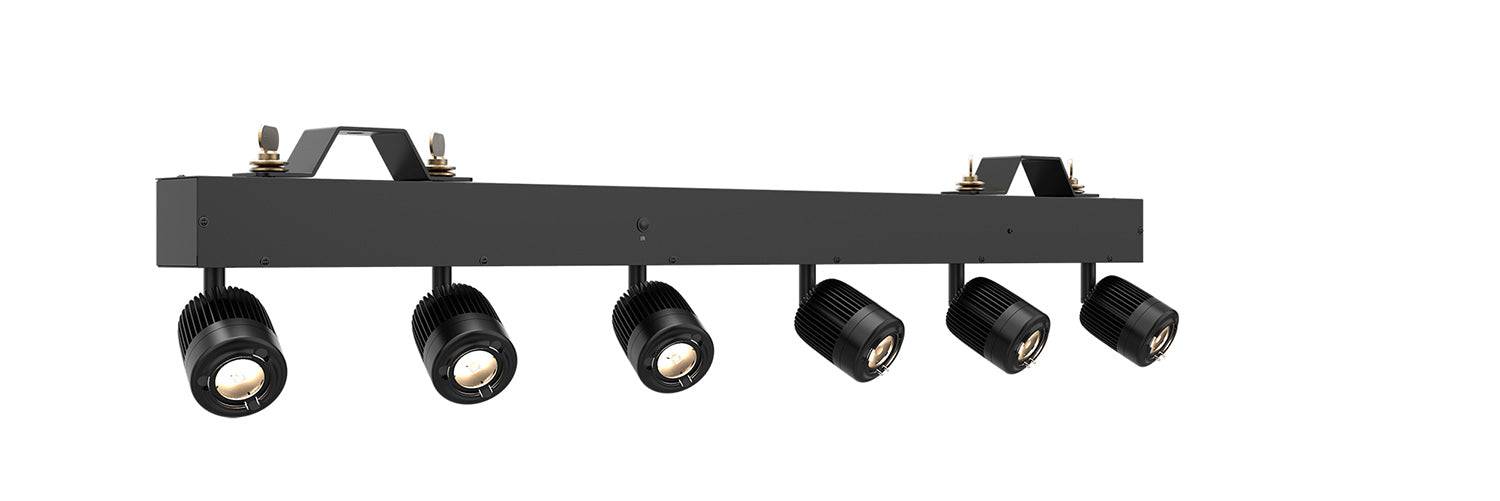

From creating subtle glows for appetizing buffets to lighting inspiring exhibits and highlighting special event elements, harness pin spotting power with Pin spot Bar. Pin spot Bar is a high-output bar with 6 independent pin spots designed to replicate traditional incandescent lamps.
Independent control of each head offers true flexibility and programming capabilities. Achieve a clean and elegant look for any upscale event with only a single PowerCon-compatible power input. No messy cables along with power linking capabilities that save time running cables to other fixtures.
Pin spot Bar includes various beam diffusers and CTO filters to help achieve your desired look. A pair of included Omega brackets allow for multiple mounting options including pipe and drape. Control Pin spot Bar via the on-board digital display, DMX, wireless IRC-6 remote, or D-Fi USB dongle.
DMX Channels: 1, 6 and 11.
DMX Connectors: 3- and 5-pin XLR.
Light Source: 6 LEDs (warm white) 15 W, (3.6 A), 50,000 hours life expectancy.
PWM Frequency: 1000 Hz.
Beam Angle: 5°.
Field Angle: 11°.
Illuminance: 7,707 lux @ 2 m (per pod).
Power Linking: 8 units @ 120 V; 13 units @ 230 V.
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging).
Power and Current: 171 W, 1.4 A @ 120 V, 60 Hz 191 W, 0.8 A @ 230 V, 50 Hz.
Weight: 9.4 lb (4.3 kg).
Size: 39 x 4.6 x 5 in (1000 x 119 x 131 mm).
Approvals: CE, RoHS.
Colour Temperature: 4000 K.
Bracket Mounting Hole: 13 mm.
Optional Controllers: IRC-6, D-Fi USB.
