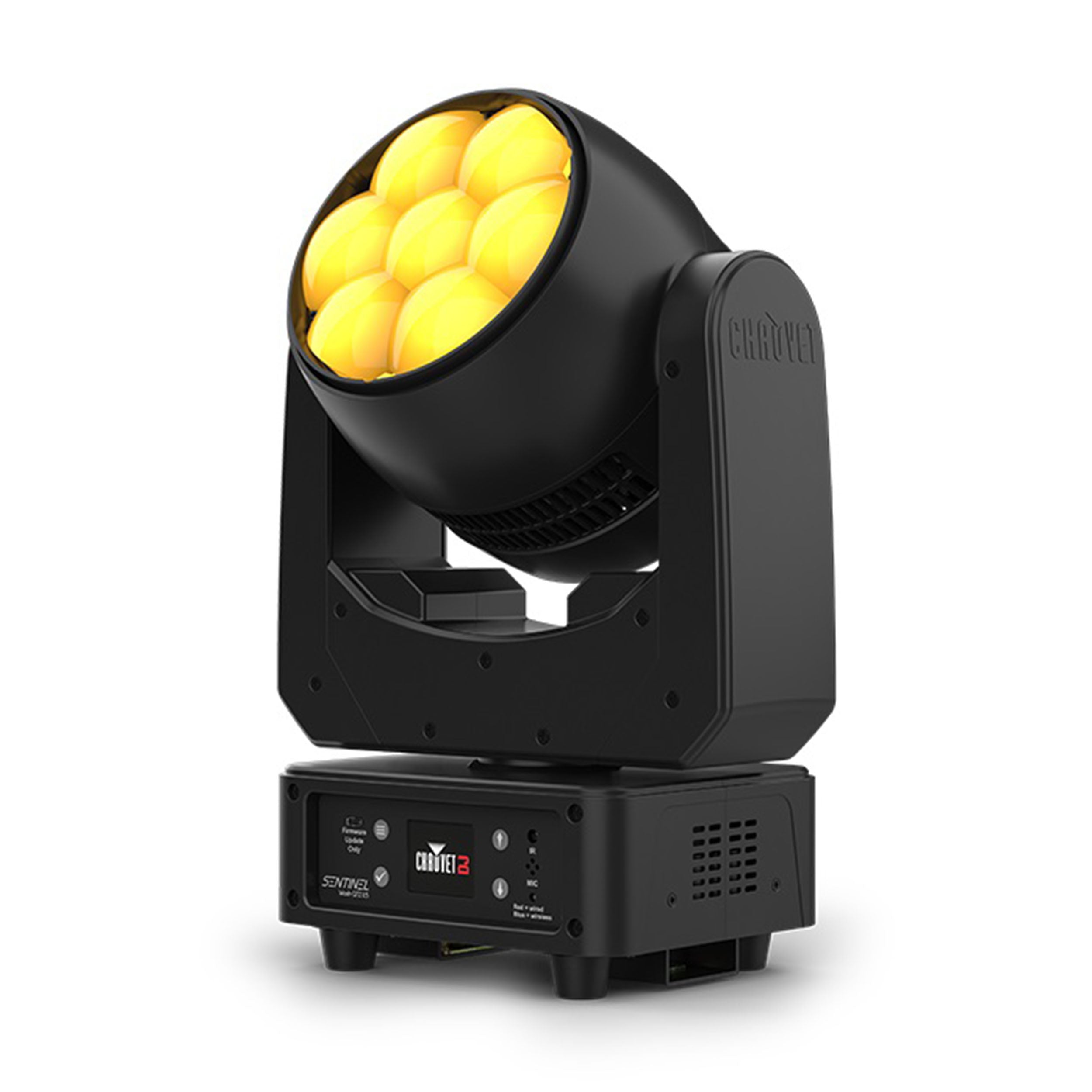

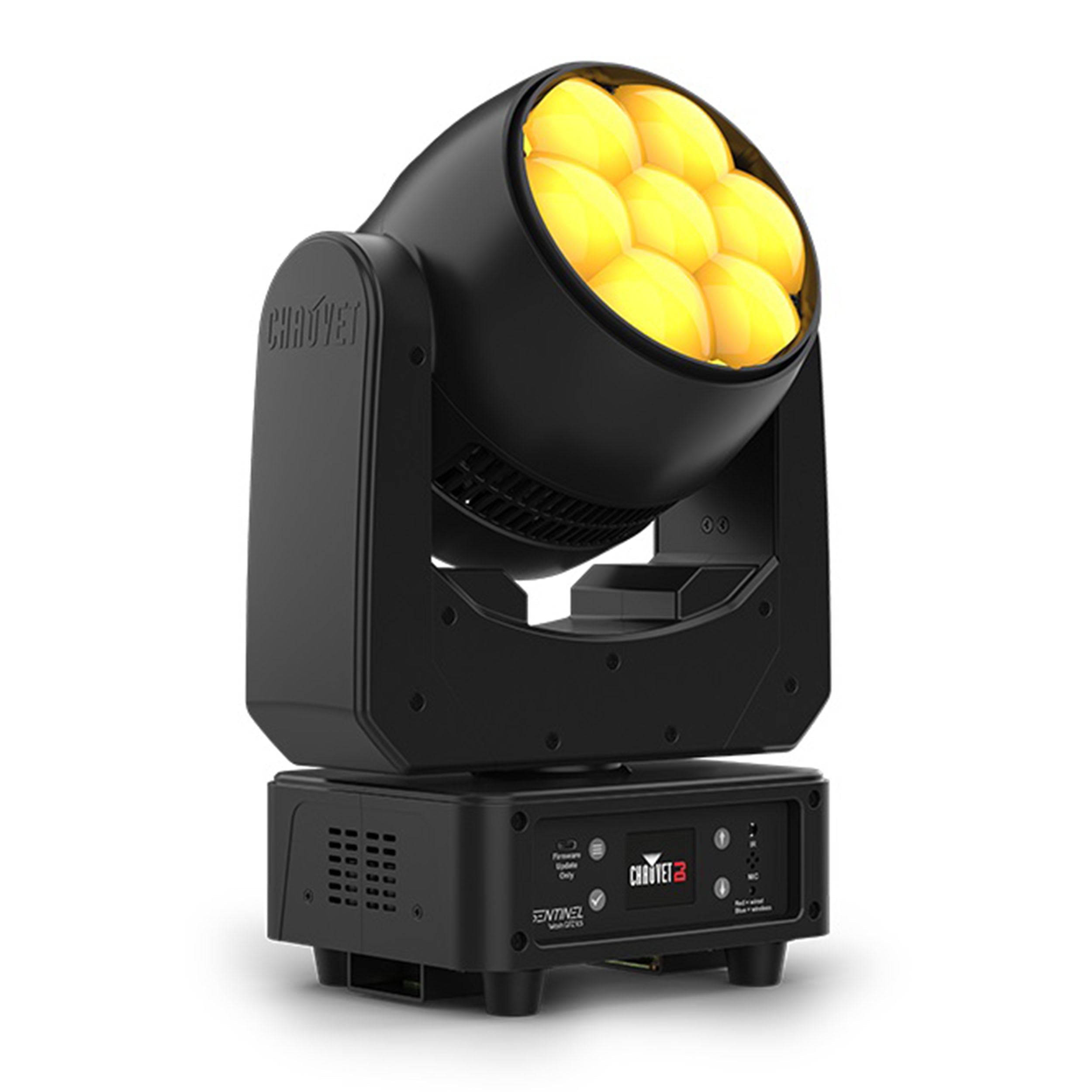

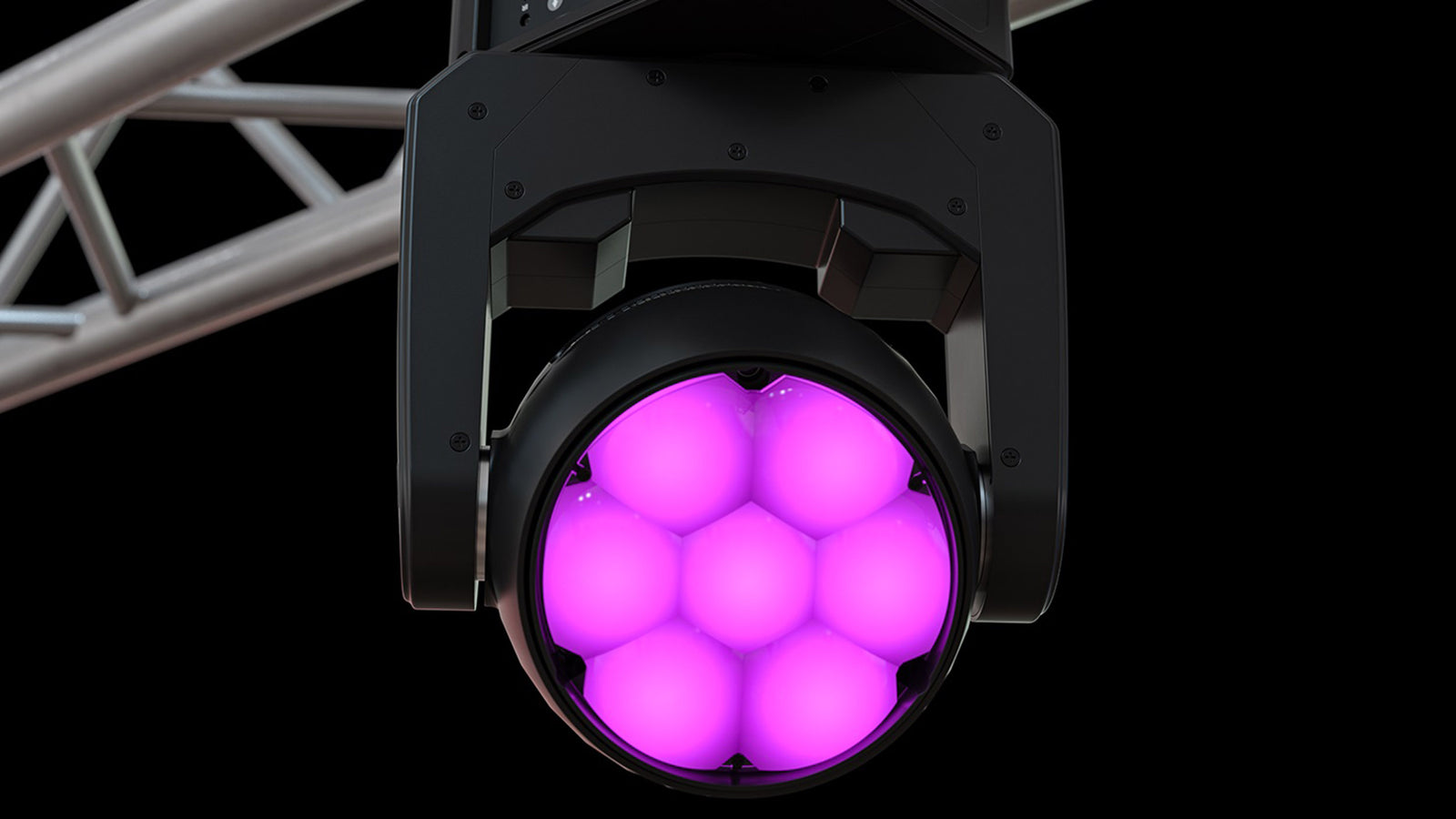

Chauvet DJ Sentinel Wash Q7Z ILS 140W RGBW Zoom Moving-Head Wash

The Chauvet DJ Sentinel Wash Q7Z ILS is a compact moving head wash fixture designed for mobile entertainment, events, stages, clubs, and production applications. Its seven quad-color RGBW LEDs deliver vibrant color output while the motorized zoom allows the fixture to transition between narrow beams and wide washes. ILS compatibility and the built-in D-Fi transceiver provide convenient wireless control and synchronization.

Motorized Zoom Performance

The motorized zoom ranges from 5° to 27°, allowing Sentinel Wash Q7Z ILS to adapt easily to different throw distances. The narrow 5° beam produces concentrated output for longer-throw applications, while the 27° setting creates a broader wash for closer coverage. This flexibility makes the fixture suitable for both compact venues and larger event spaces.

Powerful RGBW Lighting

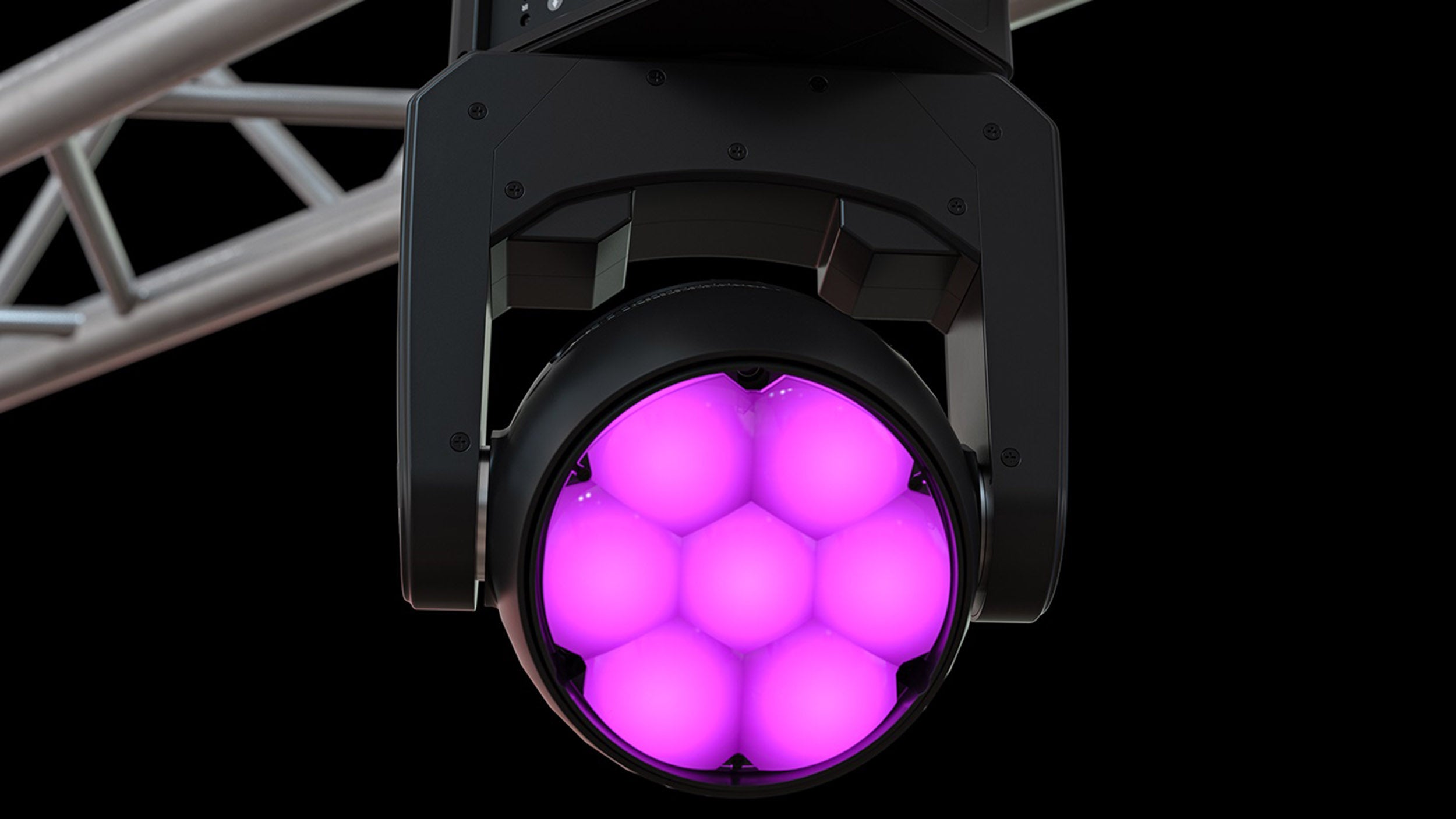

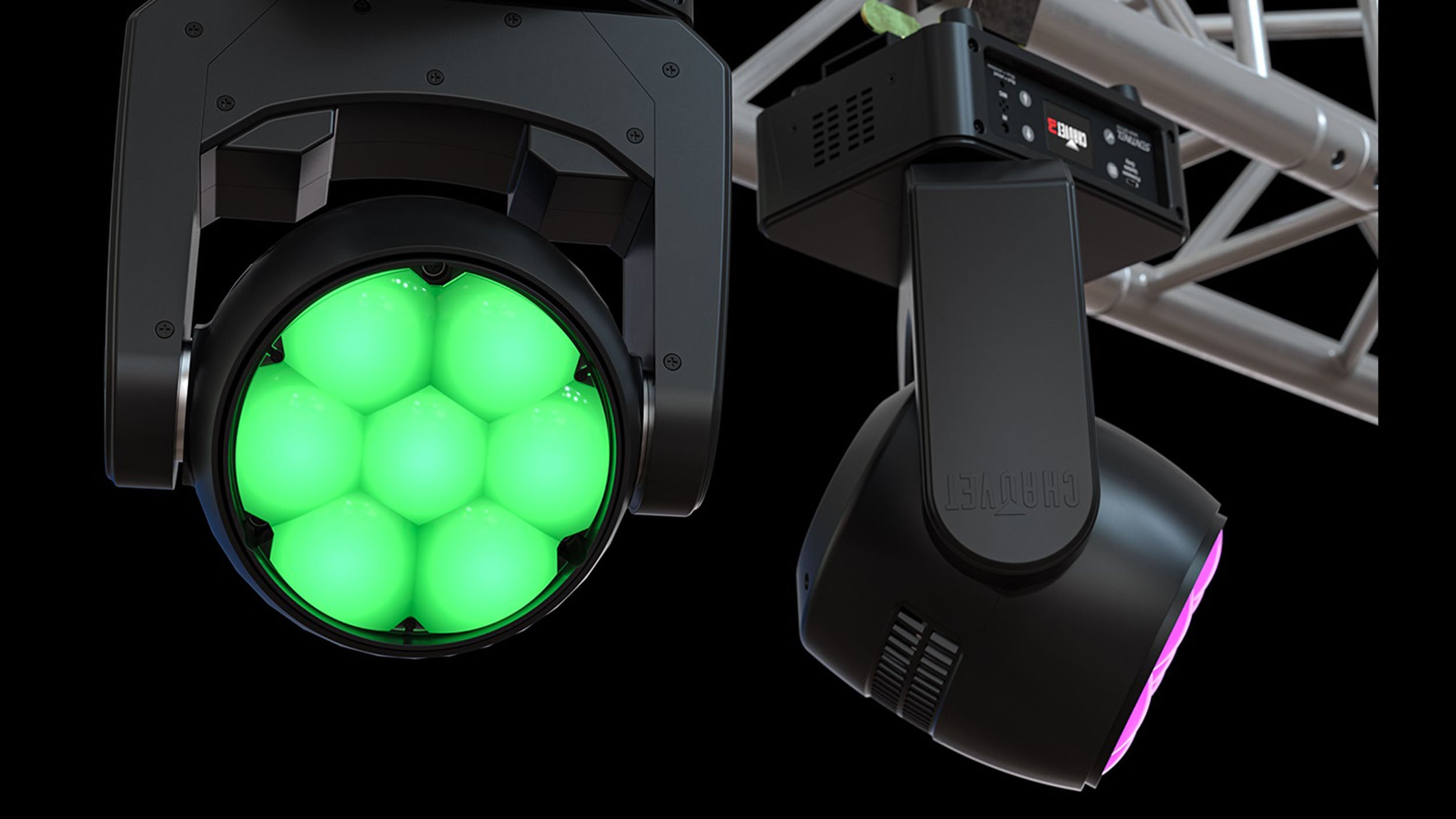

Seven 20 W quad-color RGBW LEDs provide a total LED engine output of 140 W. The RGBW configuration produces saturated colors and allows smooth color mixing for dynamic lighting designs. With a rated LED life expectancy of 50,000 hours, the fixture is designed for reliable long-term professional operation.

Wireless ILS and D-Fi Control

The built-in D-Fi transceiver allows DMX and ILS signals to be communicated wirelessly, reducing the need for control cables. ILS compatibility allows Sentinel Wash Q7Z ILS to coordinate with other compatible fixtures within the ILS ecosystem. Optional IRC-6 and ILS Command controllers provide additional wireless control options.

Smooth Movement and Totem Mode

The fixture provides 540° of pan movement and 225° of tilt movement for broad coverage and dynamic aerial effects. Selectable pan and tilt ranges allow users to tailor movement for different applications. Totem Mode helps keep the moving head's effects directed toward the dance floor, making it useful for mobile entertainment and event lighting.

Easy Setup and Operation

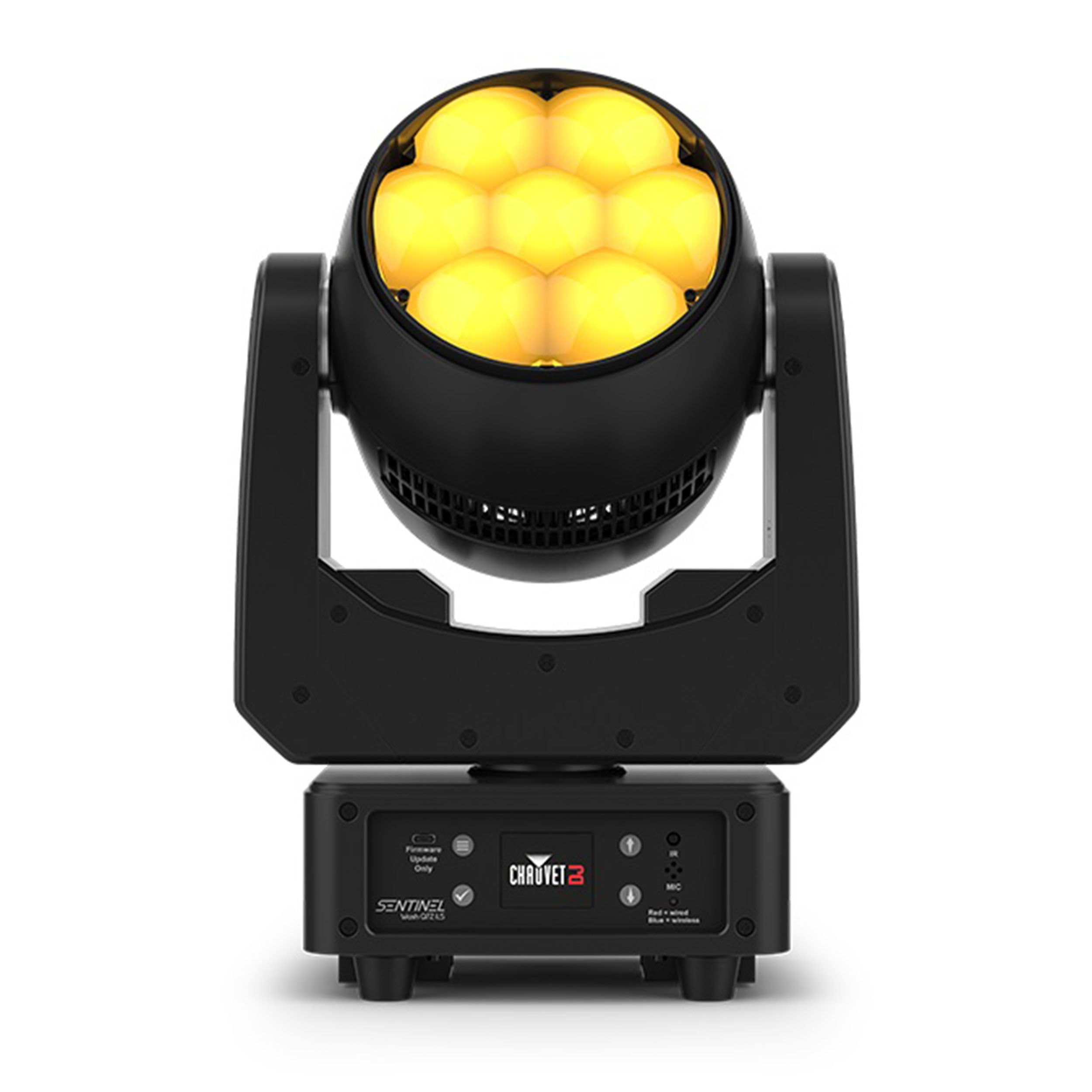

A full-color LCD display provides direct access to fixture functions and settings. Power linking allows multiple units to share power, helping reduce the number of cables and extension cords required during installation. The compact fixture also fits conveniently in the CHS-40 VIP Gear Bag for transportation and mobile productions.

Professional Event Applications

Sentinel Wash Q7Z ILS is designed for DJs, mobile entertainers, event producers, stages, clubs, theaters, and other professional lighting environments. Its combination of RGBW output, motorized zoom, wireless D-Fi communication, ILS compatibility, and flexible movement provides a versatile solution for both short-throw and long-throw lighting applications.

What’s in the Box:

• Sentinel Wash Q7Z ILS
• Power cord
• Hanging bracket
• Quick Reference Guide

Product Specifications:

Product Type: Compact RGBW moving head wash light.

DMX Channels: 9 or 14.

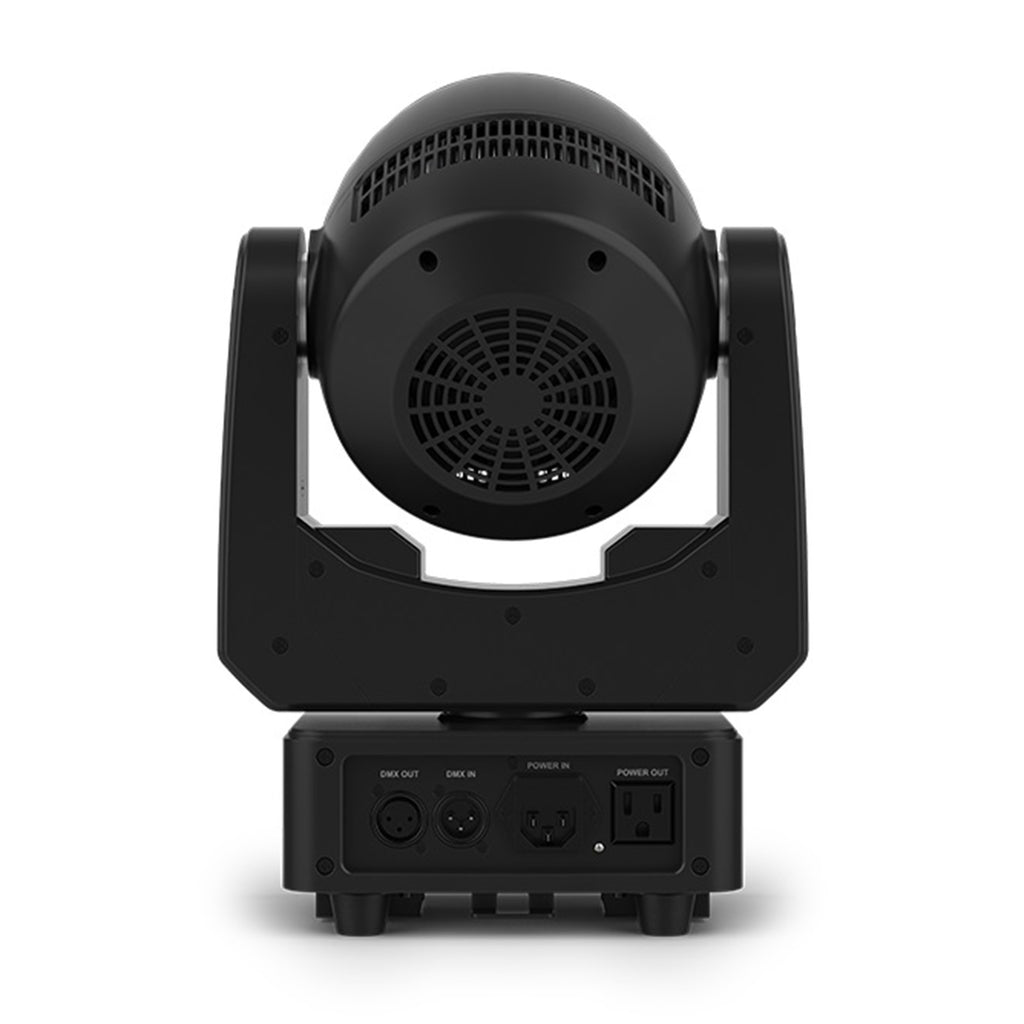

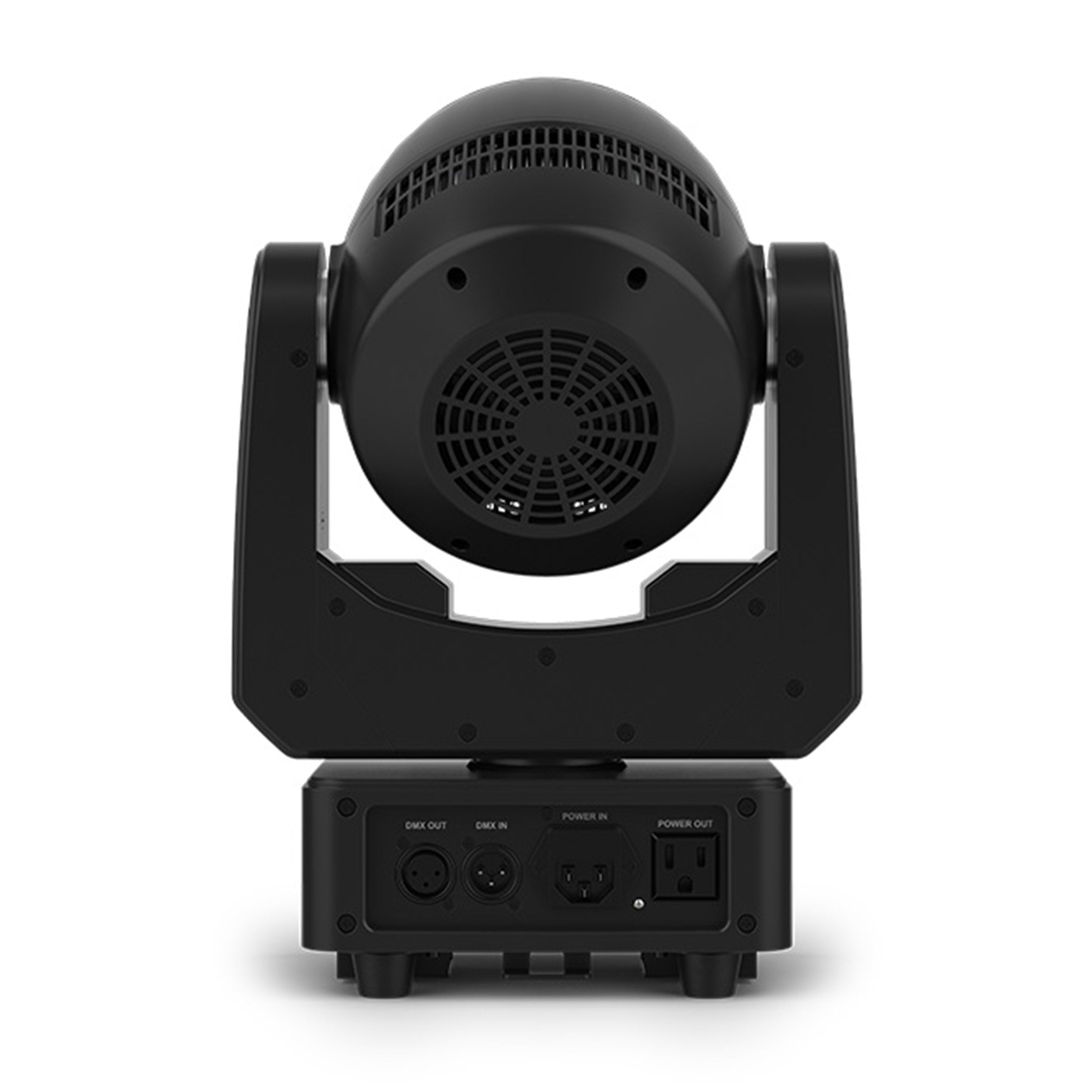

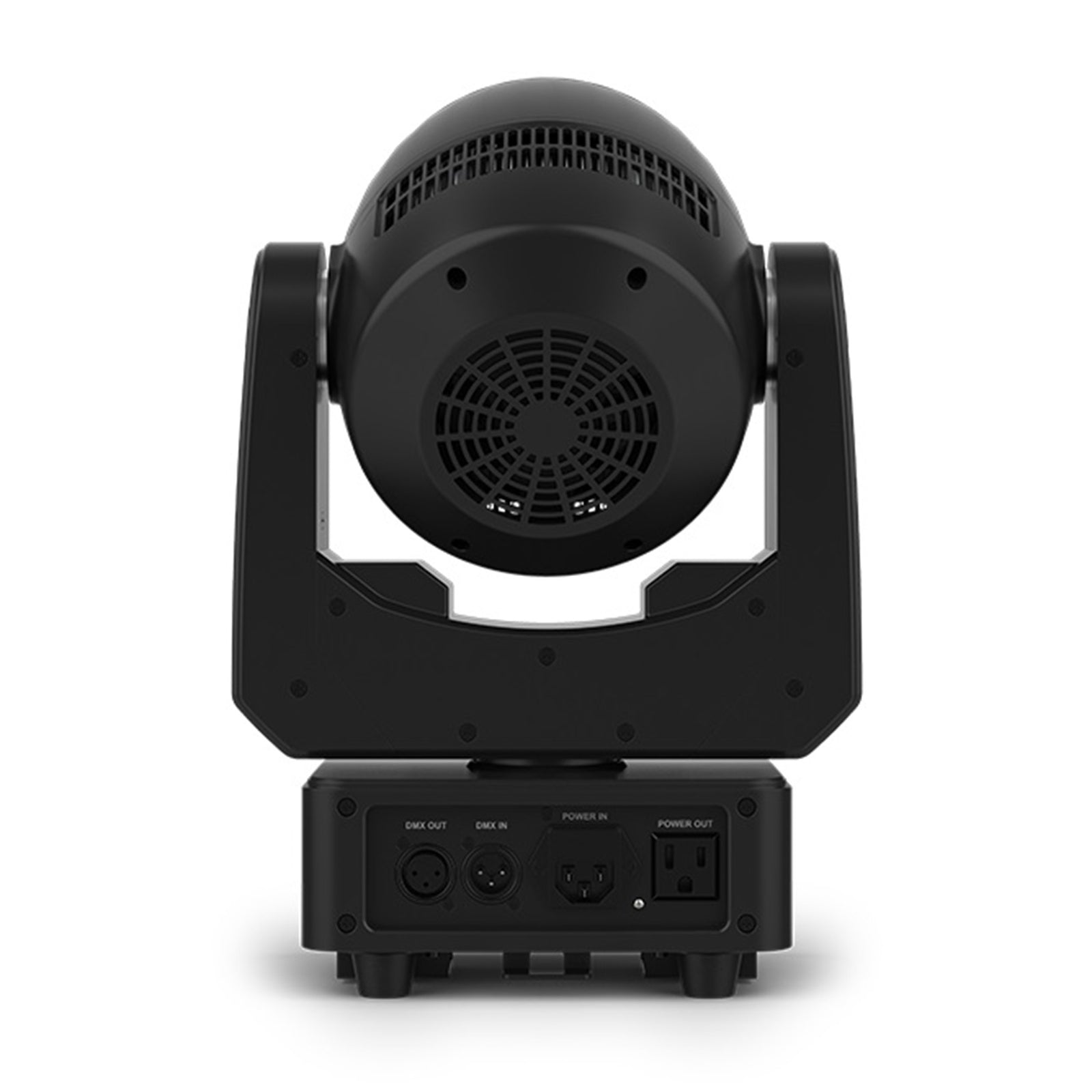

DMX Connectors: 3-pin XLR.

Pan and Tilt: 540° pan, 225° tilt.

Pan Range: 180°, 360°, or 540°.

Tilt Range: 90°, 180°, or 225°.

Light Source: 7 quad-color RGBW LEDs, 140 W total.

LED Power: 20 W per LED.

LED Current: 5 A total.

LED Life Expectancy: 50,000 hours.

Strobe Rate: 0 to 20 Hz.

Zoom Angle: 5° to 27°.

Illuminance Narrow: 30,537 lux @ 2 m at 5°.

Illuminance Wide: 3,390 lux @ 2 m at 27°.

Power Linking: 6 units @ 120 V, 12 units @ 230 V.

Input Voltage: 100 to 240 VAC, 50/60 Hz, auto-ranging.

Power and Current: 148 W, 1.2 A @ 120 V, 60 Hz.

Power and Current: 146 W, 0.7 A @ 230 V, 50 Hz.

Cable Length: 5 ft (1.5 m).

Control: DMX, wireless D-Fi, ILS.

Wireless Protocol: D-Fi transceiver.

ILS Compatibility: Yes.

Operating Mode: Totem Mode.

Display: Full-color LCD.

Optional Controllers: IRC-6, ILS Command.

Product Weight: 13.8 lb (6.3 kg).

Product Dimensions (L × W × H): 14.2" × 10" × 7.41" (362 × 255 × 188 mm).
