Chauvet Pro Cloud 9 Low-Lying Fog Machine

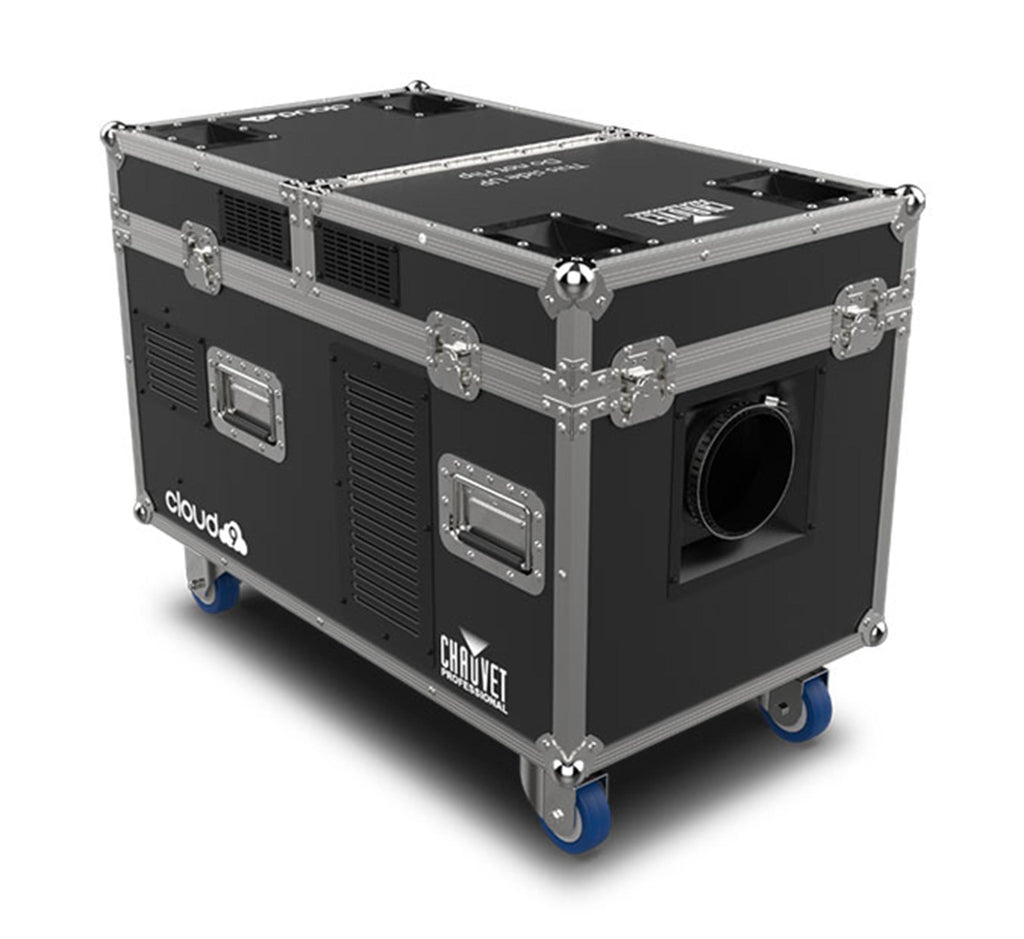

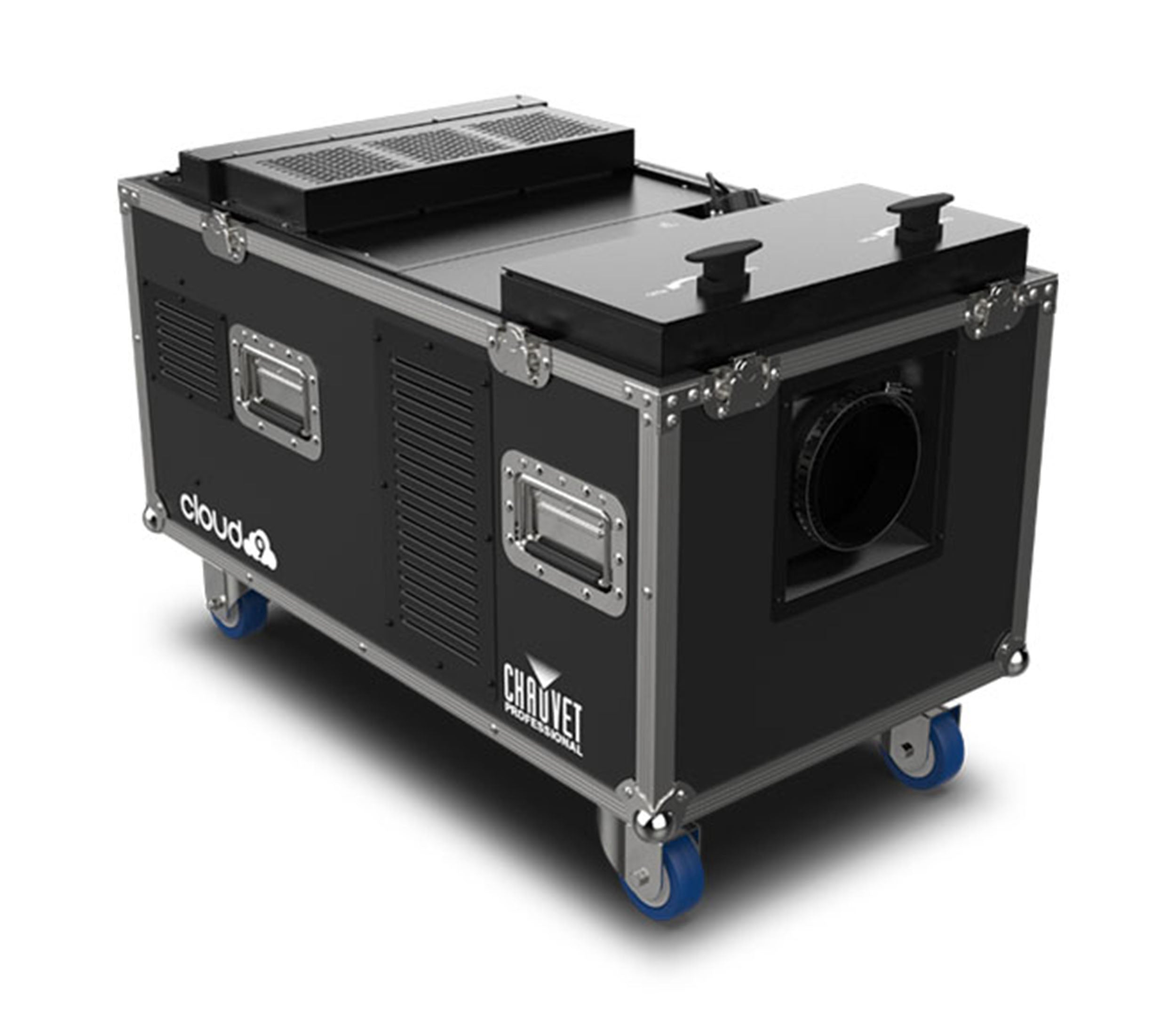

The Chauvet Pro Cloud 9 Low-Lying Fog Machine is an impressive, low-lying fogger that creates thick, cloud-like effects with a high-impact output ideal for use on large-scale stages, theatres, live performances and theme parks. The robust unit has a best in class heat-up time of 4 minutes and no dry ice or CO2 is needed, which means no special licensing/training is required. Because it works without a special coolant or compressor, only water and fog fluid are needed for continuous output. The powerful unit weighs in at 121 lbs and is equipped with several handy transport features such as its road case housing, metal handles and wheels to easily glide across any stage. Control it on the LCD display or via DMX.

Product Specifications:

Dynamic Effects

Output: 15,000 cfm

Low Fluid Shutdown: Yes

HDF- Best overall performance for a medium to large coverage area. Fog dissipates after lifting into the air.

PHF- Great dual-purpose effect. Good coverage area. Fog lifts into the air to become haze.

Construction / Physical

Dimensions: 33.85 x 19.29 x 24.80 in (860 x 490 x 630 mm)

Output Nozzle (outer diameter): 4.76 in (121 mm)

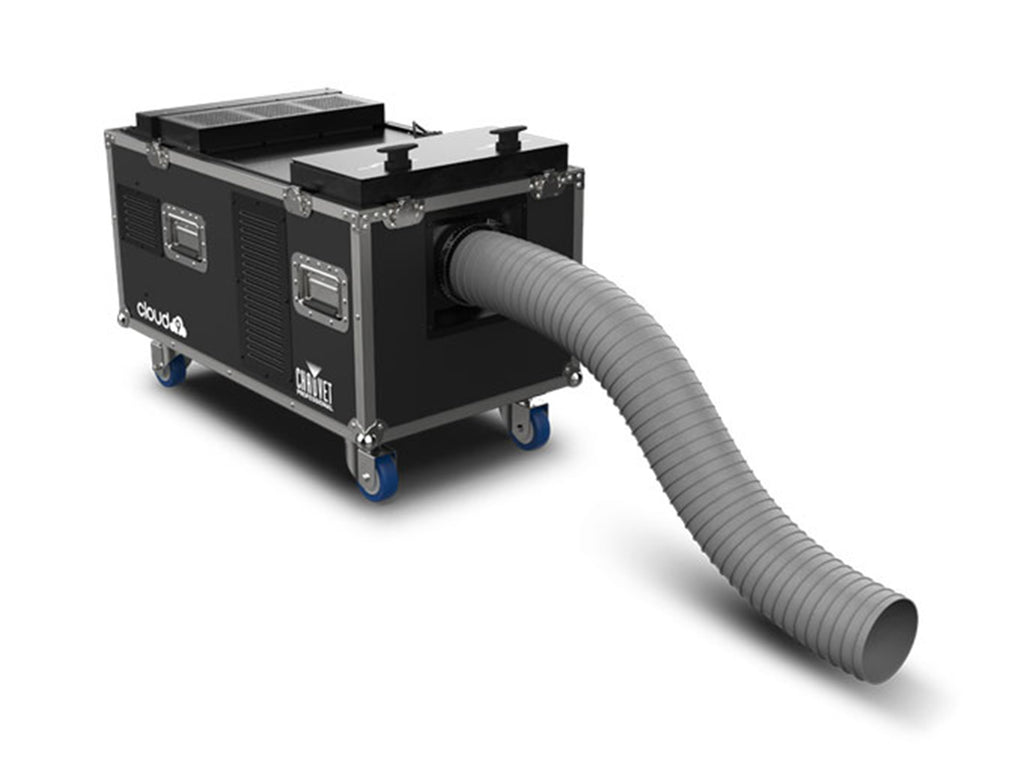

Hose Length (fully extended): 8 ft (2.44 m)

Weight: 121.3 lb (55.8 kg)

Exterior Color: Black

Fluid Tank Capacity: 0.92 gal (3.5 l)

Water tank Capacity: 5.3 gal (20 l)

Fluid Consumption: 29 ml/min (0.007 gal/min)

Water Consumption (distilled): 165 ml/min (0.044 gal/min)

Maximum Run Time: 2 hours max runtime @ 100% output

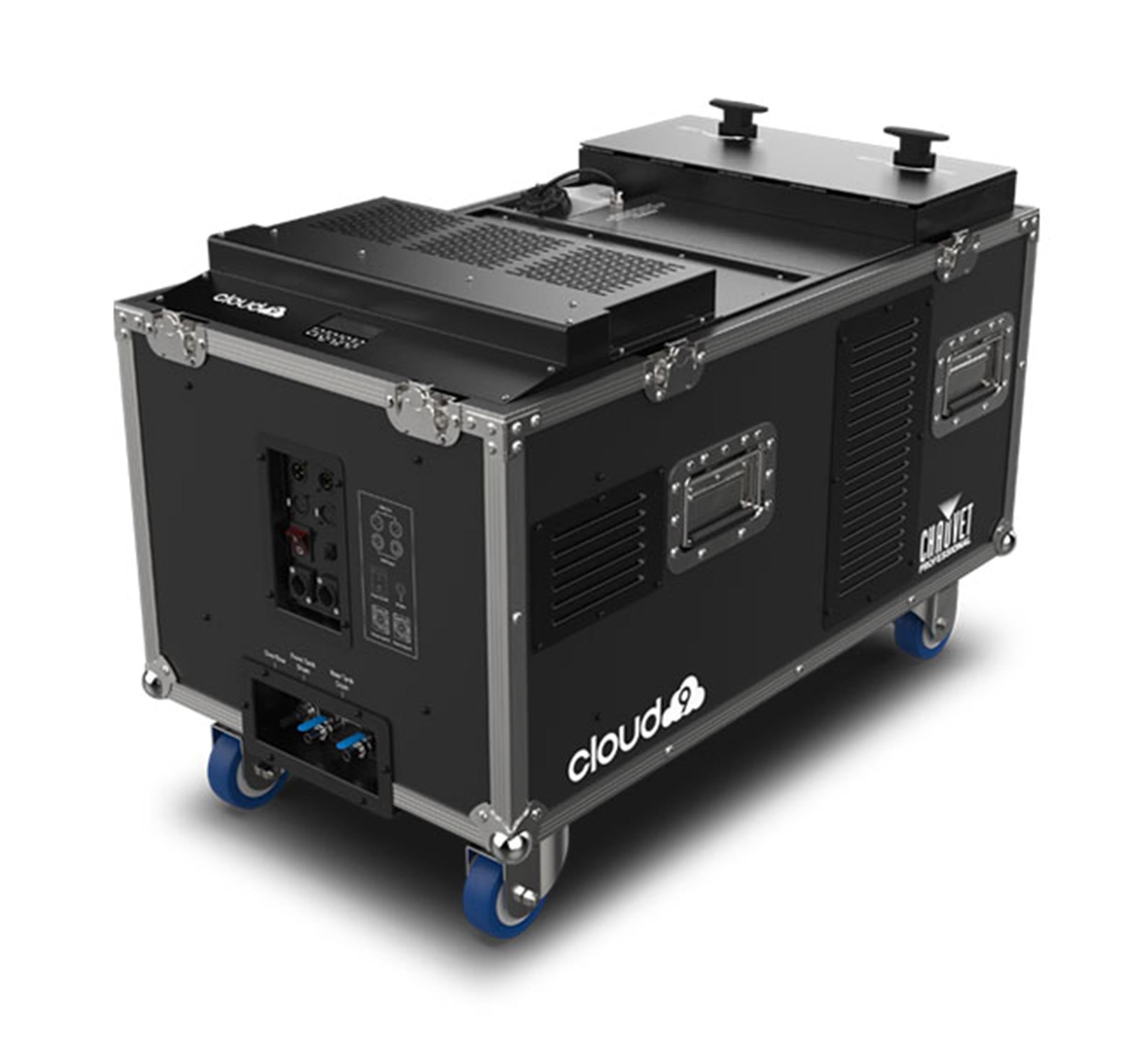

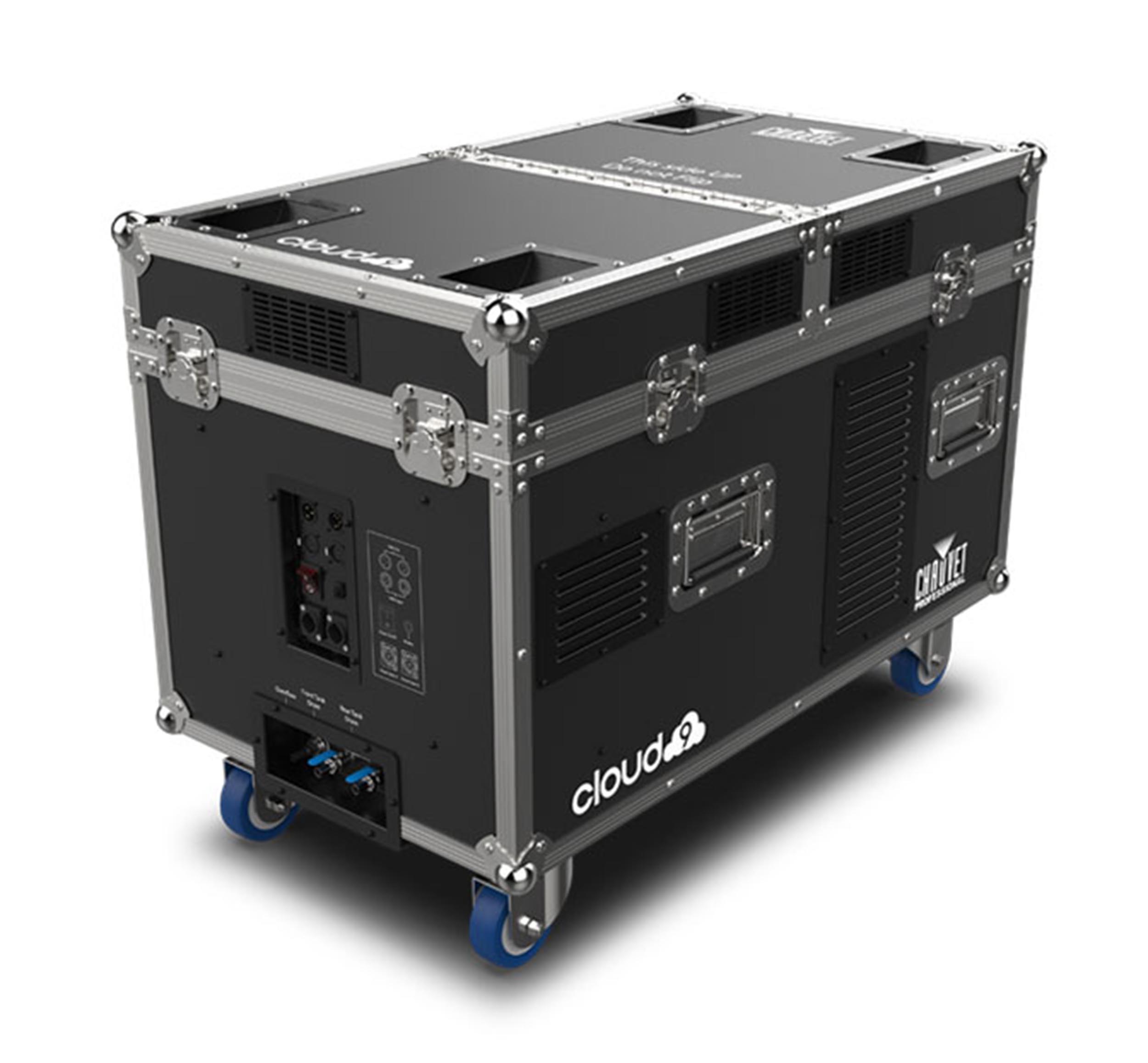

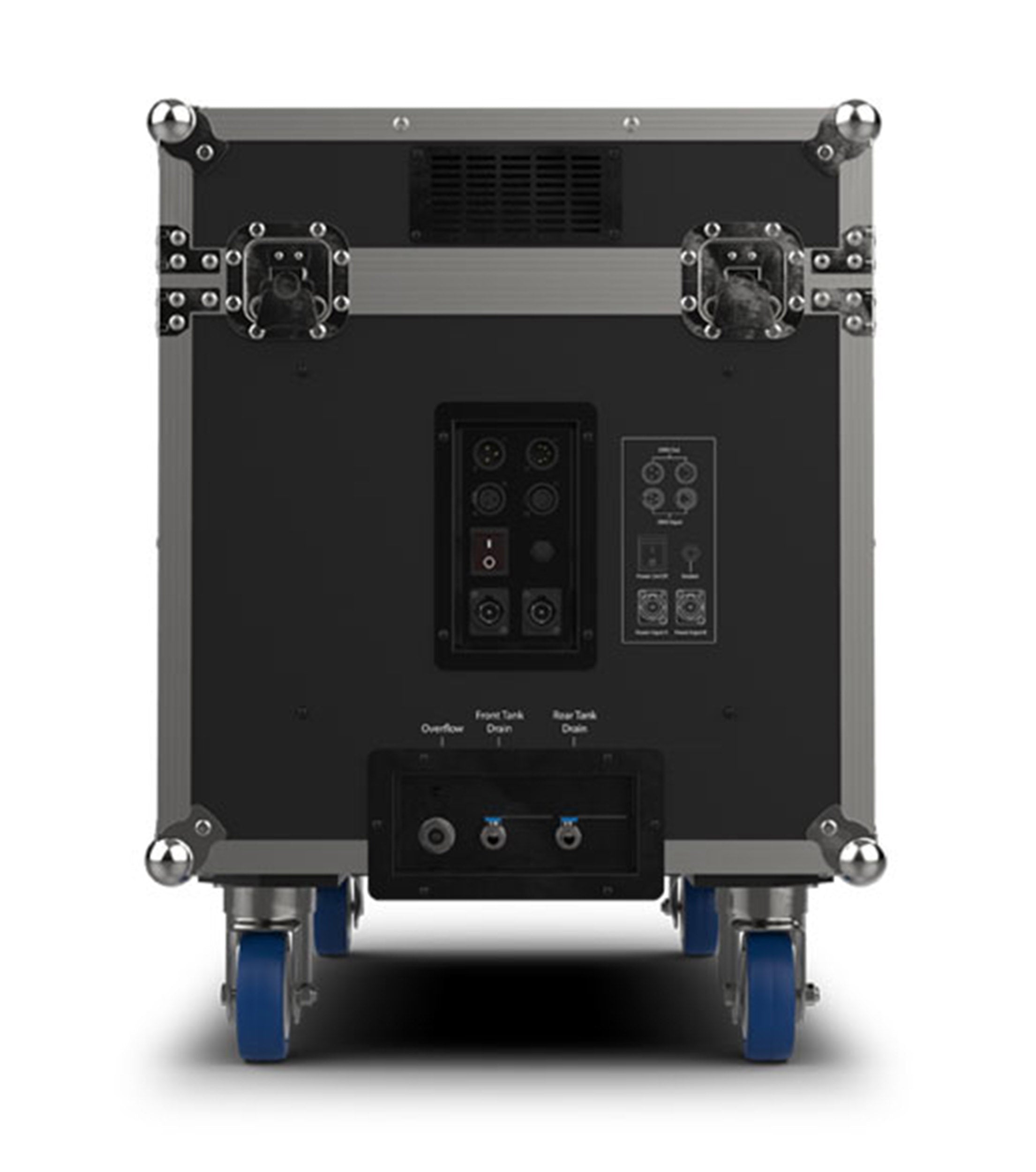

Connections

Power Connection: Edison plug to Seetronic Powerkon IP65

Power Input: Seetronic Powerkon IP65 (2x 120 V, 1x 230 V)

Data Connectors: 3- and 5-pin XLR

Cable Length (power): 5 ft (1.5 m)

Control

Control Protocol: DMX,

DMX Channels: 2

Modes/Personalities: 1 personality (2)

On-Board Control: Yes

Electrical

Input Voltage: 120 VAC, 60 Hz or 230 VAC, 50 Hz

Power and Current (input A): 1000 W, 8.36 A @ 120 V, 60 Hz (120 V version)

Power and Current (input B): 1130 W, 9.40 A @ 120 V, 60 Hz (120 V version)

Power and Current: 2,600 W, 11.3 A @ 230 V, 50 Hz (230 V version)

Heat-up Time: 3 min

Breaker Size: 15 A (Input A, 120 V version)

Breaker Size: 20 A (230 V version)

Certifications / Qualifications

CE

IP Rating: IP20, dry location

Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

Thermal Dissipation @ 120V: 7,265 BTU per hour (max)

Thermal Dissipation @ 230V: 8,870 BTU per hour (max)

What's Included

Cloud 9

2 Seetronic Powerkon IP65

Directional hose and hose clamp

Overflow polyurethane tubing, 8.5 mm, 3ft (0.9 m)

Required Accessories

LLG

Optional Accessories

Neutrik powerCON TRUE1 cables

DMX Cables
