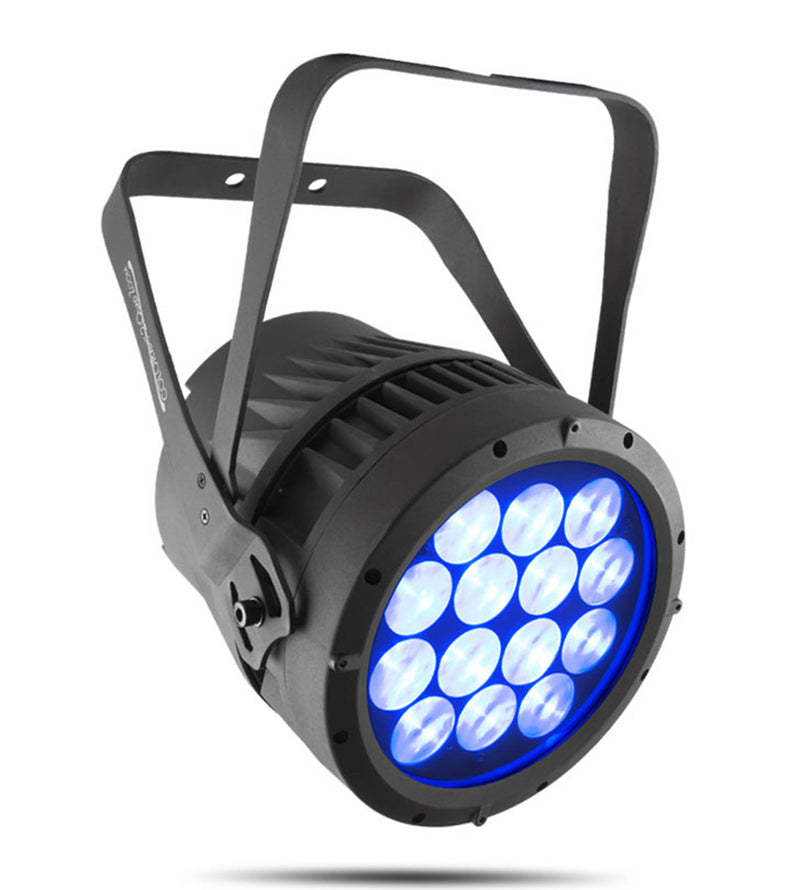

Chauvet Pro COLORado 2-Quad Zoom LED Wash Fixture - RGBW

The Chauvet Pro COLORado 2-Quad Zoom LED Wash Fixture - RGBW is a solid indoor/outdoor wash light featuring 14 bright quad-colored Osram (RGBW) LEDs and a 7° to 45° zoom. Selectable dimming curves facilitate its integration into an existing rig. This excellent LED wash light maintains its IP65 rating with IP rated DMX cables, but standard 5-pin XLR DMX cables work perfectly for indoor use. IP rated power and data connectors allow for easy connections without the need for proprietary cabling.

Product Specifications:

Light Source: 14 LEDs (quad-color RGBW) 15 W, (985 mA), 50,000 hours life expectancy

Color Temperature (range): 2,800 to 10,000 K

Beam Angle: 7° to 29°

Field Angle: 14° to 44°

Zoom Range: 7° to 45°

Illuminance (14°): 8,780 lux @ 5 m

Illuminance (44°): 921 lux @ 5 m

PWM Frequency: 1,200 Hz

Color Macros: 20 macros

Dimmer: Electronic

Shutter/Strobe: Electronic

Zoom: Motorized

Strobe Rate: 0 to 20 Hz

Standalone Color Mixing: Yes

Color Temperature Presets: Yes

Dim Modes: 5

Dim Curves: 4

Built-in Automated Programs: Yes

Customizable Programs: Yes

Recall Custom Programs: Yes

Power Connection: Edison (Local) plug to Seetronic Powerkon IP65

Power Input: Seetronic Powerkon IP65

Power Output: Seetronic Powerkon IP65

Data Connectors: 3- and 5-pin XLR

Cable Length (power): 5 ft (1.5 m)

Control Protocol: DMX, RDM

DMX Channels: 3, 4, 5, 6, 7, 12 or 17

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

Power Linking: 8 units @ 120 V; 13 units @ 208 V; 14 units @ 230 V

Power and Current: 201 W, 1.668 A @ 120 V, 60 Hz

Power and Current: 208 W, 1.02 A @ 208 V, 60 Hz

Power and Current: 208 W, 0.932 A @ 230 V, 50 Hz

Dimensions: 12.9 x 11.1 x 9.2 in

Weight: 18.8 lbs

Exterior Color: Black

Housing Material: Aluminum die-cast

Accessory Holder/Gel Frame Size: 9 in (229 mm)
