Description

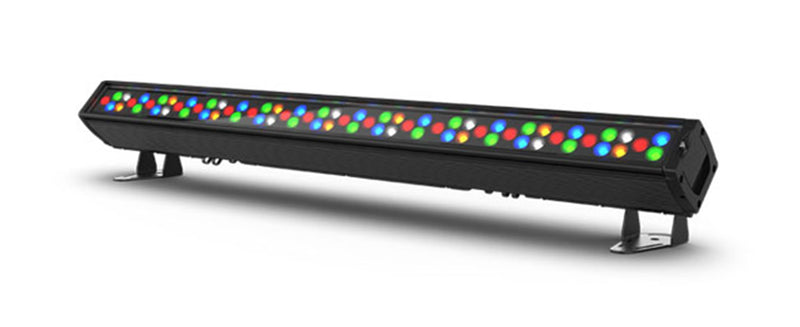

The Chauvet Pro COLORado Batten 72X IP65 Wash Light is a class leading, powerful IP65 batten-style wash light powered by 72 calibrated RGBWA LEDs. The compact, tour-ready unit produces superb color rendering and a vast palette from soft pastels to saturated hues. Its 16-bit dimming capability, as well as five selectable dimming curves provides smooth fades and facilitate its incorporation into aging traditional rigs. Integrated trunnions accommodate clamps for vertical or horizontal hanging.
Product Specifications:
Optical
Light Source: 72 LEDs (18 red, 18 green, 18 blue, 9 white, 9 amber) 3 W, (690 mA), 50,000 hours life expectancy
Color Temperature (range): 3200 to 10000 K
CRI (3200 K): 80
Installed Optics: 24°
Beam Angle (Horizontal): 22°
Beam Angle (Vertical): 18°
Field Angle (Horizontal): 39 °
Field Angle (Vertical): 34°
Lumens: 3,631
Illuminance (total): 1730 lux @ 5 m
Selectable PWM: 600, 1200 Hz, 2000, 2400 Hz, 4000 Hz, 6000 Hz, 25000 Hz
Dynamic Effects
Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 25 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 5
Built-in Automated Programs: Yes
Customizable Programs: Yes
Recall Custom Programs: Yes
Construction / Physical
Dimensions: 39.37 x 6.14 x 2.95 in (1000 x 156 x 75 mm)
Weight: 18.6 lb (8.4 kg)
Exterior Color: Black
Housing Material: Aluminum alloy, Aluminum die-cast
Connections
Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 5-pin IP65 XLR
Cable Length (power): 5 ft (1.5 m)
Control
Control Protocol: DMX, RDM
DMX Channels: 1 Cell: 3, 4, 5, 8, 8, 9, 10, 10, 16
3 Cell: 9, 12, 15, 21, 22, 24, 27, 30, 43
Modes/Personalities: 18 personalities
Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 10 units @ 120 V; 17 units @ 208 V; 19 units @ 230 V
Power and Current: 161 W, 1.33 A @ 120 V, 60 Hz
Power and Current: 164 W, 0.79 A @ 208 V, 60 Hz
Power and Current: 163 W, 0.71 A @ 230 V, 50 Hz
Certifications / Qualifications
CE, MET
IP Rating: IP65, temporary outdoor/wet use
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
What's Included
COLORado Batten 72X
Seetronic powerKON IP65 power cord
(2) Omega bracket
Optional Accessories
Professional Clamps: CTC-50HC, CTC-50HCN
Neutrik TRUE1 power linking cables
5-pin IP DMX Cables
