Description

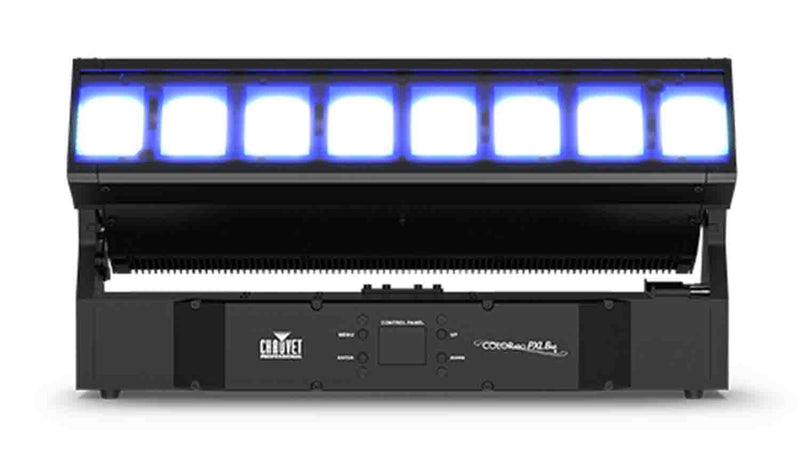

The Chauvet Pro COLORado PXL Bar 8 Motorized Tilting Batten is a motorized, outdoor-ready tilting batten with capabilities to zoom for tight and wide pixel-mappable looks. This bright, moving pixel bar also features seamless edge-to-edge mounting and includes virtual gobo and movement macros with separate foreground and background color control for more design options than ever before. Slotted Omega brackets make it quick and easy to hang the fixture on truss. The COLORado PXL Bar 8 can also be positioned on the ground, which allows for a variety of different light angles. The power is in your hands and the possibilities are endless.
Product Specifications:
Optical
Light Source: 8 Leds (Quad-Color RGBW) 45 W, (3.0 A),50,000 Hours Life Expectancy.
Color Temperature: 6121 K (Calibrated White)
CRI: 64
Beam Angle: 3.5° To 30.8°
Beam Angle single cell: 4° To 29.9°
Field Angle: 5.2° To 42.7°
Field Angle single cell: 5.4° To 42.3°
Cutoff Angle: 8.5° To 47.3°
Cutoff Angle single cell: 6.1° To 45.5°
Dynamic Effects
Tilt: 200°
Tilt Ranges: 60°, 180°, 200° Tilt
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Construction / Physical
Dimensions: 19.69 X 5.47 X 10.75 In (500 X 139 X 273 Mm)
Weight: 25.2 Lb (11.5 Kg)
Exterior Color: Black
Connections
Power Connection: Bare End to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon Ip65
Power Output: Seetronic Powerkon Ip65
Control
Control Protocol: Art-Net, Kling-Net, DMX, Sacn, RDM
DMX Channels: (Single Mode) 19, 51, 89 Or 105, (Dual Mode LED) 24,32,64, (Dual Mode Movement) 25,19,7)
Electrical
Input Voltage: 100 To 240 VAC, 50/60 Hz (Auto-Ranging)
Power Linking: 2 Units @ 120 V; 4 Units @ 208 V; 5 Units @ 230 V
Certifications / Qualifications
Ce, Met, Fcc
IP Rating: IP65, Temporary Outdoor/Wet Use, With Pressure Equalizing M12 GORE Valve
Temperature (Ambient): -4 °F To 113 °F (-20 °C To 45 °C)
What's Included
Colorado PXL Bar 8
Seetronic Powerkon IP65 Power Cable to Bare End
1 Omega Bracket with Mounting Hardware
OPTIONAL ACCESSORIES
Neutrik Powerconc Cables
Neutrik Ethercon Cables
DMX Cables
Upload_08 Software Uploader
Road Case
