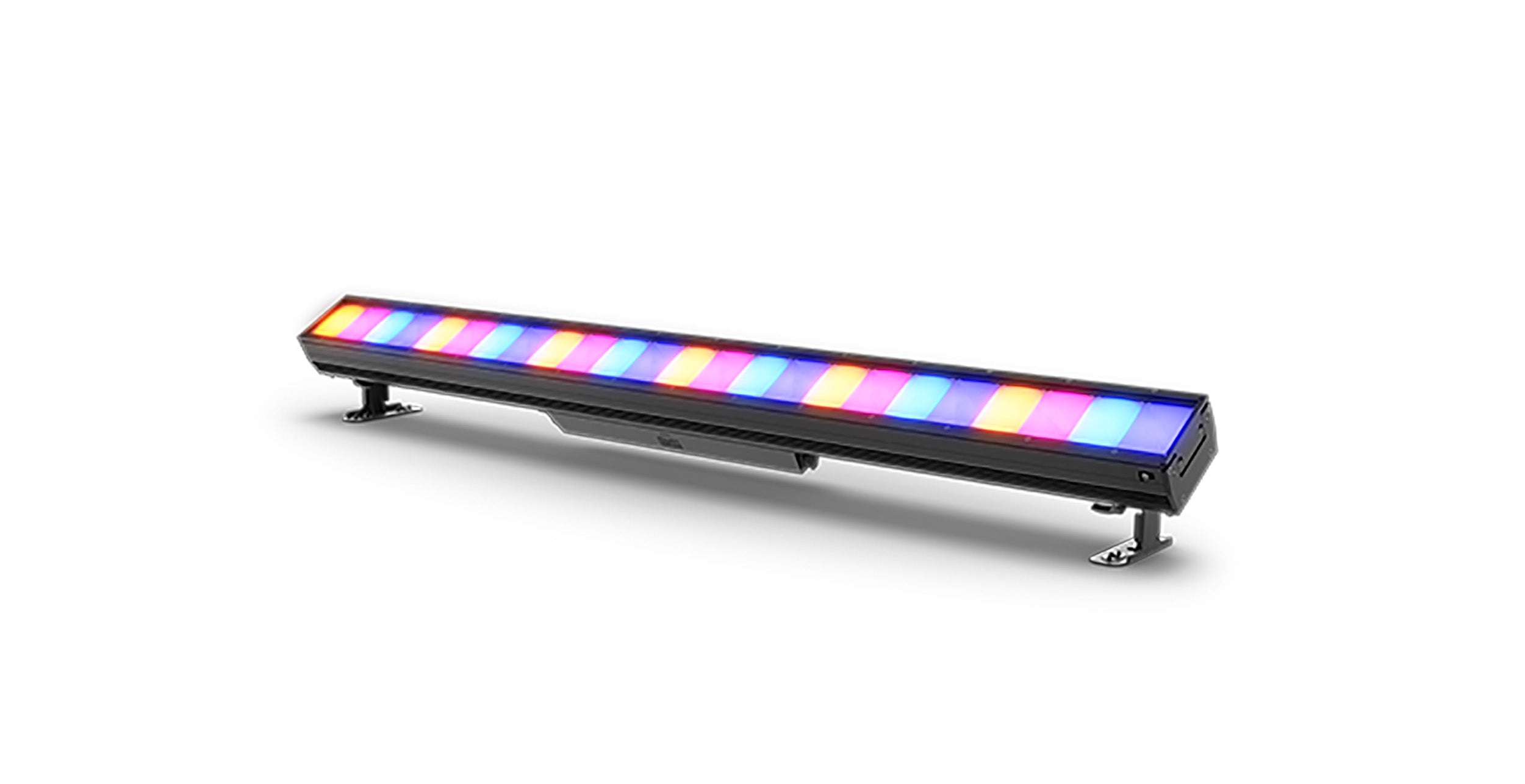

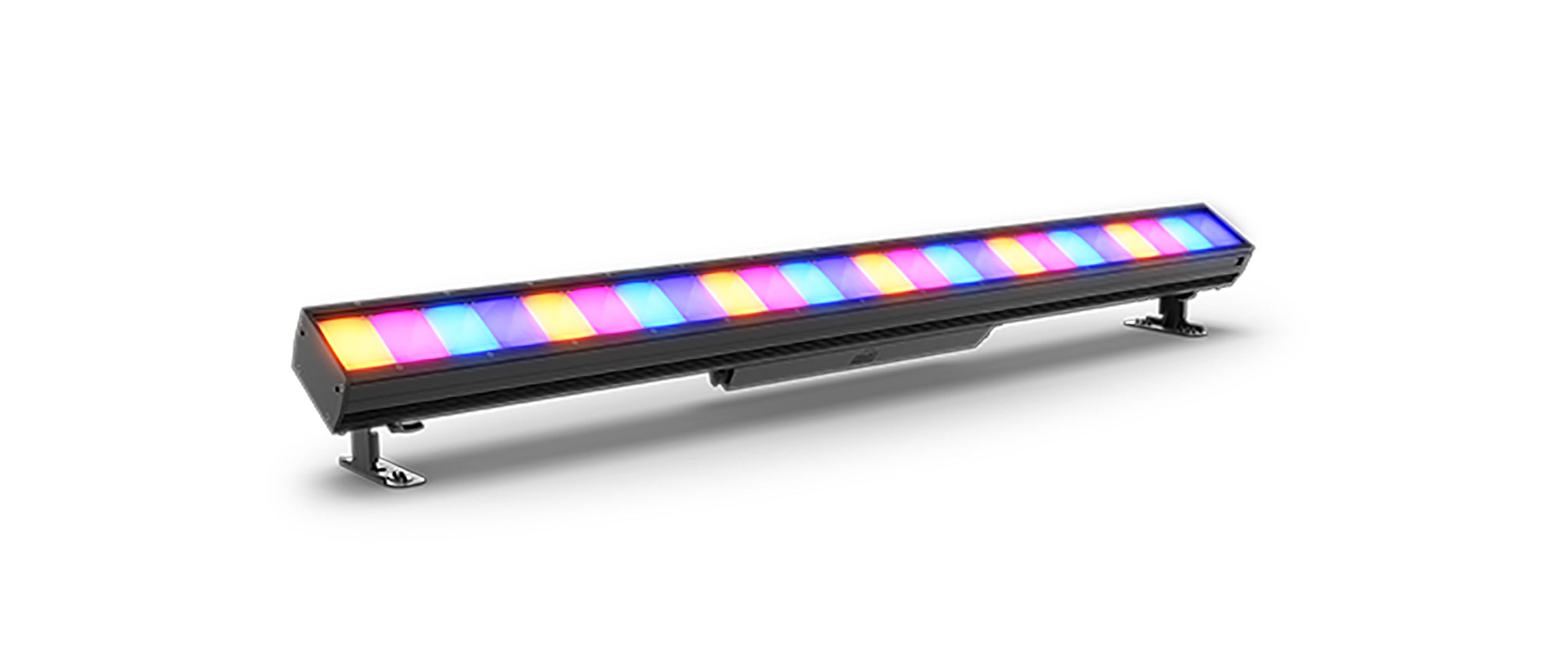

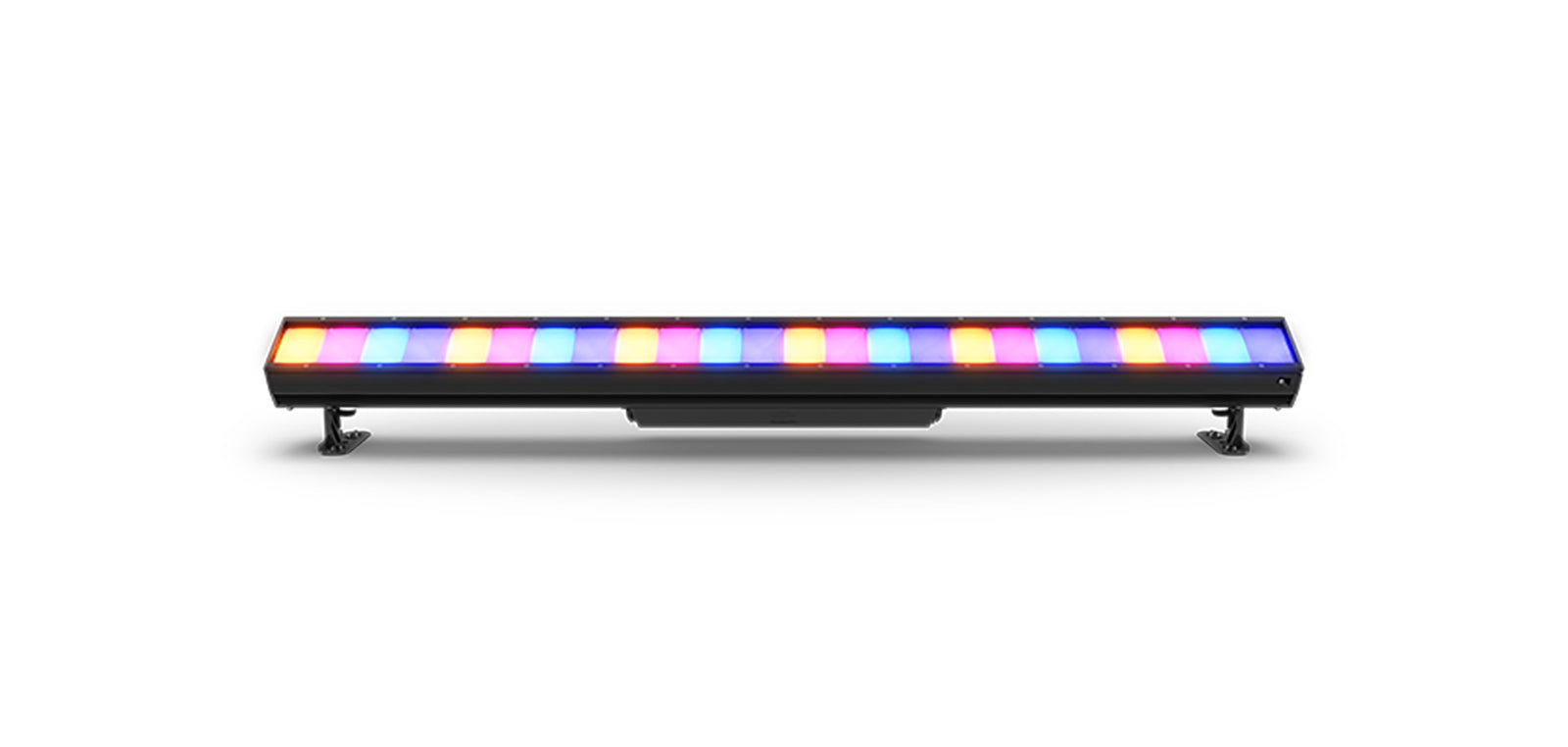

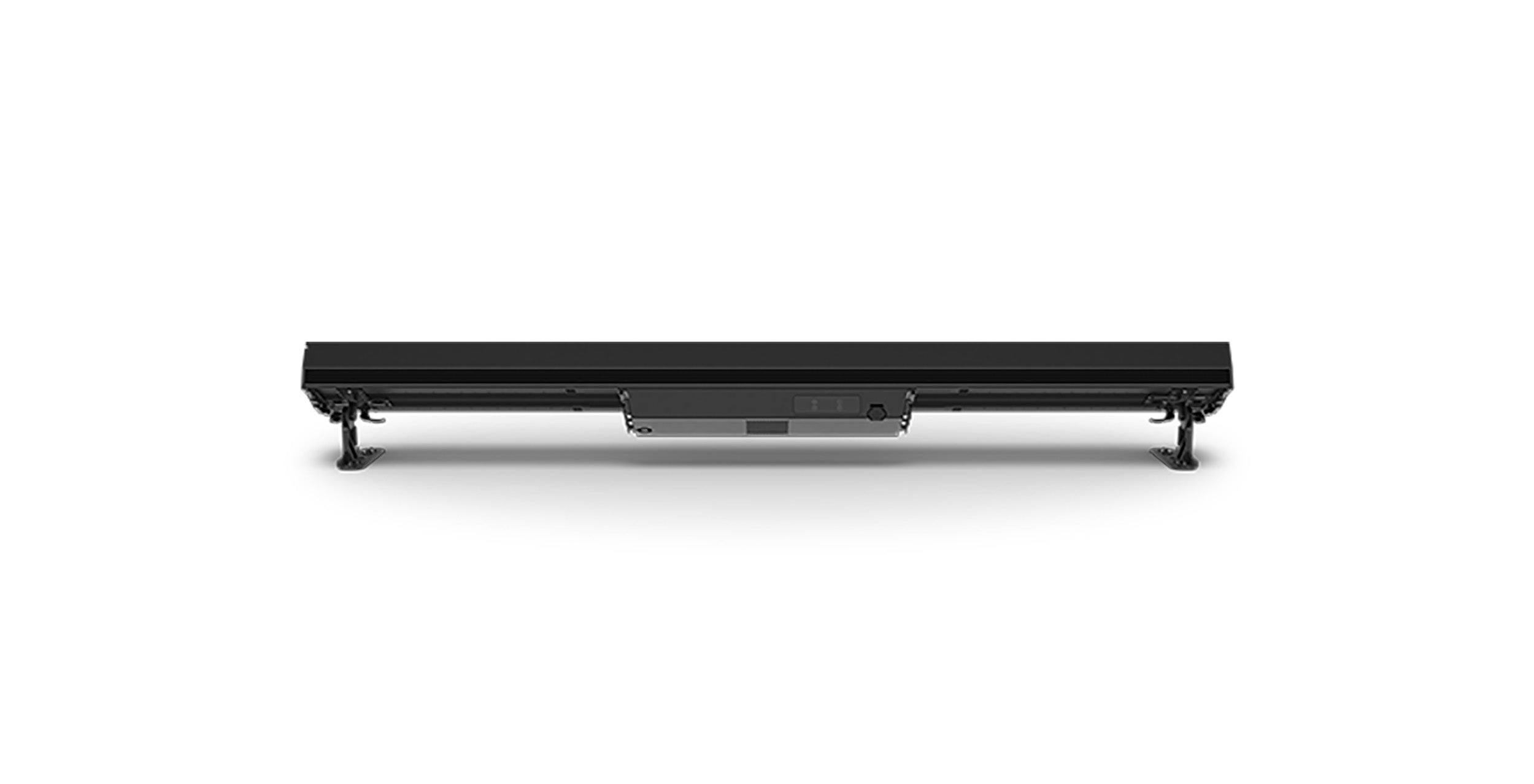

Chauvet Pro COLORado Solo Bar 6 24-Cell IP65-Rated RGBWL LED Batten

The Chauvet Pro COLORado Solo Bar 6 is a 24-cell IP65-rated RGBwWL LED batten that produces a full range of color and perfect whites from a fixture offering LDs the flexibility to easily create beautiful whites with RGBwW or take control of all five colors in the full RGBwWL array. COLORado Solo Bar 6 seamlessly combines homogenized squares for phenomenal end-to-end direct-view pixel-mapped looks, with the high output and long throw to perform equally well as a cyc, footlight, or traditional batten down light. Its advanced IP65 design brings lighter weight and all-weather durability together in one fixture at home both on the road and in permanent installations. A selection of beam shaping filters is included to broaden the choice of projection effects. Control is via DMX, ArtNet or sACN. With improved and simplified rigging options, virtually silent operation, and flawless performance live or on camera, COLORado Solo Bar 6 brings new versatility to touring, festivals, televised and theatrical productions.

What's in the Box:

COLORado Solo Bar6

Seetronic Powerkon IP65

Omega brackets with mounting hardware

50/50 Filter, Cyc Filter, Stealth Filter, Clear Protective Filter (Installed)

Short Mount Accessory Feet

Glare Shield

Product Specifications:

Optical:

Light Source: 24 (RGBWwL) LED Engines

Color Temperature (range): 2800 to 8000 K

Color Temperature (at full): 9167 K

CRI: 95

Beam Angle: 16.7°

Beam Angle (w/CYC Diffusion): 40.7°

Beam Angle (w/Half Diffusion): 18.9°

Beam Angle (w/Stealth Diffusion): 25°

Field Angle: 36.1°

Field Angle (w/CYC Diffusion): 84.4°

Field Angle (w/Half Diffusion): 46.8°

Field Angle (w/Stealth Diffusion): 61.2°

Lumens: 25,198

Lumens (w/CYC Diffusion): 32,913

Lumens (w/Half Diffusion): 23,920

Lumens (w/Stealth Diffusion): 8,571

Illuminance: 5,834 lux @ 5 m

Illuminance (w/CYC Diffusion): 1,739 lux @ 5 m

Illuminance (w/Half Diffusion): 3,788 lux @ 5 m

Illuminance (w/Stealth Diffusion): 932 lux @ 5 m

Selectable PWM: 1,000 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 12,000 Hz, 25,000 Hz

Dynamic Effects:

Dimmer: Electronic

Shutter/Strobe: Electronic

Strobe Rate: 0 to 30 Hz

Color Temperature Presets: Yes

Dim Modes: 4

Dim Curves: 4

Built-in Automated Programs: Yes

Connections:

Power Connection: Edison (Local) plug to Seetronic Powerkon IP65

Power Input: Seetronic Powerkon IP65

Power Output: Seetronic Powerkon IP65

Data Connectors: 5-pin IP65 XLR, Seetronic etherCON compatible

Cable Length (power): 5 ft (1.5 m)

Software Connection: USB

Control:

Control Protocol: Art-Net, sACN, DMX, CRMX, RDM

DMX Channels:

1 CELL (CCT 4ch,HSV 4ch, RGB 3ch, RGBW 4ch, RGBWL 5ch, RGBWL-16bit 10ch, RGB Ext. 10ch, RGBW Ext. 11ch, RGBWL Ext. 12ch, RGBWL Full 19ch, XY 4ch, XY Ext. 9ch)

2 CELL (CCT 7ch,HSV 7ch, RGB 6ch, RGBW 8ch, RGBWL 10ch, RGBWL-16bit 20ch, RGB Ext. 17ch, RGBW Ext. 19ch, RGBWL Ext. 21ch, RGBWL Full 35ch)

4 CELL (CCT 13ch,HSV 13ch, RGB 12ch, RGBW 16ch, RGBWL 20ch, RGBWL-16bit 40ch, RGB Ext. 31ch, RGBW Ext. 35ch, RGBWL Ext. 39ch, RGBWL Full 67ch)

6 CELL (CCT 19ch,HSV 19ch, RGB 18ch, RGBW 24ch, RGBWL 30ch, RGBWL-16bit 60ch, RGB Ext. 45ch, RGBW Ext. 51ch, RGBWL Ext. 57ch, RGBWL Full 99ch)

8 CELL (CCT 25ch,HSV 25ch, RGB 24ch, RGBW 32ch, RGBWL 40ch, RGBWL-16bit 80ch, RGB Ext. 59ch, RGBW Ext. 67ch, RGBWL Ext. 75ch, RGBWL Full 131ch)

12 CELL (CCT 37ch,HSV 37ch, RGB 36ch, RGBW 48ch, RGBWL 60ch, RGBWL-16bit 120ch, RGB Ext. 87ch, RGBW Ext. 99ch, RGBWL Ext. 111ch, RGBWL Full 195ch)

24 CELL (CCT 73ch,HSV 73ch, RGB 72ch, RGBW 96ch, RGBWL 120ch, RGBWL-16bit 240ch, RGB Ext. 171ch, RGBW Ext. 195ch, RGBWL Ext. 219ch, RGBWL Full 387ch)

Art-Net / sACN Channels:

1 CELL (CCT 4ch,HSV 4ch, RGB 3ch, RGBW 4ch, RGBWL 5ch, RGBWL-16bit 10ch, RGB Ext. 10ch, RGBW Ext. 11ch, RGBWL Ext. 12ch, RGBWL Full 19ch, XY 4ch, XY Ext. 9ch)

2 CELL (CCT 7ch,HSV 7ch, RGB 6ch, RGBW 8ch, RGBWL 10ch, RGBWL-16bit 20ch, RGB Ext. 17ch, RGBW Ext. 19ch, RGBWL Ext. 21ch, RGBWL Full 35ch)

4 CELL (CCT 13ch,HSV 13ch, RGB 12ch, RGBW 16ch, RGBWL 20ch, RGBWL-16bit 40ch, RGB Ext. 31ch, RGBW Ext. 35ch, RGBWL Ext. 39ch, RGBWL Full 67ch)

6 CELL (CCT 19ch,HSV 19ch, RGB 18ch, RGBW 24ch, RGBWL 30ch, RGBWL-16bit 60ch, RGB Ext. 45ch, RGBW Ext. 51ch, RGBWL Ext. 57ch, RGBWL Full 99ch)

8 CELL (CCT 25ch,HSV 25ch, RGB 24ch, RGBW 32ch, RGBWL 40ch, RGBWL-16bit 80ch, RGB Ext. 59ch, RGBW Ext. 67ch, RGBWL Ext. 75ch, RGBWL Full 131ch)

12 CELL (CCT 37ch,HSV 37ch, RGB 36ch, RGBW 48ch, RGBWL 60ch, RGBWL-16bit 120ch, RGB Ext. 87ch, RGBW Ext. 99ch, RGBWL Ext. 111ch, RGBWL Full 195ch)

24 CELL (CCT 73ch,HSV 73ch, RGB 72ch, RGBW 96ch, RGBWL 120ch, RGBWL-16bit 240ch, RGB Ext. 171ch, RGBW Ext. 195ch, RGBWL Ext. 219ch, RGBWL Full 387ch)

Modes/Personalities: 72 personalities

Electrical:

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

Power Linking: 0 units @ 100 V; 2 units @ 120 V; 4 units @ 208 V; 4 units @ 230 V, 4 units @ 240 V

Power and Current: 610 W, 6.10 A @ 100 V, 60 Hz [10 A inrush]

Power and Current: 600 W, 4.98 A @ 120 V, 60 Hz [12 A inrush]

Power and Current: 590 W, 2.78 A @ 208 V, 60 Hz [17 A inrush]

Power and Current: 575 W, 2.55 A @ 230 V, 50 Hz [34 A inrush]

Power and Current: 573 W, 2.50 A @ 240 V, 60 Hz [27 A inrush]

Certifications / Qualifications:

CE, MET, FCC, UKCA

IP Rating: IP65, temporary outdoor use, with pressure equalizing M12 GORE valve

Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

Optional Accessories:

Professional Clamps: CTC-50HC, CTC-50HCN

Safety Cable: SC-07

IP Rated Seetronic Powerkon Extensions.

IP Rated DMX cables.

UPLOAD 03 software uploader.

Construction / Physical:

Product Dimensions: 69.61 x 7.87 x 8.36 in (1768 x 200 x 212.4 mm)

Product Weight: 49 lbs. (22.3 kg)

Exterior Color: Black

Housing Material: Aluminum diecast, aluminum profile

Shipping Weight: 55 lbs

Shipping Dimensions: 74 x 10 x 12 inches
