Description

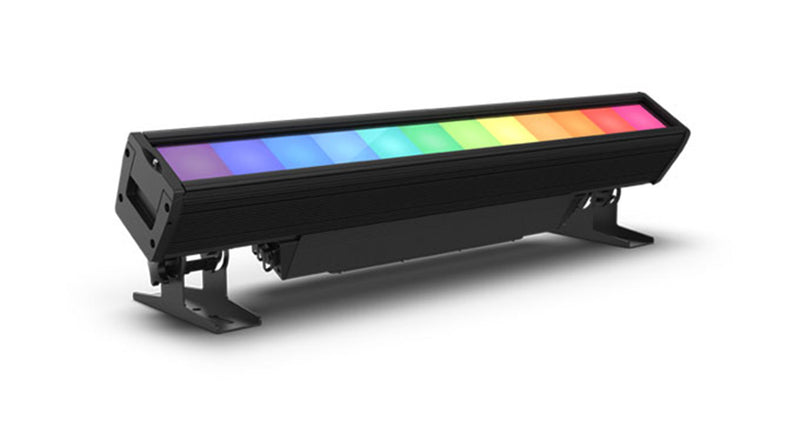

The Chauvet Pro COLORado Solo Batten IP65 Linear Wash / Pixel Map is a powerful one-of-a-kind batten that projects a single homogenized wash with smooth color-mixing, giving it the appearance of a bright single bar of light without round “eyes” or pixels. It complements the COLORado Solo pars perfectly. This very versatile fixture is also engineered with 12 square sections that can be controlled individually, appear seamlessly together without separation and create an endless variety of color control and pixel mapping effects. The unit is IP65 rated and equipped with DMX and RDM protocols.
Product Specifications:
Optical
Light Source: 144 LEDs (24 red, 24 green, 24 blue, 24 amber, 48 white) 3 W, (612 mA) 50,000 hours life expectancy
Color Temperature (range): 1800 to 8000 K
Installed Optics: 18°
Beam Angle (Horizontal): 20°
Beam Angle (Vertical): 16°
Beam Angle (Horizontal w/filter): 37°
Beam Angle (Vertical w/filter): 15°
Field Angle (Horizontal): 34°
Field Angle (Vertical): 29°
Field Angle (Horizontal w/filter): 63°
Field Angle (Vertical w/filter): 30°
Lumens: 6,968
Illuminance (total): 3,870 lux @ 5 m
Illuminance (w/filter): 1,230 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
Dynamic Effects
Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 25Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 5
Built-in Automated Programs: Yes
Customizable Programs: Yes
Recall Custom Programs: Yes
Construction / Physical
Dimensions: 39.86 x 9.06 x 9.84 in (1012.5 x 230 x 249.8 mm)
Weight: 41.9 lb (19 kg)
Exterior Color: Black
Housing Material: Aluminum die-cast
Accessory Holder/Gel Frame Size: 38.75 x 3.81 in (984.25 x 97 mm)
Connections
Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 5-pin IP65 XLR, Seetronic etherCON IP65
Cable Length (power): 5 ft (1.5 m)
Control
Control Protocol: Art-Net, DMX, RDM, sACN
DMX Channels:
1 Cell: 3, 4, 5, 8, 8, 9, 10, 13, 16
2 Cell: 6, 8, 10, 15, 15, 17, 19, 20, 30
3 Cell: 9, 12, 15, 21, 22, 24, 27, 30, 43
12 Cell: 36, 48, 60, 75, 85, 87, 99, 120, 160
Art-Net Channels:
1 Cell: 3, 4, 5, 8, 8, 9, 10, 13, 16
2 Cell: 6, 8, 10, 15, 15, 17, 19, 20, 30
3 Cell: 9, 12, 15, 21, 22, 24, 27, 30, 43
12 Cell: 36, 48, 60, 75, 85, 87, 99, 120, 160
Modes/Personalities: 37 personalities
Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 4 units @ 120 V; 8 units @ 208 V; 8 units @ 230 V
Power and Current: 336 W, 3.046 A @ 120 V, 60 Hz
Power and Current: 336 W, 1.610 A @ 208 V, 60 Hz
Power and Current: 339 W, 1.602 A @ 230 V, 50 Hz
Certifications / Qualifications
CE, MET, FCC
IP Rating: IP65, temporary outdoor/wet use
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
What's Included
COLORado Solo Batten, with glare shield
Seetronic Powerkon IP65 power cord
Wall Washing filter
Optional Accessories
Professional Clamps: CTC-50HC, CTC-50HCN
Neutrik TRUE1 power linking cables
5-pin DMX Cables
Ethercon Cables
