Description

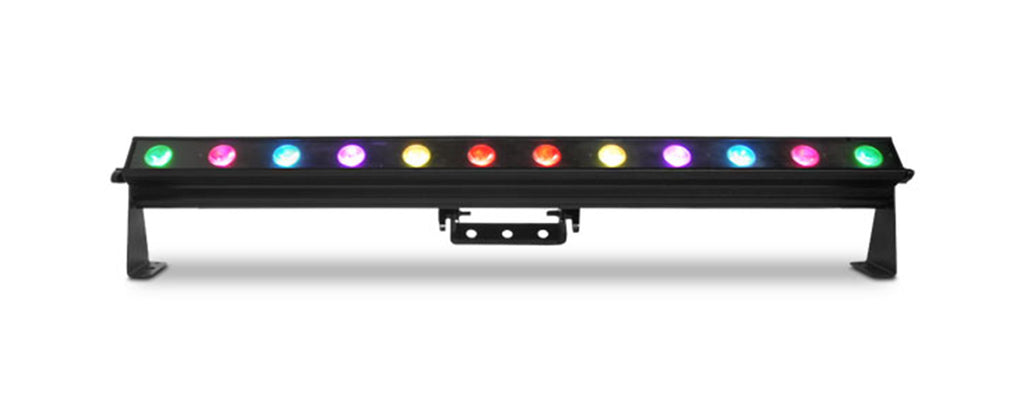

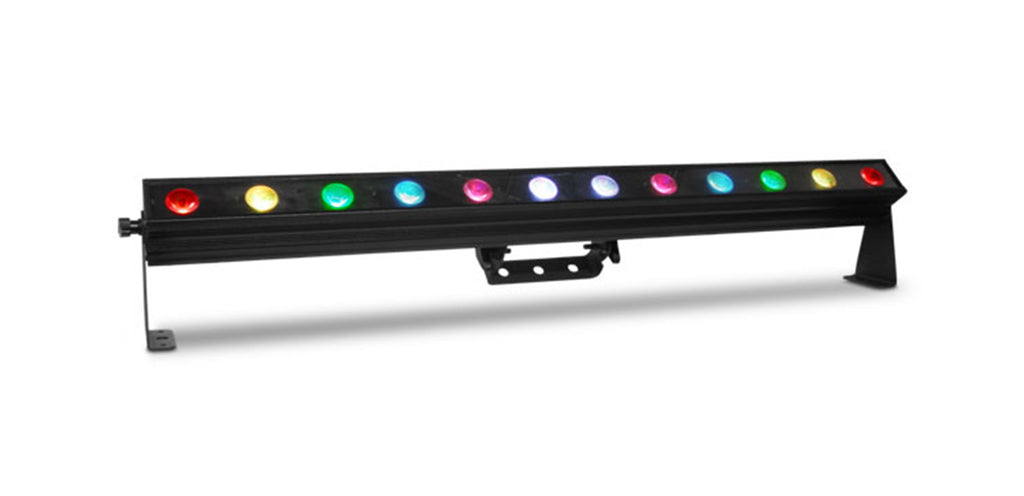

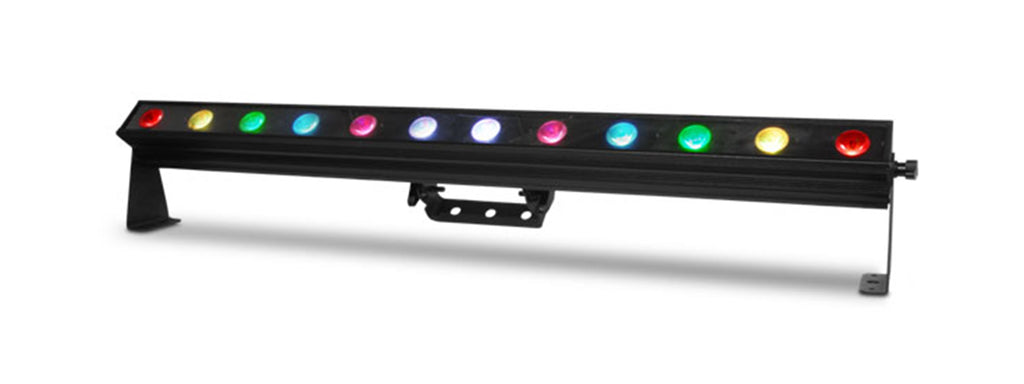

The Chauvet Pro COLORdash Batten-Quad 12 Linear Wash Fixture with 12 individually controllable quad-colored RGBA LEDs that produce any variation of white as well as richly saturated colors due to the inclusion of amber LEDs. Its pixel maps beautifully when used in multiples because it maintains an even pixel pitch. Setup is easy with a hanging bracket, floor trunnions, secure Neutrik powerCON power in and out, and 3- and 5-pin DMX connections.
Product Specifications:
Optical
Light Source: 12 LEDs (quad-color RGBA) 7 W, (500 mA), 50,000 hours life expectancy
Color Temperature (range): 2,800 to 10,000 K
Installed Optics: 20°
Beam Angle: 22°
Field Angle: 31°
Illuminance: 539 lux @ 5 m
PWM Frequency: 600 Hz
Dynamic Effects
Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 20 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Built-in Automated Programs: Yes
Construction / Physical
Dimensions: 41 x 3.2 x 6.5 in (1041 x 82 x 164 mm)
Weight: 10.6 lb (4.8 kg)
Exterior Color: Black

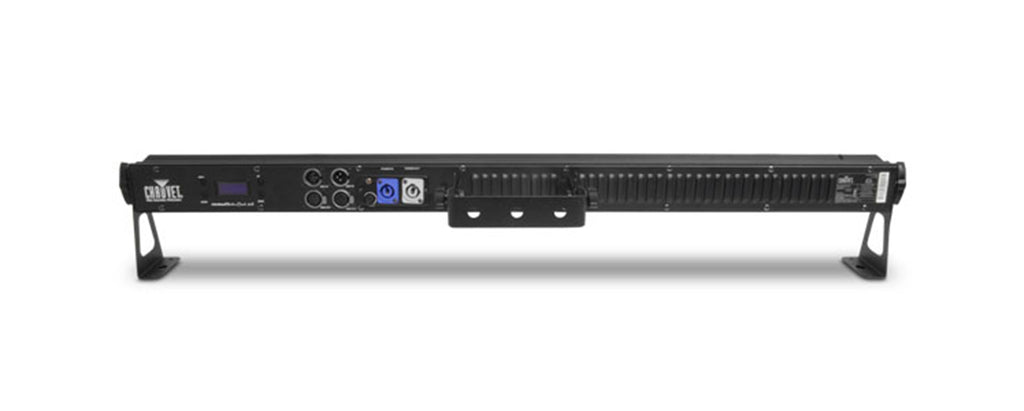

Connections
Power Connection: Edison plug to Neutrik powerCON
Power Input: Neutrik powerCON
Power Output: Neutrik powerCON
Data Connectors: 3- and 5-pin XLR
Cable Length (signal): 5 ft (1.5 m)
Control
Control Protocol: DMX
DMX Channels: 4, 6, 10, 48 or 52
Modes/Personalities: 5 personalities (4CH, 6CH, 10CH, 48CH, 52CH)
Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 7 units @ 100 V; 9 units @ 120 V; 15 units @ 208 V; 16 units @ 230 V; 16 units @ 240 V
Power and Current: 100 W, 1.51 A @ 100 V, 60 Hz
Power and Current: 98 W, 1.28 A @ 120 V, 60 Hz
Power and Current: 96 W, 0.788 A @ 208 V, 60 Hz
Power and Current: 95 W, 0.743 A @ 230 V, 50 Hz
Power and Current: 95 W, 0.709 A @ 240 V, 50 Hz
Certifications / Qualifications
CE, MET
IP Rating: IP20, dry location
What's Included
COLORdash Batten-Quad 12
Neutrik powerCON power cord
2 Trunnions
Optional Accessories
Professional Clamps: CTC-50HC, CTC-50HCN
Neutrik powerCON cables
3-pin or 5-pin DMX Cables
