Description

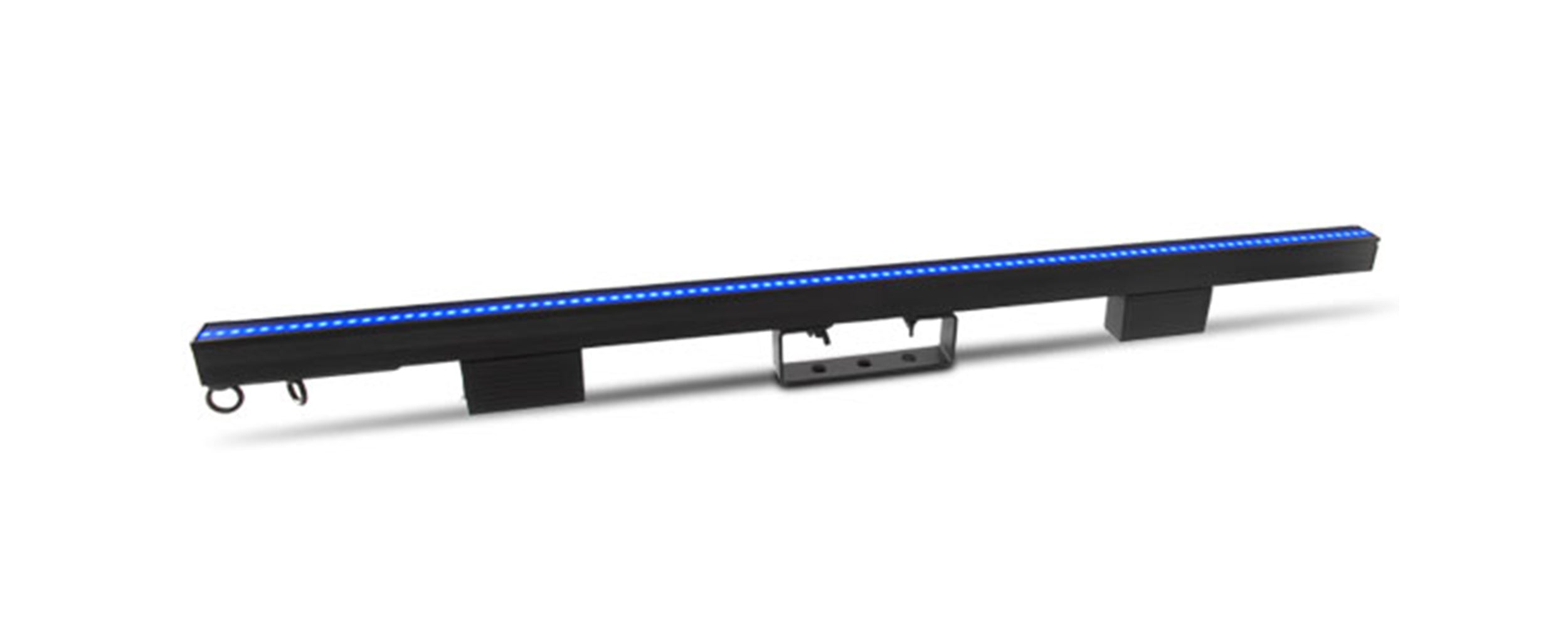

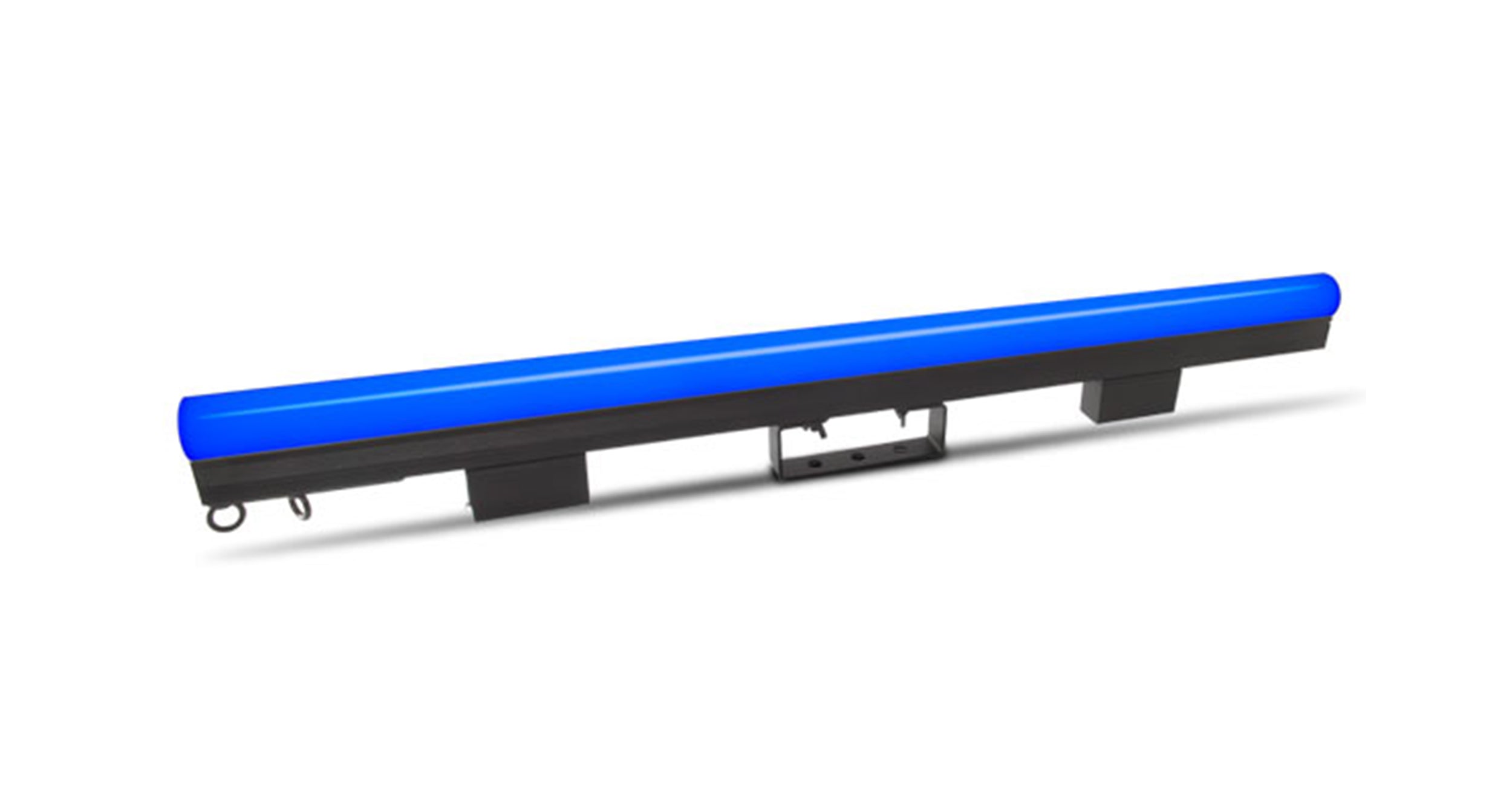

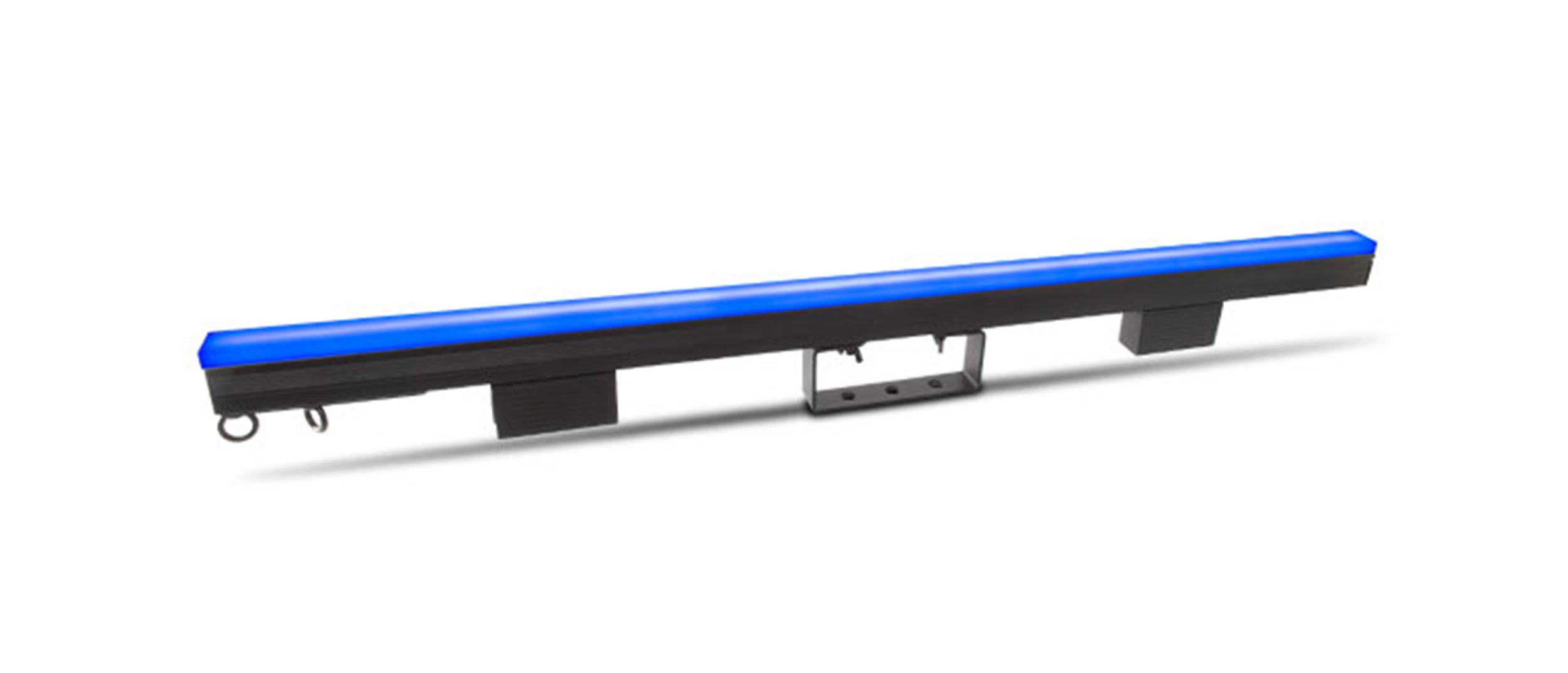

The Chauvet Pro ÉPIX Strip IP Pixel-Mapping Led Strip is a dynamic IP65 outdoor-rated, pixel-mapping 1-meter LED strip fixture featuring 100 LEDs in a row. Ideal for festivals, concert touring, and installations, this versatile fixture comes with dome and flat accessories and stunning pre-built content to allow you to easily configure and program shows in minutes with minimum time/effort for sizzling looks. Power and control it through our ÉPIX Drive 2000 IP on Art-Net, Kling-Net, or sACN (streaming ACN).
Product Specifications:
Optical
Light Source: 100 LEDs (tri-color RGB) SMD 5050, 50,000 hours life expectancy
Viewing Angle (with installed square milky filter): 160°
Viewing Angle (with optional dome filter): 160°
Illuminance – open: 8,640 NITS
Illuminance - square milky filter (installed): 2,470 NITS
Illuminance - black stealth filter (included): 1,455 NITS
Illuminance - round milky filter (optional): 1,360 NITS
Pixels: 100 x 1
Pixel Pitch: 10 mm
Refresh Rate: 4800 Hz (S-PWM)
Construction / Physical
Dimensions (with installed square milky filter): 39.37 x 3.93 x 1.33 in (1000 x 100 X 34 mm)
Dimensions: (with included black stealth filter) 39.37 x 3.46 x 1.33 in (1000 x 88 x 34 mm)
Dimensions (with optional dome filter): 39.37x 5.03 x 1.77 in (1000 x 128 X 45 mm)
Weight: 6 lb (2.7 kg)
Exterior Color: Black
Housing Material: Aluminum
Connections
Data Connectors: 4-pin XLR
Physical Linking: 10 inline ÉPIX Strip IP per port of Drive 2000 IP
Total max. cable length (shielded cables) between ÉPIX Drive 2000 IP and last ÉPIX IP fixture: 210 ft (64 m)
Max. cable length (shielded cables) between ÉPIX Drive 2000 IP and first ÉPIX IP fixture: 65 ft (20 m)
Max. cable length (shielded cables) between ÉPIX IP fixtures: 60 ft (18 m)
Total max. cable length (unshielded cables) between ÉPIX Drive 2000 IP and last ÉPIX IP fixture: 300 ft (91 m)
Max. cable length (unshielded cables) between ÉPIX Drive 2000 IP and first ÉPIX IP fixture: 150 ft (45 m)
Max. cable length (unshielded cables) between ÉPIX IP fixtures: 100 ft (30 m)
Control
Control Protocol: Art-Net, Kling-Net, sACN
Control Channels (Art-net, sACN): 7, 8, 15, 30, 75, 150 or 300
Electrical
Power and Current: 35 W, 0.292 A @ 120 V, 60 Hz
Power and Current: 44 W, 0.210A @ 208 V, 60 Hz
Power and Current: 44 W, 0.195 A @ 230 V, 50 Hz
Certifications / Qualifications
CE, MET
IP Rating: IP65, temporary outdoor/wet use
Temperature (ambient): -4 °F to 113 °F (-20 °C to 45 °C)
MET Listing Number: E113093-1101
US Safety: UL 8750, UL 1573
Canadian Safety: CSA C22.2 No. 250.13-12, CSA C22.2 No. 166
What's Included
ÉPIX Strip IP 50
Square milky filter (installed)
Round milky filter (included in box)
Black stealth filter (included in box)
Required Accessories
Controller (required): ÉPIX Drive 2000 IP
Compatible Mounting Options: M12 Bolt/Clamp (rear mounting)
OPTIONAL ACCESSORIES
ArKaos Media Master Express + KN software
ÉPIX Strip Tour
ÉPIX Bar Tour
4PINIPEXT16IN
4PINIPEXT5FT
4PINIPEXT50FT
Seetronic Powerkon IP65 cables
Seetronic Etherkon IP65 cables
