Description

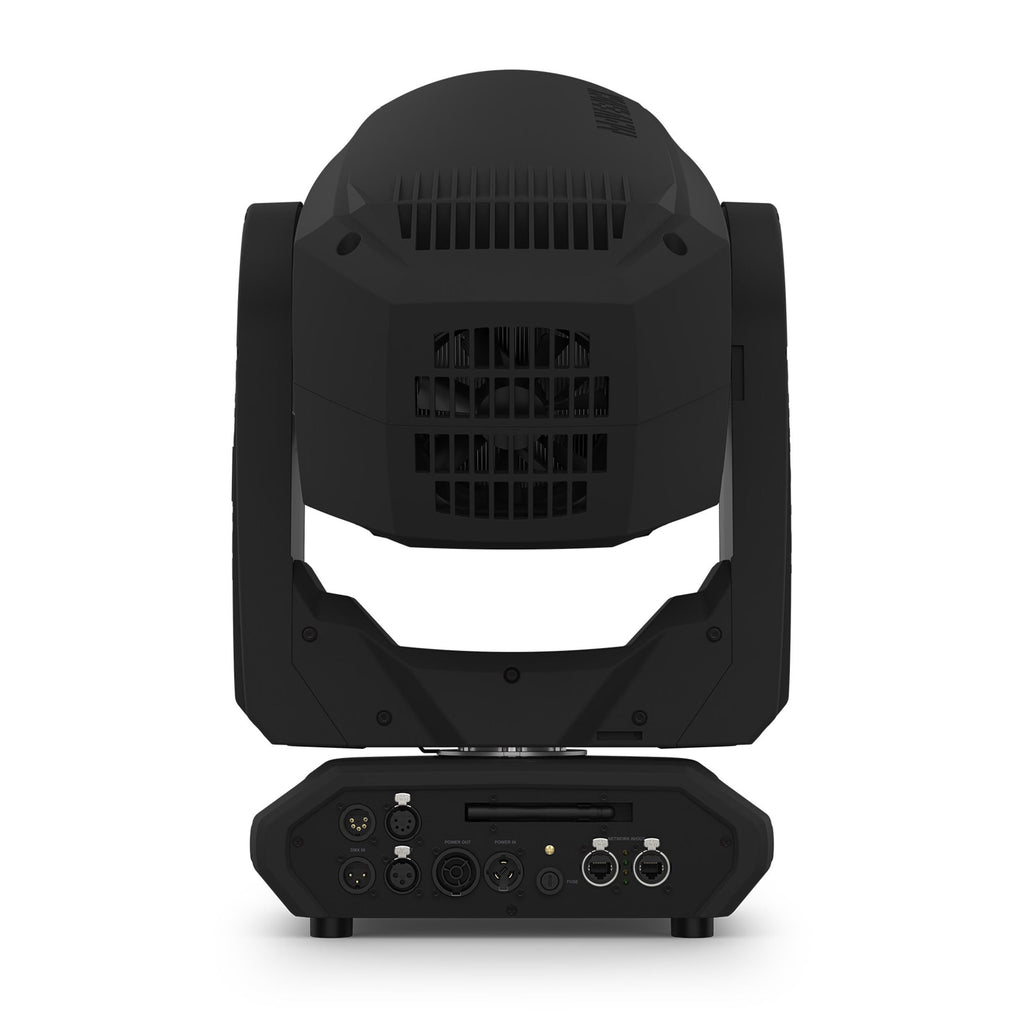

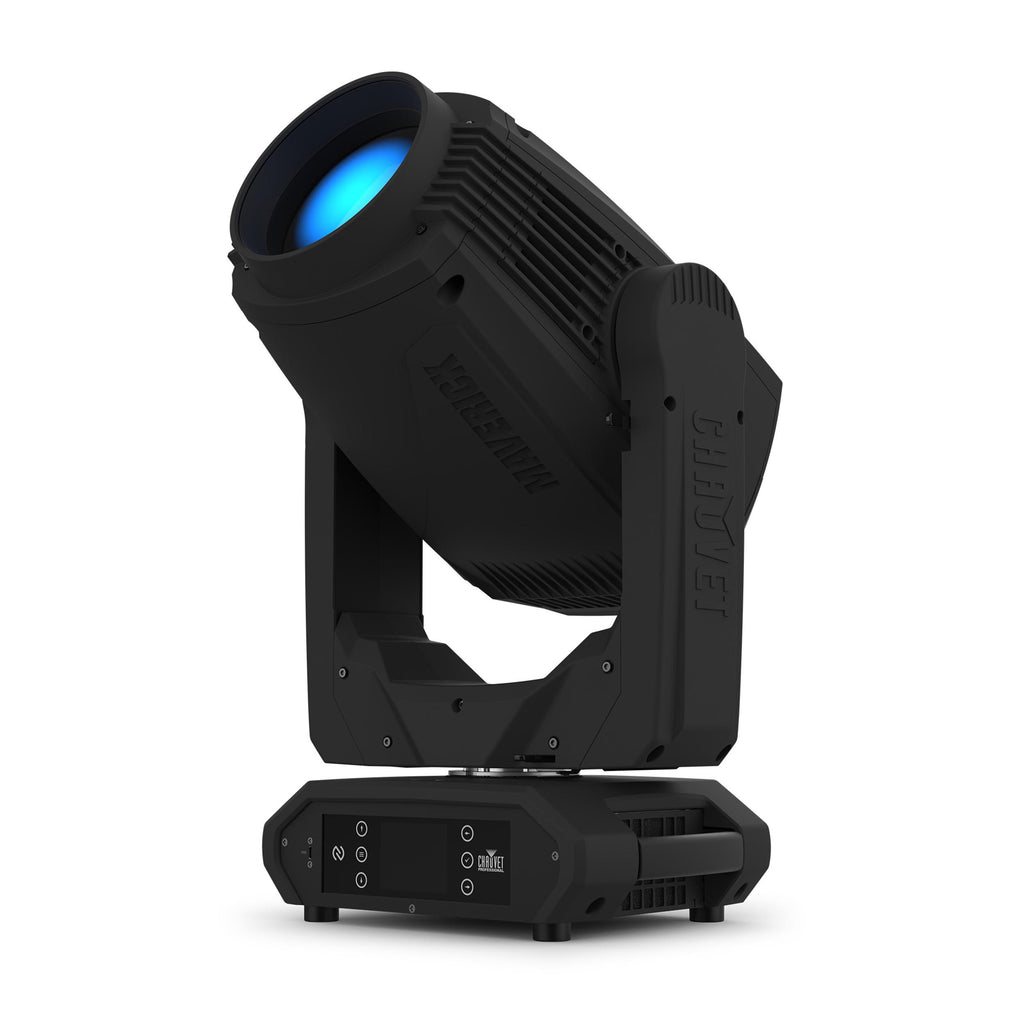

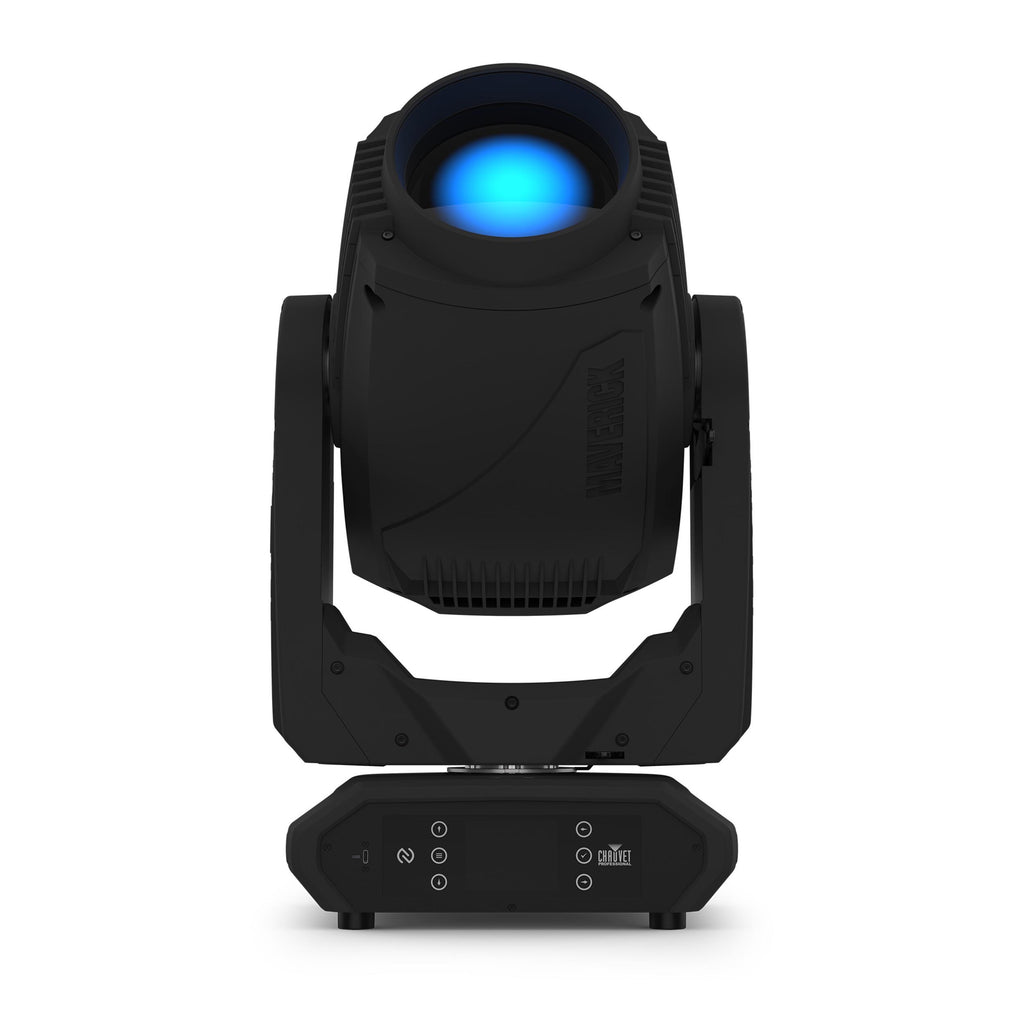

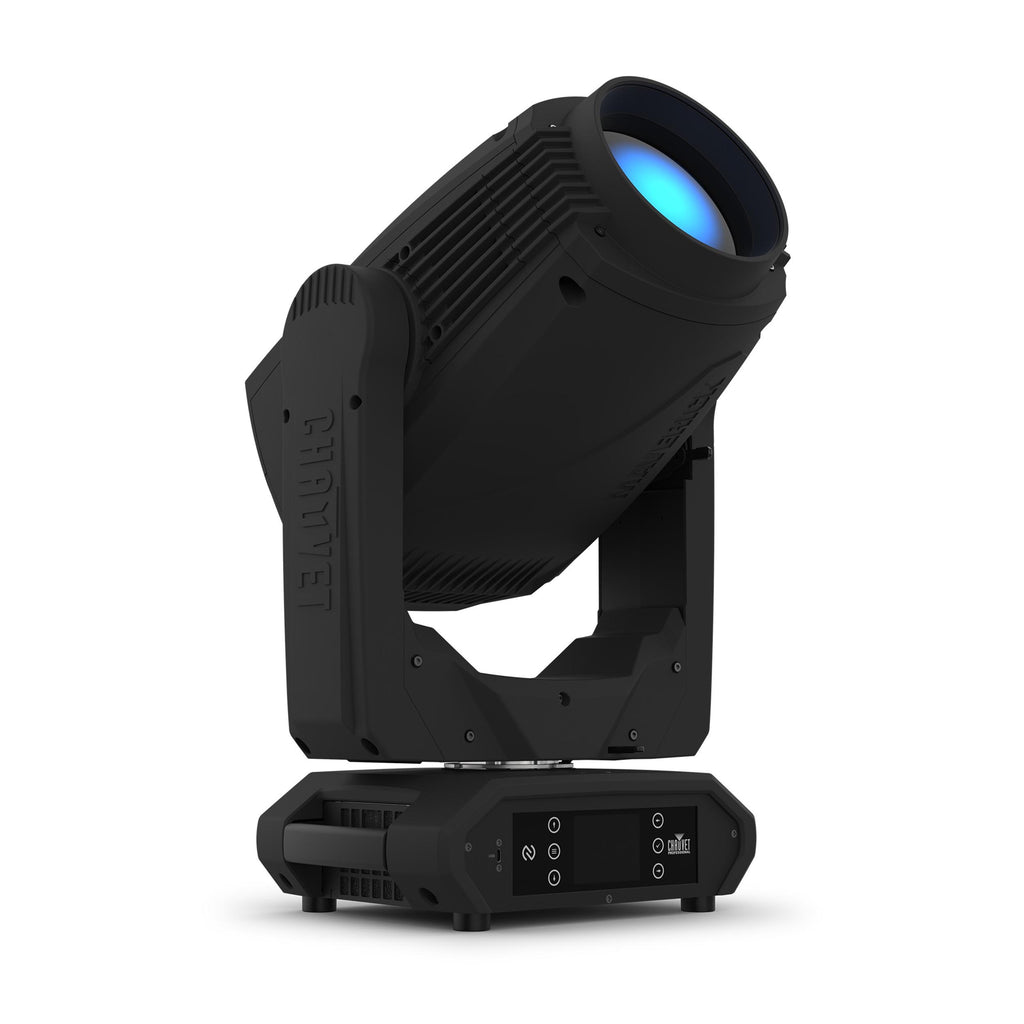

The Chauvet Professional Maverick Force X Profile is a compact, high-output LED moving profile fixture designed for touring, theatre, broadcast, and professional stage applications that demand versatility, precision, and reliability. Powered by a 520W cool white LED engine, it delivers an impressive 18,963 lumens of output with a clean, flat field and excellent beam consistency. Its lightweight yet robust construction makes it ideal for both short-throw and long-throw applications where performance and flexibility are critical.
Equipped with an expansive 3.5° to 57.3° zoom range, the fixture provides smooth beam transitions from tight aerial effects to wide stage coverage. Advanced CMY color mixing combined with a dedicated color wheel featuring CRI and CTB filters ensures accurate color reproduction and smooth blending. Dual gobo wheels-one rotating and one static-allow for layered projection effects, while the 5-facet prism, iris, and frost functions expand creative beam-shaping possibilities for dynamic visual design.
The Maverick Force X Profile also features a precise four-blade framing shutter system with dual-axis movement, full wipe capability, and 120° module rotation for accurate beam control. Smooth 16-bit dimming and high-speed 65,000 Hz PWM ensure flicker-free operation for camera use and seamless fades. With support for DMX, WDMX, sACN, Art-Net, and CRMX, along with RDM control, NFC setup, USB updates, battery-backed display, and failsafe Ethernet connectivity, it delivers advanced control and exceptional reliability for demanding professional environments.
Product Specifications:
Light Source: 1 × 520W Cool White LED (6966K)
LED Lifespan: 50,000 Hours
Color Temperature (Full): 6966K
CRI: 72.2 (91.9 with CRI Filter)
CQS: 70.2 (90 with CRI Filter)
TLCI: 51 (78 with CRI Filter)
CTO: 3200K / 4300K
CTB: 8200K
Lumens Output: 18,963 lm
Illuminance (3.4°): 104,429 lux @ 5m
Illuminance (57.3°): 1,219 lux @ 5m
Beam Angle: 3.4° – 52.2°
Field Angle: 3.7° – 55.3°
Cutoff Angle: 3.8° – 57.3°
Zoom Range: 3.5° – 57.3° (Motorized)
Front Lens Diameter: 145 mm
Dimmer: Electronic (5 Curves)
Strobe Rate: 0 – 25 Hz
Pan: 540° / 360° / 180° selectable
Tilt: 270° / 180° / 90° selectable
Color System: 7 Colors + White + CMY Wheels + CMY Macros
Gobos (Wheel 1): 7 + Open (Metal & Glass, Rotating, Indexing)
Gobos (Wheel 2): 9 + Open (Metal, Continuous Scroll)
Gobo Size: 23.9 mm outer / 14 mm image / 1.1 mm max thickness
Framing Shutters: Yes
Focus: Motorized
Zoom: Motorized
Iris: Motorized
Frost: Motorized
Prism: 5-Facet Motorized Rotating
Control Protocols: DMX, Art-Net, sACN, CRMX, NFC
DMX Channels: 31 / 47
Power Consumption: 576–595W (varies by voltage)
Input Voltage: 100–240V AC, 50/60Hz
Power Connector: Seetronic PowerCON IP65
Data Connectors: 3-pin & 5-pin XLR, etherCON IP65
Battery Type: Lithium-Ion (Display Backup)
Battery Life: 1 Hour
Battery Charge Time: 5 Hours
IP Rating: IP20 (Dry Location)
Noise Level (Max): 38.8 dB(A) @ 1m
Housing Material: Aluminium Alloy, Die-cast Aluminium, Steel, Flame-Retardant Polymer
Temperature Range: -20°C to 45°C (-4°F to 113°F)
Certifications: CE, MET, FCC, UKCA
Weight: 23.1 kg (50 lbs)
Dimensions: 361 × 239 × 646 mm (14.21 × 9.40 × 25.43 in)
Shipping Weight: 58.42 lbs.
Shipping Dimensions (L x W x H): 28.54 x 13.19 x 16.93 in
