Description

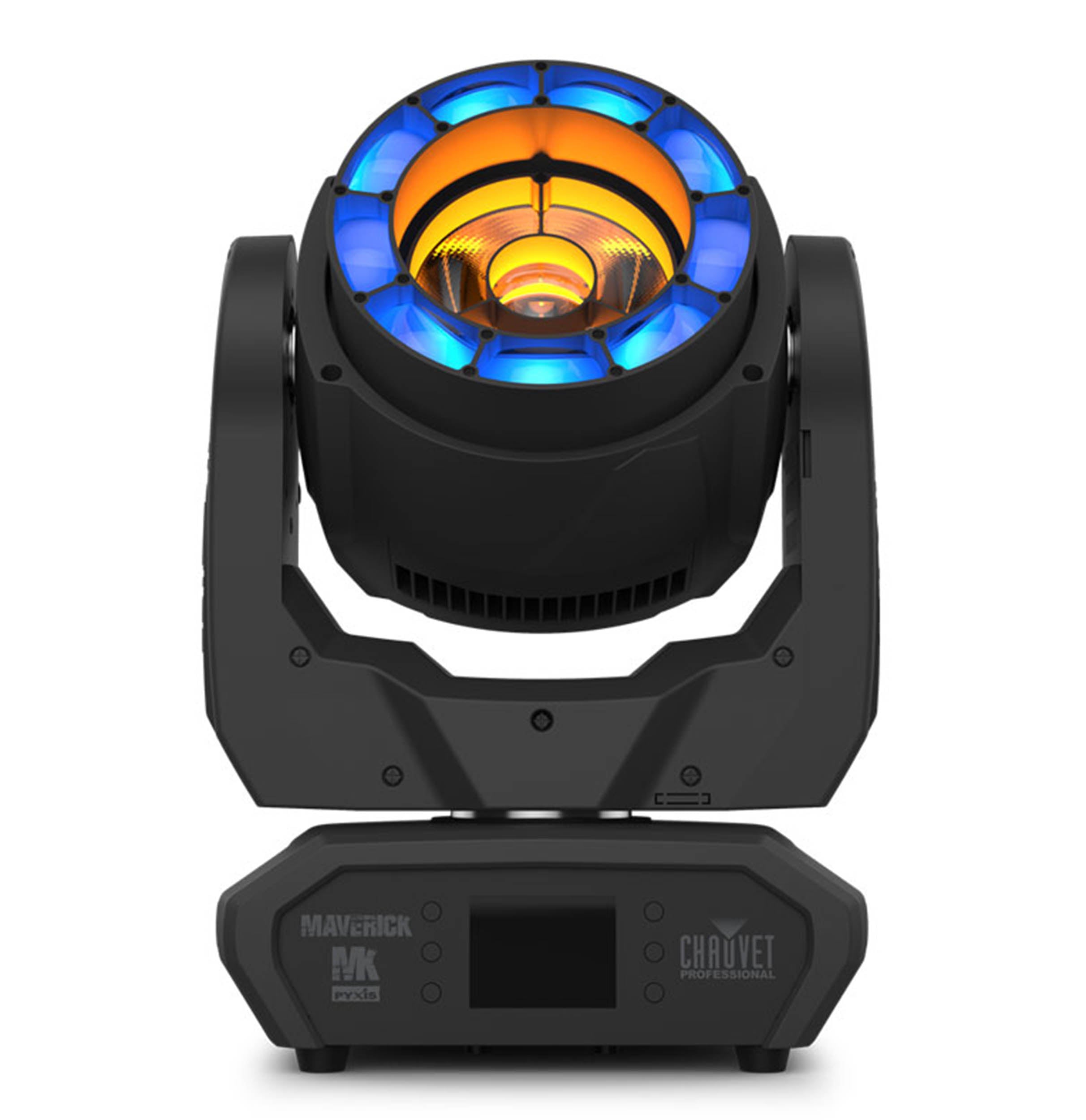

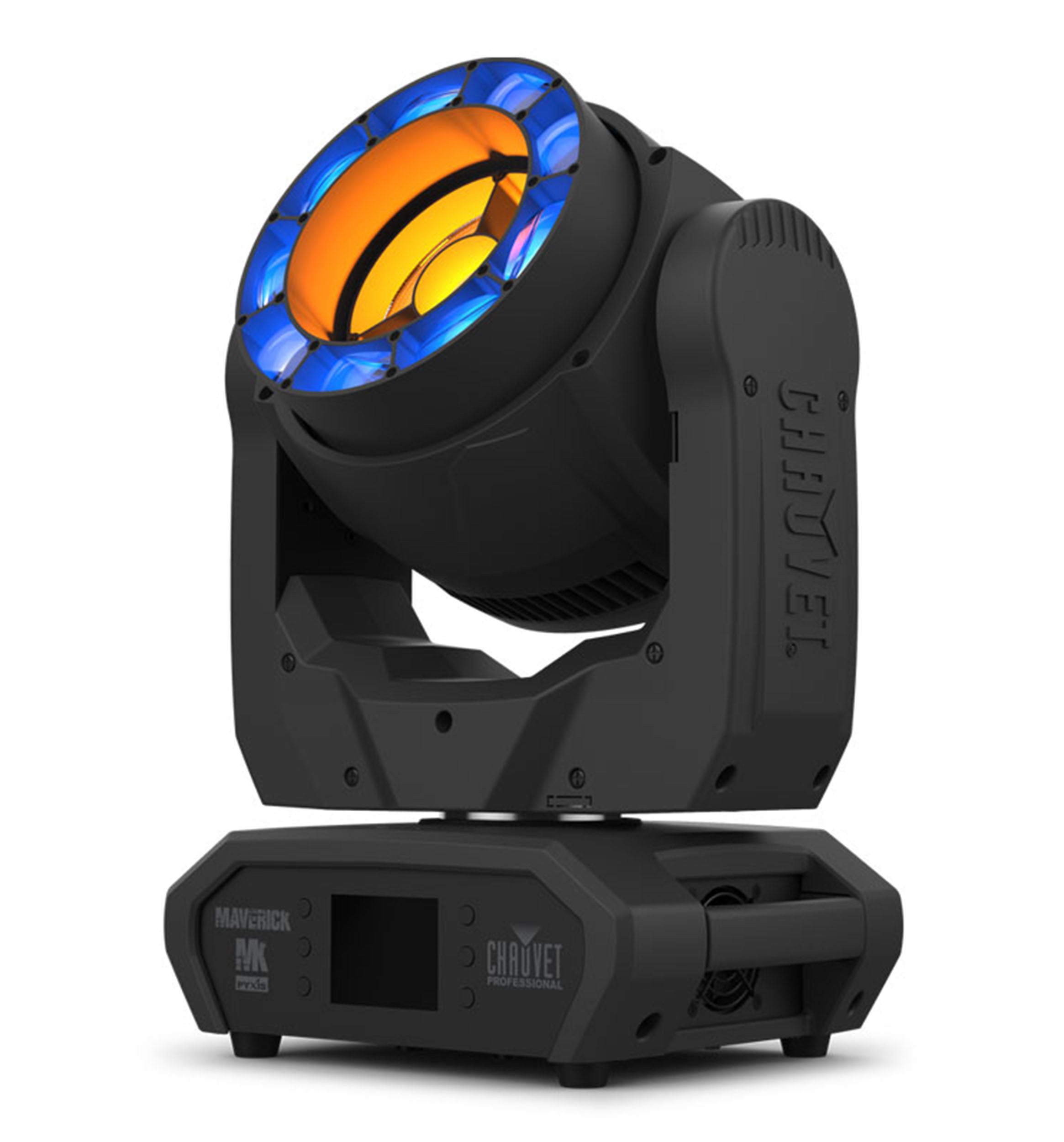

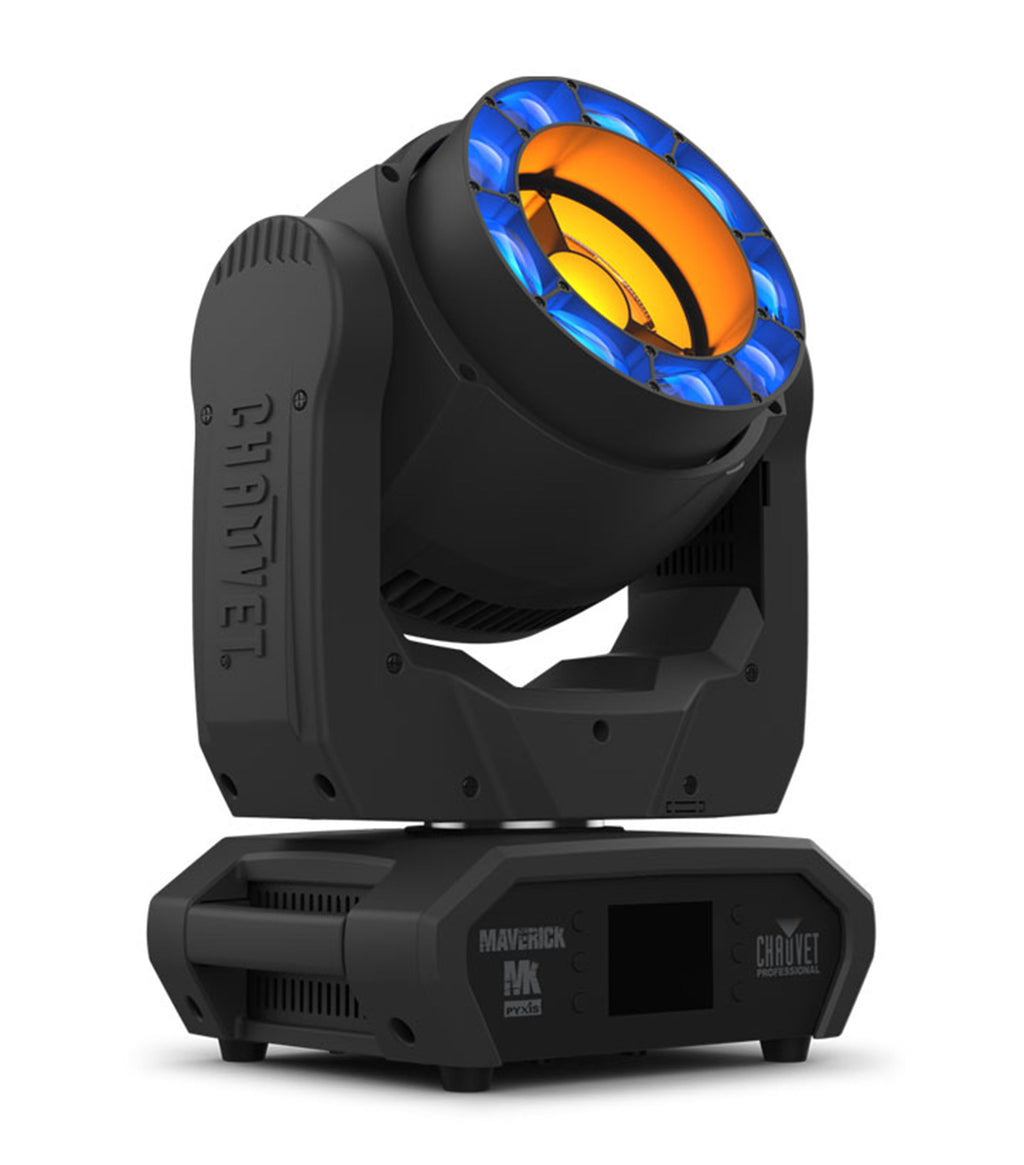

The Chauvet Pro Maverick MK Pyxis RGBW LED Moving Head Wash and Beam Fixture empowers your creativity by giving you an endless array of incredible eye-candy looks with its epic beam and wash effects, wide zoom range, continuous 360° pan and tilt movement and awesome aerial and pixel-mapping effects. This revolutionary and compact moving head features a ring of nine 15 W RGBW LEDs with a zoom range of 4.9° to 58.4° and built in color macros and gobos, as well as a punchy 60 W RGBW LED serving as a center pixel with a 3° beam angle. Choose from DMX, sACN, Art-Net, or W-DMX for control.
Product Specifications:
Optical
Light Source: 9 LEDs outer ring (quad-color RGBW) 15 W, (1.29 A), 50,000 hours life expectancy
Light Source: 1 LED center pixel (quad-color RGBW) 60 W, (4.5 A), 50,000 hours life expectancy
Color Temperature (range): 2,800 to 10,000 K
Beam Angle (center pixel and outer ring): 2.8°
Beam Angle (center pixel): 2.7°
Beam Angle (outer ring): 4.9° to 32°
Field Angle (center pixel and outer ring): 6.7°
Field Angle (center pixel): 4.5°
Field Angle (outer ring): 7.9° to 47.8°
Cutoff Angle: 8.3° to 58.4°
Zoom Range: 4.9° to 58.4°
Lumens – Source: (center pixel) 1,700 (outer ring) 4,300
Lumens – Output: (center pixel) 1,100 (outer ring) 2,400
Illuminance (center pixel / outer ring): 11,267 lux @ 5 m
Illuminance (center pixel): 19,306 lux @ 5 m
Illuminance (outer ring): (7.9°) 4,724 lux @ 5 m, (47.8°) 437 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz
Dynamic Effects
Pan and Tilt: 540°/270°
Pan and Tilt Ranges: Infinite, 540°, 360°, 180° pan/ Infinite, 270°, 180°, 90° tilt
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Strobe Rate: 0 to 20 Hz
Color Temperature Presets: Yes
Move-in-Black: Yes
Dim Modes: 2
Dim Curves: 4
Construction / Physical
Dimensions: 12.20 x 8.85 x 18 in (310 x 225 x 459 mm)
Weight: 31.96 lb (14.5 kg)
Exterior Color: Black
Housing Material: High-impact flame-retardant polymer

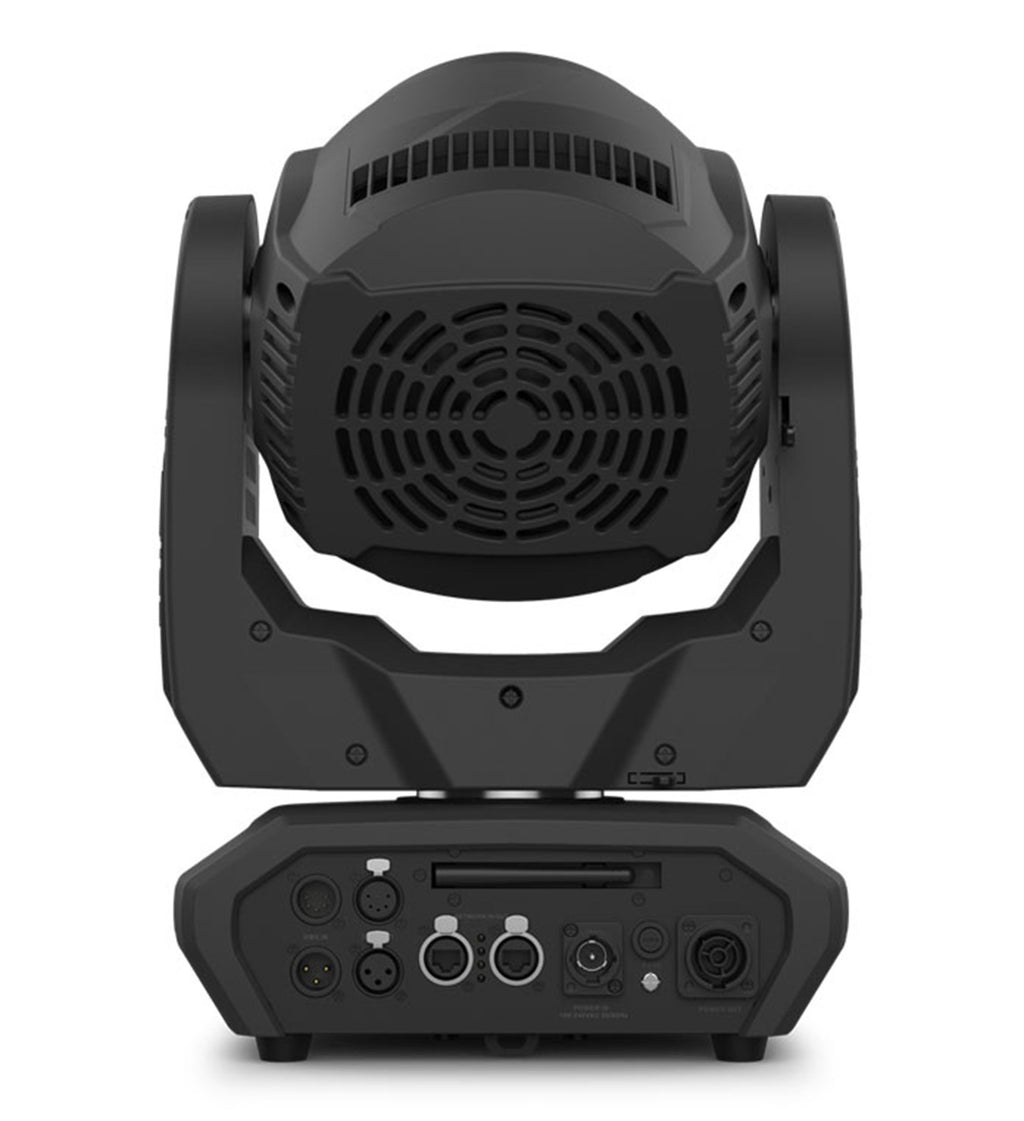

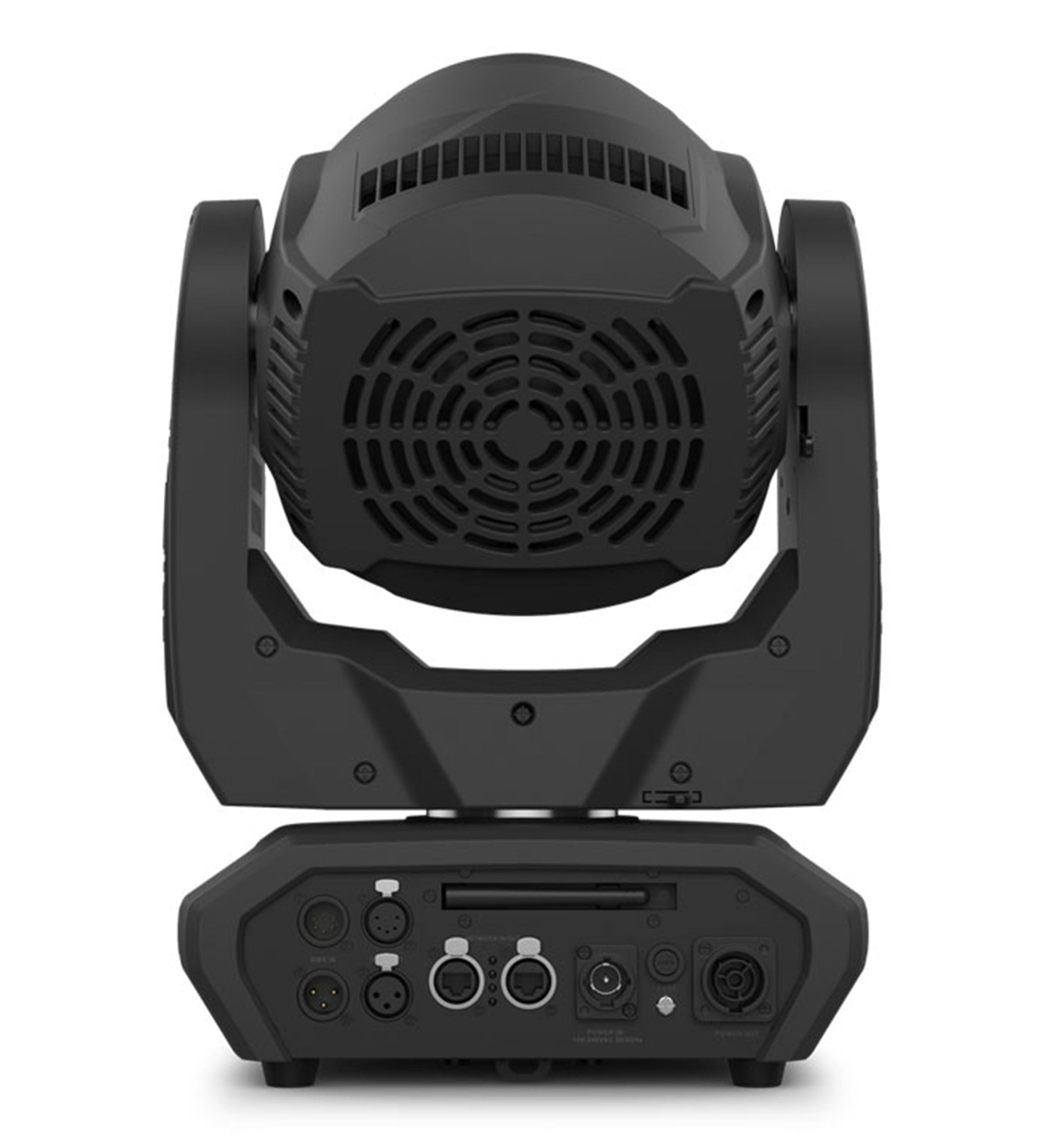

Connections
Power Connection: Edison plug to Seetronic Powerkon IP65
Power Input/Output: Seetronic Powerkon IP65
Data Connectors: 3- and 5-pin XLR, Amphenol XLR Net RJ45 Connectors in/out
Cable Length (power): 5 ft (1.5 m)
Control
Control Protocol: Art-Net, sACN, Kling-Net, DMX, W-DMX, RDM
DMX Channels Single Mode: 26,66,113,131
DMX Channels Dual Mode – Function: 13,26,33
DMX Channels Dual Mode – Pixel: 30,40,80
Art-Net Channels Single Mode: 26,66,113,131
Art-Net Channels Dual Mode – Function: 13,26,33
Art-Net Channels Dual Mode – Pixel: 30,40,80
Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 4 units @ 120 V;7 units @ 208 V; 8 units @ 230 V
Power and Current: 325 W, 2.726 A @ 120 V, 60 Hz
Power and Current: 322 W, 1.546 A @ 208 V, 60 Hz
Power and Current: 321 W, 1.395 A @ 230 V, 50 Hz
Certifications / Qualifications
CE
IP Rating: IP20, dry location
What's Included
Maverick PYXIS
Seetronic Powerkon IP65 power cord
Omega bracket with mounting hardware
Optional Accessories
Professional Clamp: CTC-50HC, CTC-50HCN
Safety Cable: SC-07
DMX Cables
IP Rated Seetronic Powerkon Extensions
Ethercon extension cables
UPLOAD 08 software uploader
