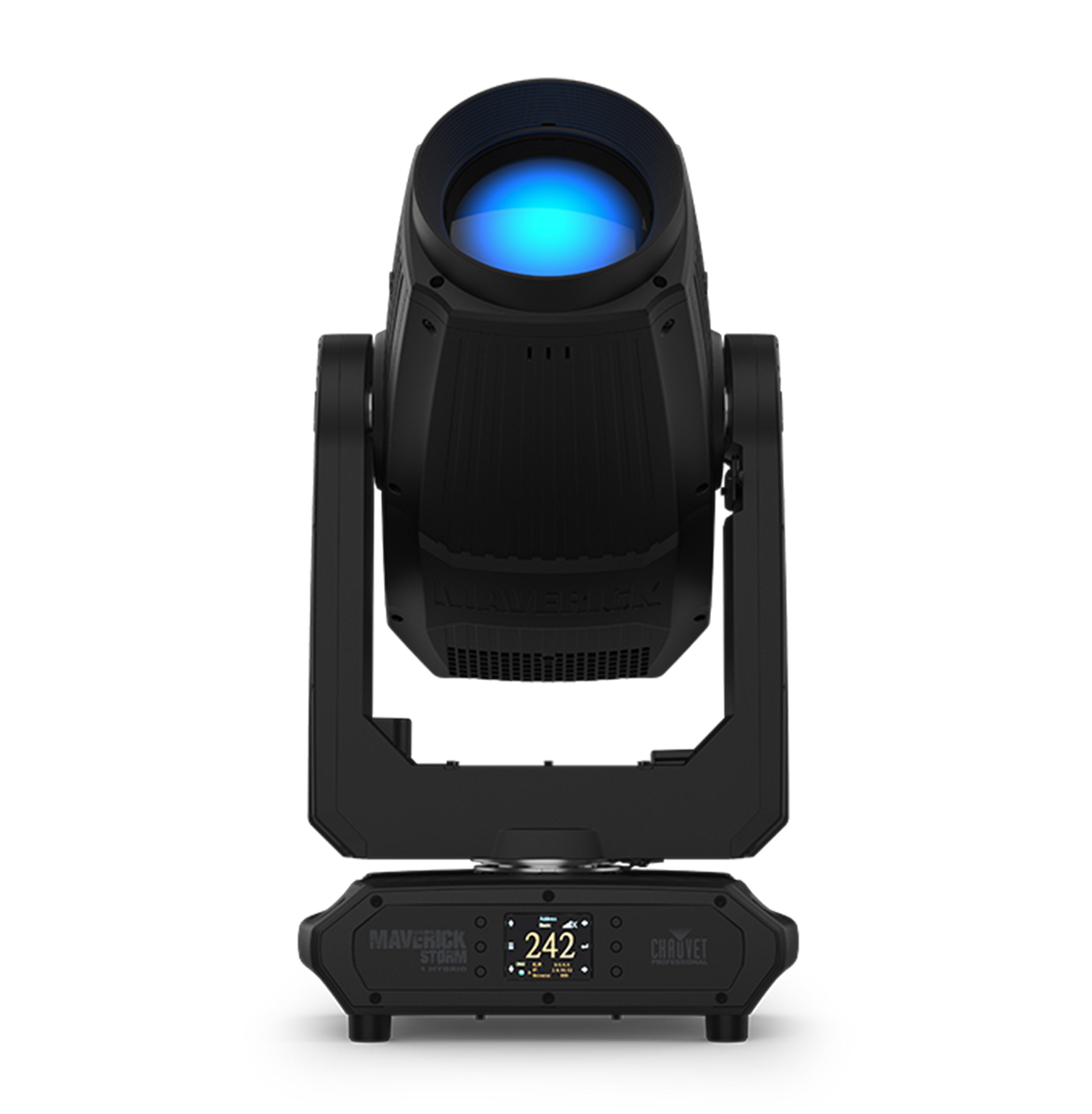

Chauvet Pro Maverick Storm 1 Hybrid IP65 Rated High Powered Spot/Beam/Wash Fixture

The Chauvet Pro Maverick Storm 1 Hybrid IP65 Rated High Powered Spot/Beam/Wash Fixture brings the latest Maverick series IP65 technology together with an advanced optical system designed to optimize output from its Osram 420W 7700K source. This combination Beam/Spot/Wash fixture delivers stadium-scale output and CMY color mixing that produces the boldest reds, greens and blues while perfectly matching its fellow Mavericks in the rig. Its linear zoom smoothly delivers precise coverage in both projection modes, from tightly focused beams to crisp even spots, offering a zoom range of 0.9° to 23.7° in Beam mode and 1.1° to 36° in Spot mode. This hybrid houses a full arsenal of features: static and rotating gobo wheels, stackable independent prisms, animation wheel and a heavy frost to shift to a distinctive wash. Maverick Storm 1 Hybrid speaks DMX, ArtNet, sACN, RDM and W-DMX.

Product Specifications:

Color Temperature (at full):  6,995 K

Front lens diameters:  195.6 mm

Beam Angle:  1.3° to 17.7° (Spot mode)

Field Angle:  2.2° to 31.9° (Spot mode)

Cutoff Angle:  2.6° to 40.8° (Spot mode)

Beam Angle:  .8° to 7.4° (Beam mode)

Field Angle:  1.5° to 19.9° (Beam mode)

Cutoff Angle:  1.9° to 25.6° (Beam mode)

Beam Angle:  3.6° to 16.6° (Wash mode)

Field Angle:  6.7° to 30.1° (Wash mode)

Cutoff Angle:  9.2° to 32.2° (Wash mode)

Zoom Range:  1.3° to 40.8° (Spot mode)

Zoom Range:  .8° to 25.6° (Beam mode)

Zoom Range:  3.6° to 32.2° (Wash mode)

Illuminance (2.2°):  1,075,418 lux @ 5 m (Spot mode)

Illuminance (31.9°):  5,422 lux @ 5 m (Spot mode)

Illuminance (1.5°):  226,074 lux @ 15 m (Beam mode)

Illuminance (19.9°):  2,144 lux @ 15 m (Beam mode)

Illuminance (6.7°):  71,522 lux @ 5 m (Wash mode)

Illuminance (30.1°):  3,005 lux @ 5 m (Wash mode)

Pan and Tilt:  540°/270°

Pan and Tilt Ranges:  540°, 360°, 180° pan/270°, 180°, 90° tilt

Colors:  14 + white, split colors, continuous scroll at variable speeds

Colors:  CMY flags

Animation Wheel:  1

Dimmer:  Motorized

Shutter/Strobe:  Motorized

Zoom:  Motorized

Focus:  Motorized

Frost:  Motorized

Iris:  Motorized

Prism (1):  6 Facets, motorized, rotating

Prism (2):  8 Facets, motorized, rotating

Move-in-Black:  Yes

Housing Material:  Aluminum die-cast, High-impact flame-retardant polymer, Steel

Power Connection:  Seetronic Powerkon IP65

Power Input:  Seetronic Powerkon IP65

Data Connectors:  5-pin IP rated XLR, Neutrik IP rated RJ45 Connectors in/out

Cable Length (power):  5 ft (1.5 m)

Software Connection:  Type-C USB

Control Protocol:  Art-Net, sACN, RDM, DMX, WDMX

DMX Channels:  24 or 29

Art-Net/sACN Channels:  24 or 29

Modes/Personalities:  2 personalities (24, 29)

Dimensions:  15.27 x 10.78 x 29.72 in (388 x 274 x 755 mm)

Weight:  64.4 lb (29.2 kg)

Exterior Color:  Black
