Description

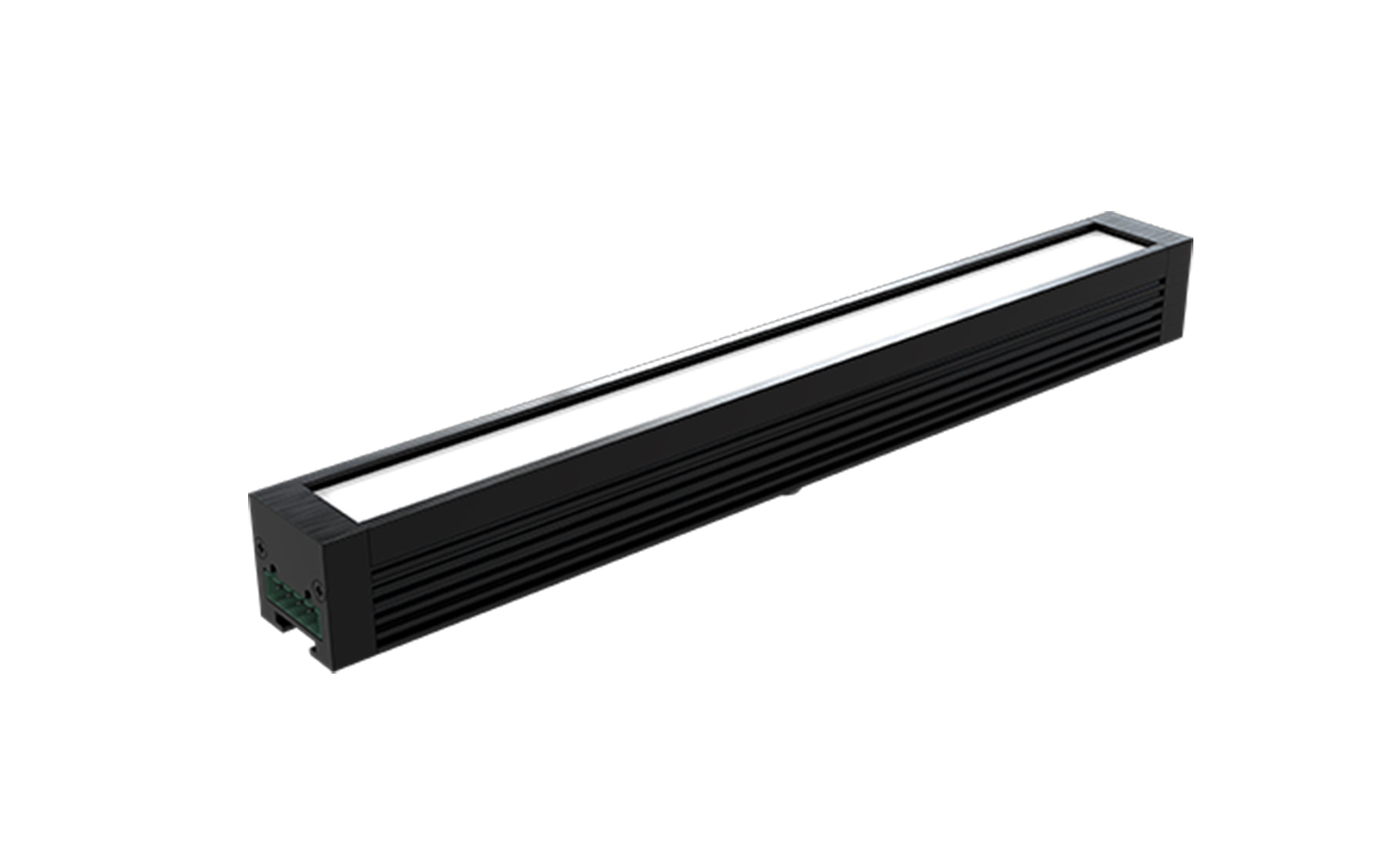

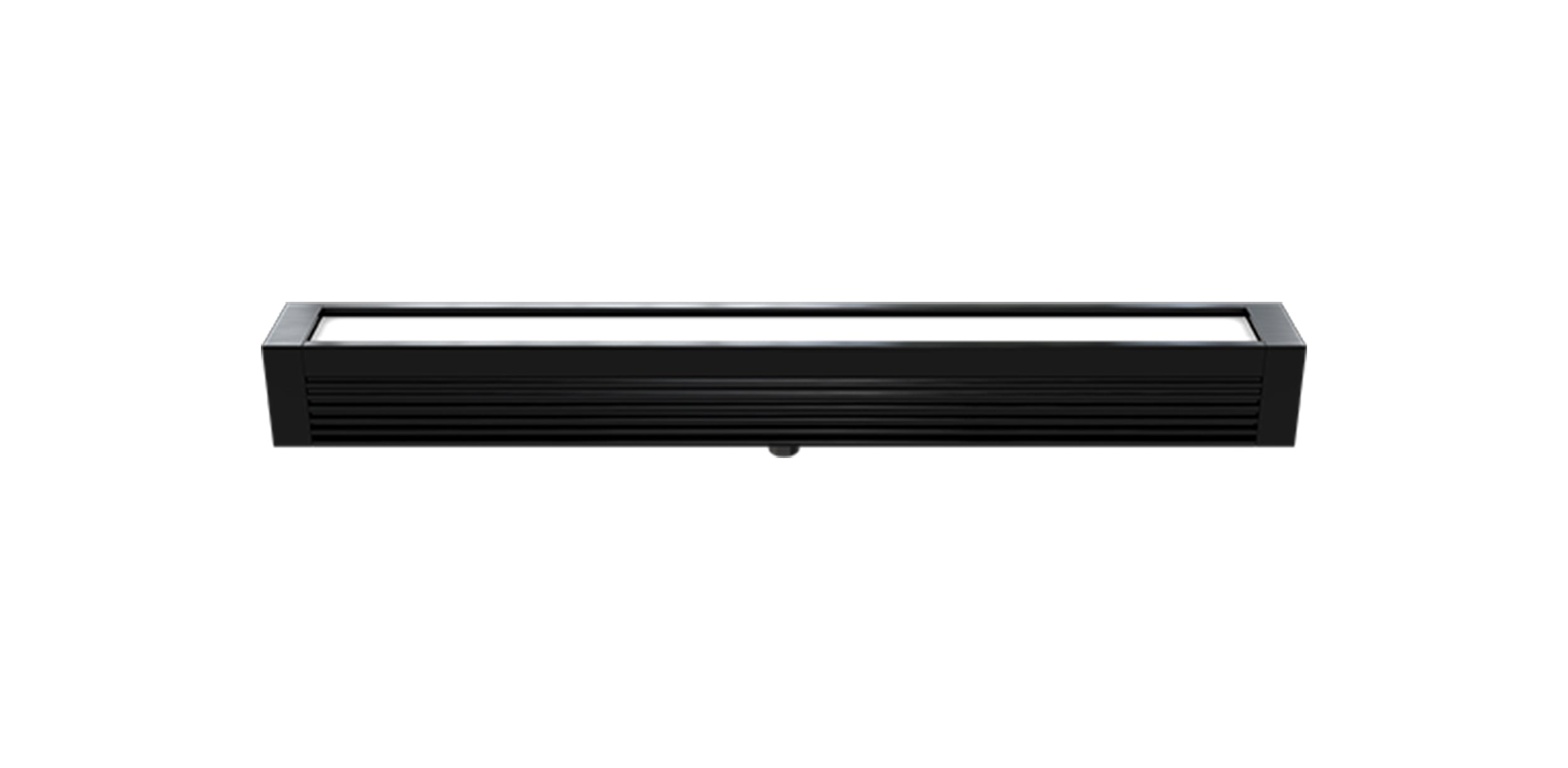

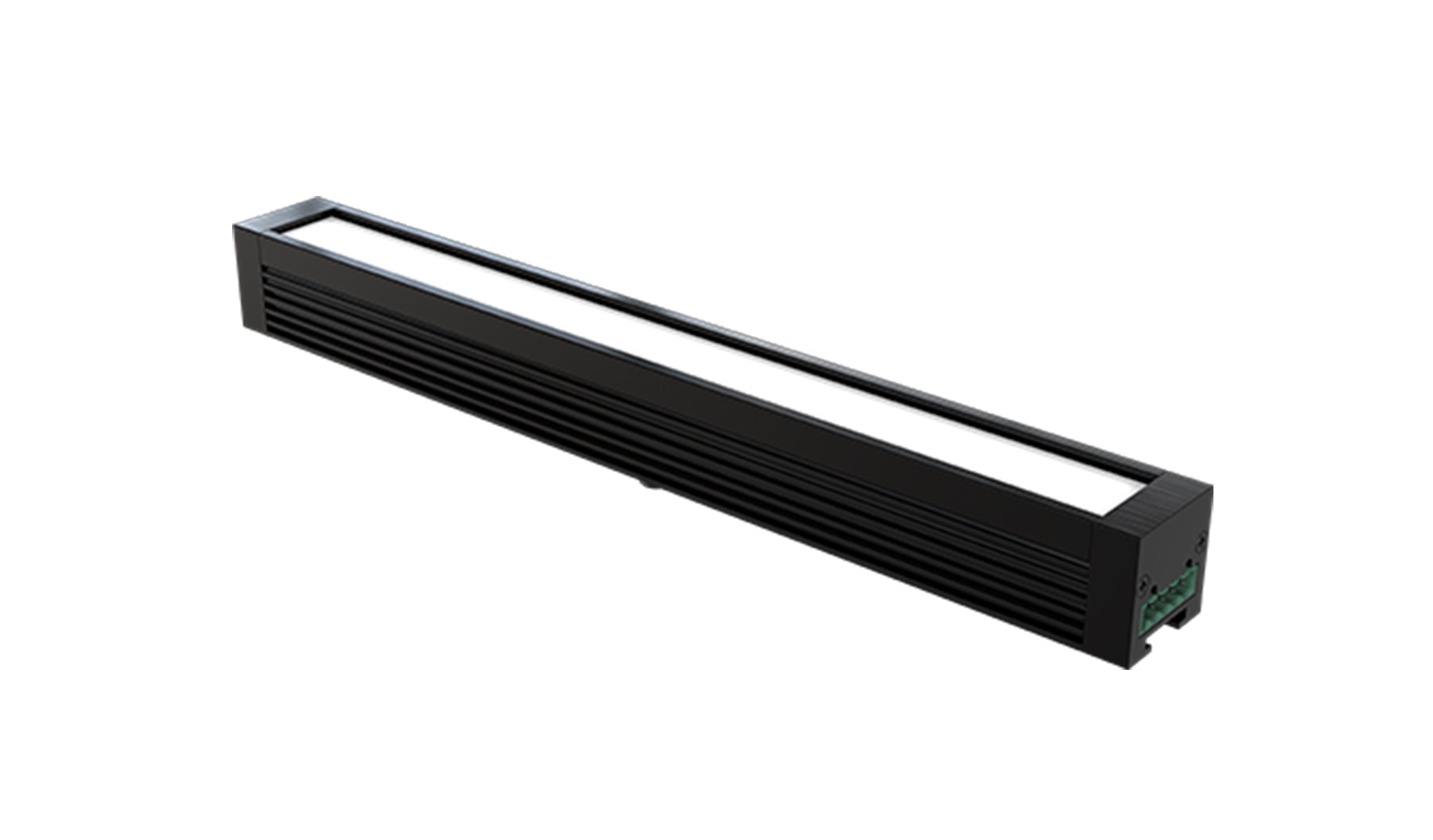

The Chauvet Pro on Air Flex 12 Led Soft Catch Light easily add a glint to eyes when photographing or filming. High quality 2800K-10000K white light as well as color from a lightweight DMX-controllable lighting accessory that weighs under 1 lb. Completely silent operation. Operated via on Air Flex Drive 2, offering ultra-smooth 16-bit dimming control and adjustable PWM to perform beautifully on camera.
Product Specifications:
Optical
Light Source: 12 LEDs (tri-color RGB) 1.5 W, (150 mA), 50,000 hours life expectancy.
Light Source: 12 LEDs (WW) 0.36 W, (150 mA), 50,000 hours life expectancy
Color Temperature (range): 2800 to 10000 K
Color Temperature (at full): 9190 K
CRI: 96
Beam Angle - Medium: 96.1° x 64.3°
Beam Angle - Light: 111° x 62°
Beam Angle - Heavy: 93.3° x 72.2°
Field Angle - Medium: 148.8° x 123.8°
Field Angle - Light: 149.8° x 126.3°
Field Angle - Heavy: 151.7° x 136°
Lumens - Medium: 765 lm
Lumens - Light: 810 lm
Lumens - Heavy: 734 lm
Illuminance - Medium: 17 lux @ 5 m
Illuminance - Light: 16 lux @ 5 m
Illuminance - Heavy: 15 lux @ 5 m
Selectable PWM: via onAir Flex Drive
Construction / Physical
Dimensions: 12.8 x 1.46 x 1.37 in (326 x 37 x 35 mm)
Shipping Dimensions: 15 x 6.5 x 4 in (381 x 165 x 102)
Weight: 0.975 lb (0.442 kg)
Exterior Color: Black
Housing Material: Extruded Aluminum
Connections
Power Connection: Phoenix connector to Bare-wire
Physical Linking: Phoenix connector to Bare-wire
Control
Control Protocol: DMX
DMX Channels: 8 or 10
Modes/Personalities: 8ch-RGBWx2, 10ch-RGBW+Dx2
Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 26 W, 0.28 A @ 120 V, 60 Hz
Power and Current: 24 W, 0.31 A @ 208 V, 60 Hz
Power and Current: 24 W, 0.29 A @ 230 V, 50 Hz
Cable
Connector: Phoenix
Pins: 5
Certifications / Qualifications
CE, MET, FCC, UKCA
IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
What's Included
OnAir Flex 12
6cm Cable
12cm Cable
Blanks Connectors
Light Filter
Heavy Filter
Required Accessories
onAir Flex Drive
