Description

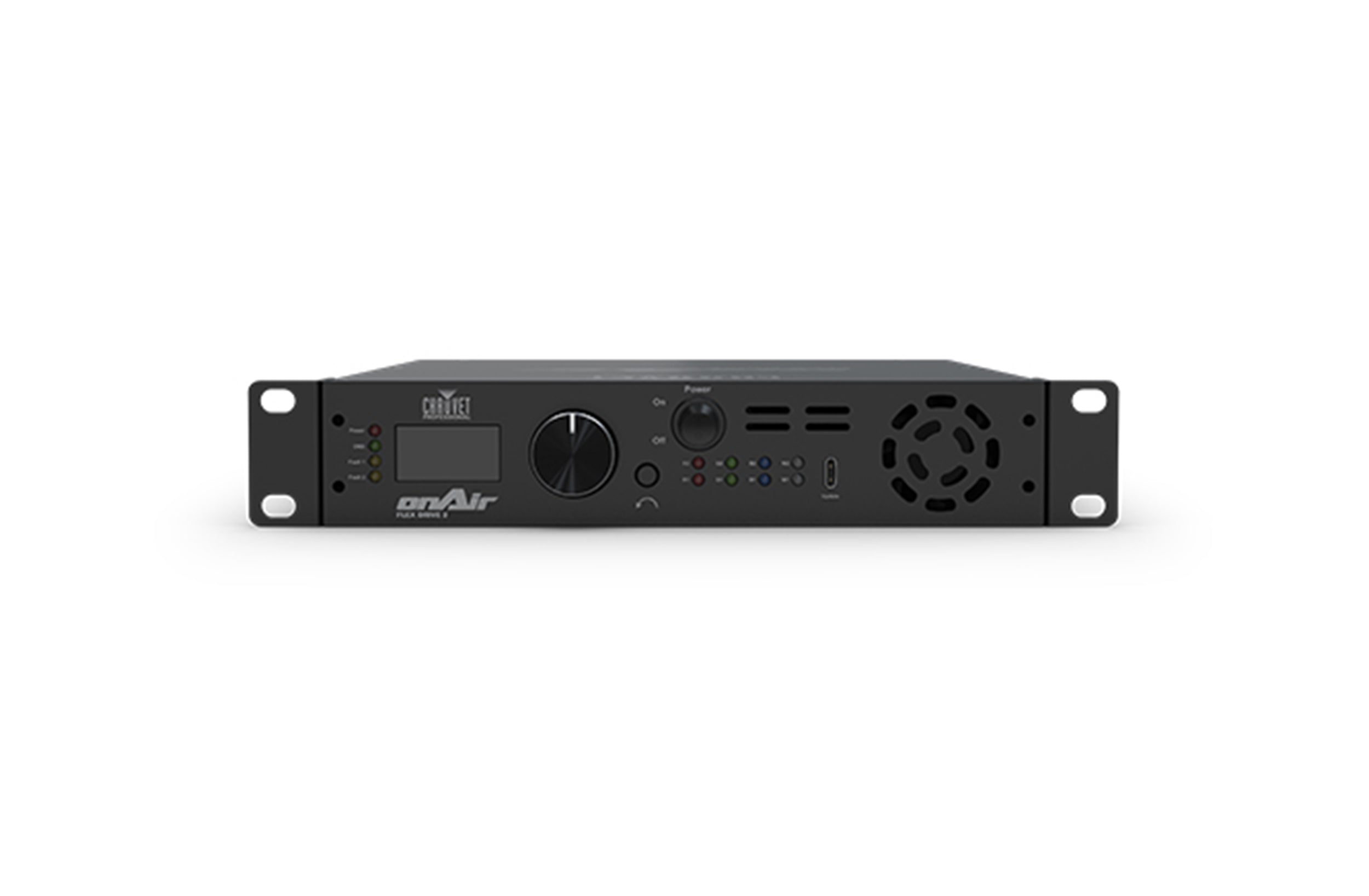

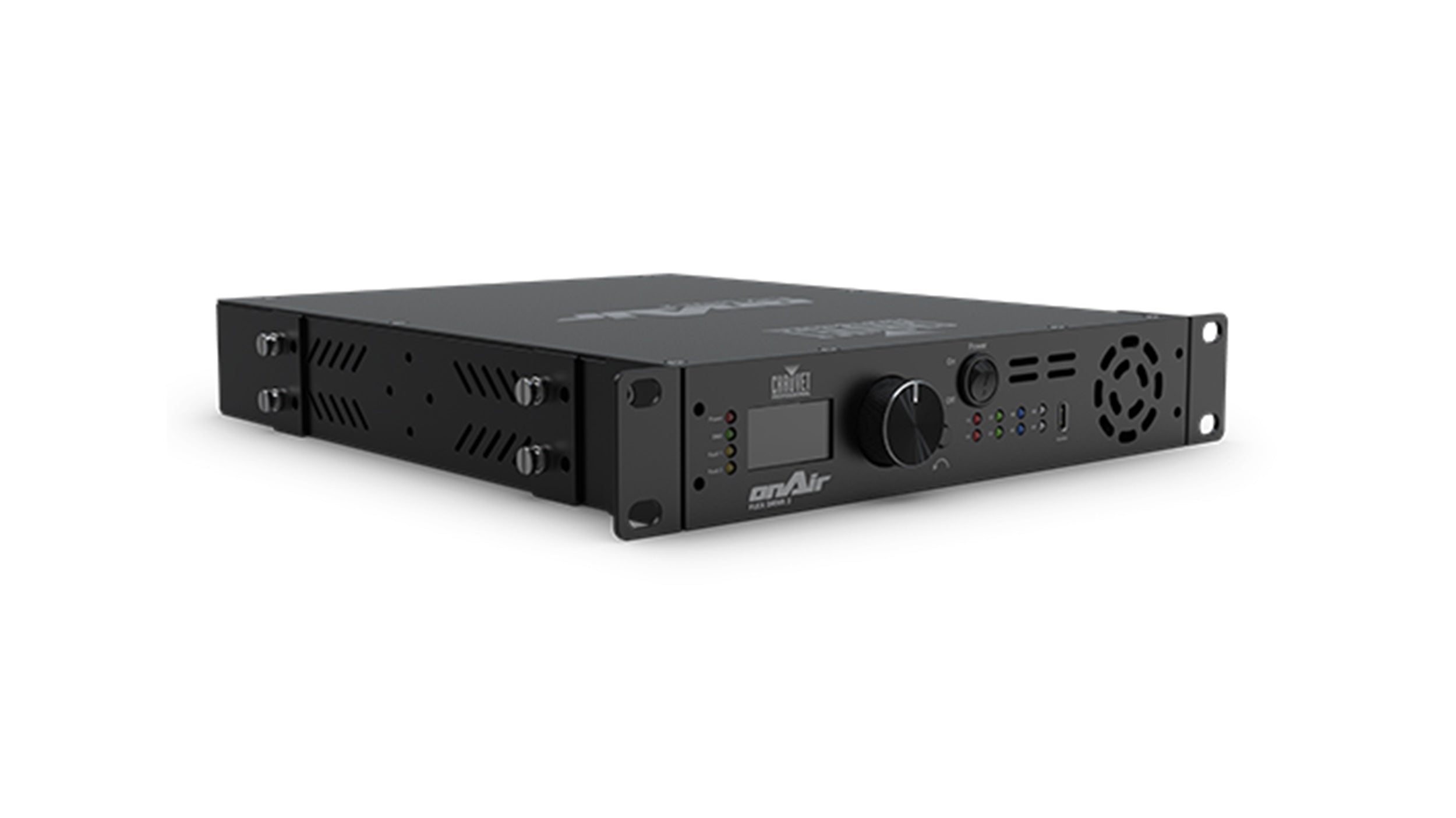

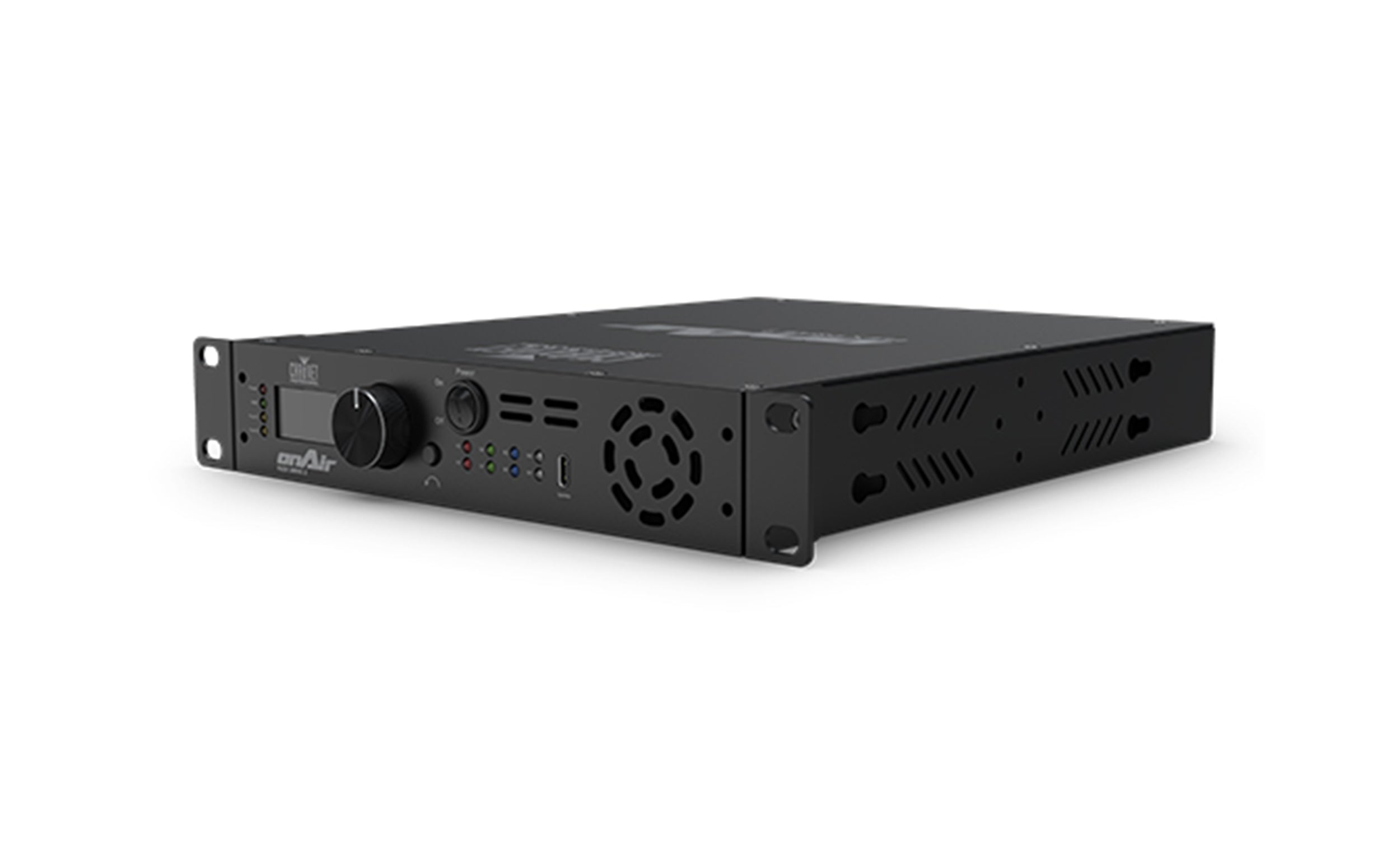

The Chauvet Pro on Air Flex Drive 2 Led Driver is an LED Driver ideal for TV studios seeking simple and impactful on-camera looks with integrated power supply and driver for a one-box modular solution. onAir Flex Drive 2 features 24v to allow longer run lengths for set pieces and light boxes, and 8 channels of output for complete flexibility with a choice of tapes and lengths. It also features adjustable PWM, making it ideal for broadcast compatibility. With two outputs, onAir Flex Drive 2 supports RGBW or generic 4-channel control for up to 350W of total power and assisted convection cooling perfect for studio environments. To ease installation, onAir Flex Drive 2 also features DMX 5pin and Phoenix connector for installation support.
Product Specifications:
Dynamic Effects
Standalone Color Mixing: Yes
Built-in Automated Programs: Yes
Construction / Physical
Dimensions: 5.4 x 4.3 x 0.8 in (137 x 109 x 20 mm)
Weight: 5.4 lb (2.44 kg)
Exterior Color: Black
Housing Material: Steel
Rackmount: 1U

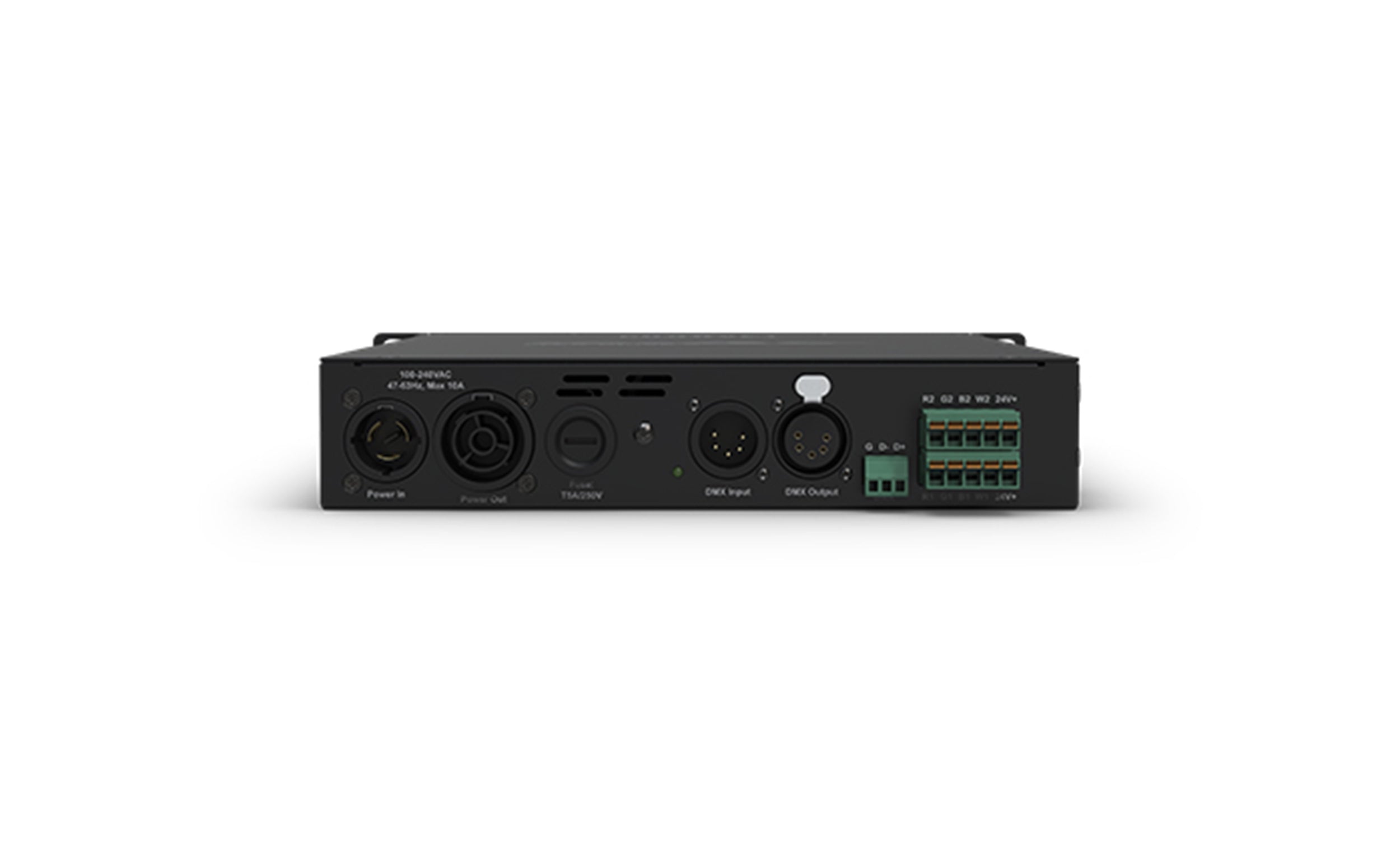

Connections
Power Connection: Edison (Local) plug to Neutrik powerCON TRUE1 Compatible
Power Input: Seetronic Powerkon (powerCON Compatible)
Power Output: Seetronic Powerkon (powerCON Compatible)
Device Outputs (5-pin Phoenix Connector): 2
Physical Linking Per Port: 2 RGBW Tape
Data Connectors: 5-pin XLR, 3 Pin Phoenix Connector
Cable Length (power): 5 ft (1.5 m)
Total Max Cable Extension Length Per Port: 100 ft (30.48m) 16 AWG
Control
Control Protocol: DMX
DMX Channels: 8 or 10
Modes/Personalities: RGBW, RGBW+D
Total Output Power (Per Port): 200 W
Total Output Power (Total): 350 W
Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 2 units @ 120 V; 5 units @ 208 V; 5 units @ 230 V;
Power and Current: 400 W, 3.34 A @ 120 V, 60 Hz
Power and Current: 400 W, 1.93 A @ 208 V, 60 Hz
Power and Current: 400 W, 1.74 A @ 230 V, 50 Hz
Certifications / Qualifications
CE
US Safety: UL 8750
Canadian Safety: CSA C22.22 No. 250.13
IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
What's Included
onAir Flex Drive 2
Neutrik powerCON TRUE1 power cord
