Description

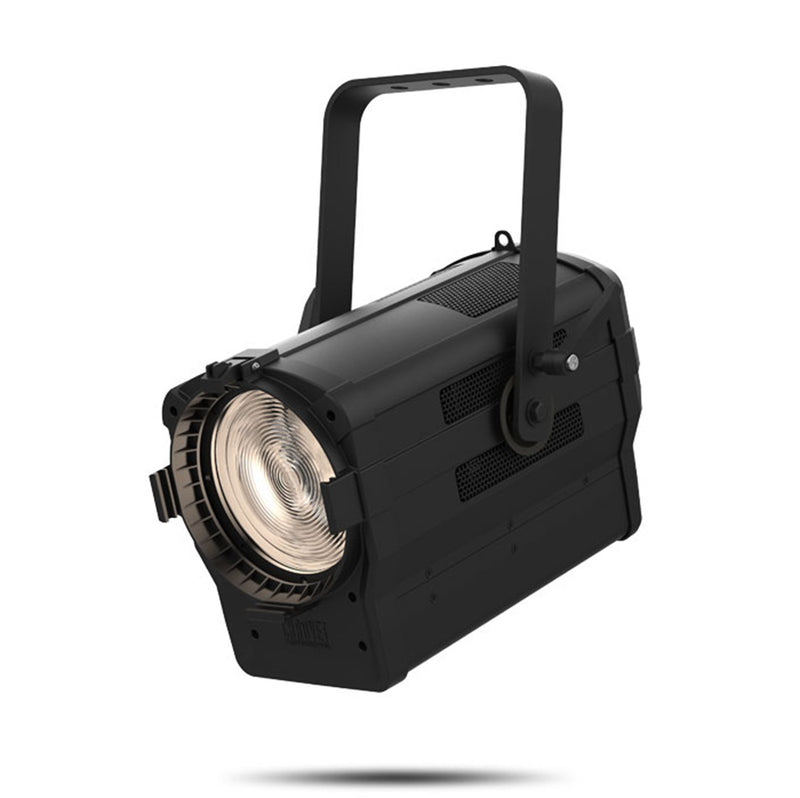

The Chauvet Pro Ovation F-415VW Fresnel-Style LED PAR with Motorized Zoom - Variable White is a 6” Fresnel style variable white fixture that utilizes our unique 6-color LED system. The unit projects a bright, beautifully soft field of light in nearly any temperature of white with high CRI and CQS making it ideal for theatres and TV studios. Each Color Temperature can be further adjusted for +/- green and a motorized zoom with a 14° – 68° field range that allows you to add light where it is needed. The Color Temperature and hue along with zoom and output can be controlled via DMX or on-board dials. Adding to its versatility, the RDM-enabled unit enables a 28 V external battery operation and offers adjustable PWM for flicker-free use on camera.
Product Specifications:
Optical
Light Source: 46 LEDs (4 red, 4 green, 6 blue, 6 R. Blue, 10 Orange, 16 Lime) 3 to 4 W, (1 A), 50,000 hours life expectancy
Color Temperature (range): 2800 to 8000 K
CRI: 89 to 93
Beam Angle: 14° to 43°
Field Angle: 27° to 68°
Zoom Range: 14° to 68°
Lumens (27°): 1,631
(68°): 2,408
Illuminance (27°): 800 lux @ 5 m
(68°): 152 lux @ 5 m
Illuminance drop percentage (fan silent): 23%
(fan off): 59%
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4000 Hz, 6,000 Hz, 25000 Hz
Dynamic Effects
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Strobe Rate: 0 to 27 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Built-in Automated Programs: No
Construction / Physical
Dimensions: 15.80 x 11.22 x 9.51 in (401.46 x 285 x 241.65 mm)
Weight: 12.79 lb (5.8 kg)
Exterior Color: Black
Housing Material: Aluminum alloy, Aluminum die-cast
Accessory Holder/Gel Frame Size: 6.25 in (158.75 mm)
Connections
Power Connection: Edison (Local) plug to Neutrik powerCON,
3-pin XLR
Power Input: Neutrik powerCON
28 VDC, 3-pin XLR
Power Output: Neutrik powerCON
Data Connectors: 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
Control
Control Protocol: DMX, RDM
DMX Channels: 2, 5, 7, 10, 14, 17 or 19
Modes/Personalities: 8 personalities (2ch, 5ch, 7ch1, 7ch2, 10ch, 14ch, 17ch, 19ch)
Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Input Voltage: 28 VDC
Power Linking: 11 units @ 120 V; 19 units @ 208 V; 21 units @ 230 V
Power and Current: 125 W, 1.054 A @ 120 V, 60 Hz
Power and Current: 122 W, 0.613 A @ 208 V, 60 Hz
ower and Current: 121 W, 0.569 A @ 230 V, 50 Hz
Certifications / Qualifications
CE, MET, FCC
IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
What's Included
Ovation F-415VW
Neutrik powerCON power cord
Gel frame holder (6.25 in/158.75 mm accessories)
Optional Accessories
Professional Clamps: CTC-50HC, CTC-50HCN
Neutrik powerCON cables
3-pin or 5-pin DMX Cables
Color Blending Filters: DF60X1D, DF20D
Ovation F 6.25″ Barndoor V1
