Description

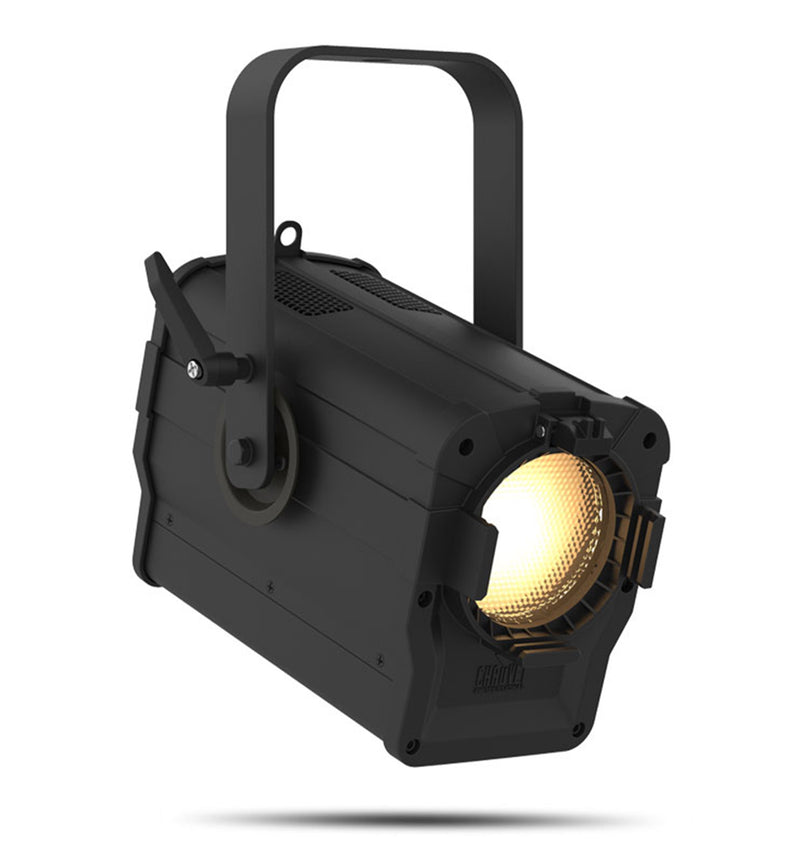

The Chauvet Pro Ovation F-55WW, Warm White LED Fresnel-Style Fixture is an efficient warm white LED (3- inch) inkie Fresnel-style fixture ideal for short throw applications in television, studios and theatres. It projects a bright, beautifully soft field of light within a 20°- 75° field range controlled by a manual zoom.
Product Specifications:
Optical
Light Source: 1 LED (WW) 36 W, (740 mA), 3120 K, 50,000 hours life expectancy
Color Temperature (at full): 3120 K
CRI: 92.5
Beam Angle: 20.1° to 61.4°
Field Angle: 31.5° to 75.1°
Zoom Range: 20° to 75°
Lumens (31.5°): 959
Lumens (75.1°): 2,243
Illuminance (31.5°): 313 lux @ 5 m
Illuminance (75.1°): 97 lux @ 5 m
Dynamic Effects
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Manual
Strobe Rate: 0 to 30 Hz
Standalone Color Mixing: No
Color Temperature Presets: No
Dim Modes: 4
Dim Curves: 4
Built-in Automated Programs: No
Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6,000 Hz, 25,000 Hz
Construction / Physical
Dimensions: 10.87 x 6.81 x 6.53 in (276.3 x 173 x 166 mm)
Weight: 4.8 lb (2.2 kg)
Exterior Color: Black
Housing Material: Aluminum die-cast
Accessory Holder/Gel Frame Size: 3.25 in (83 mm)
Connections
Power Connection: Edison plug to hard-wired
Power Input: Hard-wired
Data Connectors: 5-pin XLR
Cable Length (signal): 1.79 ft (0.54 m)
Cable Length (power): 3.5 ft (1.07 m)
Control
Control Protocol: DMX, RDM
DMX Channels: 1, 2 or 5
Modes/Personalities: 3 personalities (1CH, 2CH, 5CH)
Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 33 W, 0.285 A @ 120 V, 60 Hz
Power and Current: 33 W, 0.178 A @ 208 V, 60 Hz
Power and Current: 34 W, 0.155 A @ 230 V, 50 Hz
Certifications / Qualifications
CE, MET
IP Rating: IP20, dry location
What's Included
Ovation F-55WW
Gel Frame
Optional Accessories
Professional Clamps: CTC-50HC, CTC-50HCN
Neutrik powerCON cables
5-pin DMX Cables
Color Blending Filters: DF60X1D, DF20D
Ovation F3.25” Barndoor
