Description

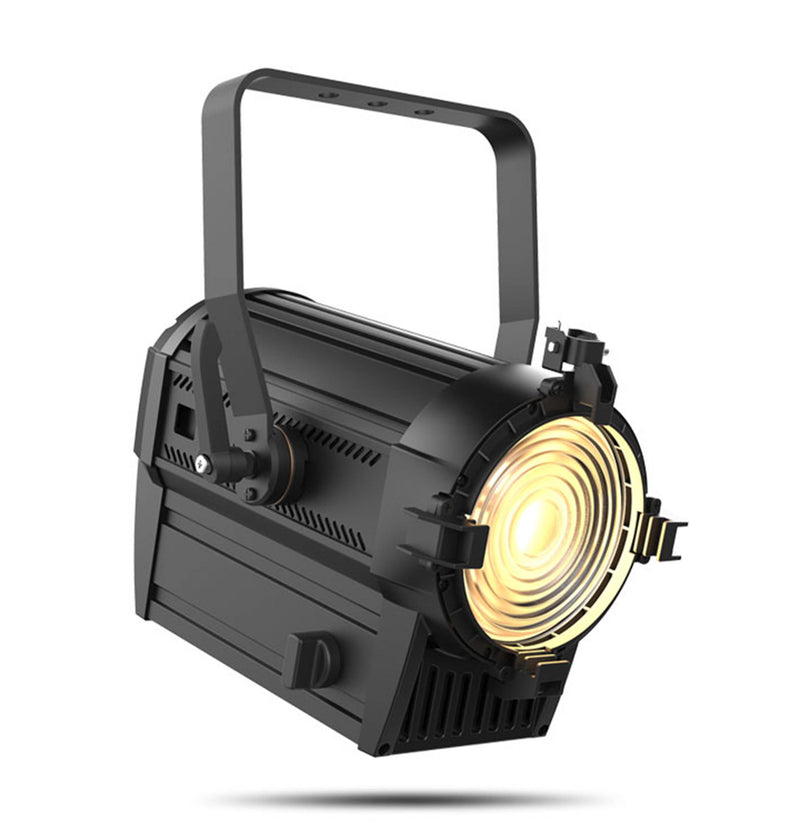

The Chauvet Pro Ovation FD-105WW LED Fresnel Wash - Dimmer/DMX - Warm White LED Fresnel Wash - Dimmer/DMX - Warm White utilizing data and power sensors that make it possible to run on both dimming power systems and constant power rigs. A massive zoom range of 8° to 63° and a beautifully soft, warm white wash with high CRI make it a worthy LED replacement for aging incandescent six-inch Fresnel’s. Enjoy the benefits of LED lighting without being held back by previous investments made in major dimming systems.
Product Specifications:
Optical
Light Source: 1 LEDs (WW) 80 W, (2 A), 50,000 hours life expectancy
Color Temperature (at full): 3,197K
CRI: 91
Beam Angle: 8° to 51°
Field Angle: 14° to 63°
Zoom Range: 8° to 63°
Illuminance (14°): 6,609 lux @ 5 m
Illuminance (63°): 340 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
Dynamic Effects
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Manual
Strobe Rate: 0 to25 Hz
Dim Modes: 5
Dim Curves: 4
Construction / Physical
Dimensions: 12.8 x 11 x 16.5 in (325 x 279 x 420 mm)
Weight: 13 lb (5.9 kg)
Exterior Color: Black
Accessory Holder/Gel Frame Size: 6.25 in/159 mm
Connections
Power Connection: Local plug to Neutrik powerCON
Power Input: Neutrik powerCON
Power Output: Neutrik powerCON
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
Control
Control Protocol: DMX, RDM, Dimmer
DMX Channels: 1, 2 or 3
Modes/Personalities: 3 personalities (UNO, DOS, STD-P)
Electrical
Input Voltage: 120/230 VAC, 50/60 Hz (switchable)
Power Linking: 14 units @ 120 V; 25 units @ 230 V
Power and Current: 115 W, 0.951 A @ 120 V, 60 Hz
Power and Current: 125 W, 0.541 A @ 230 V, 50 Hz
Certifications / Qualifications
CE, MET
IP Rating: IP20, dry location
What's Included
Ovation FD-105WW
Neutrik powerCON power cord
Gel frame (6.25 in/159 mm accessories)
Optional Accessories
Professional Clamps: CTC-50HC, CTC-50HCN
Neutrik powerCON cables
3-pin or 5-pin DMX Cables
Color Blending Filters: DF60X1D, DF20D
Ovation F6.25” Barndoor
