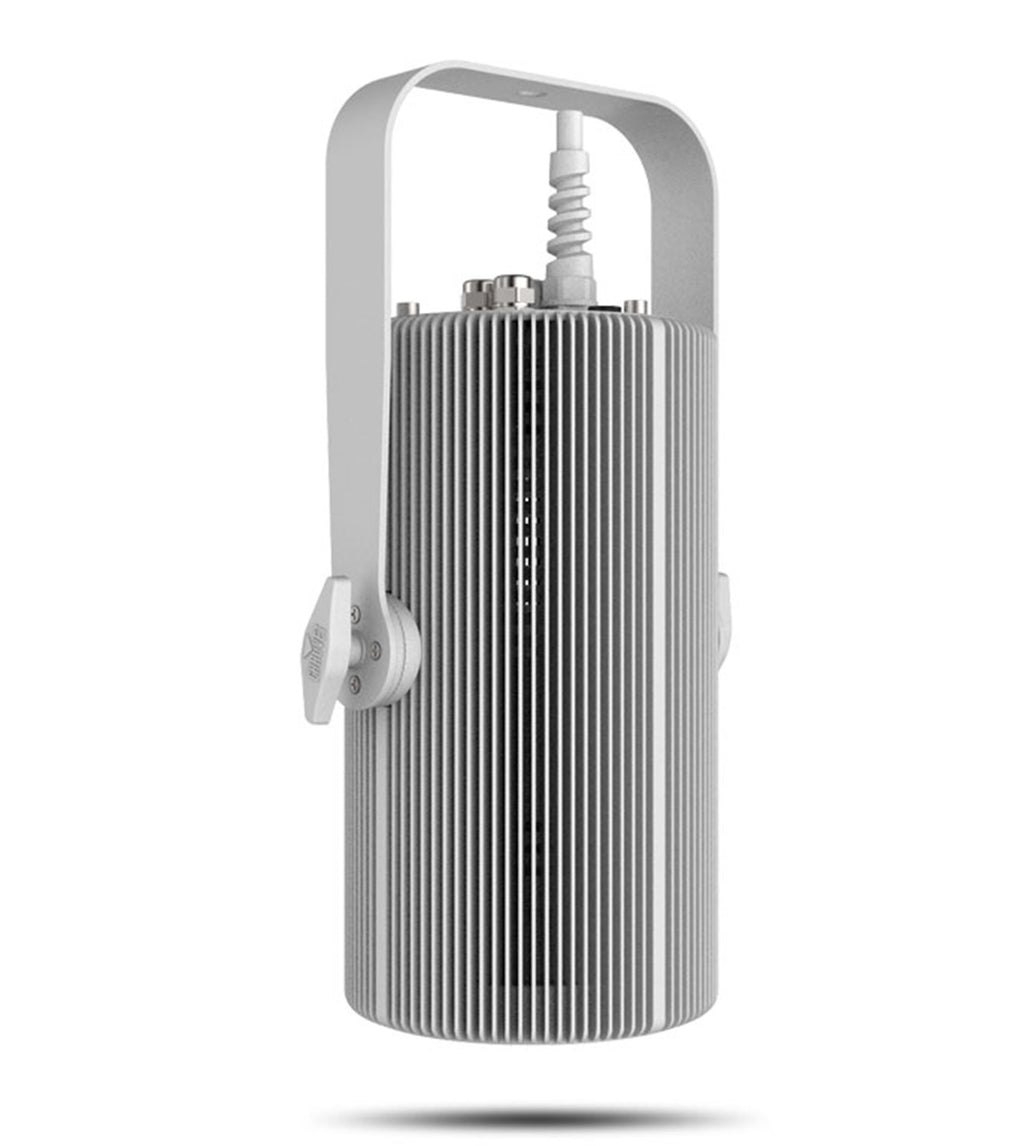

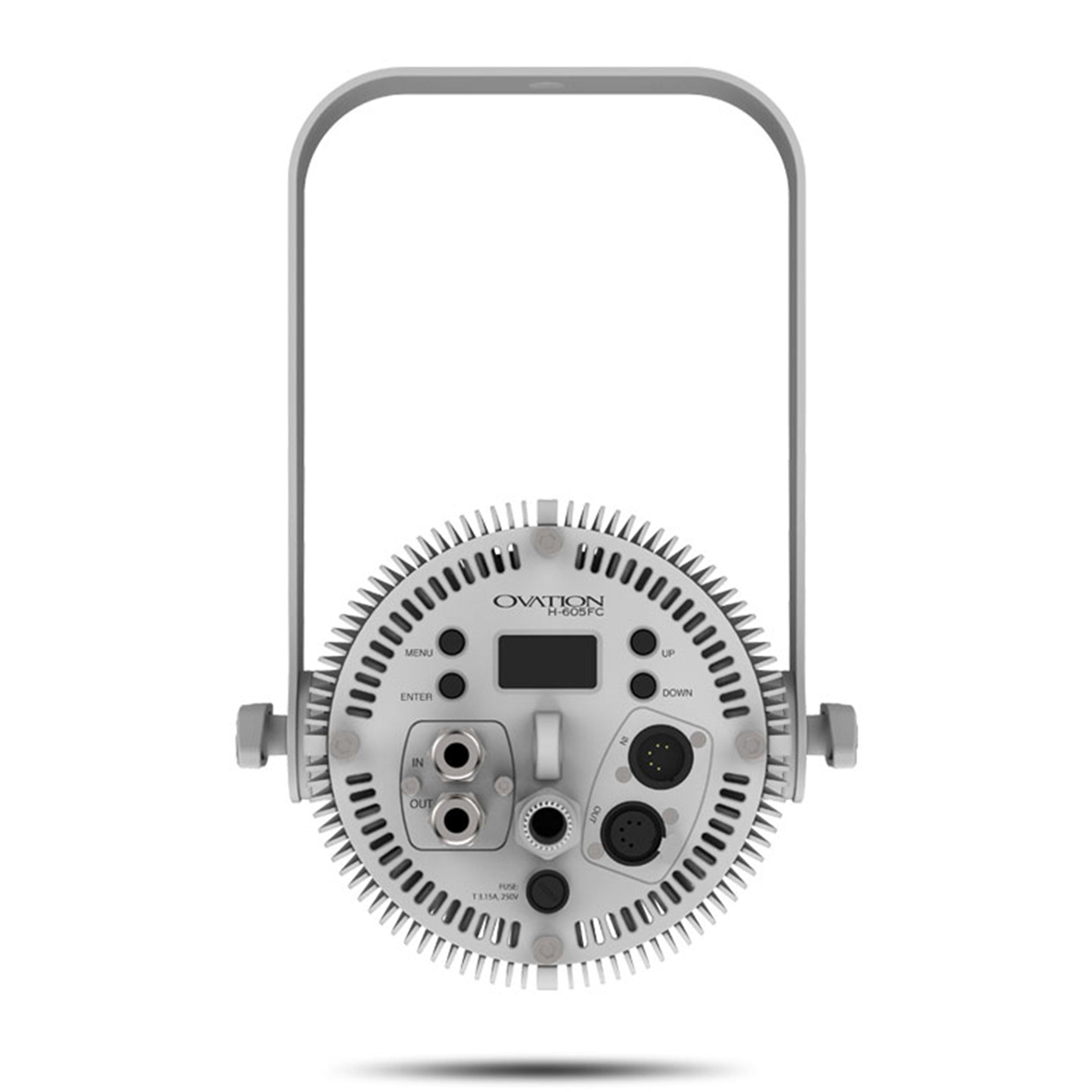

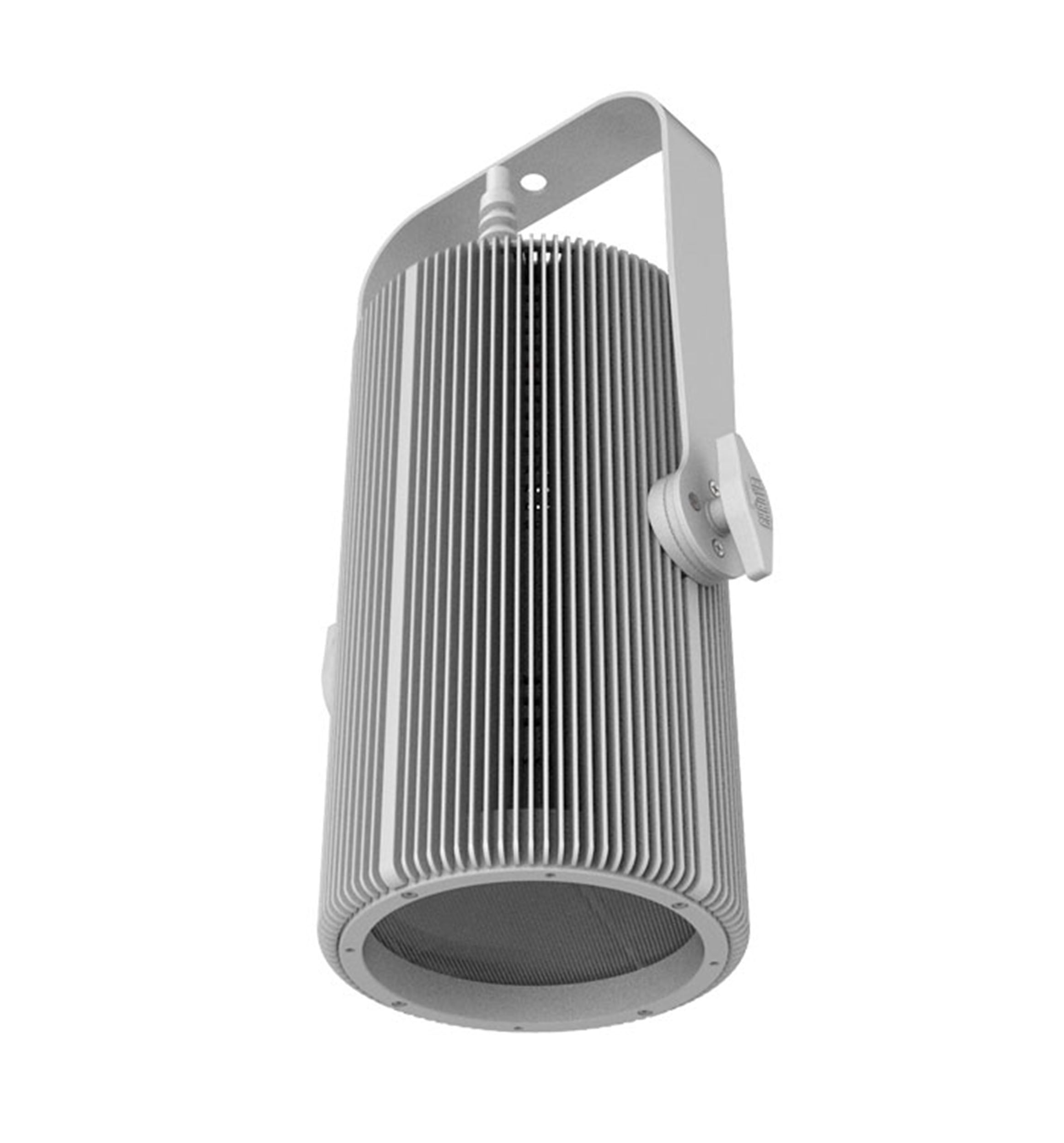

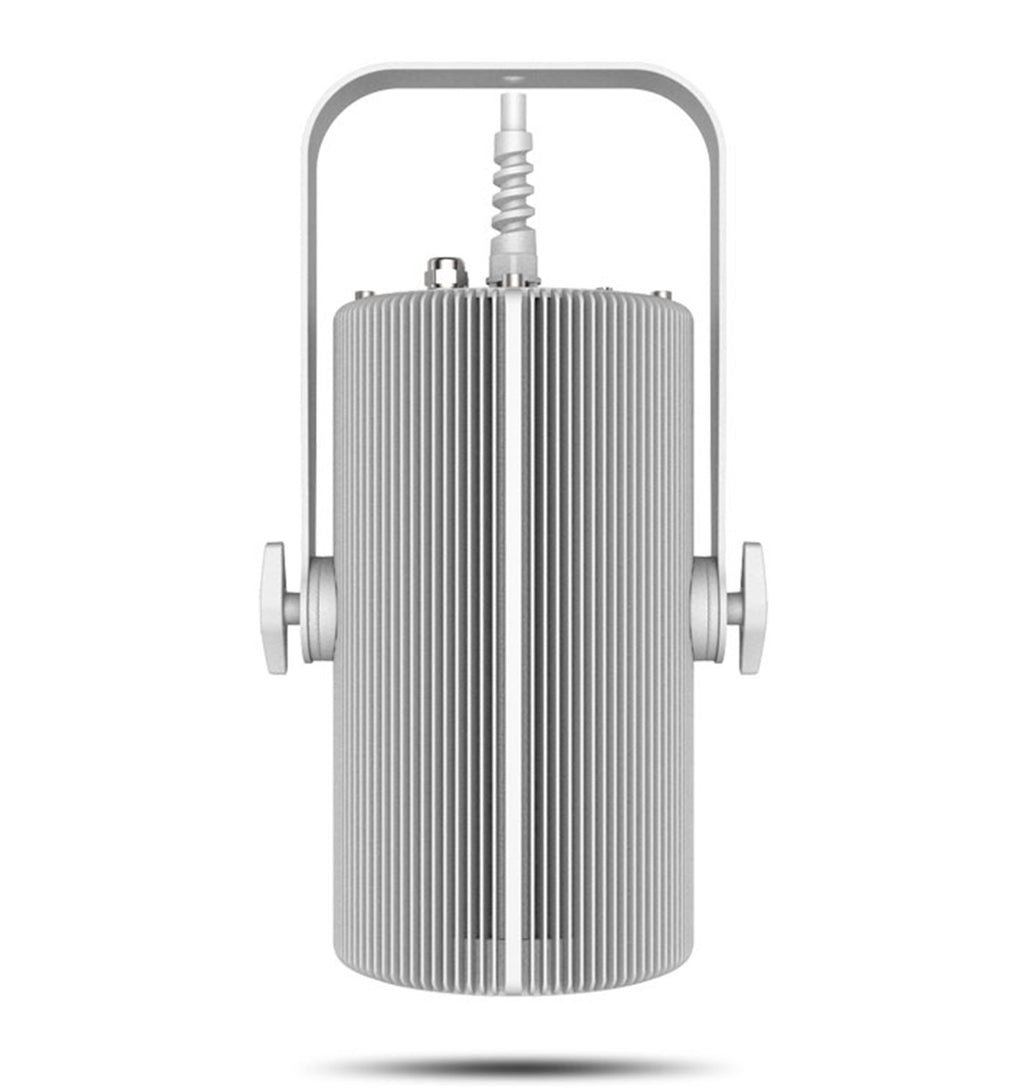

Chauvet Pro Ovation H-605FC Led Light - White

The Chauvet Pro Ovation H-605FC Led Light - White takes full advantage of LED technology, utilizing the Ovation standard RGBA-Lime color palette to enable the fixture to replicate nearly any color with tremendous color rendering, as well as nearly any color temperature of white. Superior convection cooling provides excellent output in a compact package. Ideal for theatrical and house of worship applications, setup and control is now easier than ever with the addition of W-DMX, RDM, adjustable PWM and an easy to navigate OLED full text display. White housing not available in European Markets.

Product Specifications:

Optical

Light Source: 60 LEDs (12 red, 12 green, 12 blue, 12 amber, 12 lime) 2 to 3 W, (800 mA), 4766 K, 50,000 hours life expectancy

Color Temperature (at full): 4766 K

CRI (5000 K): 90

Beam Angle (w/80° filter): 40°

Beam Angle (w/65° lens): 51°

Beam Angle (w/45° lens): 39°

Beam Angle (w/25° lens): 37°

Field Angle (w/80° filter): 80°

Field Angle (w/65° lens): 79°

Field Angle (w/45° lens): 66°

Field Angle (w/25° lens): 37°

Dimming Modes: 4

Illuminance (w/80° filter): 163 lux @ 5 m

Illuminance (w/65° lens): 171 lux @ 5 m

Illuminance (w/45° lens): 349 lux @ 5 m

Illuminance (w/25° lens): 1,047 lux @ 5 m

Lumens (w/80° filter): 2,694

Lumens (w/65° lens): 3,769

Lumens (w/45° lens): 3,769

Lumens (w/25° lens): 3,938

Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6000 Hz, 25,000 Hz

Dynamic Effects

Dimmer: Electronic

Shutter/Strobe: Electronic

Strobe Rate: 0 to 27 Hz

Standalone Color Mixing: Yes

Color Temperature Presets: Yes

Dim Modes: 4

Built-in Automated Programs: Yes

Construction / Physical

Dimensions: 13.11 x 9.44 x 13.34 in (333 x 240 x 339 mm)

Weight: 19.6 lb (8.9 kg)

Exterior Color: Black or White

Connections

Power Connection: Bare-wired

Power Input: Hard-wired

Data Connectors: 5-pin XLR, Phoenix connector

Cable Length (power): 15 ft (4.5 m)

Control

Control Protocol: DMX, RDM, W-DMX

DMX Channels: 2, 4, 5, 8, 11, 13, 14, 16 or HSV

Modes/Personalities: 9 personalities (2, 4, 5, 8, 11, 13, 14, 16, HSV)

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

Power and Current: 145 W, 1.43 A @ 100 V, 60 Hz

Power and Current: 142 W, 1.19 A @ 120 V, 60 Hz

Power and Current: 146 W, 0.704 A @ 208 V, 60 Hz

Power and Current: 145 W, 0.627 A @ 230 V, 50 Hz

Power and Current: 145 W, 0.605 A @ 240 V, 60 Hz

Certifications / Qualifications

CE, MET, FCC

IP Rating: IP20, dry location

What's Included

Ovation H-605FC

65°, 45° and 25° lenses

80° filter

Egg crate

Optional Accessories

W-DMX Transmitter

Professional Clamps: CTC-50HC, CTC-50HCN

5-pin DMX Cables

RDM2go
