Description

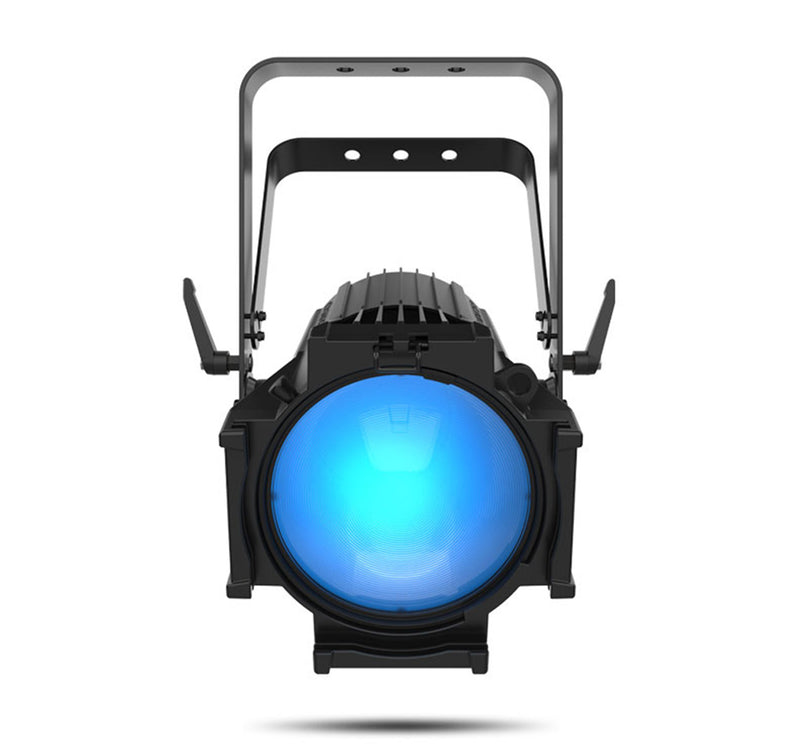

The Chauvet Pro Ovation P-56FC Compact Silent Full Color PAR Light - RGBA+Lime is a compact, virtually silent par that produces a homogenized, single-source, flat and even field of light with high CRI. The bright unit utilizes the same advanced full color-mixing RGBAL LED system found in the popular Ovation E-910FC ellipsoidal to produce subtle pastels to punchy saturates and nearly any temperature of white. Interchangeable lens plates are included for medium and wide beam angles and the unit accepts standard 7.5” beam shaping accessories. Ideal for theatrical and studio applications, the virtually silent par features extremely smooth 16-bit dimming, as well as RDM and PWM for ease of set-up.
Product Specifications:
Optical
Light Source: 48 LEDs (10 red, 10 green, 8 blue, 8 amber, 12 lime) 3 to 5 W, (1 A), 50,000 hours life expectancy
Color Temperature (range): 2800 to 6500 K
Color Temperature (at full): 4889 K
CRI (3200): 90
Beam Angle (Medium Lens): 24°
Beam Angle (Wide Lens): 73°
Field Angle (Medium Lens): 41°
Field Angle (Wide Lens): 105°
Lumens (Medium Lens): 5,436
Lumens (Wide Lens): 5,216
Illuminance (Medium Lens): 1,250 lux @ 5 m
Illuminance (Wide Lens): 197 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
Dynamic Effects
Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 30 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Built-in Automated Programs: Yes
Construction / Physical
Dimensions: Dimensions: 12.48 x 12.83 x 14 in (317 x 326 x 363 mm)
Weight: 12.2 lb (5.6 kg)
Exterior Color: Black
Housing Material: Aluminum die-cast
Accessory Holder/Gel Frame Size: 7.5 in (191 mm)
Connections
Power Connection: Edison (Local) plug to Neutrik powerCON
Power Input: Neutrik powerCON
Power Output: Neutrik powerCON
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
Control
Control Protocol: DMX, RDM
DMX Channels: 1, 3, 5, 7, 10, 12, 13, 16 or HSV
Modes/Personalities: 9 personalities (1, 3, 5, 7, 10, 12, 13, 16, HSV)
Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 7 units @ 100 V; 9 units @ 120 V; 16 units @ 208 V; 18 units @ 230 V; 18 units @ 240 V
Power and Current: 167 W, 1.740 A @ 100 V, 60 Hz
Power and Current: 164 W, 1.413 A @ 120 V, 60 Hz
Power and Current: 158 W, 0.813 A @ 208 V, 60 Hz
Power and Current: 156 W, 0.747 A @ 230 V, 50 Hz
Power and Current: 155 W, 0.716 A @ 240 V, 50 Hz
Certifications / Qualifications
CE, MET, FCC
IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
What's Included
Ovation P-56FC
Neutrik powerCON power cord
Gel frame holder (7.5 in/191 mm accessories)
Medium and Wide Lens
Optional Accessories
Professional Clamps: CTC-50HC, CTC-50HCN
Neutrik powerCON cables
3-pin or 5-pin DMX Cables
Color Blending Filters: DF60X1D, DF20D
Ovation F 7.5” Barndoor V2
Ovation 60 deg, 7.5” Honeycomb
