Description

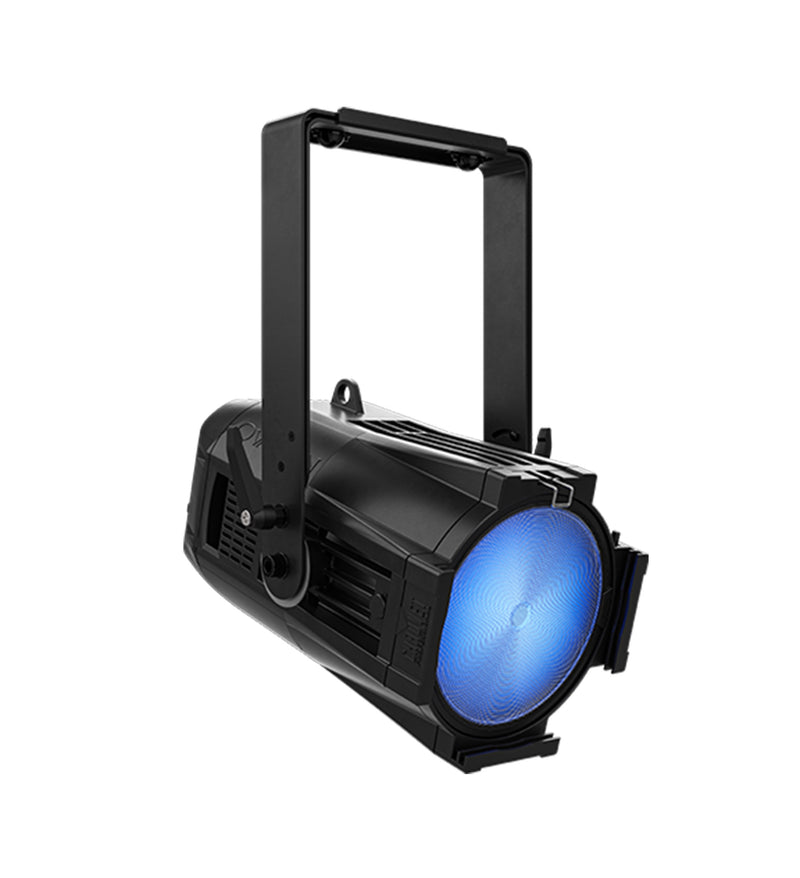

The Chauvet Pro Ovation Reve P3 IP Led Lighting Fixture - Black is our brightest IP65-rated multi-color full-spectrum-white LED PAR. An outdoor fixture with unsurpassed power and quality of light that incorporates all the advancements of our Ovation Rêve RGBAM LED source, and offers the versatility of Narrow, Medium, Wide and Very Wide lenses. Linear color temperature presets from 2800 K to 8000 K with high CRI and CQS. Adjustable PWM (Pulse Width Modulation) avoids on camera flicker. Indoors or out, a powerful instrument for theatrical, house of worship, special events, rental and production use.
Product Specifications:
Optical
Color Temperature (range): 2800 to 8000 K
Color Temperature (at full): 5399 K
Beam Angle (Narrow Lens): 11.9°
Beam Angle (Medium Lens): 25.6°
Beam Angle (Wide Lens): 29.3°
Beam Angle (Very Wide Lens): 43.5°
Field Angle (Narrow Lens): 20.8°
Field Angle (Medium Lens): 37.8°
Field Angle (Wide Lens): 43.1°
Field Angle (Very Wide Lens): 87.9°
Lumens (Narrow Lens): 10,051
Lumens (Medium Lens): 10,079
Lumens (Wide Lens): 9,936
Lumens (Very Wide Lens): 8,380
Illuminance (Medium Lens): 1,950 lux @ 5 m
Illuminance (Wide Lens): 1,475 lux @ 5 m
Illuminance (Very Wide Lens): 401 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
Dynamic Effects
Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 25 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Built-in Automated Programs: Yes
Construction / Physical
Dimensions: Dimensions: 18.82 x 11.81 x 8.27 in (478 x 300 x 210 mm)
Weight: 21.4 lb. (9.8 kg)
Exterior Color: Black
Housing Material: Aluminum diecast
Accessory Holder/Gel Frame Size: 7.5 in (191 mm)
Connections
Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
Software Connection: USB
Control
Control Protocol: DMX, RDM
DMX Channels: 1, 4, 5, 7, 11, 13ch1, 13ch2, 17 or HSV
Modes/Personalities: 9 personalities (1, 4, 5, 7, 11, 13ch1, 13ch2, 17, HSV)
Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 5 units @ 120 V; 8 units @ 208 V; 9 units @ 230 V;
Power and Current: 274 W, 2.31 A @ 120 V, 60 Hz
Power and Current: 267 W, 1.38 A @ 208 V, 60 Hz
Power and Current: 265 W, 1.25 A @ 230 V, 50 Hz
Certifications / Qualifications
CE, MET, FCC, UKCA
IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE valve
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
What's Included
Ovation Reve P-3 IP
Seetronic Powerkon power cord
Narrow, Medium, Wide, Very Wide Lens
Gel Frame Holder
Optional Accessories
Professional Clamps: CTC-50HC, CTC-50HCN
Safety Cable: SC-07
TRUE1 Style Power Extension Cables
5-pin IP65 DMX Cables
RDM2go
USB Jump Drive
Ovation F 7.5” Barndoor V2
