Description

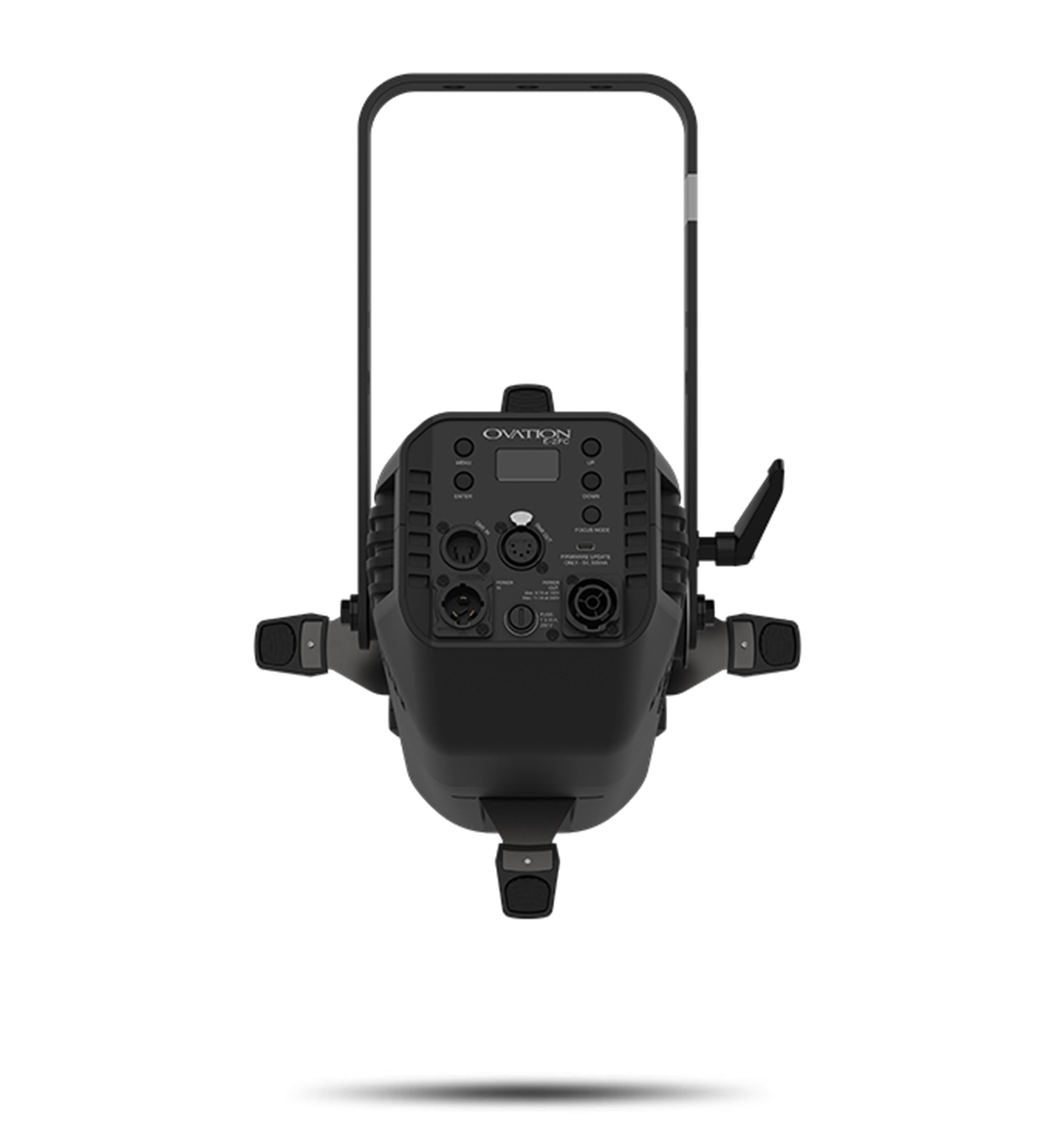

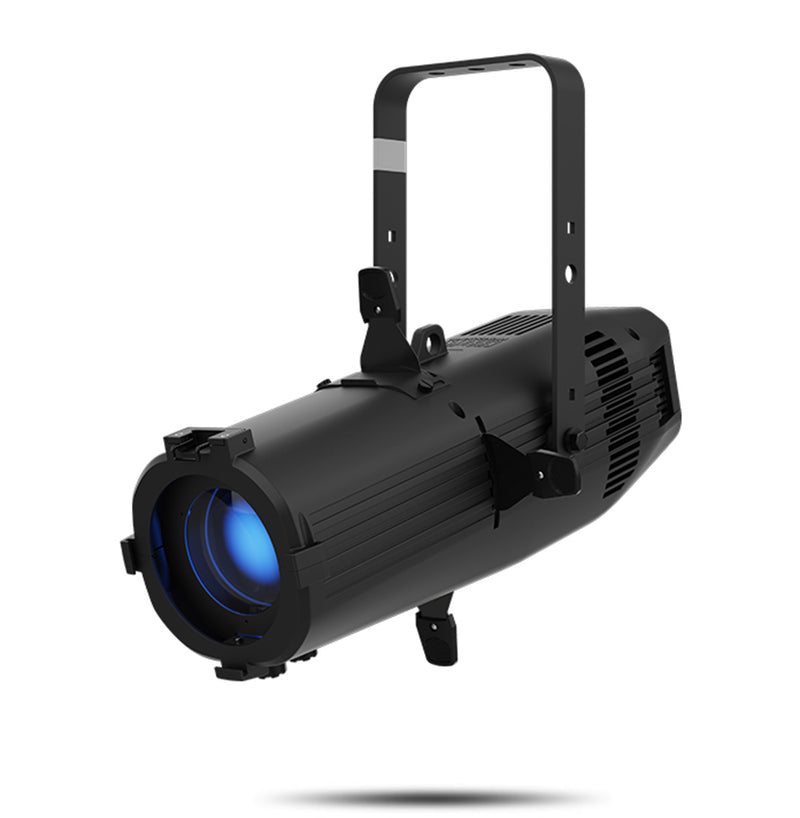

The Chauvet Pro OVATIONE2FC RGBA-Lime LED Ellipsoidal Spotlight is a compact LED ellipsoidal spotlight that delivers high quality of light and convenient features in a quiet durable design optimized for smaller venues. Its advanced full spectrum Ovation RGBA-Lime color mixing system produces exceptionally high CRI output that can be smoothly sized with an integrated manual Zoom and focusing made easier with a dedicated Focus Mode button.
Product Specifications:
Optical
Light Source: 72 LEDs (15 reds 11 green, 6 blue, 4 cyan, 14 amber, 22 lime) 6 to 9.75 W, (1.5 A) 50,000 hours life expectancy
Color Temperature (range): 2800 to 8000 K
Color Temperature (at full): 4525 K
CRI (3200 K): 93
Beam Angle Spot: 23.8°
Beam Angle Flood: 46.4°
Beam Angle 50% Zoom: 38.7°
Field Angle Spot: 25.6°
Field Angle Flood: 51°
Field Angle 50% Zoom: 41.3°
Cutoff Angle Spot: 24.9°
Cutoff Angle Flood: 51.8°
Cutoff Angle 50% Zoom: 41.9°
Zoom Range: 23.8° to 51.8°
Lumens (Spot): 3708 lm
Lumens (Flood): 5608 lm
Lumens (50% Zoom): 5147 lm
Illuminance (Spot): 1107 lux @ 5 m
Illuminance (Flood): 488 lux @ 5 m
Illuminance (50% Zoom): 595 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
Dynamic Effects
Framing Shutters: Yes
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Manual
Focus: Manual
Strobe Rate: 0 to 25 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Dim Curves: 4
Built-in Automated Programs: Yes
Construction / Physical
Dimensions: 18.1 x 12.2 x 17.5 in (461 x 310 x 445 mm)
Weight: 14.8 lb (6.7 kg)
Exterior Color: Black
Housing Material: Aluminum die-cast
Accessory Holder/Gel Frame Size: 6.25 in (159 mm)
Gobo Size (Optional): “M”: 66 mm (outside), 48 mm (image), 2 mm (max. thickness)
Connections
Power Connection: Edison (Local) plug to Seetronic Powercon IP65
Power Input: Seetronic Powercon IP65
Power Output: Seetronic Powercon IP65
Data Connectors: 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
Software Connection: USB
Control
Control Protocol: DMX, RDM
DMX Channels: 1, 4, 5, 7, 11, 13ch1, 13ch2, 17 or HSV
Modes/Personalities: 9 personalities (1, 4, 5, 7, 11, 13ch1, 13ch2, 17 or HSV)
Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 7 units @ 120 V; 10 units @ 208 V; 12 units @ 230 V
Power and Current: 208 W, 1.71 A @ 120 V, 60 Hz
Power and Current: 219 W, 1.10 A @ 208 V, 60 Hz
Power and Current: 220 W, 0.98 A @ 230 V, 50 Hz
Certifications / Qualifications
CE, MET, FCC, UKCA
IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
What's Included
Ovation E-2FC
Seetronic Powerkon power cord
Ovation Metal Gobo Holder (“M” Size)
Soft Focus Filter
Quick Reference Guide or User Manual
Optional Accessories
Professional Clamps: CTC-50HC, CTC-50HCN
Seetronic Powerkon power linking cables
5-pin DMX Cables
