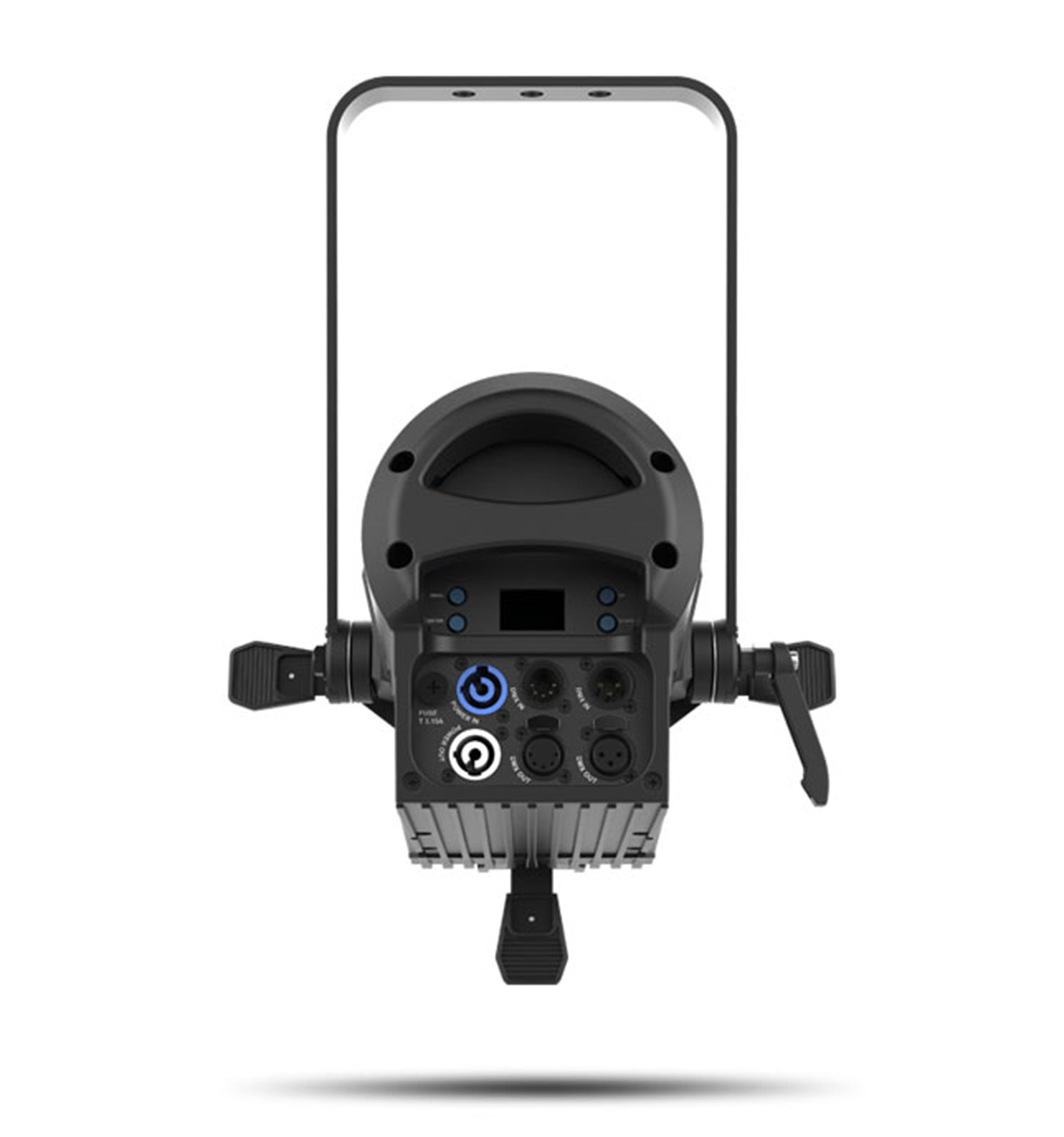

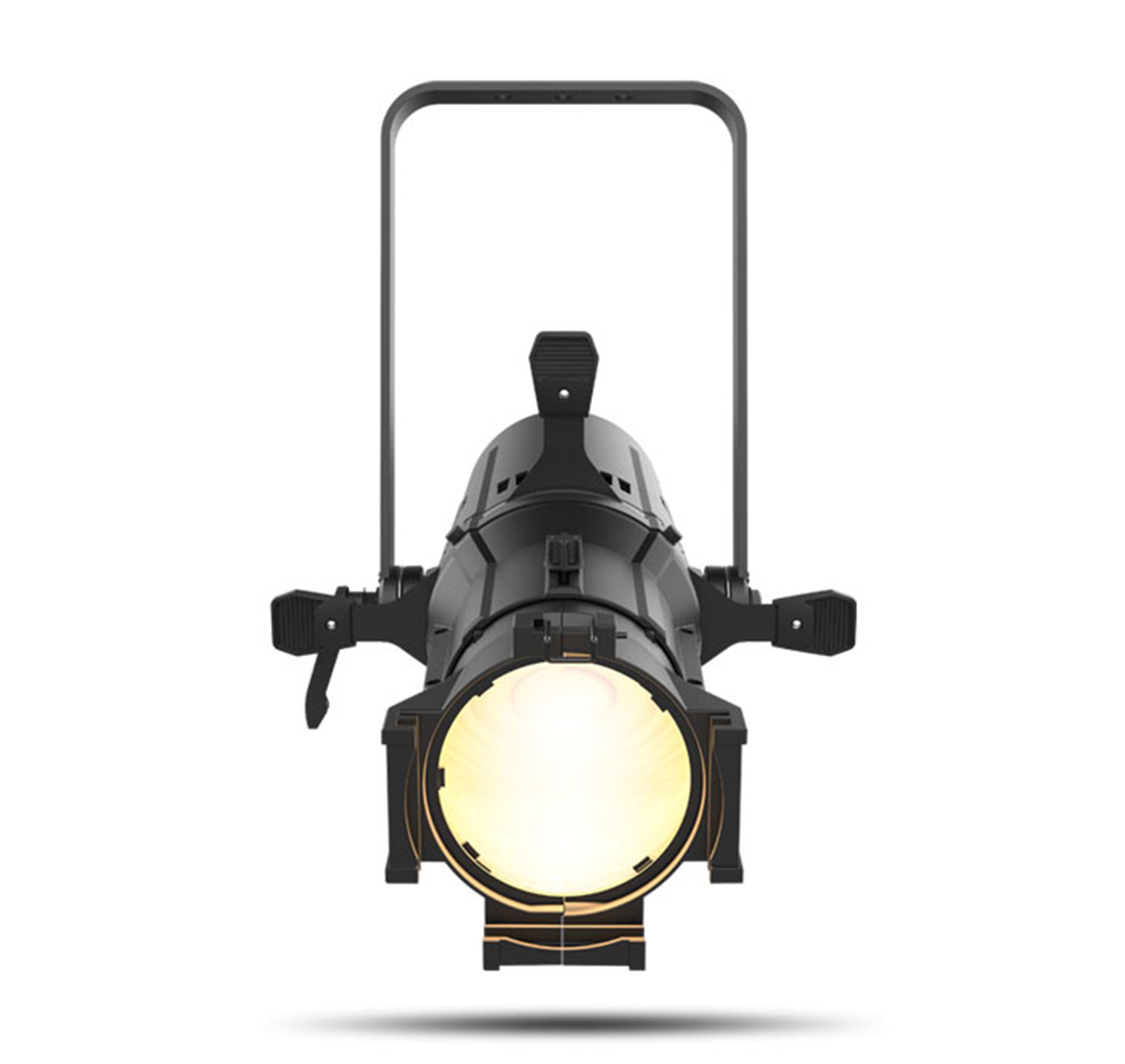

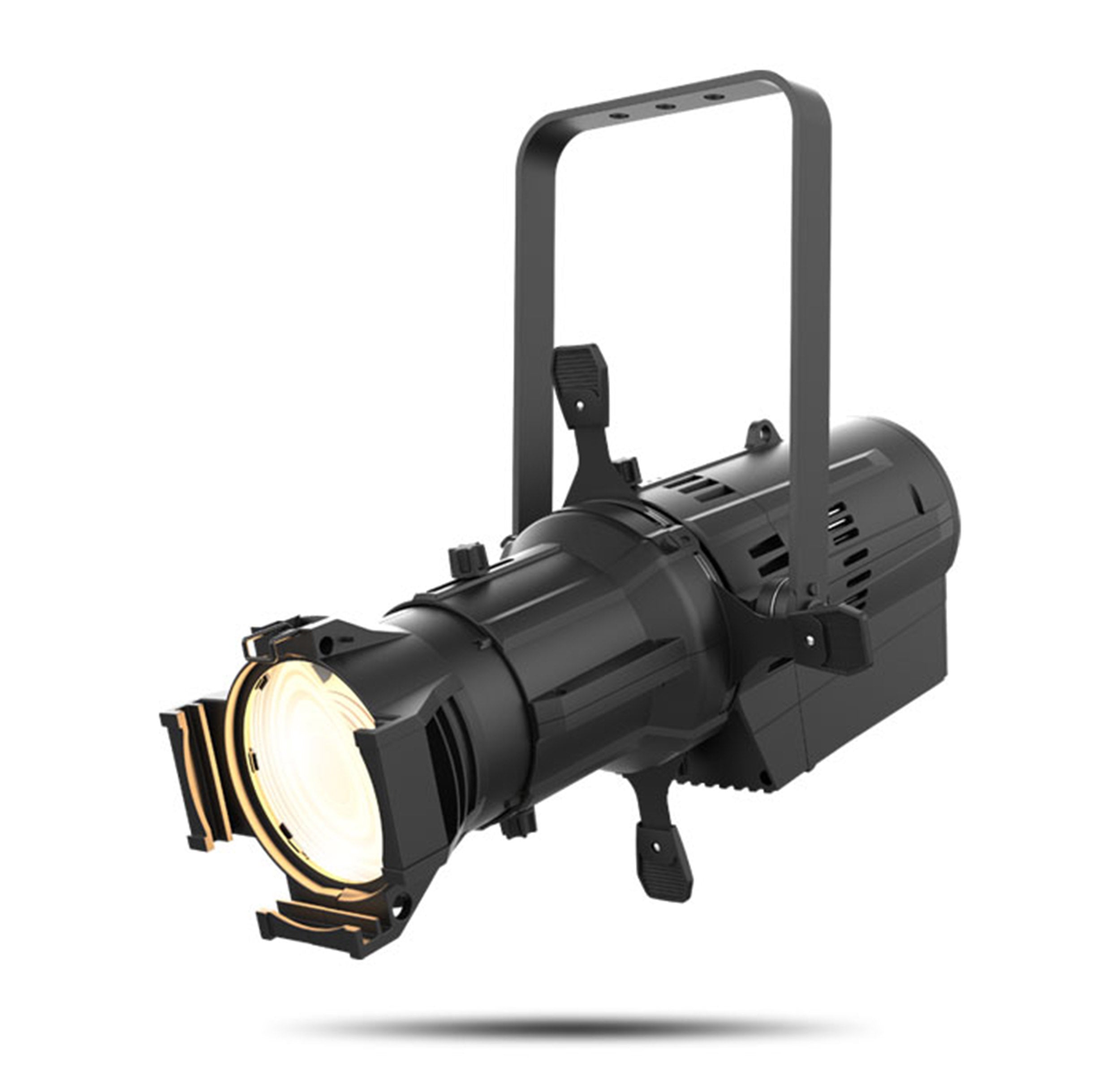

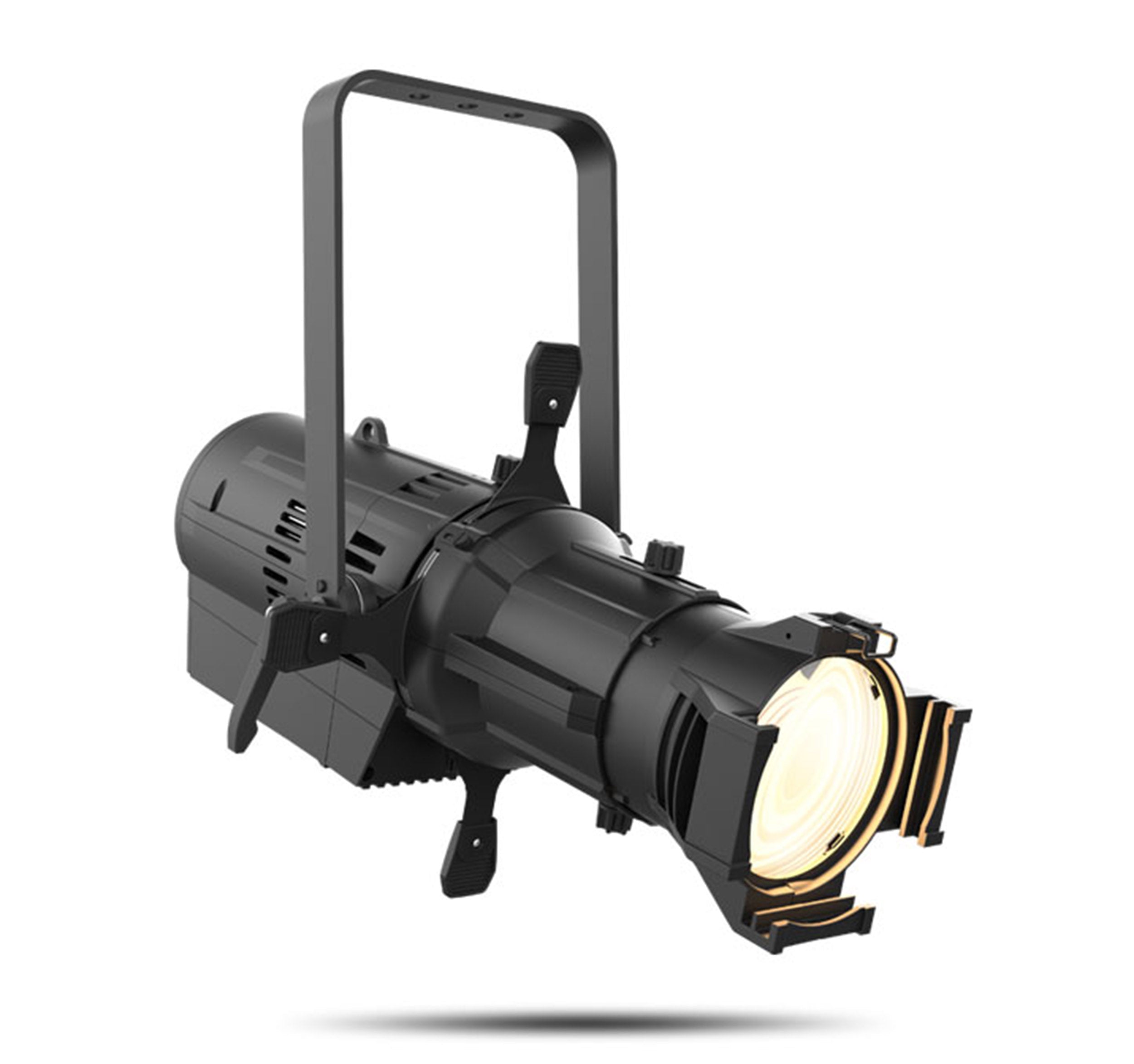

Chauvet Pro Ovation ED-200WW & Ellipsoidal Spot Light Engine Only Lens

The Chauvet Pro OVATIONED200WW, Ellipsoidal Spot Light Engine Only brings a 750 W tungsten equivalent warm white intensity and 95 CRI to our exclusive, award-winning Ovation ED range of LED theatrical fixtures, making it the highest power LED ellipsoidal unit that can sense and respond to traditional dimming systems. This high performance ellipsoidal is equally as efficient running on constant power and DMX, as it is when connected directly to a dimming power source. Advanced onboard electronics automatically detect what type of power and data the fixture receives, and it responds accordingly. Retrofit and upgrade to the benefits of LED lighting without being held back by previous investments made in major dimming systems.

Product Specifications:

Optical

Light Source: 1 LEDs (WW) 230 W, (3.4 A), 100,000 hours life expectancy

Color Temperature (at full): 3334 K

CRI: 97

Beam Angle (w/5° lens): 7°

Beam Angle (w/10° lens): 9°

Beam Angle (w/14° lens): 11°

Beam Angle (w/19° lens): 15°

Beam Angle (w/26° lens): 19°

Beam Angle (w/36° lens): 25°

Beam Angle (w/50° lens): 35°

Field Angle (w/5° lens): 7°

Field Angle (w/10° lens): 10°

Field Angle (w/14° lens): 14°

Field Angle (w/19° lens): 17°

Field Angle (w/26° lens): 25°

Field Angle (w/36° lens): 33°

Field Angle (w/50° lens): 50°

Lumens (w/5° lens):

Lumens (w/10° lens):

Lumens (w/14° lens):

Lumens (w/19° lens): 11,534

Lumens (w/36° lens): 13,946

Lumens (w/50° lens): 12,754

Lumens (w/15°-30° lens): 11,739 (@15°), 11,315 (@30°)

Lumens (w/25°-50° lens): 14,243 (@25°), 12,834 (@50°)

Illuminance (w/5° lens): 43,100 lux @ 5 m

Illuminance (w/10° lens): 23,200 lux @ 5 m

Illuminance (w/14° lens): 15,092 lux @ 5 m

Illuminance (w/19° lens): 9,118 lux @ 5 m

Illuminance (w/26° lens): 6,028 lux @ 5 m

Illuminance (w/36° lens): 3,210 lux @ 5 m

Illuminance (w/50° lens): 1,445 lux @ 5 m

Dynamic Effects

Dimmer: Electronic or External Dimmer Rack

Shutter/Strobe: Electronic

Focus: Manual

Strobe Rate: 0 to 18 Hz

Dim Modes: 5

Dim Curves: 4

Construction / Physical

Dimensions: (fixture only): 21.5 x 15 x 15 in (545 x 380 x 380 mm)

Dimensions: (w/5° lens extended): *** x 15 x 15 in (*** x 380 x 380 mm)

Dimensions: (w/10° lens extended): *** x 15 x 15 in (*** x 380 x 380 mm)

Dimensions: (w/26° lens extended): 26.5 x 15 x 15 in (673 x 380 x 380 mm)

Dimensions: (w/15°–30° lens): 42 x 14.6 x 14.6 in (1,068 x 371 x 371 mm)

Dimensions: (w/25°–50° lens): 36.3 x 14.6 x 14.6 in (923 x 371 x 371 mm)

Weight (fixture only): 17.6 lb (7.9 kg)

Weight (w/5° lens): 23.4 lb (10.6 kg)

Weight (w/10° lens): 21.4 lb (9.7 kg)

Weight (w/14° lens): 23 lb (10.4 kg)

Weight (w/26° lens): 21.6 lb (9.8 kg)

Weight (w/15°–30° lens): 30.2 lb (13.6 kg)

Weight (w/25°–50° lens): 27.2 lb (12.3 kg)

Exterior Color: Black

Connections

Power Connection: Edison plug to Neutrik powerCON

Power Input: Neutrik powerCON

Power Output: Neutrik powerCON

Data Connectors: 3- and 5-pin XLR

Cable Length (power): 5 ft (1.5 m)

Control

Control Protocol: DMX, RDM, Dimmer

DMX Channels: 1, 2 or 3

Modes/Personalities: 3 personalities (UNO, DOS, STD.P)

Electrical

Input Voltage: 120/230 VAC, 50/60 Hz (switchable)

Power Linking: 6 units @ 120 V; 12 units @ 230 V

Power and Current: 250 W, 2.074 A @ 120 V, 60 Hz

Power and Current: 254 W, 1.103 A @ 230 V, 50 Hz

Certifications / Qualifications

CE, MET

IP Rating: IP20, dry location

What's Included

Ovation ED-200WW

Neutrik powerCON power cord

Required Accessories

Lens Tube: 14°, 19°, 26°, 36°, 50°

Optional Accessories

Professional Clamps: CTC-50HC, CTC-50HCN

Neutrik powerCON cables

3-pin or 5-pin DMX Cables

Color Blending Filters: DF60X1D, DF20D

Ovation Zoom Lenses: OEZOOM1530, OEZOOM2550
