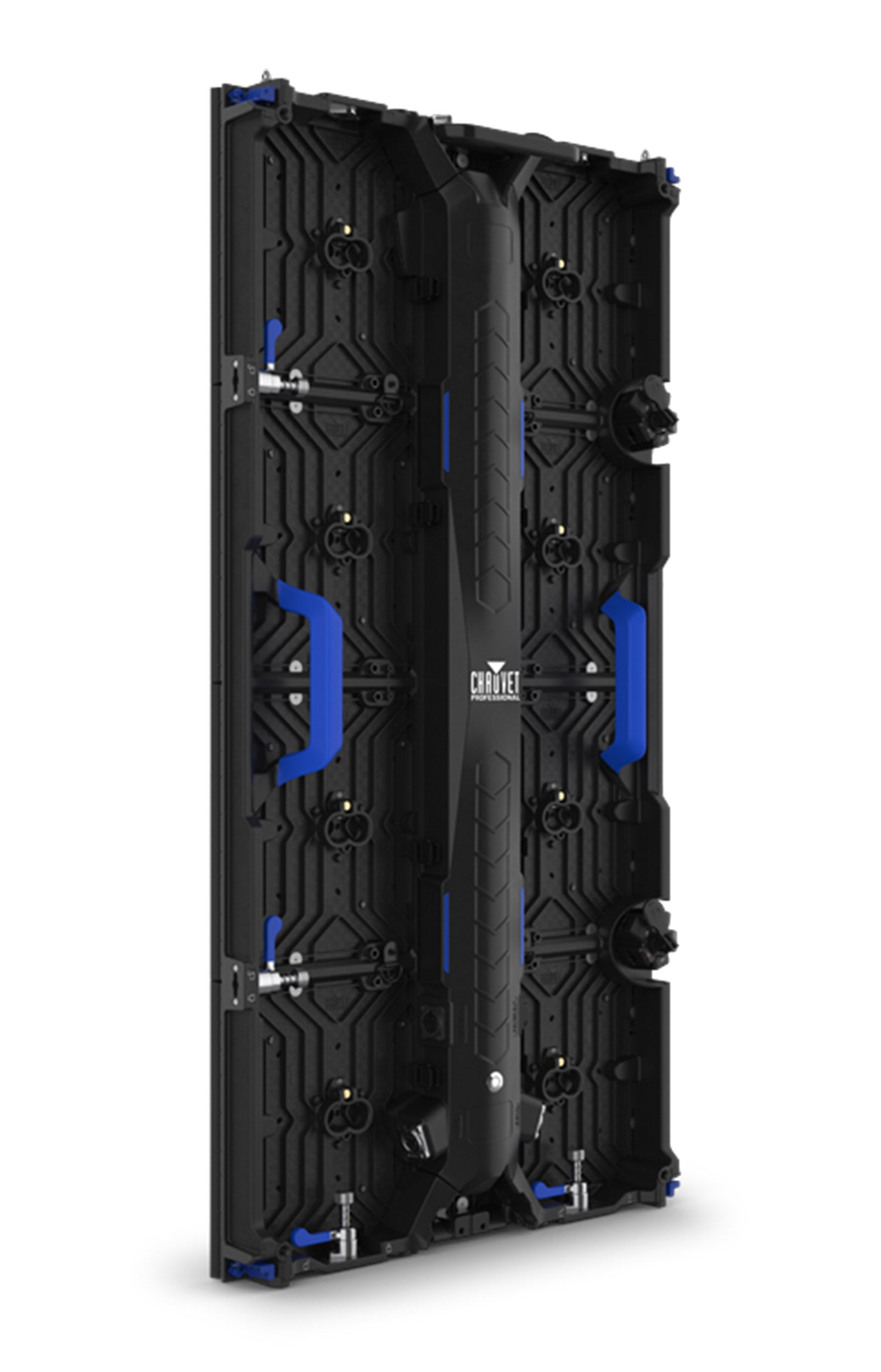

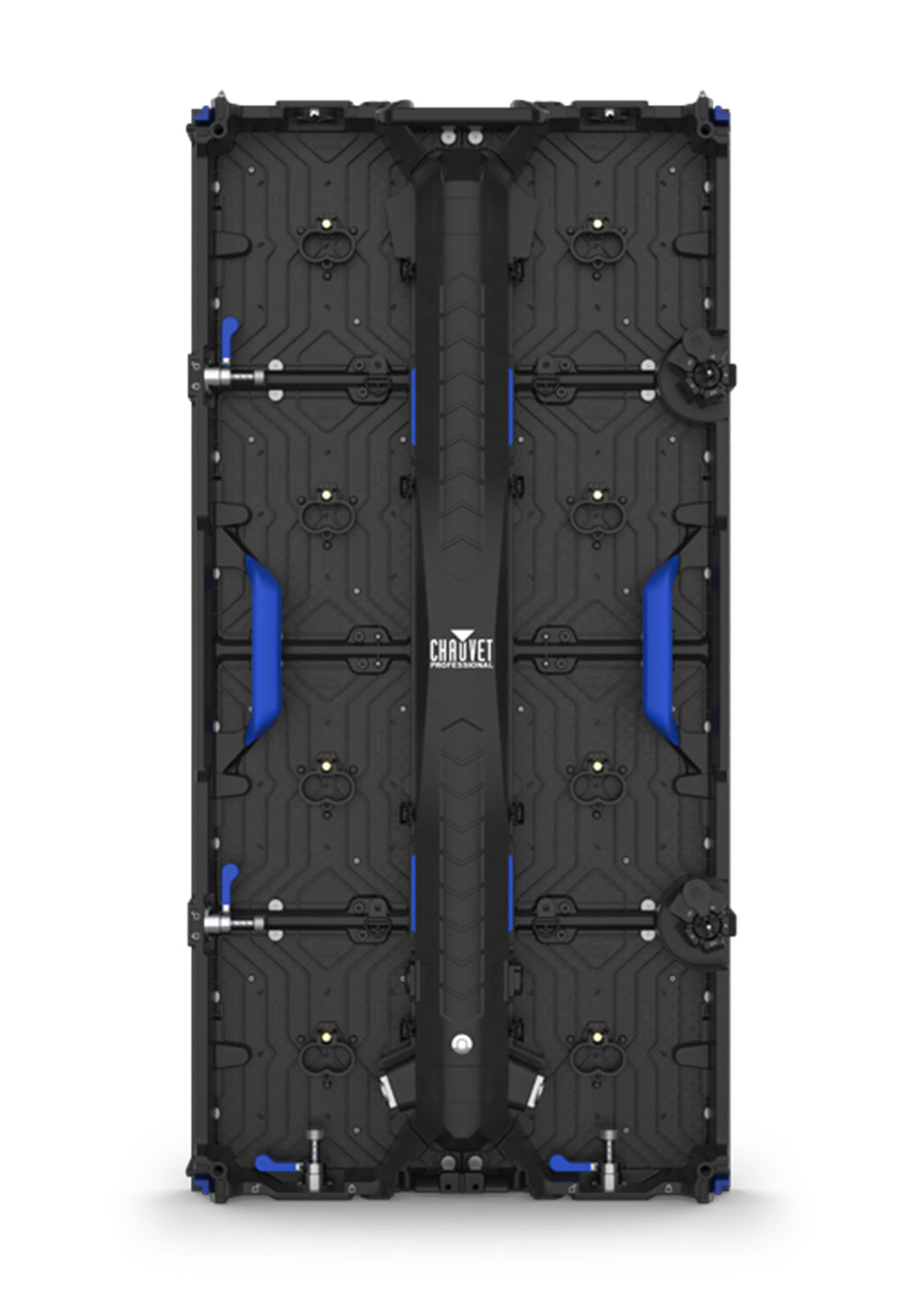

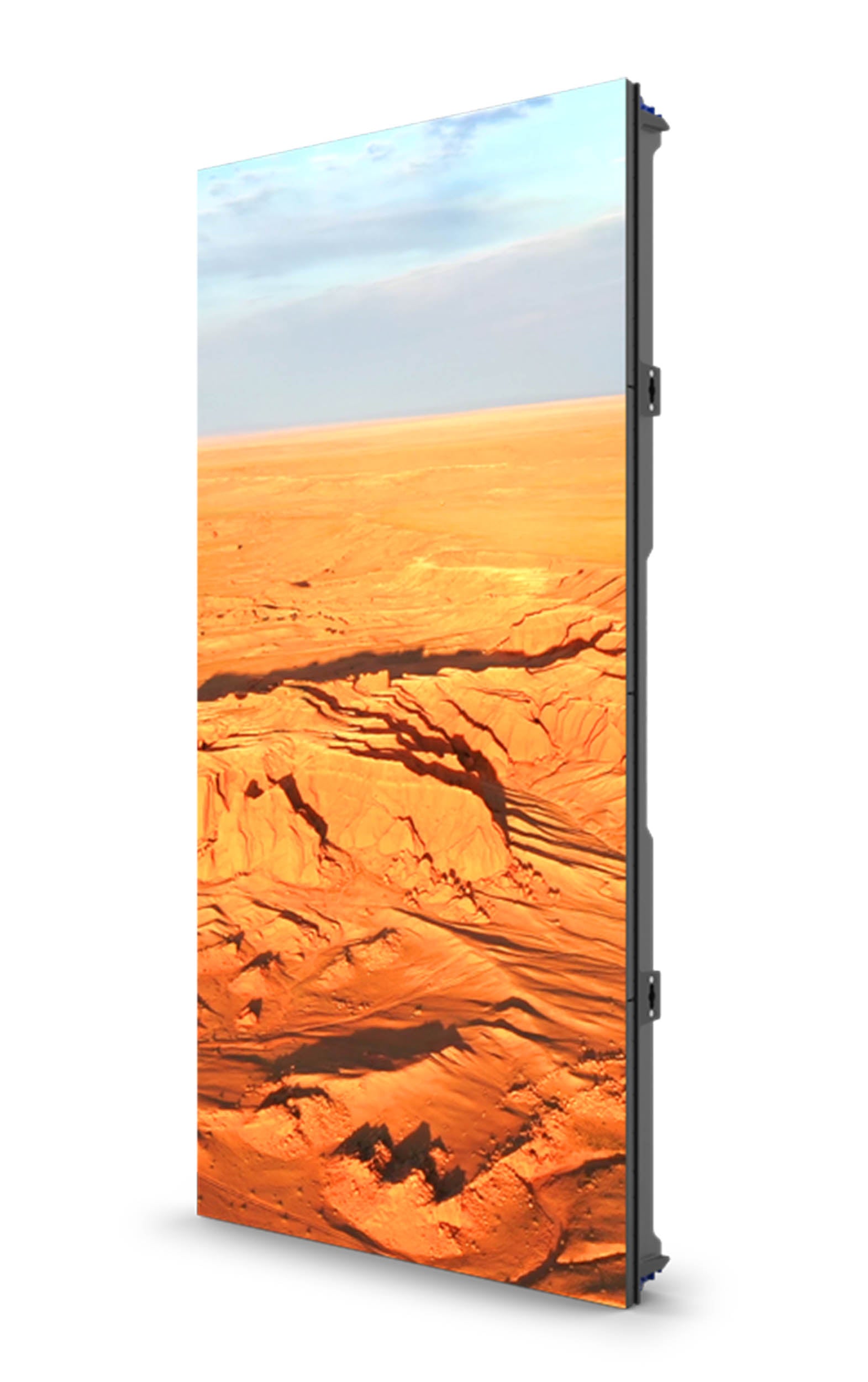

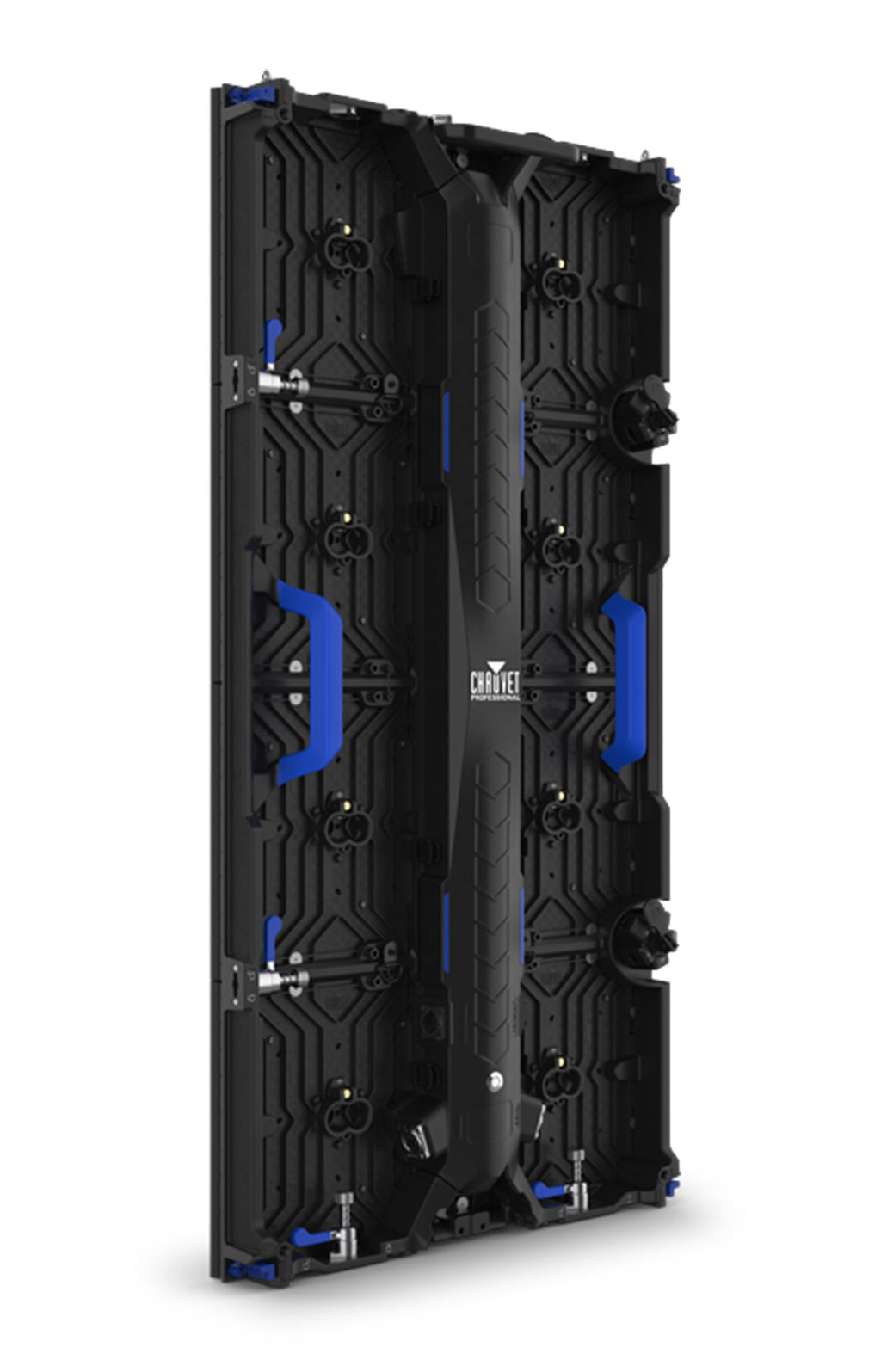

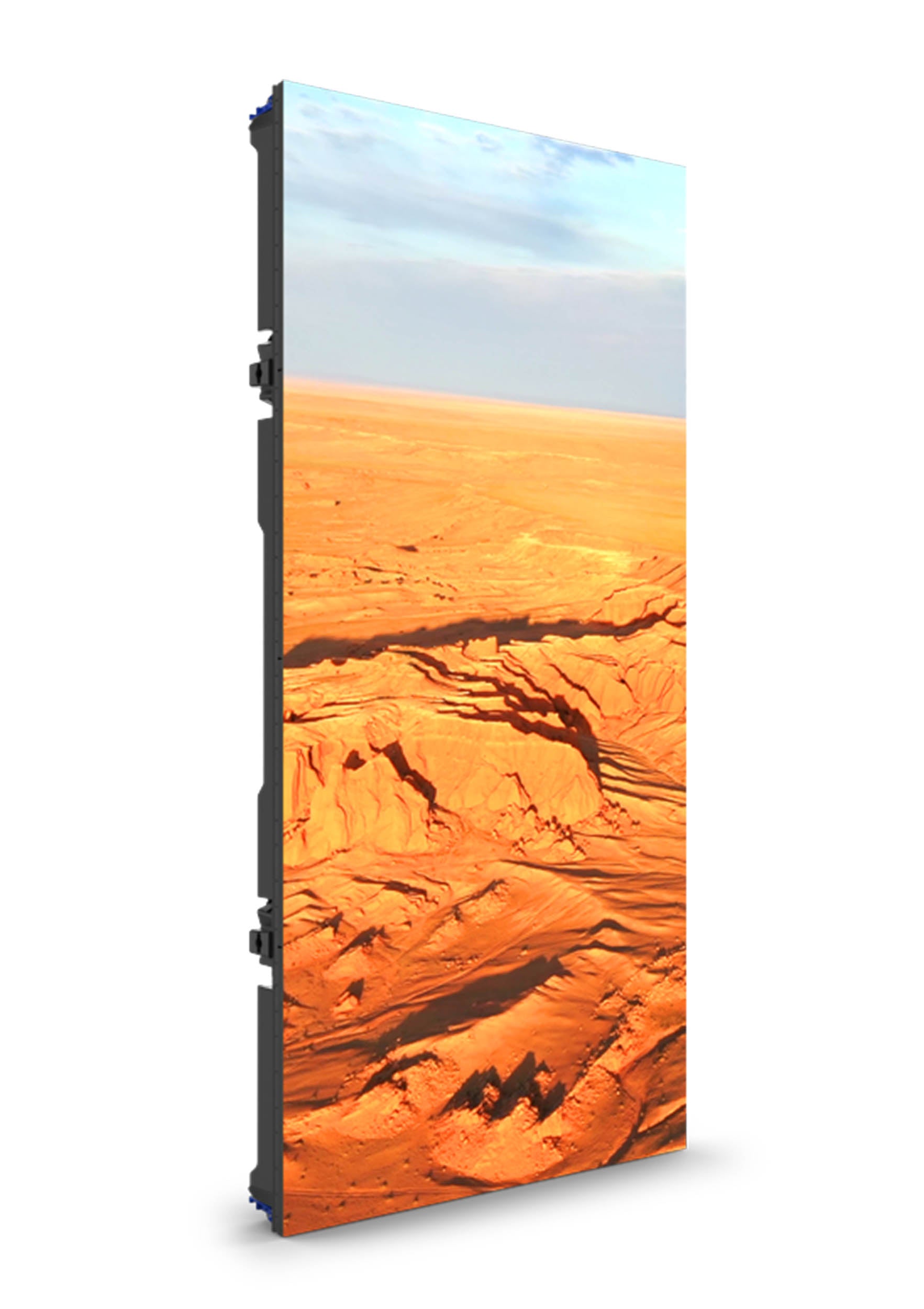

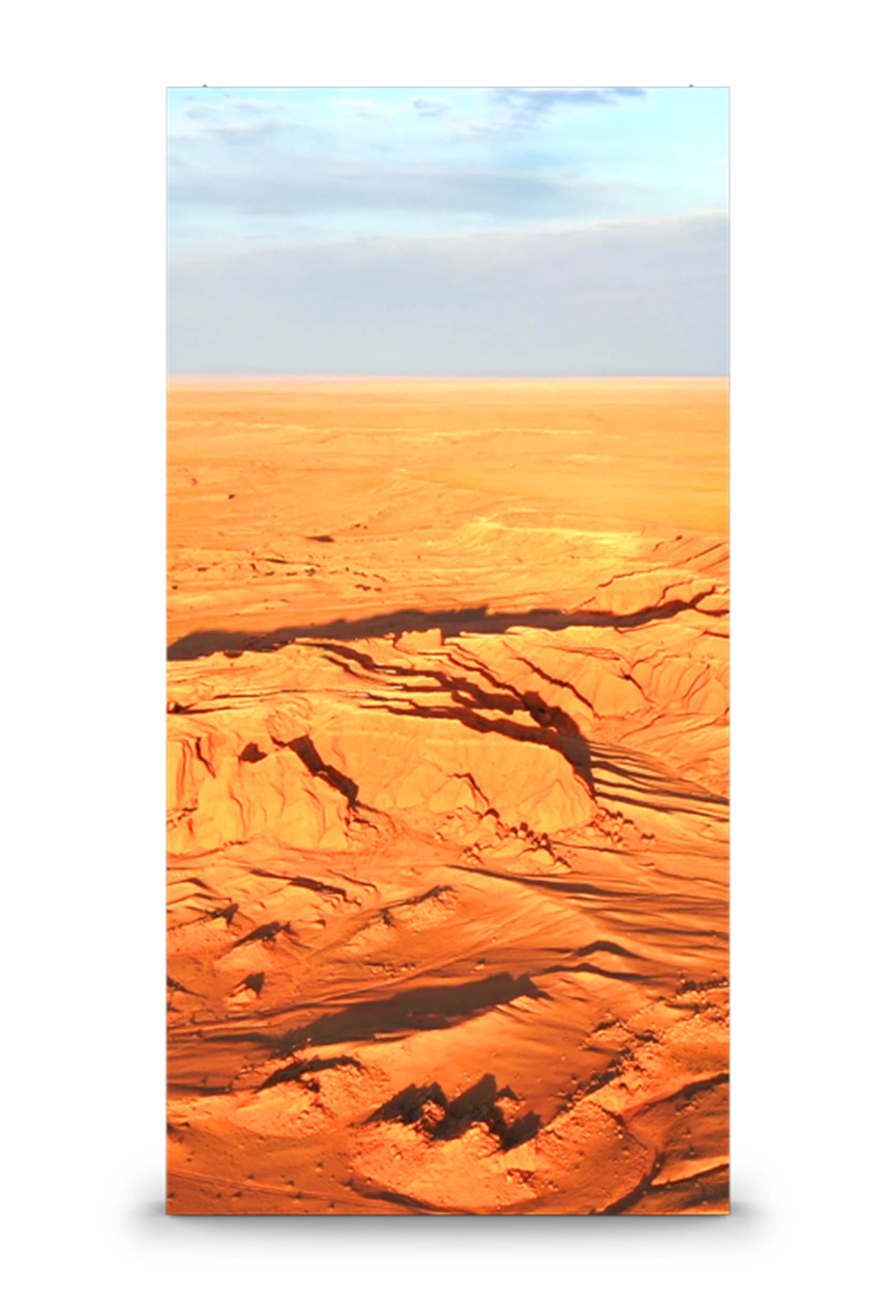

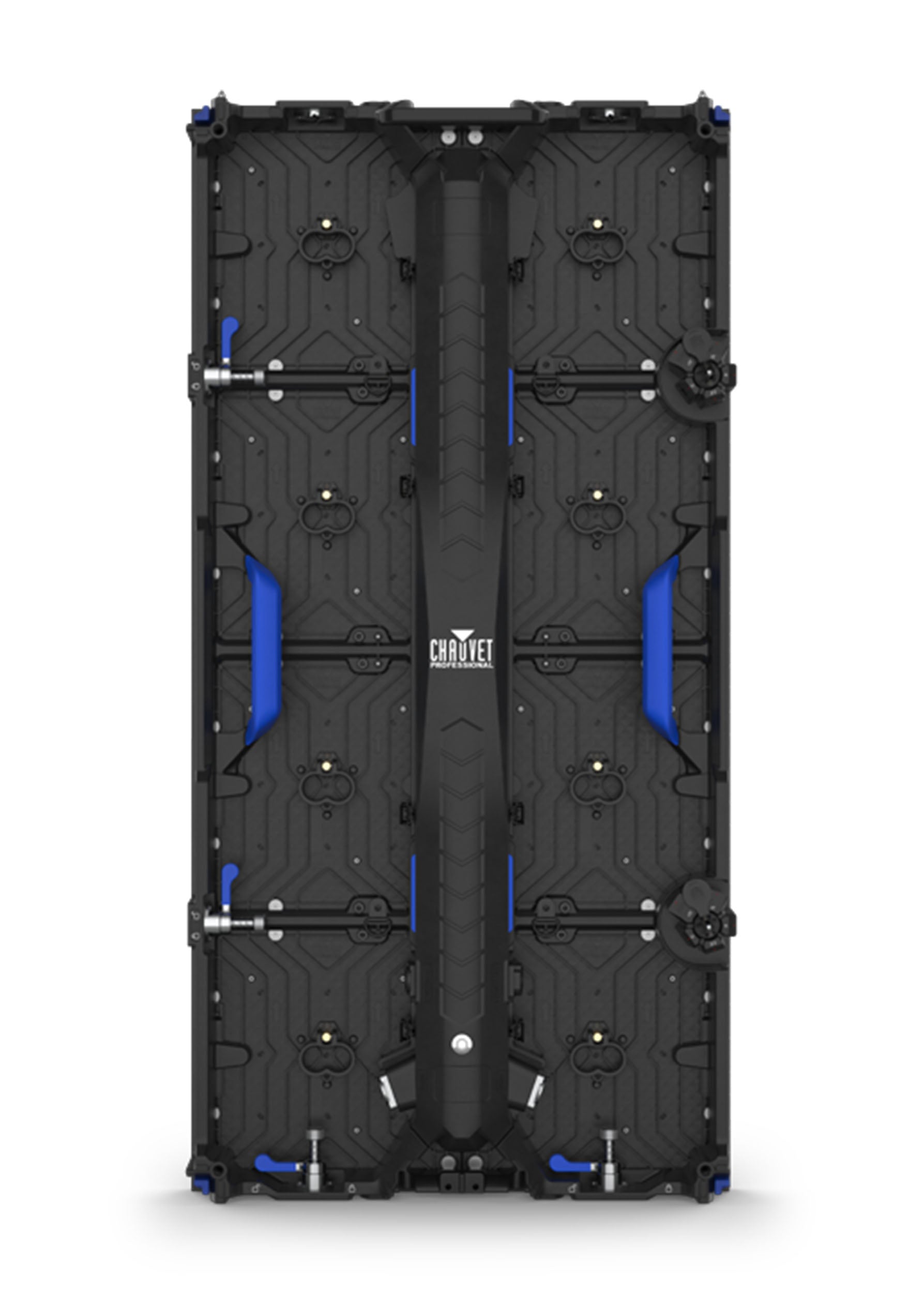

Chauvet Pro REM 1, SMD LED Video Panel - 4 Pack

The Chauvet Pro REM 1, SMD LED Video Panel - 4-Pack is a high-resolution 800 NITS indoor video wall solution with a 1.9mm pitch, integrated convex/concave curving capabilities, and universal magnetic LED modules. Its DCI-P3 color gamut LEDs offer 26% more color possibilities compared to standard sRGB/Rec.709 LEDs. With high-speed 7680Hz LED drivers, A10s Pro Novastar Receiving cards, and low latency, REM 1 offers top-tier performance and signal processing for VR/XR applications, exhibits, houses of worship, installations and indoor events.

Product Specifications:

Light Source:131,072 LEDs (tri-color RGB) SMD 1212, 100,000 hours life expectancy

LED Color Wavelength:red (620 to 625 nm), green (510 to 535 nm), blue (485 to 475 nm)

Color Space:DCI-P3

Viewing Angle (H/V):140°/140°

Calibrated Illuminance:800 NITS (calibrated)

Maximum Illuminance:>1,000 NITS (calibration disabled)

Contrast Ratio:

Grayscale:22-bit+

Receiver Card:A10s Pro

Drive Type:1/21

Pixels:256 x 512

Pixel Pitch:1.9 mm

Minimum Viewing Distance:7.5 ft (2.3 m)

Pixel Density:262,144/m2

Display Refresh Rate:7,680 Hz (S-PWM)

Power Connection:Edison (local) plug to Seetronic powerKON

Power Input:Seetronic powerKON

Power Output:Seetronic powerKON

Data Connectors:Seetronic etherKON

Cable Length (signal extension):4 ft (1.2 m)

Cable Length (power):4.6 ft (1.4 m)

Cable Length (power extension):6 ft (1.8 m)

Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)

Power Linking:7 units @ 120 V; 12 units @ 208 V; 14 units @ 230 V

Power and Current:240 W, 2.0 A @ 120 V, 60 Hz

Power and Current:240 W, 1.15 A @ 208 V, 60 Hz

Power and Current:240 W, 1.04 A @ 230 V, 50 Hz

Dimensions:19.69 x 39.37 in (500 x 1000 mm)

Weight:31.2 lb (14.15 kg)

Threaded Bolt:M10, 1.5

Exterior Color:Black

Housing Material:Aluminum ADC12

LED Module Material:Glass filled Polycarbonate

Maximum vertical hang:11 panels
