Description

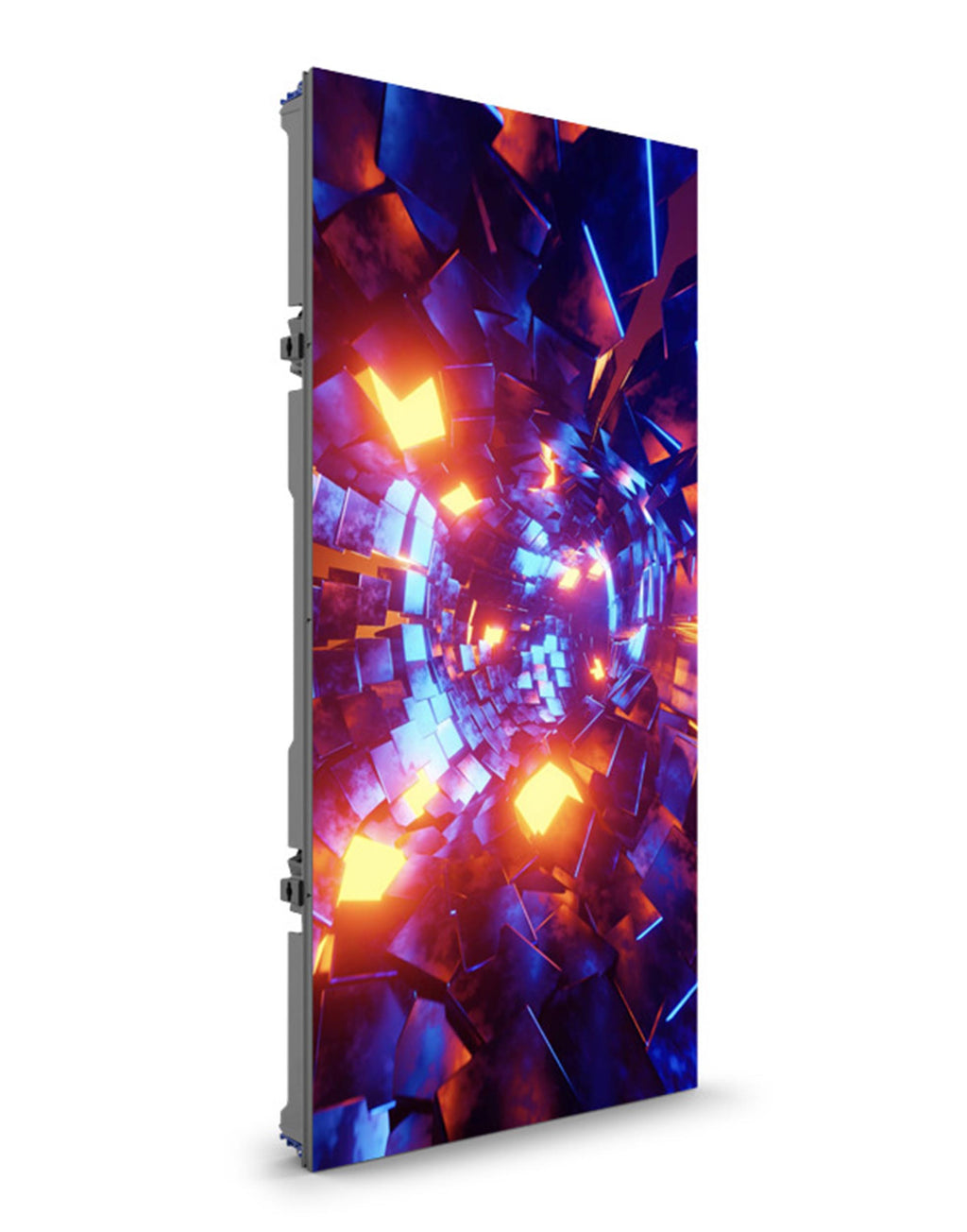

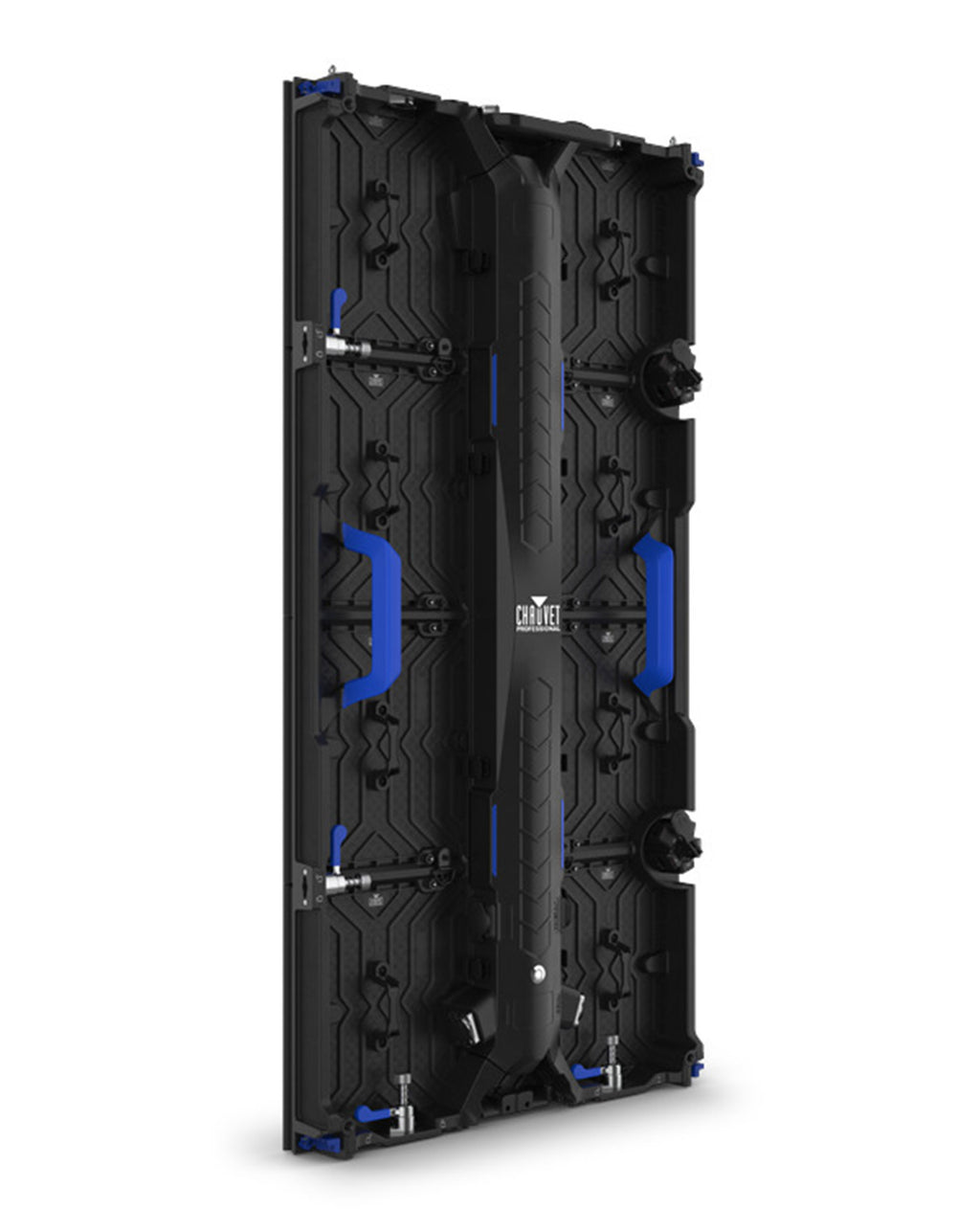

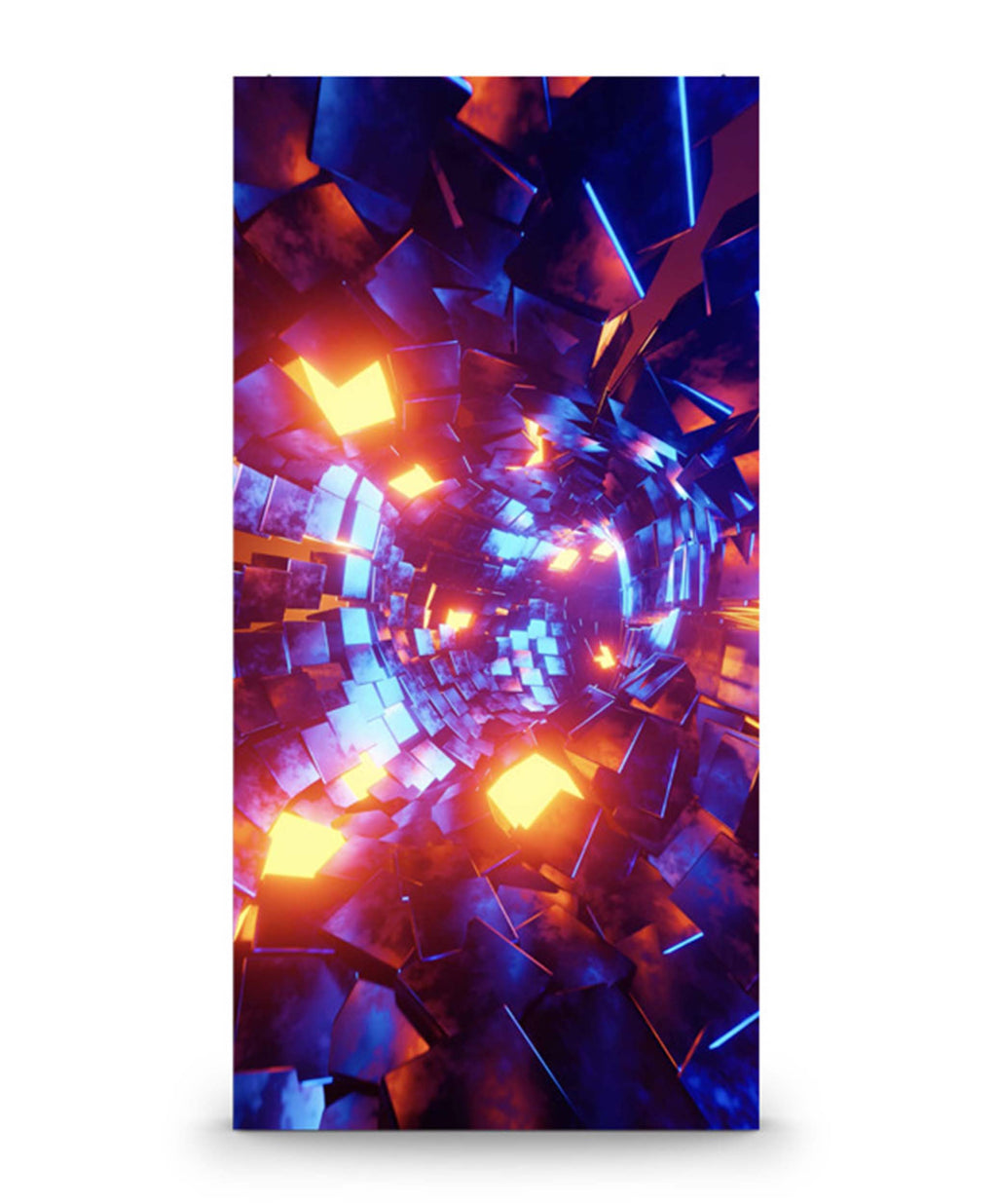

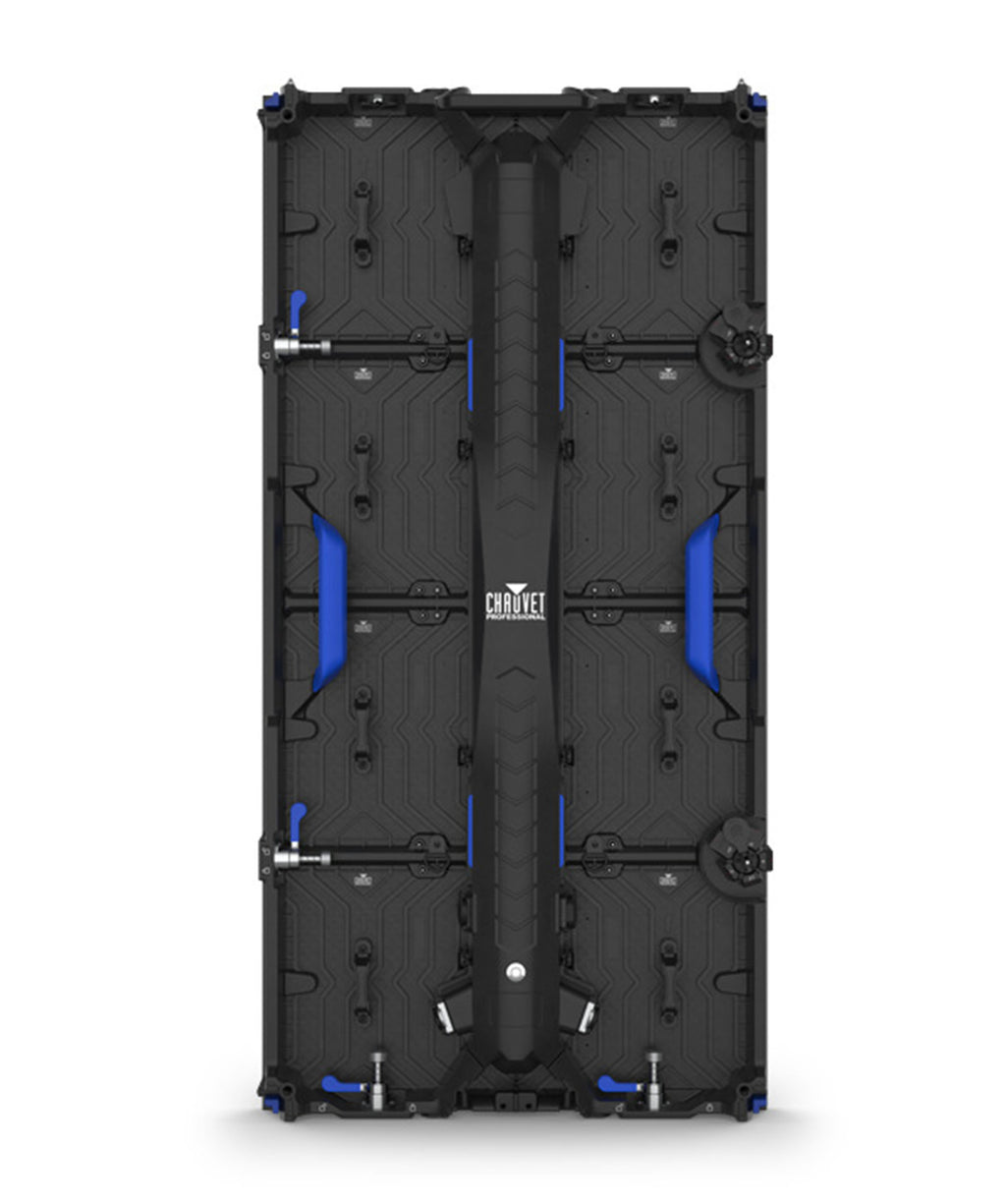

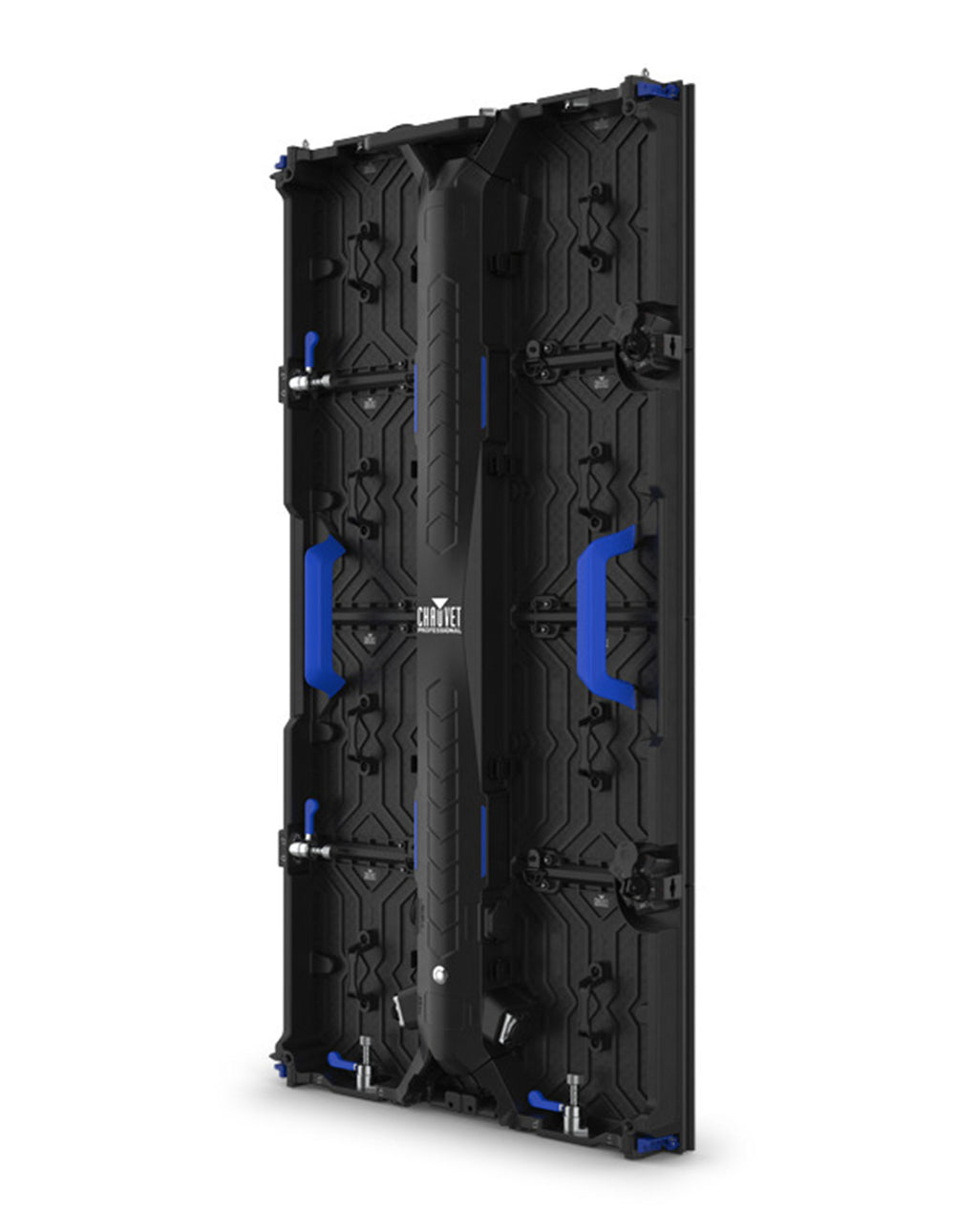

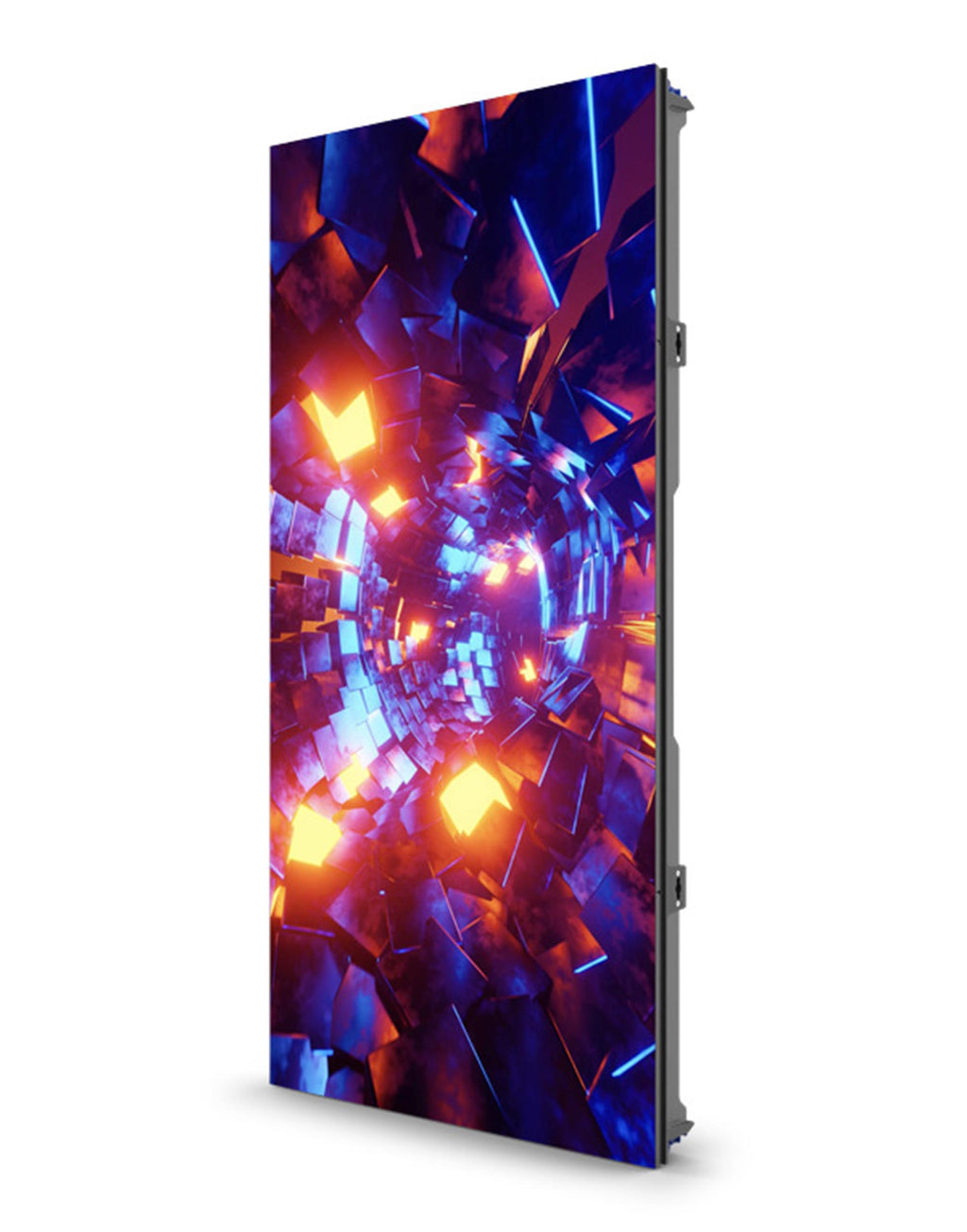

The Chauvet Pro REM 3IP, SMD LED Video Panel 4-Pack is a bright 4500 NITS indoor/outdoor hybrid video wall solution with a 3.9mm pitch, integrated convex/concave curving capabilities, and universal magnetic LED modules. Its DCI-P3 color gamut LEDs offer 26% more color possibilities compared to standard sRGB/Rec.709 LEDs. With high-speed 7680Hz LED drivers, A10s Pro Novastar Receiving cards, and low latency, REM 3IP offers top-tier performance and signal processing for outdoor rental markets as well as offering high quality indoor performance for live stages and events.
Product Specifications:
Light Source: 32,768 LEDs (tri-color RGB) SMD 2121, 100,000 hours life expectancy
Color Wavelength: red (615 to 630 nm), green (520 to 535 nm), blue (465 to 480 nm)
Color Space: DCI-P3
Viewing Angle (H/V): 140°/140°
Calibrated Illuminance: 4,500 NITS (calibrated)
Maximum Illuminance: >5,000 NITS (calibration disabled)
Grayscale: 22-bit+
Receiver Card: A10s Pro
Drive Type: 1/16
Pixels: 128 x 256
Pixel Pitch: 3.9 mm
Minimum Viewing Distance: 7.5 ft (2.3 m)
Pixel Density: 65,536/m2
Display Refresh Rate: 7,680 Hz (S-PWM)
Threaded Bolt: M10, 1.5
Exterior Color: Black
Housing Material: Aluminum ADC12
LED Module Material: Glass filled Polycarbonate
Maximum vertical hang: 11 panels
Power Connection: Edison (local) plug to Seetronic powerKON
Power Input: Seetronic powerKON
Power Output: Seetronic powerKON
Data Connectors: Seetronic etherKON
Cable Length (signal extension): 4 ft (1.2 m)
Cable Length (power): 4 ft (1.2 m)
Cable Length (power extension): 6 ft (1.8 m)
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 5 units @ 120 V; 10 units @ 208 V; 11 units @ 230 V
Power and Current: 300 W, 2.5 A @ 120 V, 60 Hz
Power and Current: 300 W, 1.44 A @ 208 V, 60 Hz
Power and Current: 300 W, 1.3 A @ 230 V, 50 Hz
MET Listing Number: E113093-1110, E113093-1125
IP Rating: IP65/IP54
Thermal Dissipation @120V: 1,024 BTU per hour
Thermal Dissipation @ 208V: 1,024 BTU per hour
Thermal Dissipation @ 230V: 1,024 BTU per hour
Operating Temperature: -4 °F to 122 °F (-20 °C to 50 °C)
Dimensions: 19.69 x 39.37 in (500 x 1000 mm)
Weight: 31.2 lb (14.15 kg)
Exterior Color: Black
