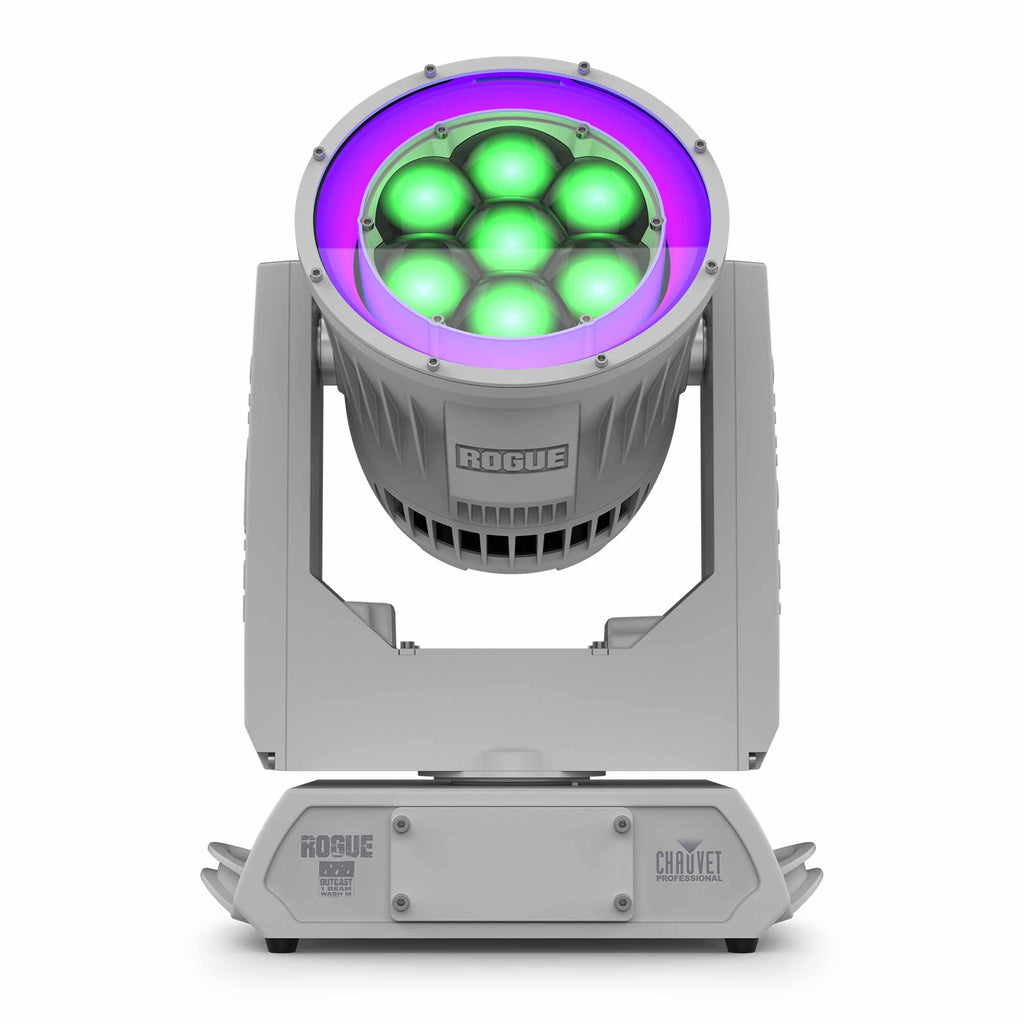

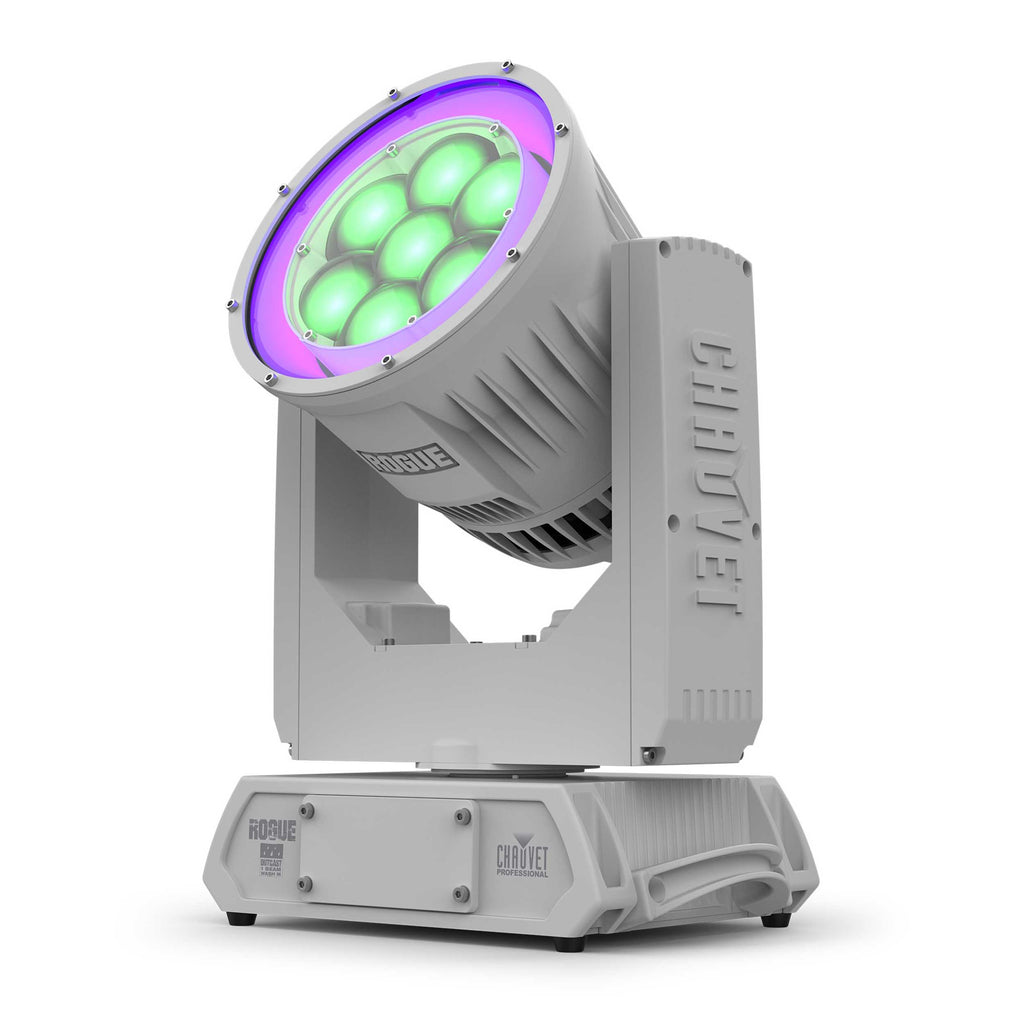

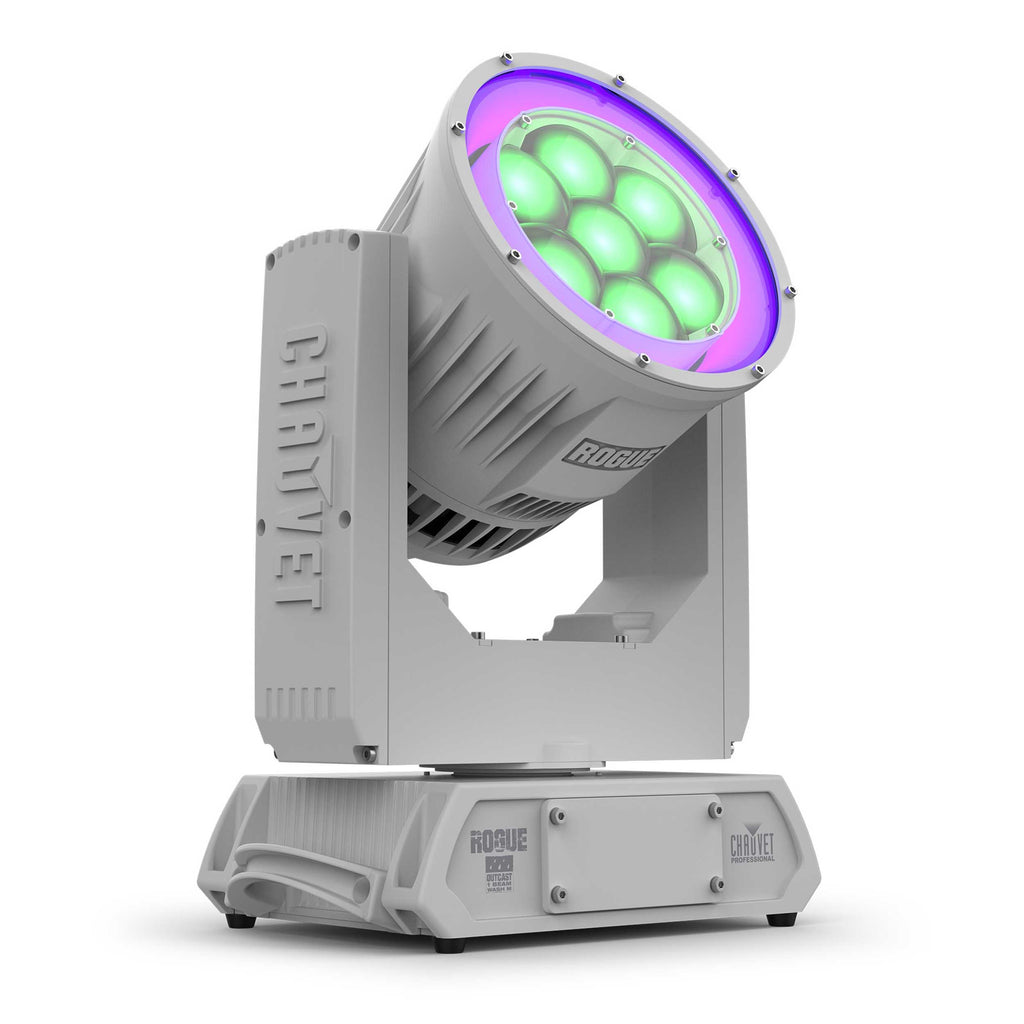

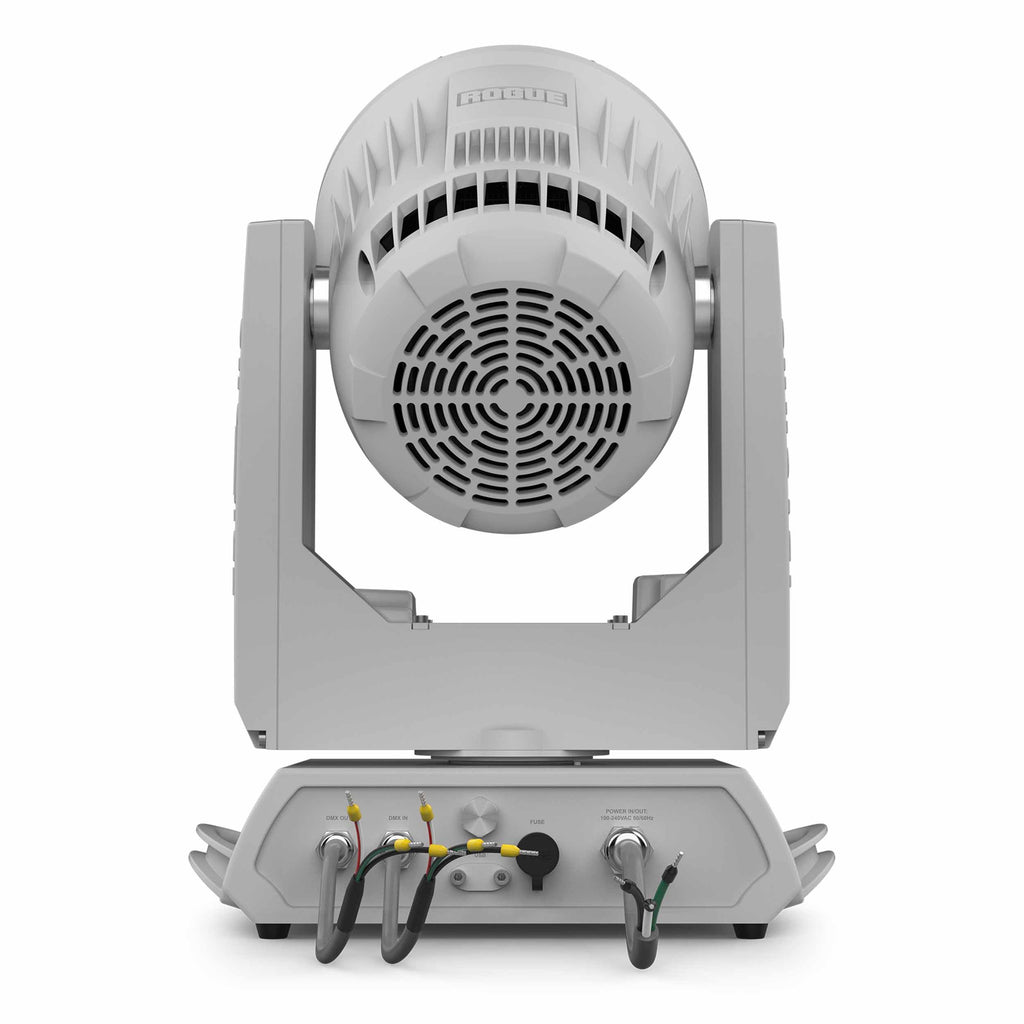

Chauvet Professional Rogue Outcast 1 BeamWash M - IP66 RGBW LED Beam Wash Fixture with Dynamic LED Ring

The Chauvet Professional Rogue Outcast 1 BeamWash M is a versatile IP66-rated moving head fixture designed to deliver both powerful beam effects and vibrant wash capabilities in demanding environments. Built with full aluminum construction, a C5M marine-grade finish, and stainless-steel hardware, it provides exceptional resistance against corrosion and harsh weather conditions, making it ideal for touring productions, cruise ships, theme parks, and permanent architectural installations near coastal areas. A protective display cover further enhances durability, ensuring reliable performance during extended outdoor operation.

Powered by seven high-output 45W RGBW LEDs, the Rogue Outcast 1 BeamWash M produces richly saturated colors, smooth color blending, and impressive output across a wide range of applications. Its unique lens design allows the fixture to transition seamlessly from tight, well-defined 3.9° beam effects to expansive 55.3° wash coverage using its motorized zoom system. Expanding its creative potential even further, a 12-zone pixel-mappable RGB outer LED ring hidden beneath a stealth filter enables dynamic visual effects, chases, and animated patterns. Prebuilt ring programs provide quick access to compelling looks with simple control over effect speed, dimming, and color selection.

Designed for professional workflows, the Rogue Outcast 1 BeamWash M features smooth 16-bit dimming on both the master dimmer and individual colors, along with six selectable dimming modes for refined fade control. A user-selectable calibrated 7500K white option ensures consistent white output when needed, while adjustable PWM settings guarantee flicker-free performance for broadcast and on-camera applications. Professional 5-pin DMX connections, RDM support for remote addressing and diagnostics, and multiple DMX channel personalities offer exceptional programming flexibility. Completing the package, the intuitive OLED display and convenient USB-C software port simplify setup and maintenance, making the Rogue Outcast 1 BeamWash M a dependable all-weather solution for creative lighting professionals.

What's Included

1 x Rogue Outcast 1 BeamWash M

2 x Omega brackets with mounting hardware (2 Allen Key bolts)

1 x Display cover

Product Specifications:

Light Source: 7 x 45W Quad-Color RGBW LEDs

Outer Ring LEDs: 97 x 0.2W Tri-Color RGB LEDs

LED Life Expectancy: 50,000 hours

Color Temperature Range: 2800K – 10000K

Beam Angle: 9.1° – 32.3°

Field Angle: 11.2° – 49.2°

Zoom Range: 3.9° – 55.3°

Zoom Angle: 11° – 63.2°

Lumens (Source): 5,900 lm

Lumens (Output): 4,073 lm

Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

Pan/Tilt: 540° / 260°

Pan/Tilt Ranges: 180°, 360°, 540° Pan / 90°, 180°, 260° Tilt

Dimmer: Electronic

Shutter/Strobe: Electronic

Strobe Rate: 0 – 20 Hz

Zoom: Motorized

Standalone Color Mixing: Yes

Color Temperature Presets: Yes

Dim Curves: 4

Built-In Programs: Yes

Customizable Programs: No

Recall Custom Programs: No

Control Protocols: DMX, RDM

DMX Channels: 15 / 24 / 30 / 64 / 111 / 135

Personalities: 6

Power Connection: Edison Plug to Seetronic PowerKON IP65

Data Connectors: 5-pin XLR

Power Cable Length: 5 ft (1.5 m)

Signal Cable Length: 5 ft (1.5 m)

Input Voltage: 100 – 240 VAC, 50/60 Hz

Power Consumption: 385W Max

Power Linking: 3 Units @ 120V, 6 Units @ 208V, 7 Units @ 230V

Fuse Size: 8A, 250V

Exterior Color: White

Housing Material: Aluminum

Certifications: CE, MET, FCC, UKCA

IP Rating: IP66 Temporary Outdoor/Wet Use with M12 GORE Valve

Operating Temperature: -4°F to 113°F (-20°C to 45°C)

Maximum Surface Temperature: 176°F (80°C)

Maximum Ambient Temperature: 113°F (45°C)

Weight: 20.2 lbs (9.16 kg)

Dimensions: 11.92 x 7.58 x 15.75 in (303 x 192 x 391 mm)

Shipping Weight: 23.59 lbs.

Shipping Dimensions (L x W x H): 18.90 x 10.83 x 14.76 in
