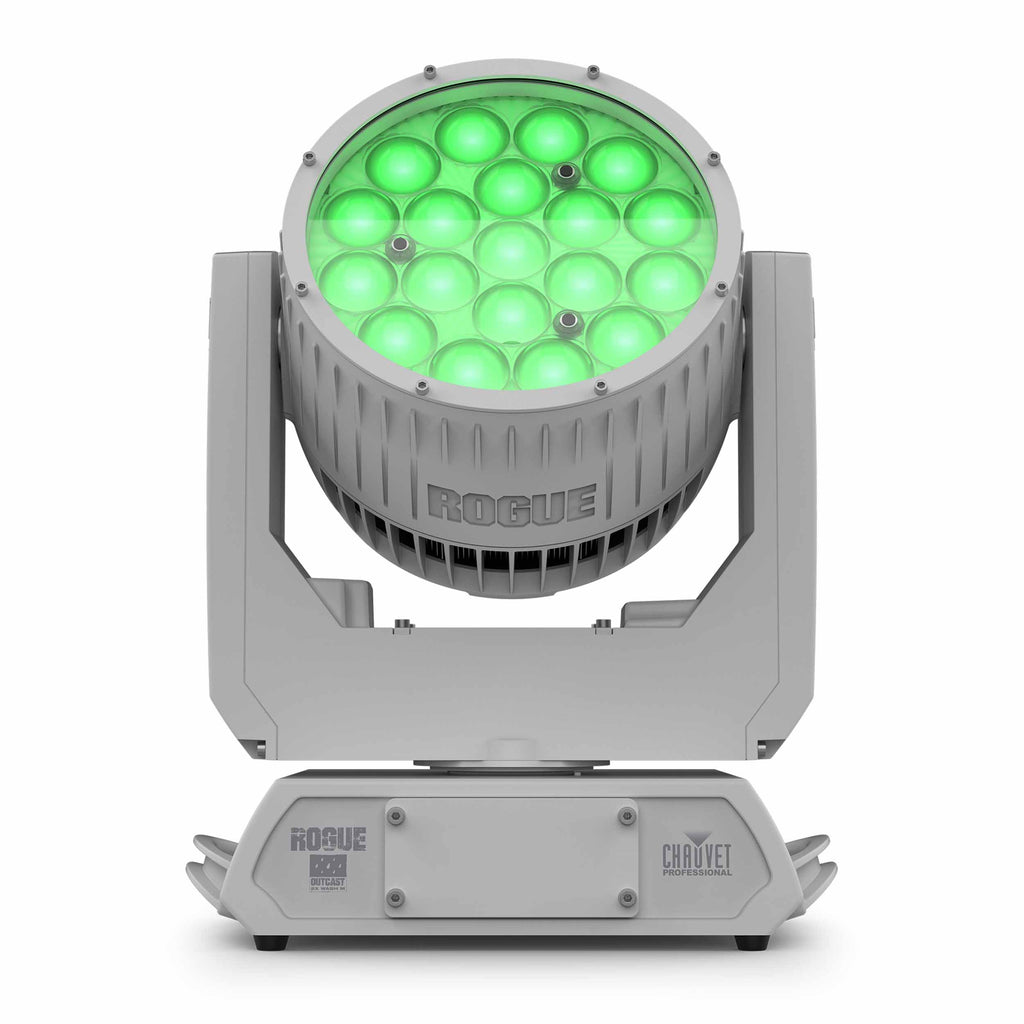

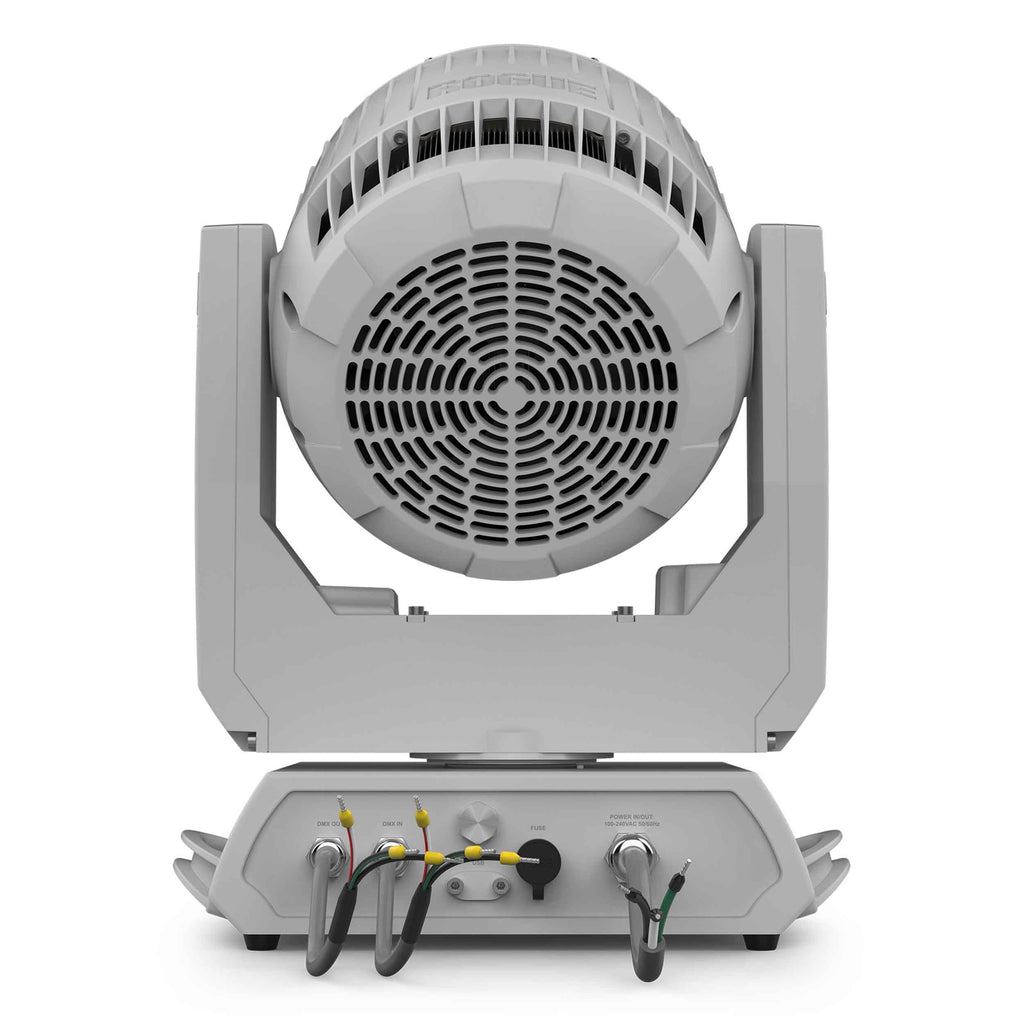

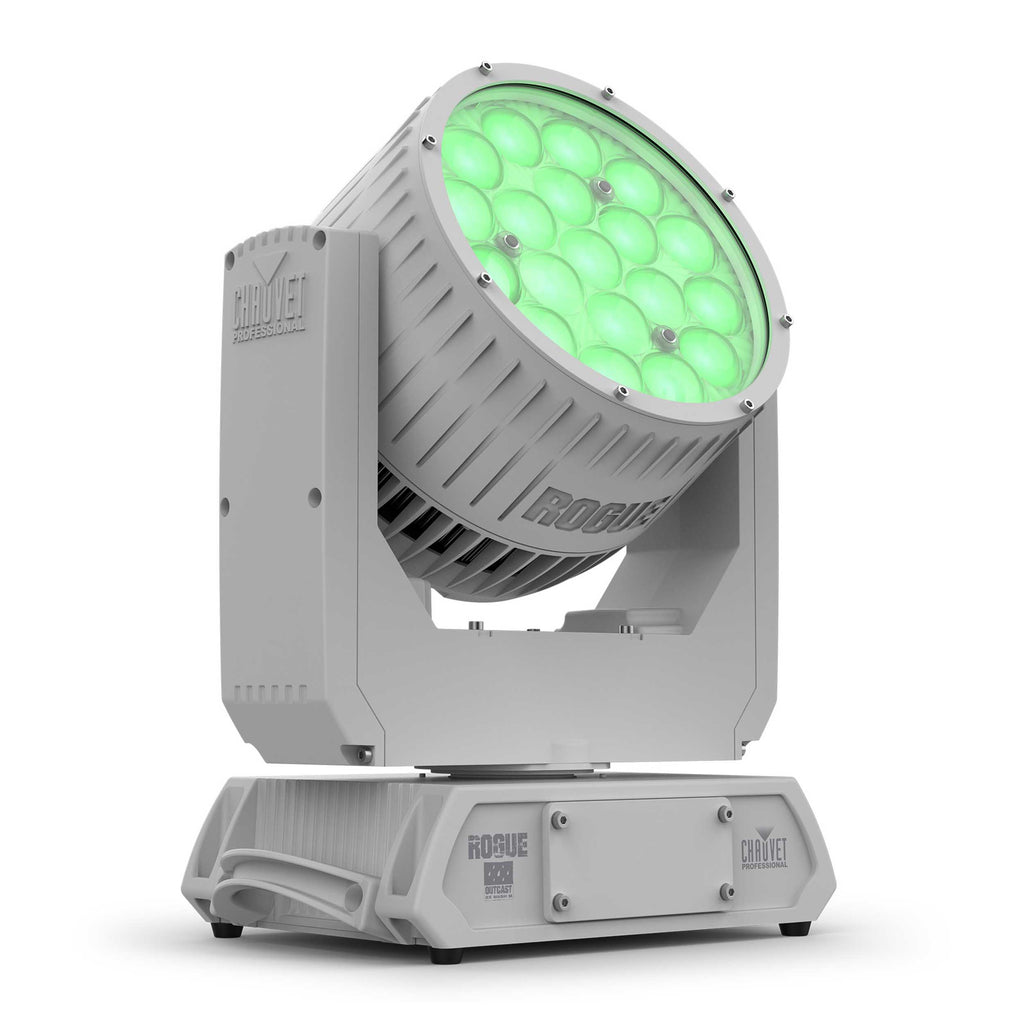

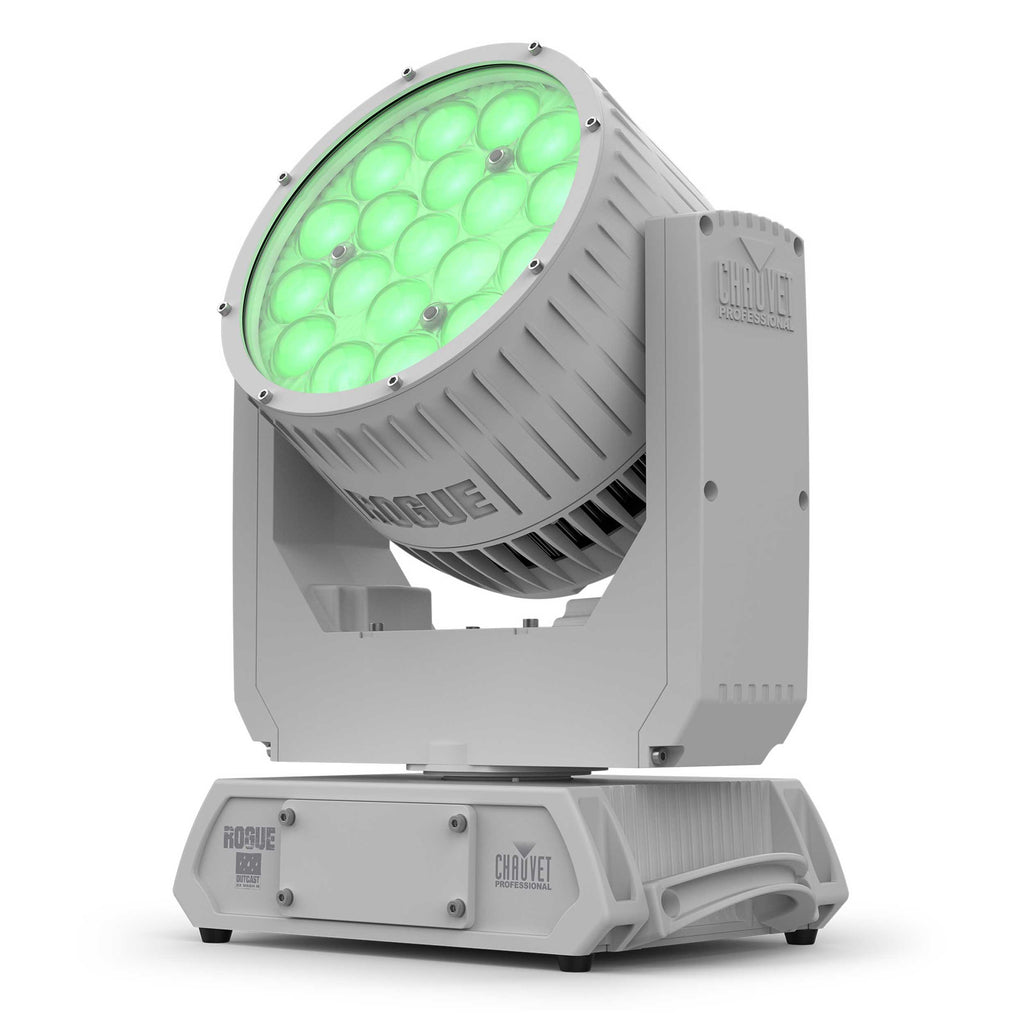

Chauvet Professional Rogue Outcast 2X Wash M - IP66 RGBW LED Moving Wash Fixture with 19x25W LEDs

The Chauvet Professional Rogue Outcast 2X Wash M is a rugged IP66-rated moving head wash fixture built to deliver exceptional performance in the most demanding environments. Constructed with a full aluminum body and finished with a C5M marine-grade coating, it offers enhanced resistance against corrosion, making it ideal for outdoor touring, cruise ships, theme parks, and architectural installations near coastal areas. A protective display cover further safeguards the fixture during extended outdoor use, ensuring dependable operation wherever it is deployed.

At the heart of the fixture are nineteen powerful 25W RGBW LEDs arranged across five independently controllable zones, allowing for vibrant color mixing and captivating pixel-mapping effects. Its versatile motorized zoom range of 7.9° to 63.7° transitions effortlessly from concentrated beams to expansive washes, while fast and smooth pan and tilt movement adds energy and precision to any lighting design. Variable color temperature control, including a user-selectable calibrated 7500K white setting and CCT adjustment from 2800K to 10000K within select DMX personalities, provides exceptional flexibility for stage, broadcast, and architectural applications.

Designed with professional users in mind, the Rogue Outcast 2X Wash M features smooth 16-bit dimming for both the master dimmer and individual colors, delivering refined fades and precise intensity control. Six selectable dimming modes allow further customization of transitions, while adjustable PWM settings ensure flicker-free performance for cameras and live broadcasts. RDM compatibility enables convenient remote addressing and diagnostics, and multiple DMX profiles accommodate both simple and advanced programming requirements. Completing the package, an easy-to-read OLED display and a USB-C software port simplify setup and maintenance, making the Rogue Outcast 2X Wash M a reliable and versatile solution for high-performance lighting applications.

What's Included

1 x Rogue Outcast R2X Wash M

2 x Omega brackets with mounting hardware (2 Allen Key bolts)

1 x Display cover

Product Specifications:

Light Source: 19 x 25W Quad-Color RGBW LEDs

LED Life Expectancy: 50,000 hours

Color Temperature Range: 2800K – 10000K

Beam Angle: 7.9° – 35.3°

Field Angle: 11.6° – 50.5°

Cutoff Angle: 18.5° – 63.7°

Zoom Range: 7.9° – 63.7°

Lumens Output: 5,371 lm

Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

Pan/Tilt: 540° / 270°

Pan/Tilt Ranges: 180°, 360°, 540° Pan / 90°, 180°, 270° Tilt

Dimmer: Electronic

Shutter/Strobe: Electronic

Strobe Rate: 0 – 20 Hz

Zoom: Motorized

Standalone Color Mixing: Yes

Color Temperature Presets: Yes

Dim Curves: 6

Built-In Programs: Yes

Customizable Programs: Yes

Recall Custom Programs: Yes

Control Protocols: DMX, RDM

DMX Channels: 15 / 17 / 22 / 23 / 33 / 54 / 55 / 56

Personalities: 8

Power Connection: Termination-Ready Bare-Ended

Data Input/Output: Termination-Ready Bare-Ended

Power Cable Length: 5 ft (1.5 m)

Signal Cable Length: 5 ft (1.5 m)

Input Voltage: 100 – 240 VAC, 50/60 Hz

Power Consumption: 291W Max

Power Linking: 5 Units @ 120V, 9 Units @ 208V, 10 Units @ 230V

Exterior Color: White

Housing Material: Aluminum

Certifications: CE, MET, FCC, UKCA

IP Rating: IP66 Temporary Outdoor/Wet Use with M12 GORE Valve

Weight: 21.2 lbs (9.6 kg)

Dimensions: 11.92 x 8.58 x 14.1 in (303 x 218 x 361 mm)

Shipping Weight: 30.86 lbs.

Shipping Dimensions (L x W x H): 17.52 x 12.20 x 14.76 in
