Description

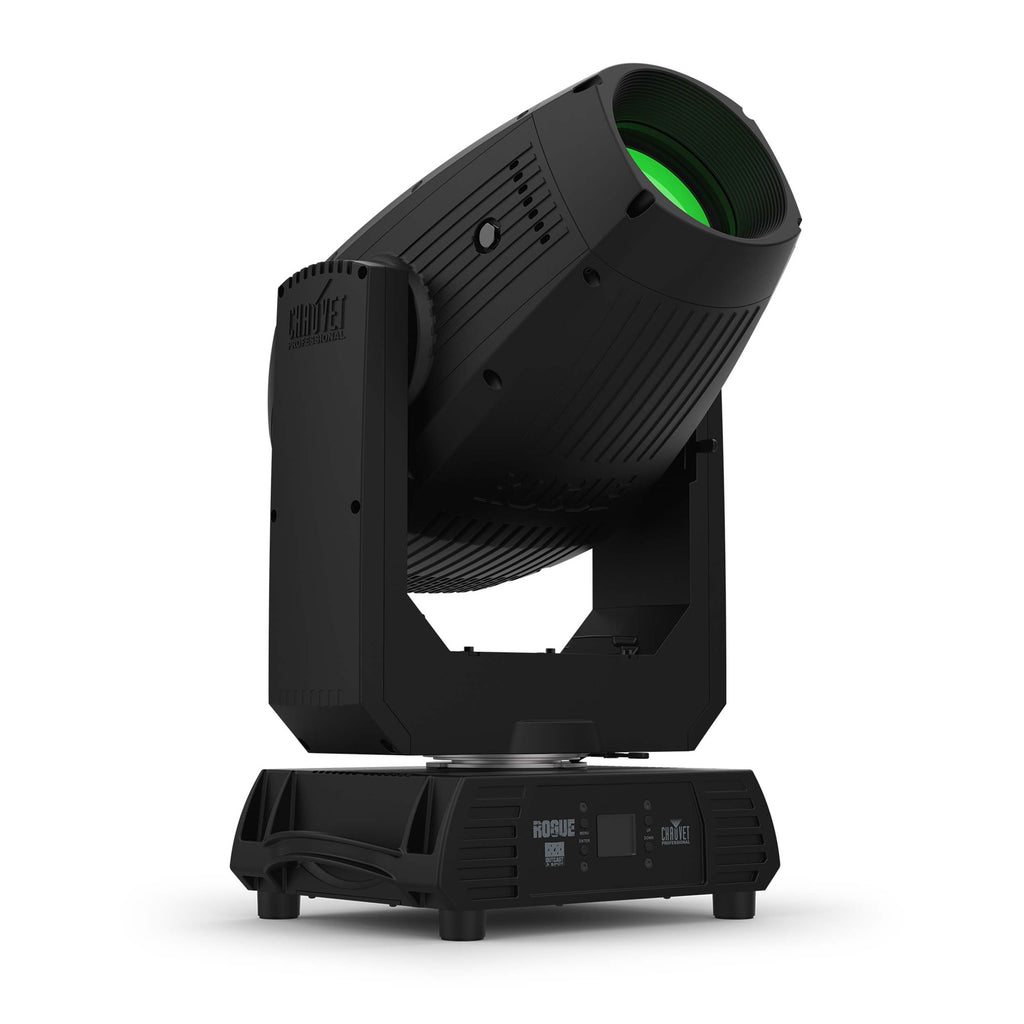

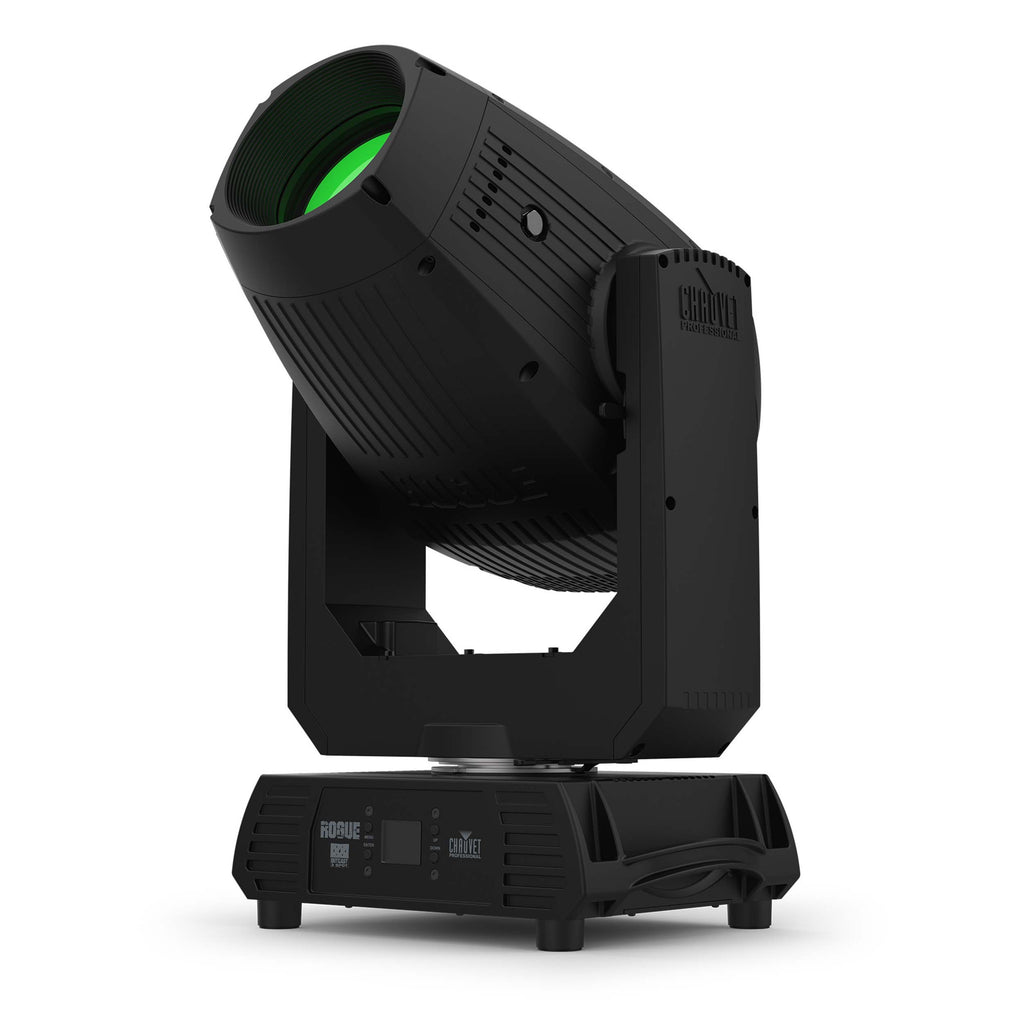

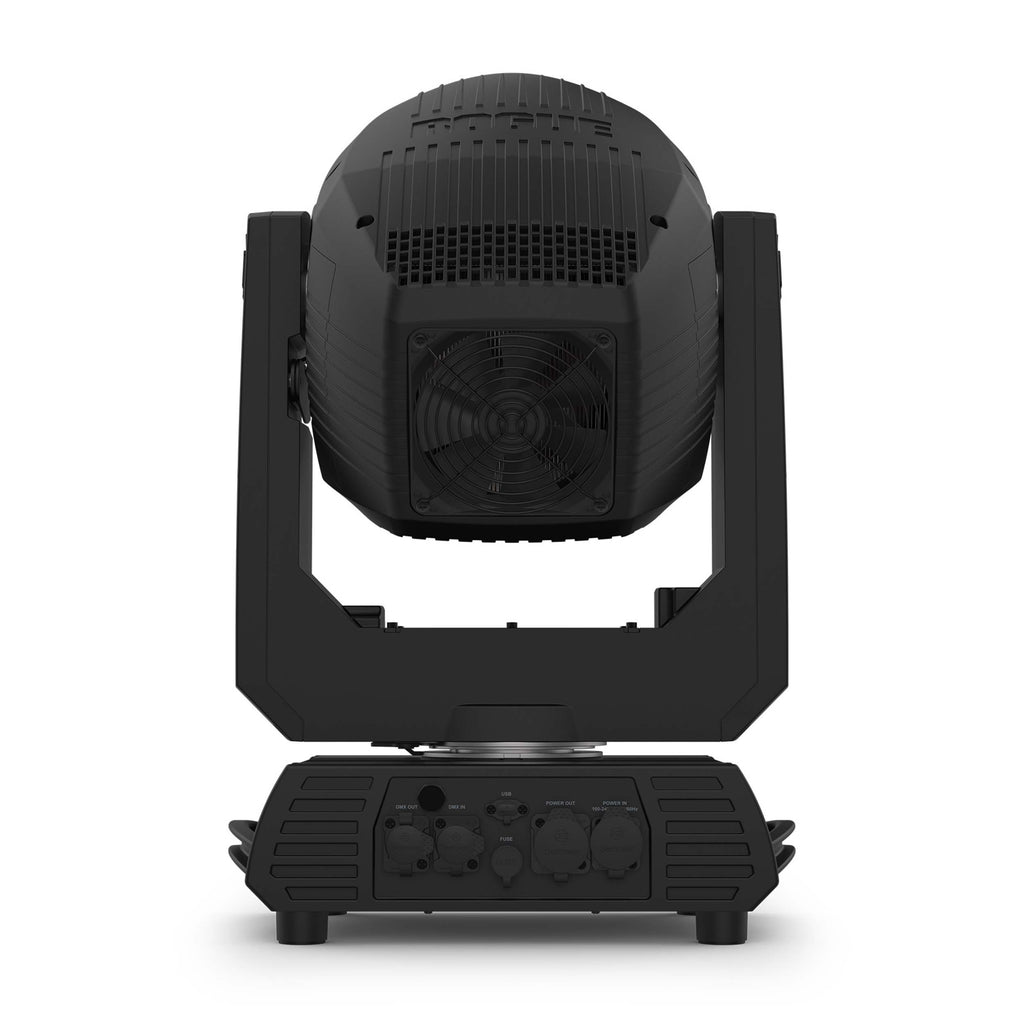

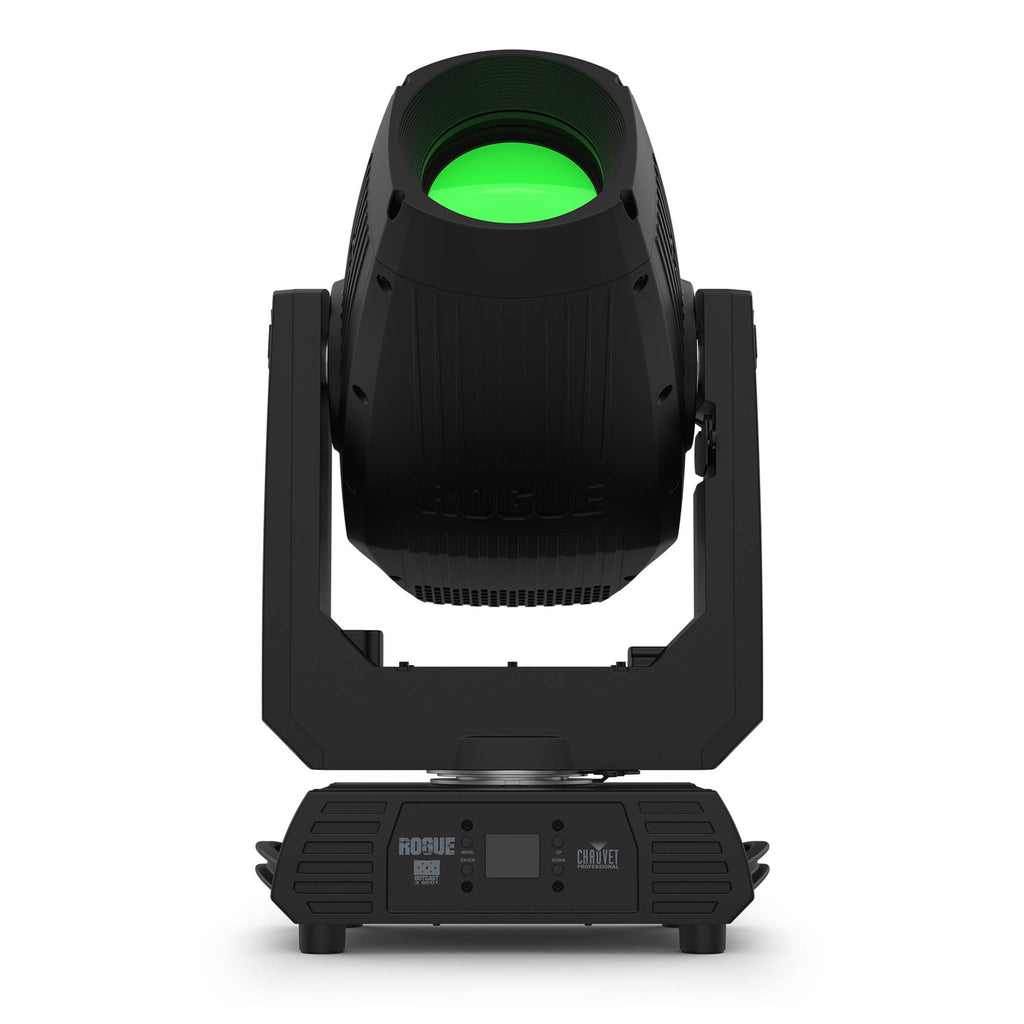

The Chauvet Professional Rogue Outcast 3 Spot-2 is a compact IP65-rated LED moving head spot fixture designed to deliver powerful performance in both indoor and outdoor environments. Built with a lightweight aluminum and magnesium alloy housing, it provides exceptional durability while protecting against rain, dust, fog, and haze. Powered by a potent 300W cool white LED engine with a 7044K color temperature, this versatile fixture combines impressive output with low-maintenance reliability, making it an excellent choice for touring productions, permanent installations, outdoor events, and broadcast applications.
Engineered for creative flexibility, the Rogue Outcast 3 Spot-2 features a wide motorized zoom range from 4.9° to 38.7°, allowing it to produce everything from tight aerial beams to broad stage coverage. Dual color wheels, each loaded with seven colors, provide split-color effects and continuous scrolling for rich, layered looks. Complementing the color system are dual gobo wheels, including one fixed scrolling wheel and one rotating interchangeable wheel, enabling seamless gobo morphing and dynamic visual transitions. Additional beam-shaping tools such as an integrated iris, 5-facet prism, and frost filter expand its capabilities for creating sharp projections, striking aerial effects, and soft wash textures.
Designed to integrate seamlessly into professional lighting systems, the Rogue Outcast 3 Spot-2 offers smooth 16-bit dimming for refined fades and precise intensity control. Selectable PWM settings ensure completely flicker-free performance for television, film, and live-stream productions, while multiple DMX personality options provide programming flexibility for users of all experience levels. Standard 5-pin DMX connections, RDM support for remote addressing and diagnostics, IP65-rated power linking, and a convenient USB-C port for software updates complete this feature-rich package. Combining weatherproof construction with an extensive effects suite, the Rogue Outcast 3 Spot-2 delivers dependable performance and creative versatility wherever the show takes place.
Product Specifications:
Light Source: 1 x 300W Cool White LED
LED Life Expectancy: 50,000 hours
Color Temperature: 7044K
CRI: 70
Front Lens Diameter: 119 mm
Beam Angle: 4.9° – 33.7°
Field Angle: 5.5° – 38°
Cutoff Angle: 5.6° – 38.7°
Zoom Range: 4.9° – 38.7°
Lumens (Source): 20,000 lm
Lumens (Output): 14,989 lm
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz
Pan/Tilt: 540° / 270°
Pan/Tilt Ranges: 180°, 360°, 540° Pan / 90°, 180°, 270° Tilt
Color Wheel 1: 7 Colors + White
Color Wheel 2: 7 Colors + White
Rotating Gobos: 7 Metal Gobos + Open
Static Gobos: 8 Metal Gobos + Open
Gobo Wheel 1 Size: 25.5 mm Outside / 14.8 mm Image / 2 mm Thickness
Gobo Wheel 2 Size: 24 mm Outside / 16 mm Image / 0.6 mm Thickness
Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 – 20 Hz
Zoom: Motorized
Focus: Motorized
Frost: Motorized
Iris: Motorized
Prism: 5-Facet, Motorized, Rotating
Move-in-Black: Yes
Control Protocols: DMX, RDM
DMX Channels: 20 / 25
Personalities: 2
Power Connection: Edison Plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 5-pin XLR
Power Cable Length: 5 ft (1.5 m)
Input Voltage: 100 – 240 VAC, 50/60 Hz
Power Consumption: 510W Max
Power Linking: 2 Units @ 100V, 3 Units @ 120V, 5 Units @ 208V, 6 Units @ 230V, 6 Units @ 240V
Exterior Color: Black
Housing Material: High-Impact Flame-Retardant Polymer
Certifications: CE, MET, UKCA
IP Rating: IP65
Operating Temperature: -14°F to 113°F (-10°C to 45°C)
Maximum Surface Temperature: 176°F (80°C)
Maximum Ambient Temperature: 113°F (45°C)
Noise Level (Idle): 24.2 dB(A) @ 1 m
Noise Level (Eco): 31.0 dB(A) @ 1 m
Noise Level (Auto): 34.5 dB(A) @ 1 m
Noise Level (Max): 33.9 dB(A) @ 1 m
Noise Level (Full): 46.9 dB(A) @ 1 m
Weight: 51 lbs (23.2 kg)
Dimensions: 14.41 x 9.61 x 25.16 in (366 x 244 x 639 mm)
Shipping Weight: 63.49 lbs.
Shipping Dimensions (L x W x H): 28.54 x 13.58 x 17.72 in
